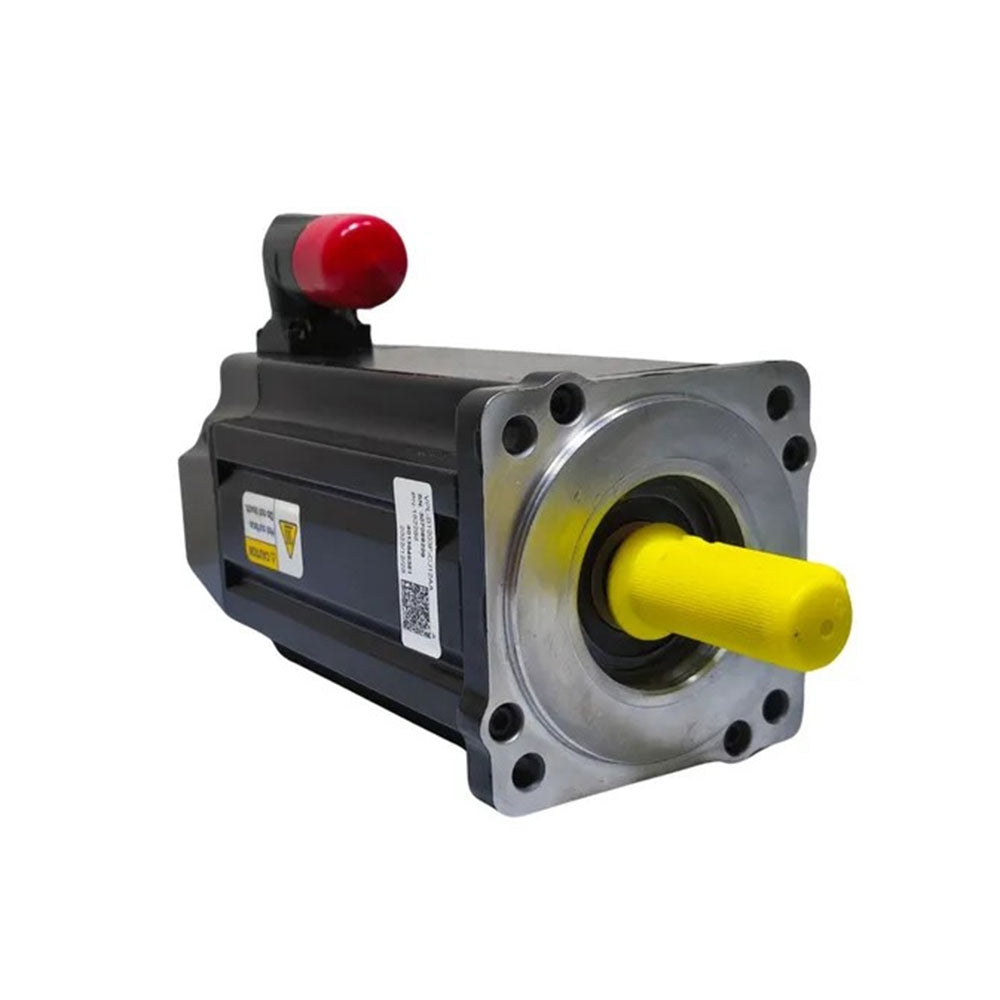

The Allen Bradley VPL-B1003F-PJ12AA Kinetix VP Low Inertia Servo Motor is a high-performance, low-inertia servo motor with optimized system sizing that is designed to work with the Kinetix 5500 drives. This servo motor has a high-energy, rare-earth, permanent magnet rotor, which provides users with a high torque-to-size ratio at very low inertia, and it features single-cable technology, with a shaft-ended thread hole for easy installation. The VPL-B1003F-PJ12AA has a rated winding voltage class of 400 Volts AC, with 4750 RPM maximum rated rotor speed at 400 Volts AC, and it has a rated output power of 1.65 Kilowatts (2.21 Horsepower). The VPL-B1003F-PJ12AA has a winding stall torque of 4.18 N-m (37.0 pounds on an inch), with a rated peak stall torque of 11.15 N-m (99. pounds on an inch). This servo motor is designed to provide 20,000 hours of bearing fatigue life, with a maximum radial load of 74.3 kilograms at 1000 RPM base speed and 44.2 kilograms at 5000 RPM rotor speed.

The VPL-B1003F-PJ12AA does not come with a 24 Volts DC braking option, but it is designed with an 18-bit absolute multi-turn digital encoder which supports the Hiperface DSL protocol and it can provide high-resolution absolute position feedback within 4096 turns. It has a triple-stack magnetic length, with a 100-millimeter frame size, and it is designed with a shaft key. It is also designed with a single SpeedTec DIN connector with a maximum rotatable angle of 325 degrees, and it comes in an IP50-rated environmental enclosure, which has IEC-rated free mounting holes. The VPL-B1003F-PJ12AA has a rated operating temperature range of 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit), and it can be stored at a range of -30 to 40 degrees Celsius (-22 to 104 degrees Fahrenheit). The VPL-B1003F-PJ12AA weighs approximately 7.54 kilograms, with total dimensions of 131.2 x 220.6 x 89.4 millimeters, and is UL, CSA, and CE-certified.
