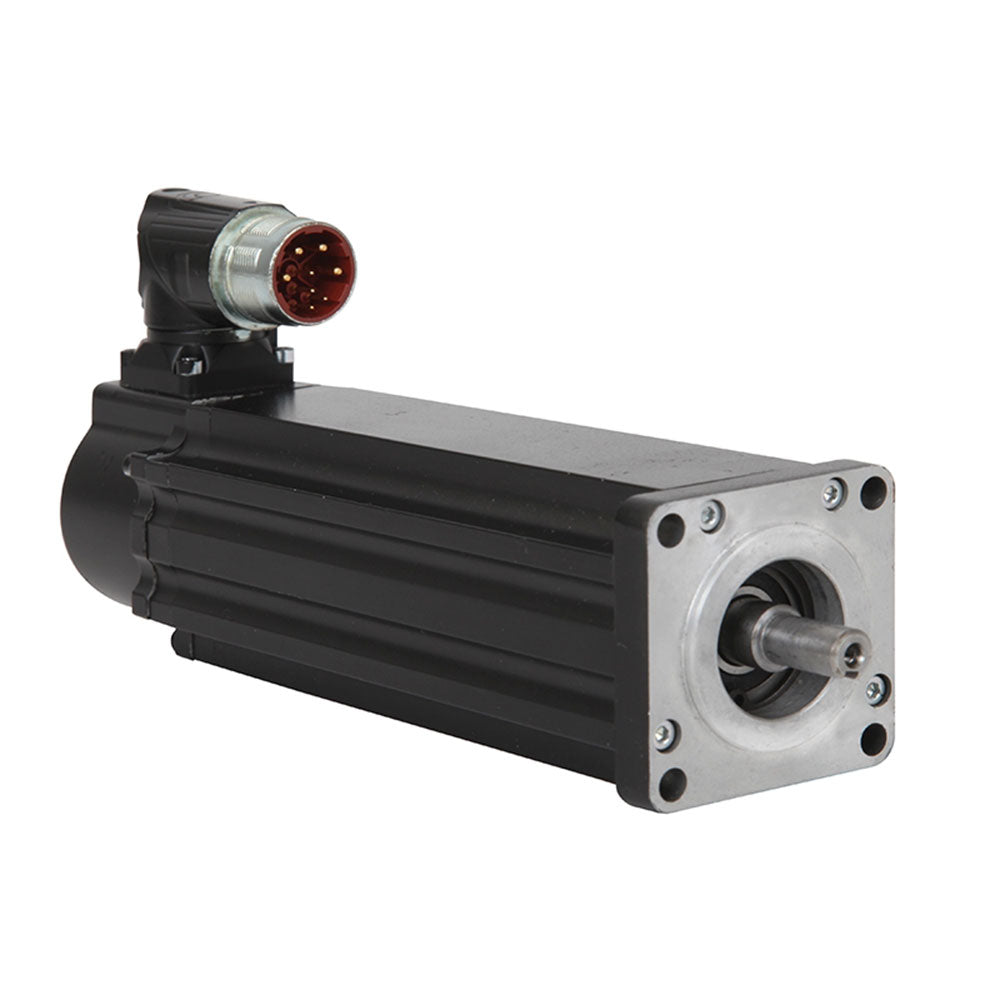

The VPL-B1003C-CJ14AS from Allen-Bradley is a low-inertia servo motor that excels in dynamic applications. This unit operates at a voltage of 400V and provides reliable performance at a rated speed of 2500 RPM. Its design includes a frame size measuring 100 mm, allowing it to fit comfortably within compact installations.

The motor features three integrated magnet stacks, which contribute significantly to its efficiency and responsiveness. Positioned for effective performance, it includes an 18-bit absolute single-turn digital encoder utilizing the Hiperface DSL communication protocol, ensuring precise feedback in various control scenarios.

For added reliability, the motor's shaft is equipped with a shaft key, facilitating secure connections with complementary components. Installation is straightforward with the included single SpeedTec DIN connector, configured at a right angle and allowing for rotation up to 325 degrees. This flexibility aids in accommodating differing layout constraints.

The mounting flange adheres to IEC metric standards, complete with free mounting holes of type FF, which simplifies the integration process. Also available are factory options, including a shaft seal for added protection against environmental factors. Additionally, the motor comes with a 24V DC brake to ensure controlled operation. The VPL-B1003C-CJ14AS is ideal for applications that require precise and efficient control.
