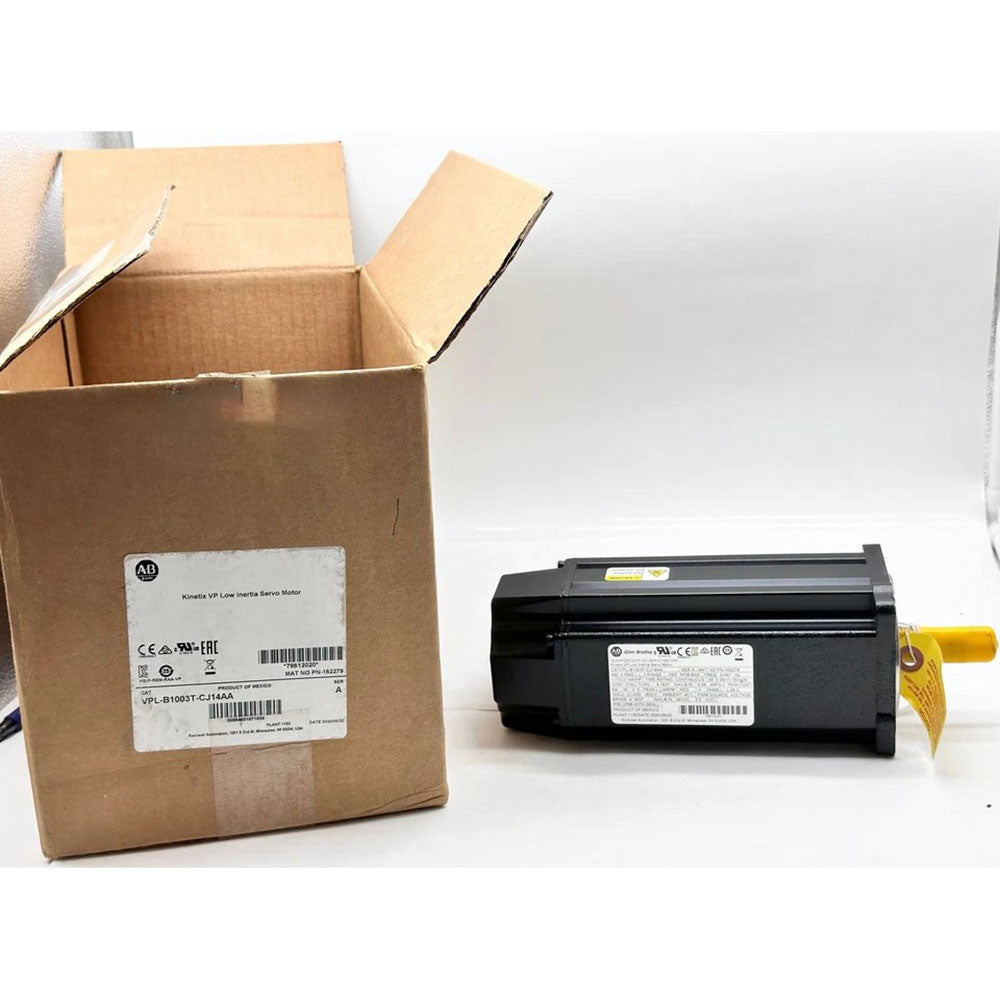

The VPL-B1003T-CJ14AA is an efficient low-inertia servo motor designed by Allen-Bradley, part of the Rockwell Automation family. This motor operates at 400 volts and features a compact frame size of 100 mm, achieving an impressive rated speed of 6750 rpm.
Technical specifications for VPL-B1003T-CJ14AA
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Low-inertia Servo Motor |
| Product Line | VPL Servo Motors |
| Part Number | VPL-B1003T-CJ14AA |
| Weight | 10.06 lbs (4.56 kg) |
| Voltage | 400V |
| Frame Size | 100 mm |
| Rated Speed | 6750 rpm |
| Magnet Stacks | 3 |
| Feedback | 18-bit absolute single-turn digital encoder (Hiperface DSL protocol) |
| Shaft | Shaft Key |
| Connector | Single SpeedTec DIN connector, right angle, 325° rotatable |
| Mounting Flange | IEC metric, free mounting holes (type FF) |
| Factory Options | Standard |
| Brake | 24V DC |
Description
The Allen-Bradley VPL-B1003T-CJ14AA is a cutting-edge low-inertia servo motor designed for robust industrial applications. With a voltage specification of 400 volts, this unit is well-suited for environments requiring high-performance control. It has a frame size of 100 mm and is capable of reaching a rated speed of up to 6750 rpm. This feature makes it ideal for processes that demand quick response times.
Equipped with three magnet stacks, the motor provides enhanced efficiency and performance. The feedback mechanism utilizes an 18-bit absolute single-turn digital encoder, which operates on the Hiperface DSL protocol. This allows for accurate motion control, making this motor a reliable choice for precision applications.
The shaft of the VPL-B1003T-CJ14AA is designed with a key, ensuring reliable engagement with mechanical components. Installation is simplified through the innovative connector design, featuring a single SpeedTec DIN connector that is angled and rotatable by 325 degrees, facilitating flexible wiring options.
For mounting, the servo motor includes an IEC metric flange with free mounting holes categorized as type FF, ensuring compatibility with various setups. The product includes standard factory options and integrates a 24V DC brake system to enhance control during operation. This combination of features positions the VPL-B1003T-CJ14AA as a versatile solution suitable for numerous automation tasks.
