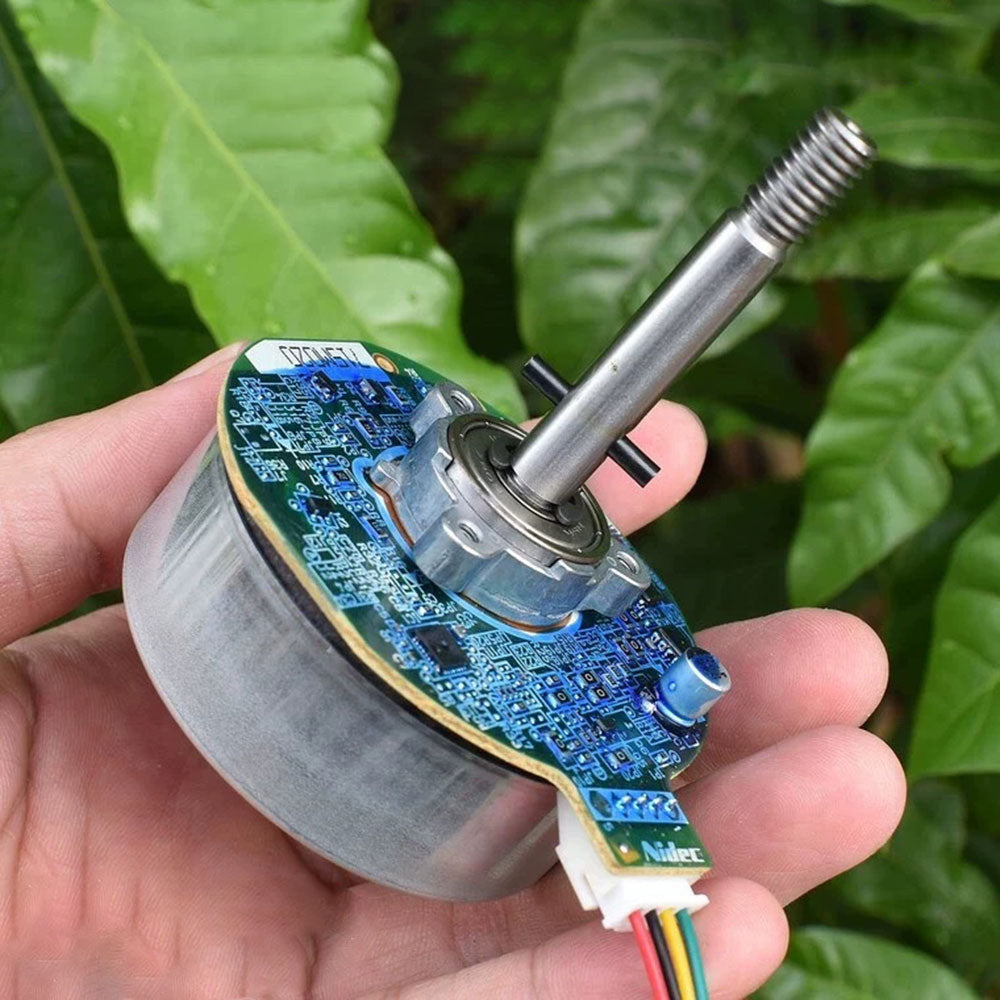

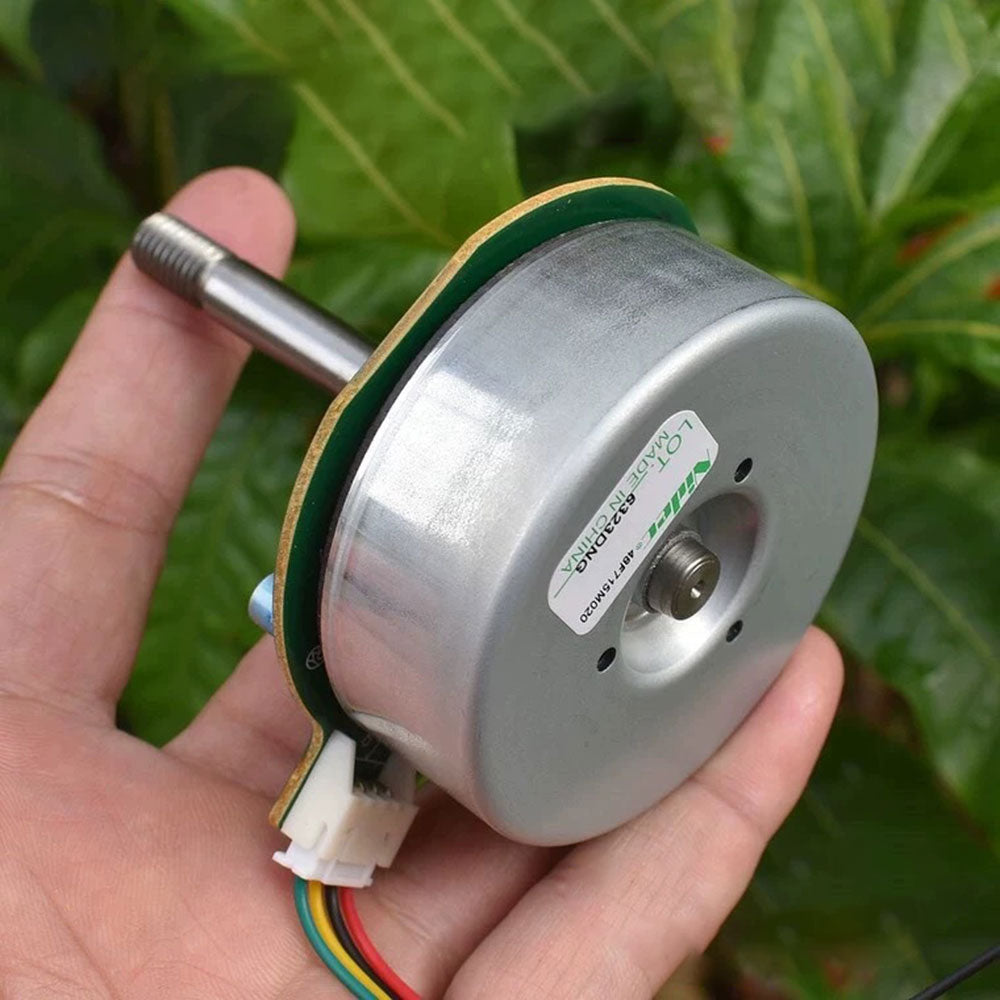

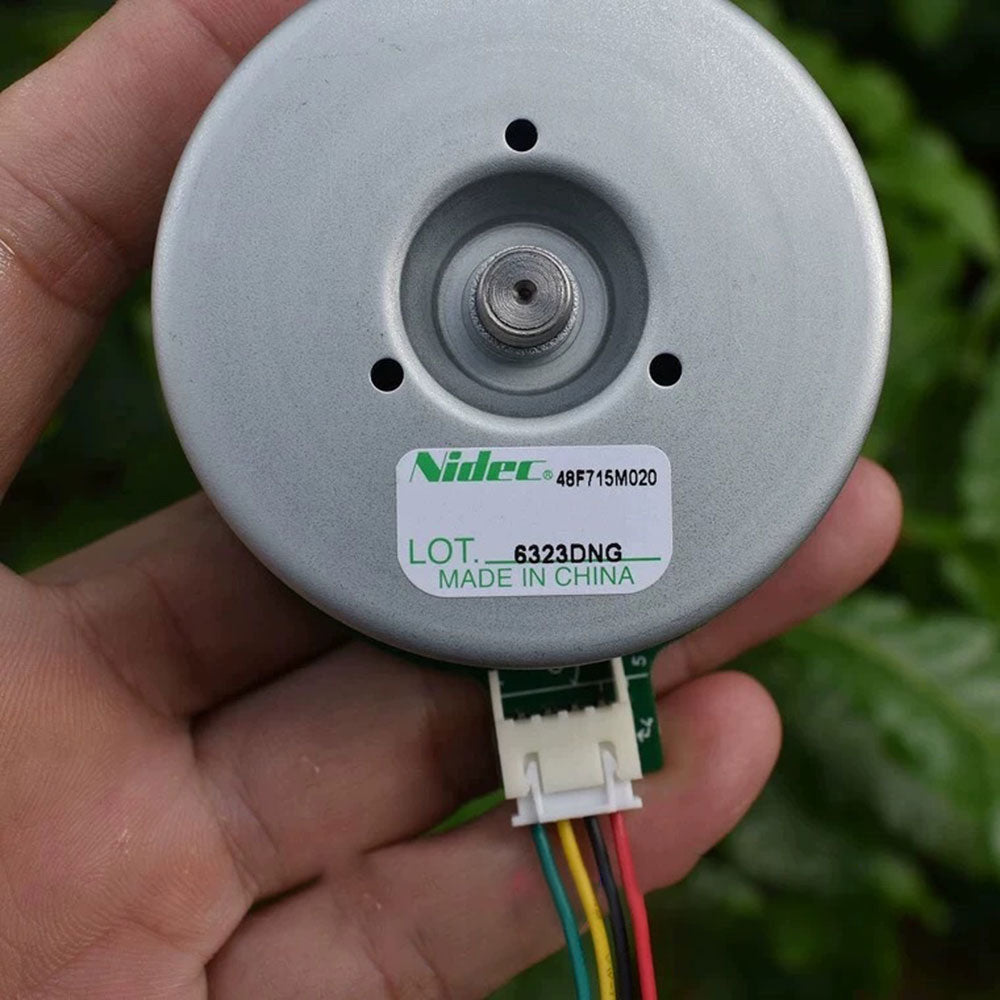

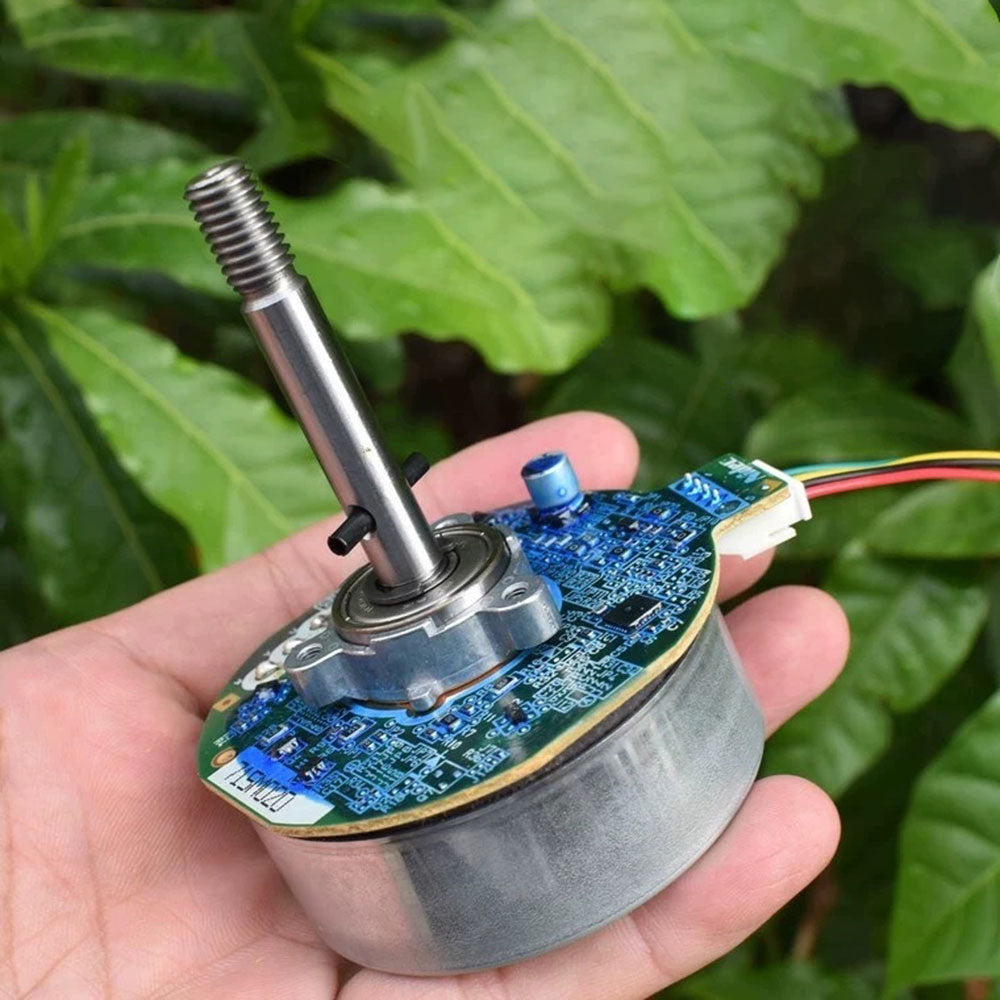

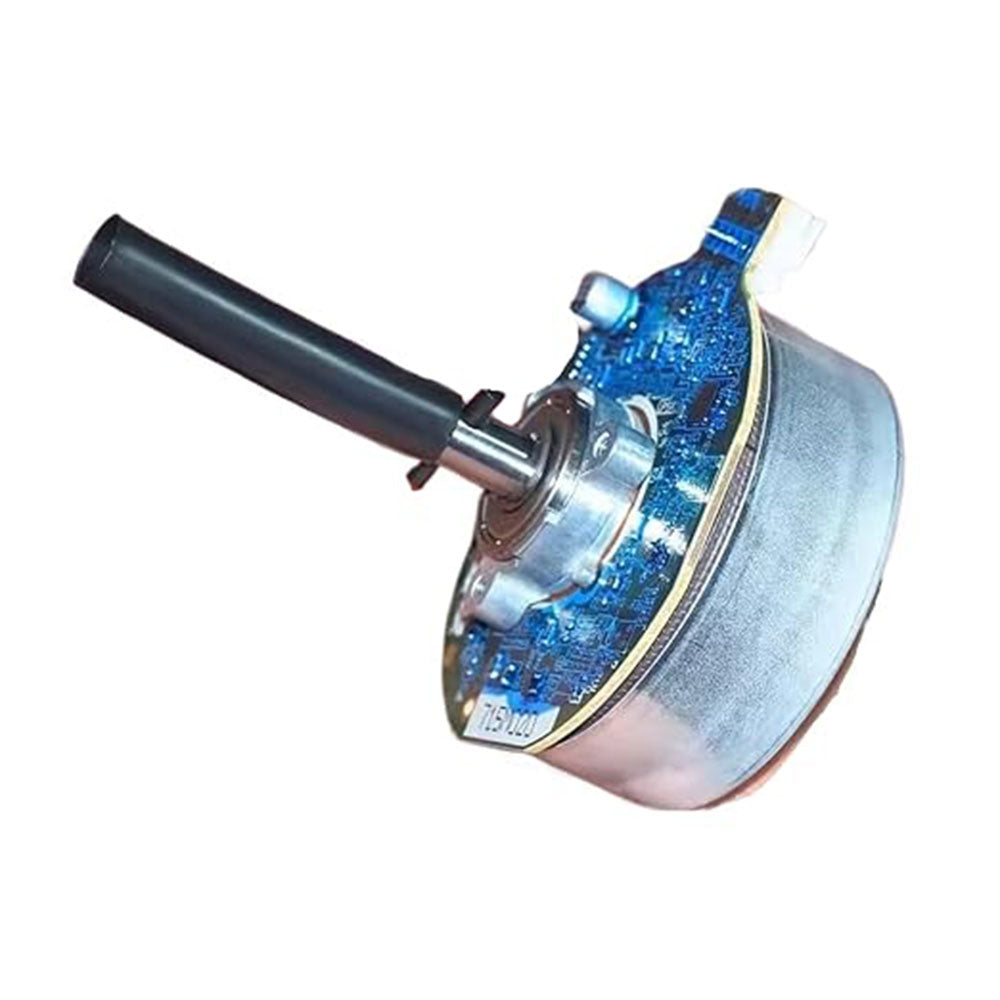

The 48F715M020 is a 61mm external rotor brushless DC motor (BLDC) manufactured by Nidec. It features an integrated 3-phase driver, imported NSK dual ball bearings, and PWM speed control support, making it widely used in air purifiers, HVAC systems, and DIY robotics.
Technical Specifications
· Operating Voltage: 12V - 24V DC
· Speed Range: 3000rpm - 4100rpm
· Power Output: 15W - 30W (Max)
· Bearing Type: NSK Dual Ball Bearings
· Driver: Integrated 3-Phase with PWM support
Operating Guidelines
· Do NOT connect this motor directly to 110V or 220V AC mains power, as it will cause permanent damage.
· PWM Control: The motor requires a PWM signal (typically within a standard 1kHz - 20kHz frequency range) to adjust the speed.
· Reversibility: Check the specific wiring harness datasheet; some variants support directional reversal through a designated control pin.
