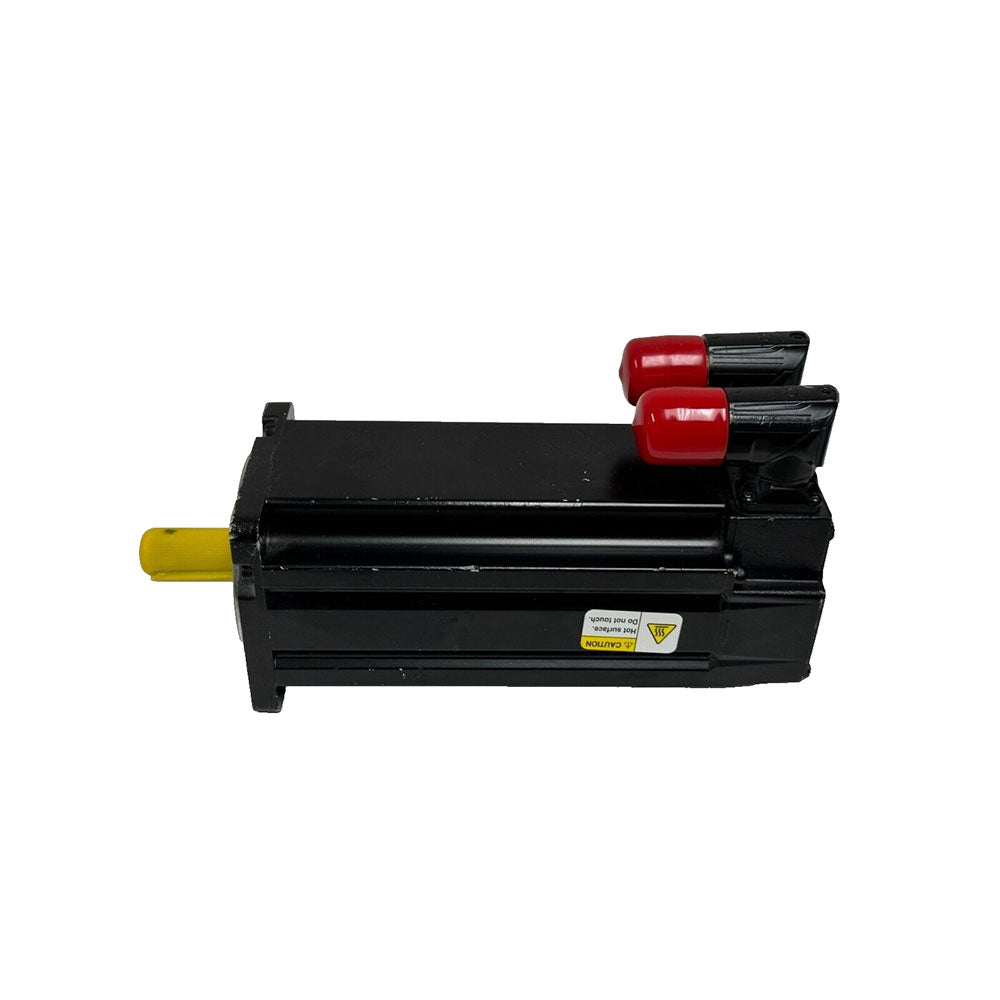

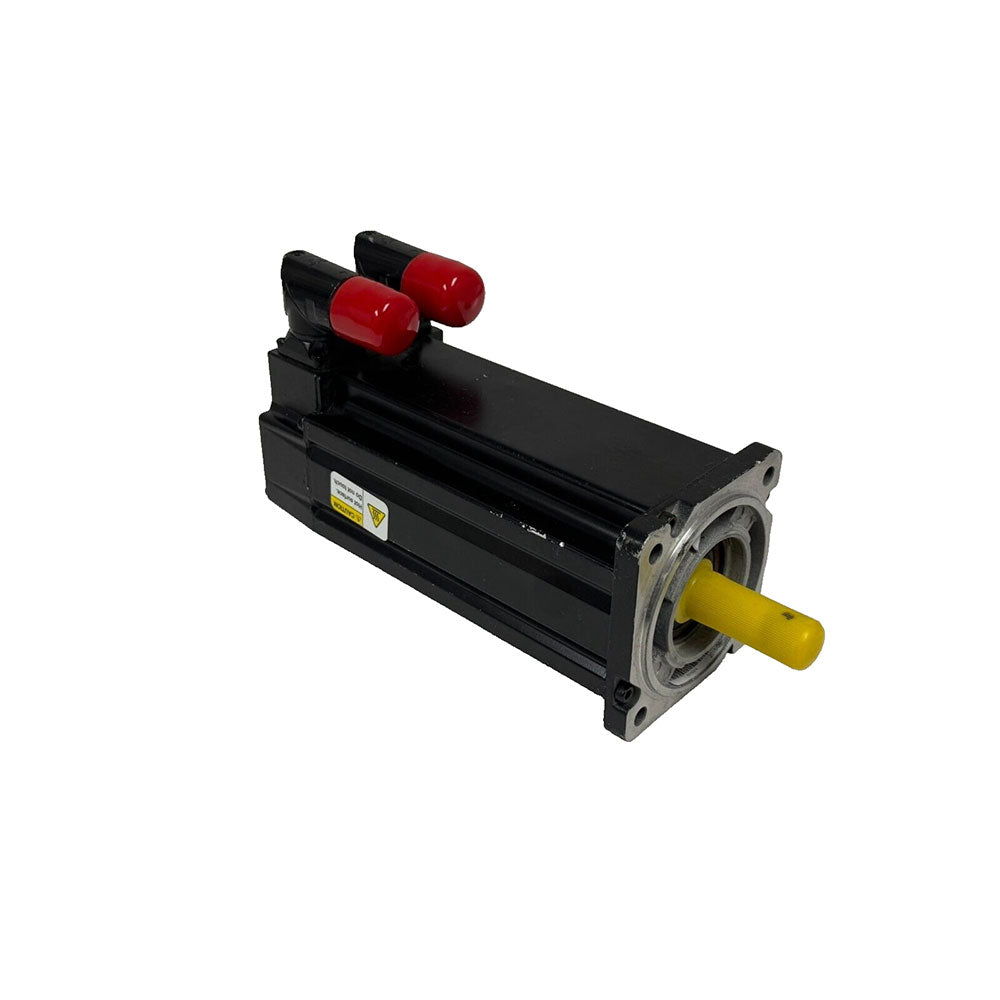

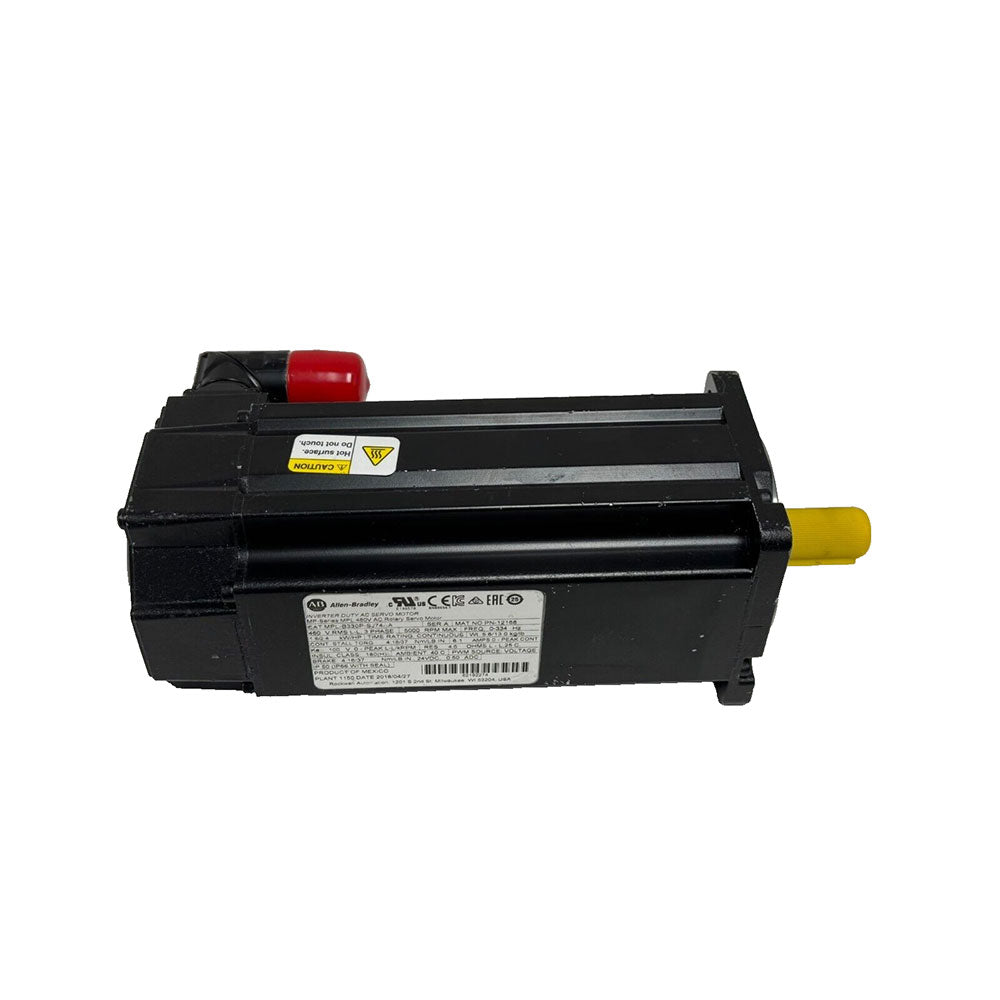

Allen-Bradley MPL-B330P-SJ74AA Servo Motor 460V 5000RPM

Product Overview

The Allen-Bradley MPL-B330P-SJ74AA is a high-performance servo motor from the Kinetix MPL series, designed for precision motion control applications. Built with durable construction and advanced magnetic technology, this motor delivers reliable operation in demanding industrial environments.

Key Specifications

Parameter Value

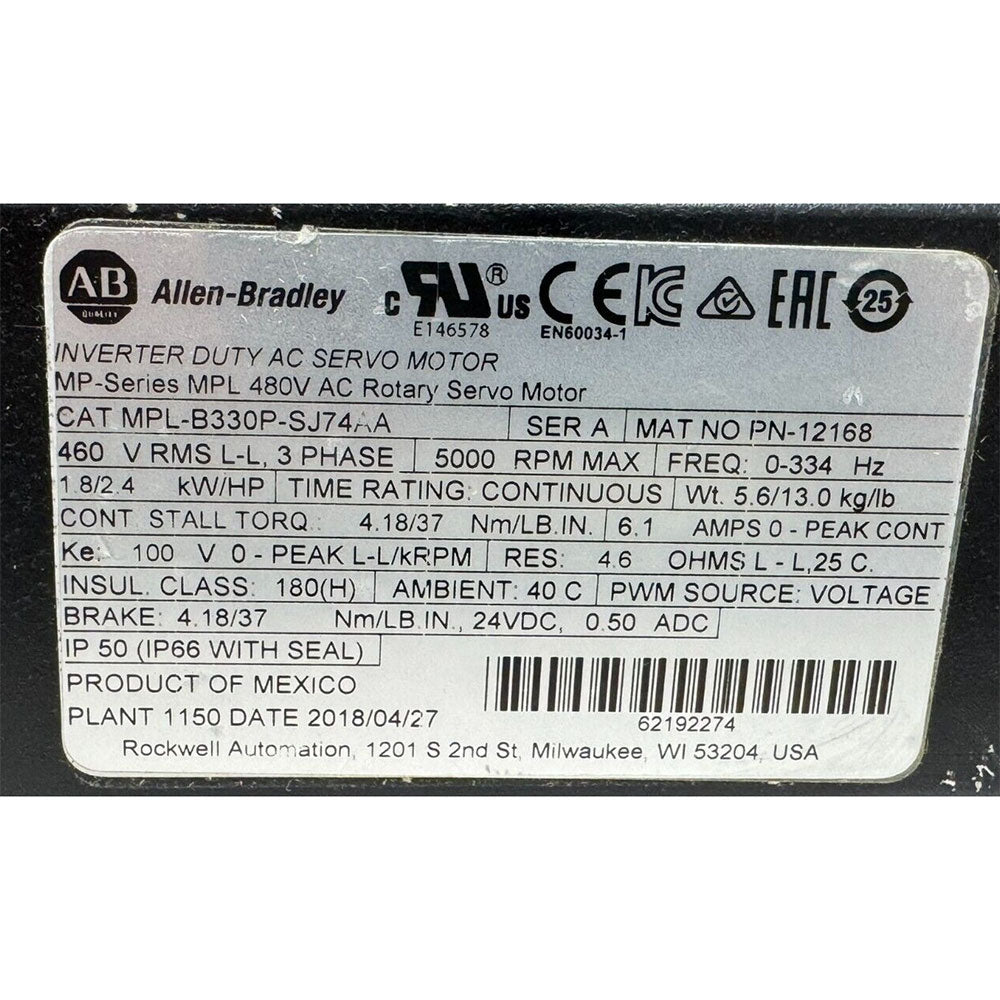

Model MPL-B330P-SJ74AA
Voltage 460V AC
Rated Speed 5000 RPM
Rated Power 3.3 kW
Frame Size 100 mm
Stack Length 76.2 mm (3.0 inch)
Mounting Type Flange Mount (IEC 72-1)
Enclosure Rating IP65
Feedback Type Multi-turn High Resolution Encoder
Connection Circular DIN Connector
Net Weight 5.33 kg
Dimensions (L × W × H) 25 × 13 × 9 cm
Country of Origin United States

Features

· High torque density for compact machine design
· High inertia option for enhanced system stability
· 24V DC holding brake option available
· UL recognized, CE marked
· Compatible with Kinetix 6000, 6200, and 6500 drives

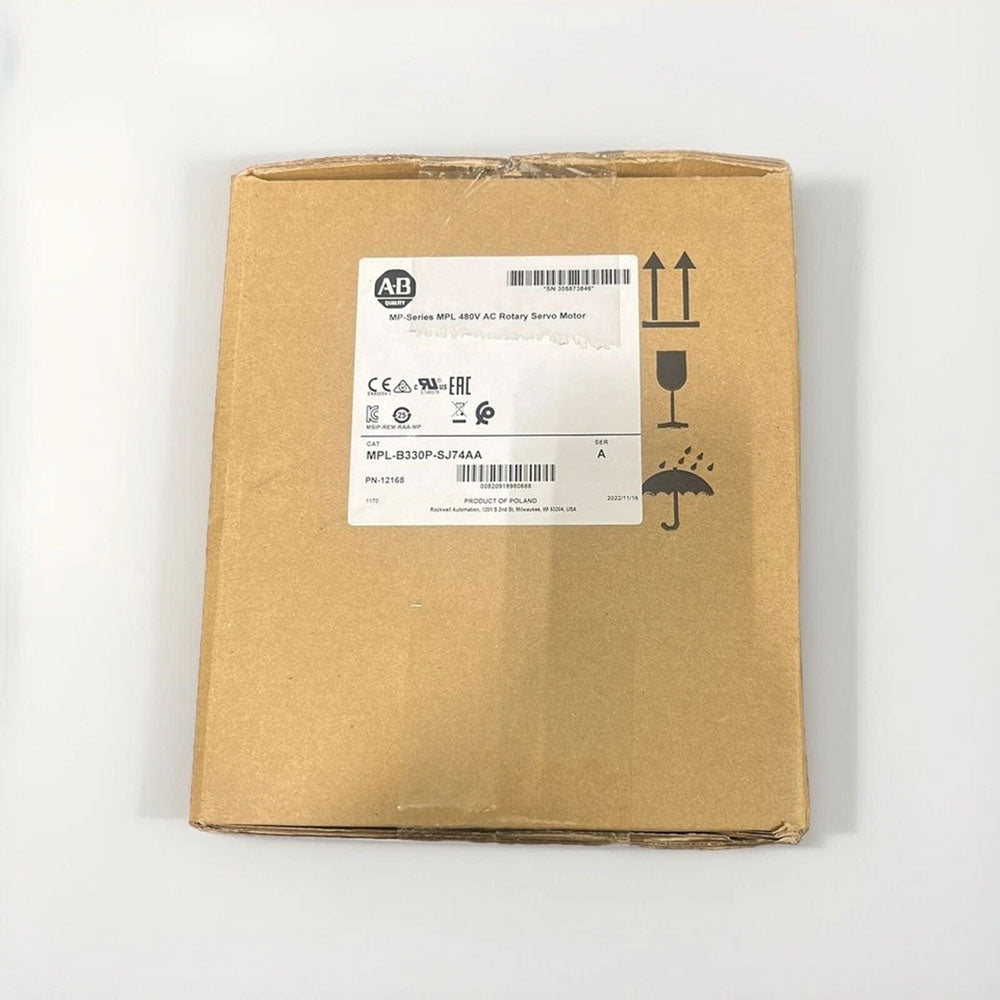

· Factory sealed, 100% original

Applications

· Industrial automation and robotics
· CNC machinery
· Packaging equipment
· Material handling systems
· Precision positioning systems
· Converting and web handling
