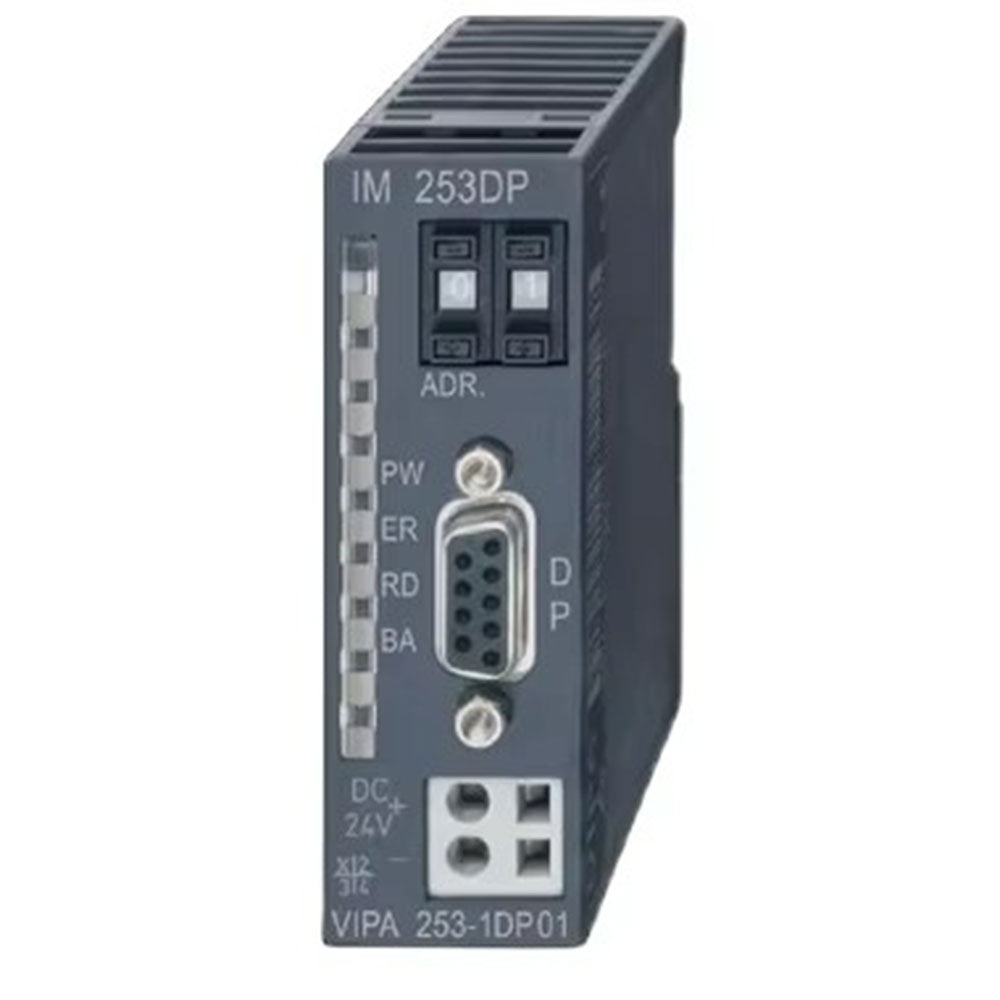

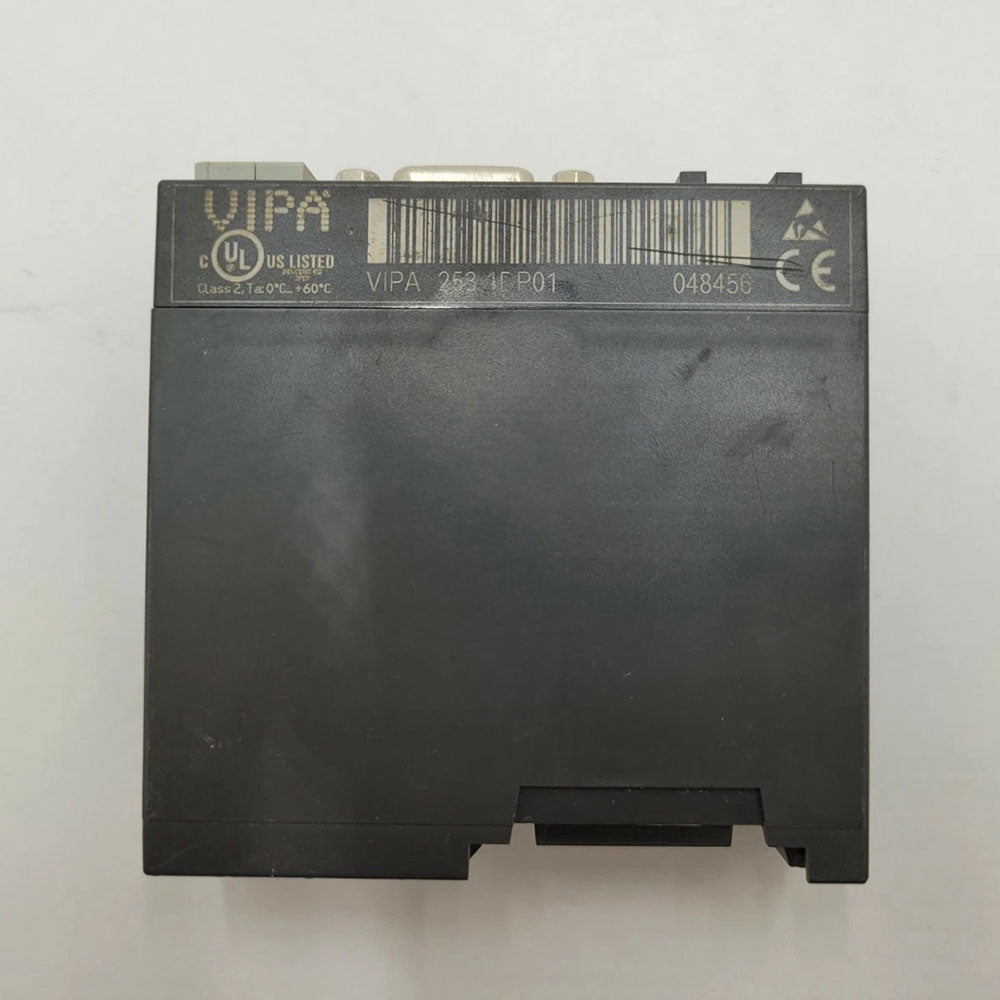

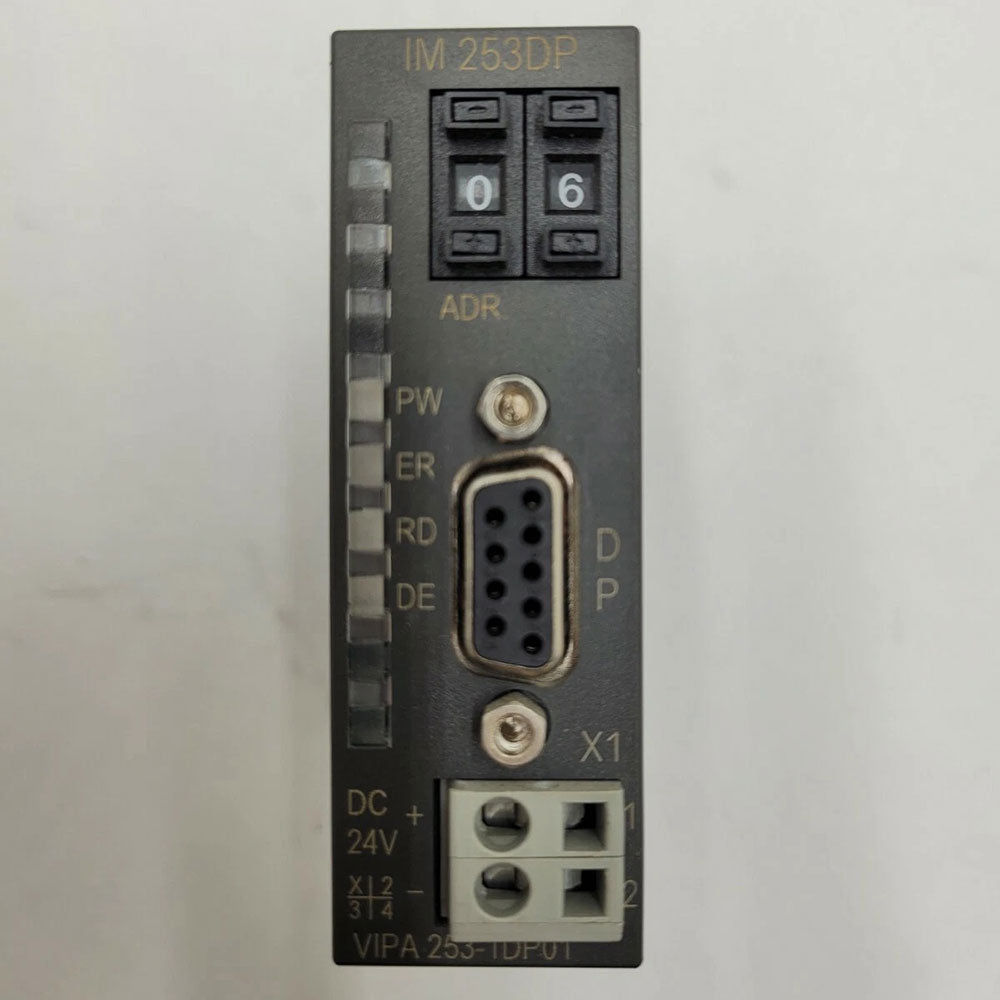

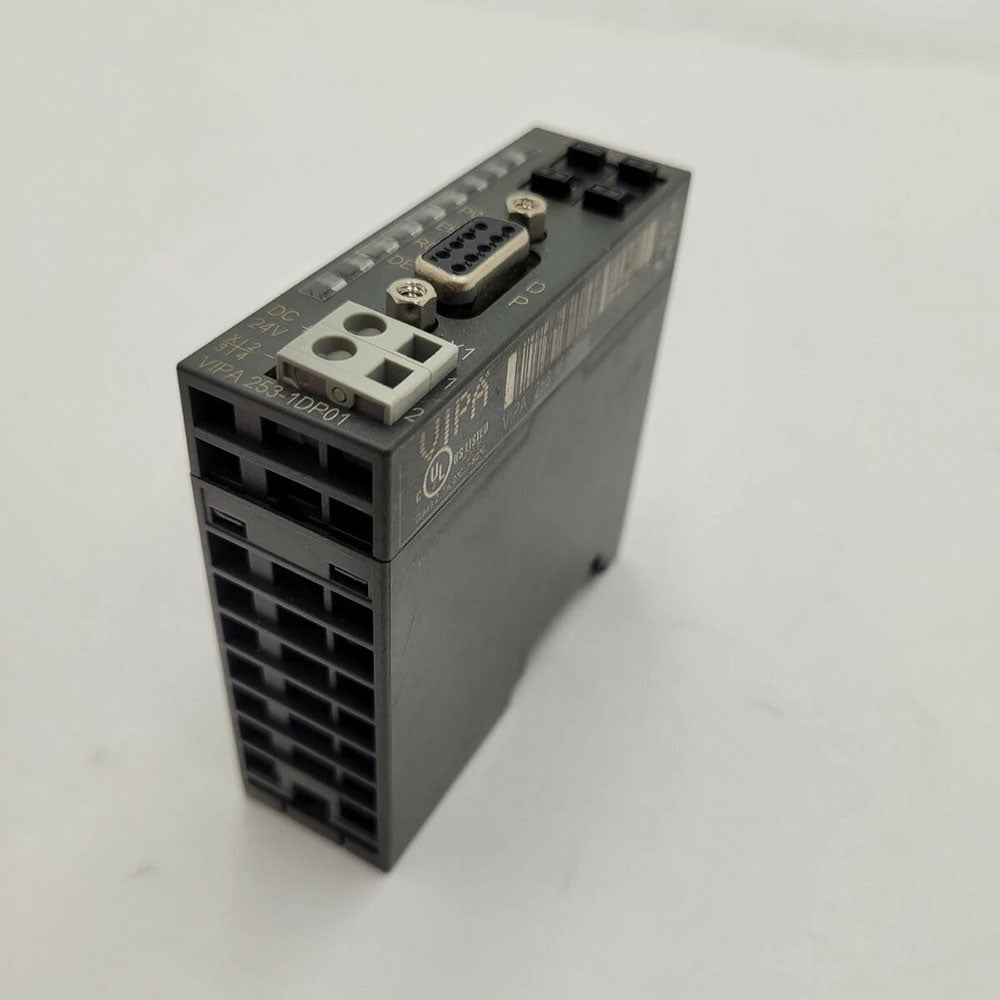

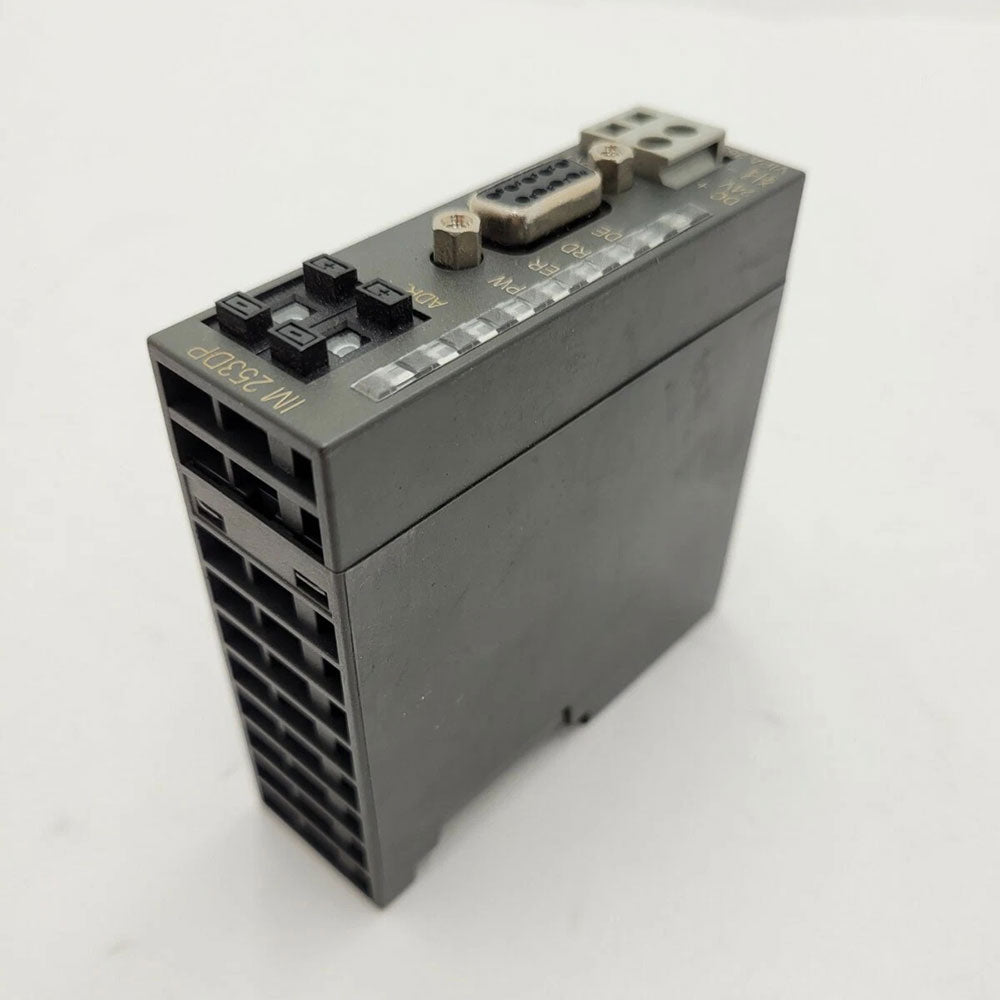

VIPA 253-1DP01 IM 253DP Profibus-DP Slave Interface Module
The VIPA 253-1DP01 is a high-performance Profibus-DP slave interface module from the IM 253DP Series, designed for the VIPA System 200V. It serves as a modular slave device, enabling seamless integration of I/O peripherals into a Profibus-DP network under a DP master. Configured via a GSD file, it operates on a 24V DC supply with a transmission speed of 12 Mbit/s. The module supports DP-V0 and DP-V1 protocols, has an address range of 1...99, and can connect to up to 32 peripheral modules (max. 16 analog). It features 244 bytes of input and 244 bytes of output data, LED status indicators, and diagnostic functions, making it ideal for expanding industrial automation systems.
Key Specifications:
· Series: VIPA System 200V
· Model: 253-1DP01 / IM 253DP
· Type: PROFIBUS-DP Slave Interface Module
· Communication Protocol: PROFIBUS-DP (DP-V0, DP-V1)
· Configuration: Via GSD file from VIPA
· Transmission Speed: 12 Mbit/s (max)
· Address Range: 1 … 99 (set via DIP switch)
· I/O Data Capacity: 244 Bytes Input / 244 Bytes Output
· Number of Modules: Max. 32 peripheral modules (16 analog)
· Supply Voltage: 24V DC (Permitted range: 20.4…28.8V)
· Current Consumption: 70 mA (no-load) / 1 A (rated)
· Power Loss: 2.5 W
· Diagnostics: Supply voltage (green LED), group error, diagnostic interrupts
· Dimensions (W x H x D): 25.4 x 76 x 78 mm
· Net Weight: 0.10 kg
· Operating Temperature: 0°C to +60°C
· Certification: UL508
Applications:
· Industrial Automation Systems
· Process Control
· Manufacturing Production Lines
· Energy Management
· Centralized and Decentralized Automation Setups
