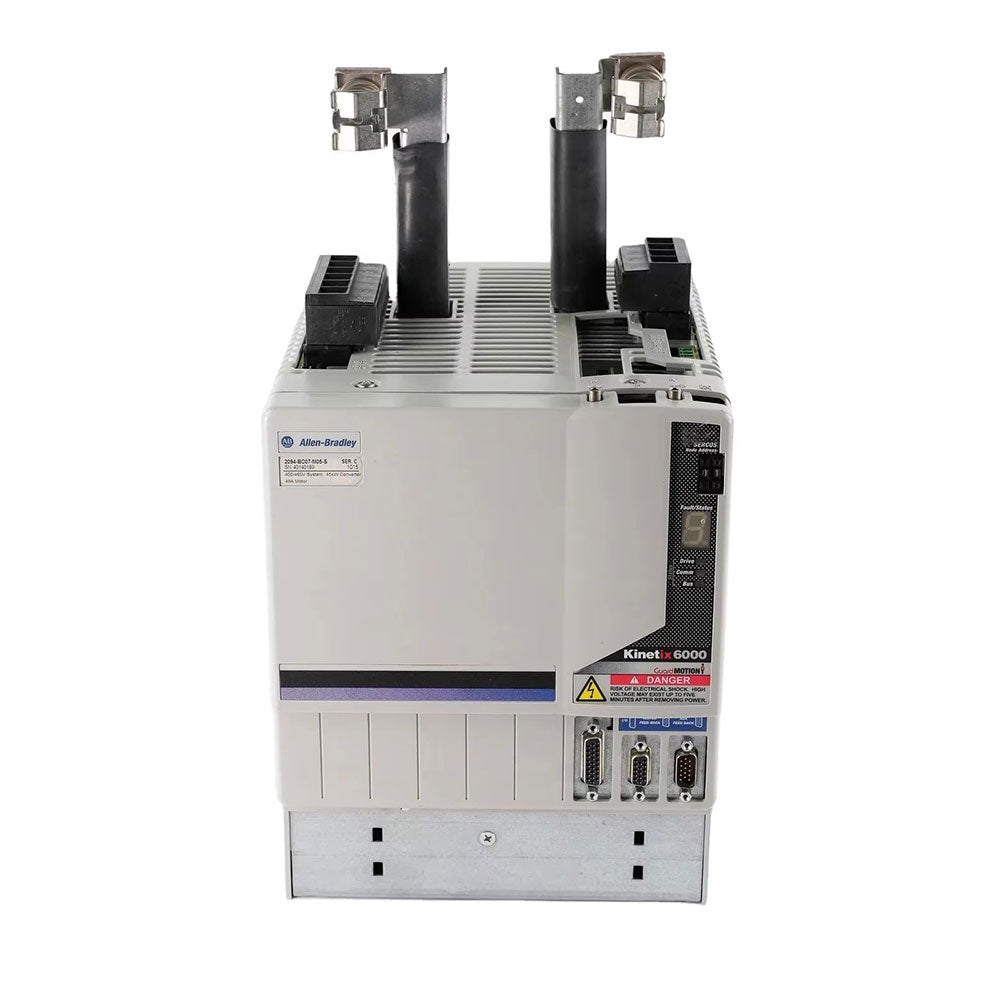

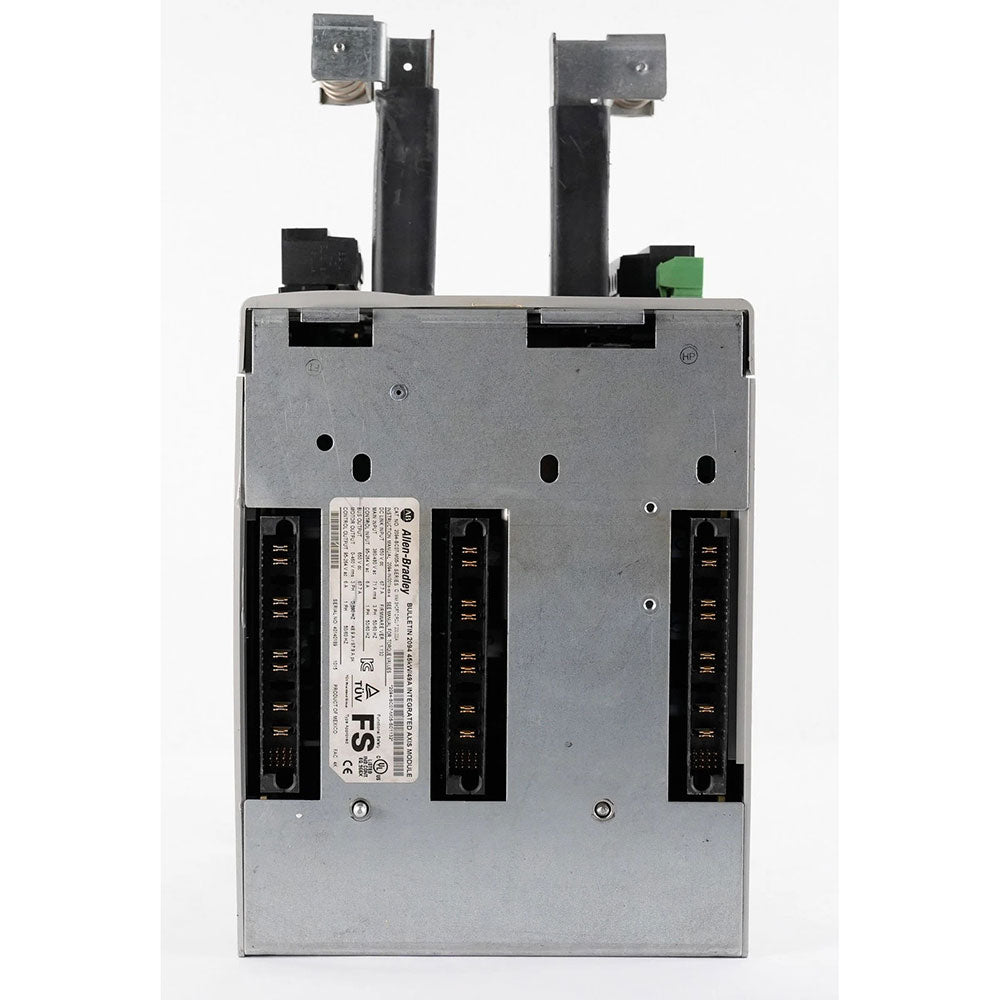

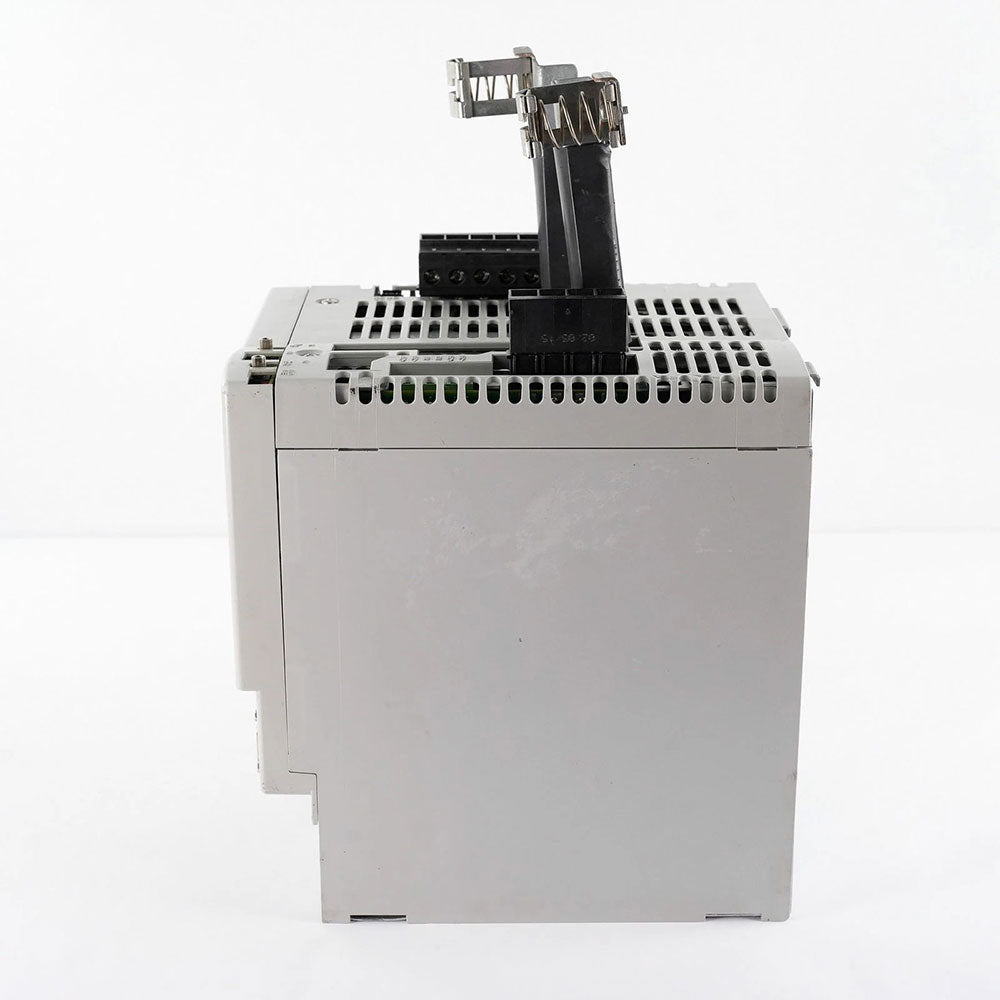

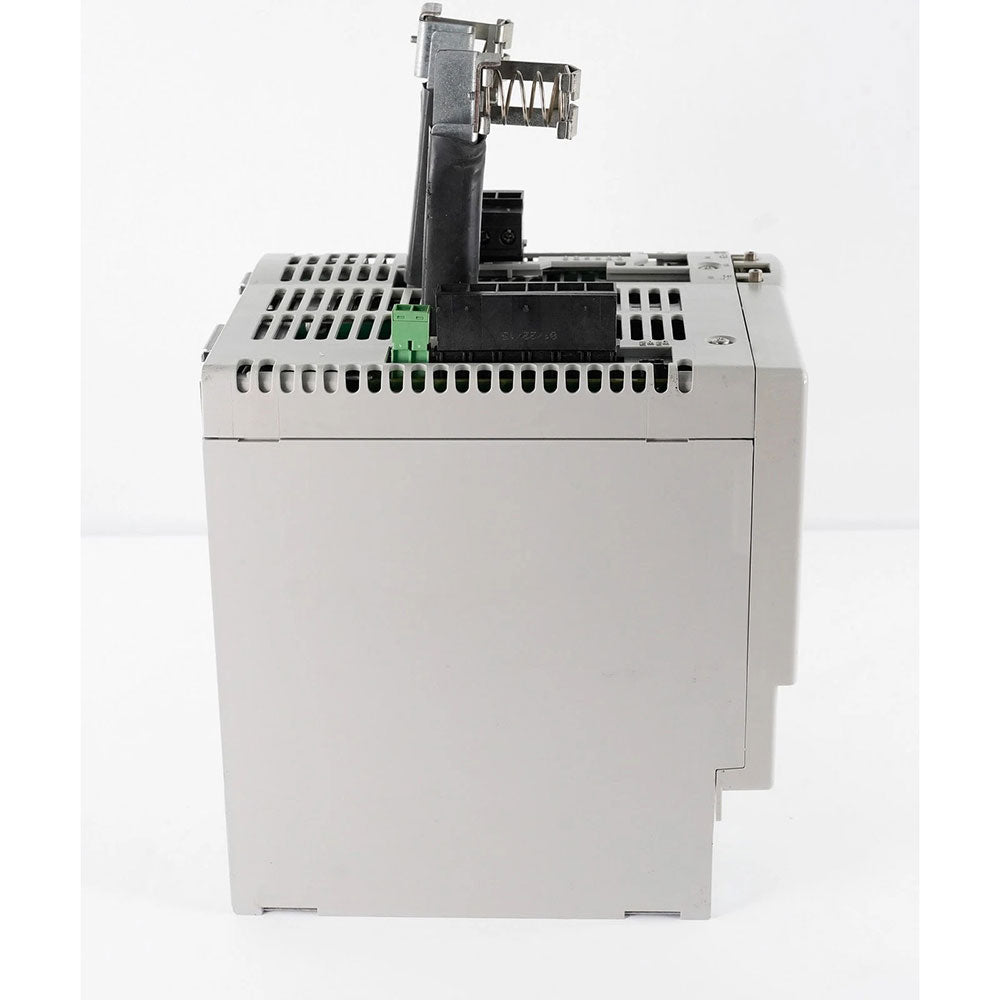

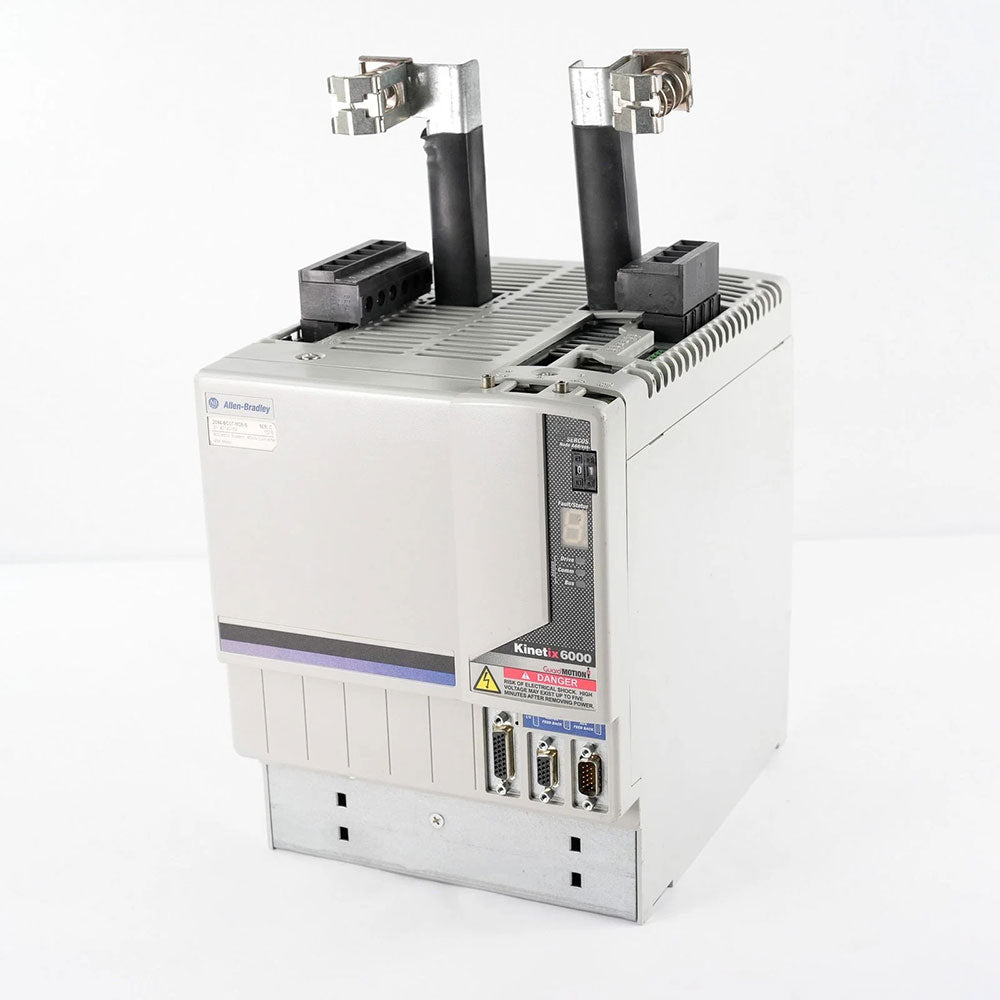

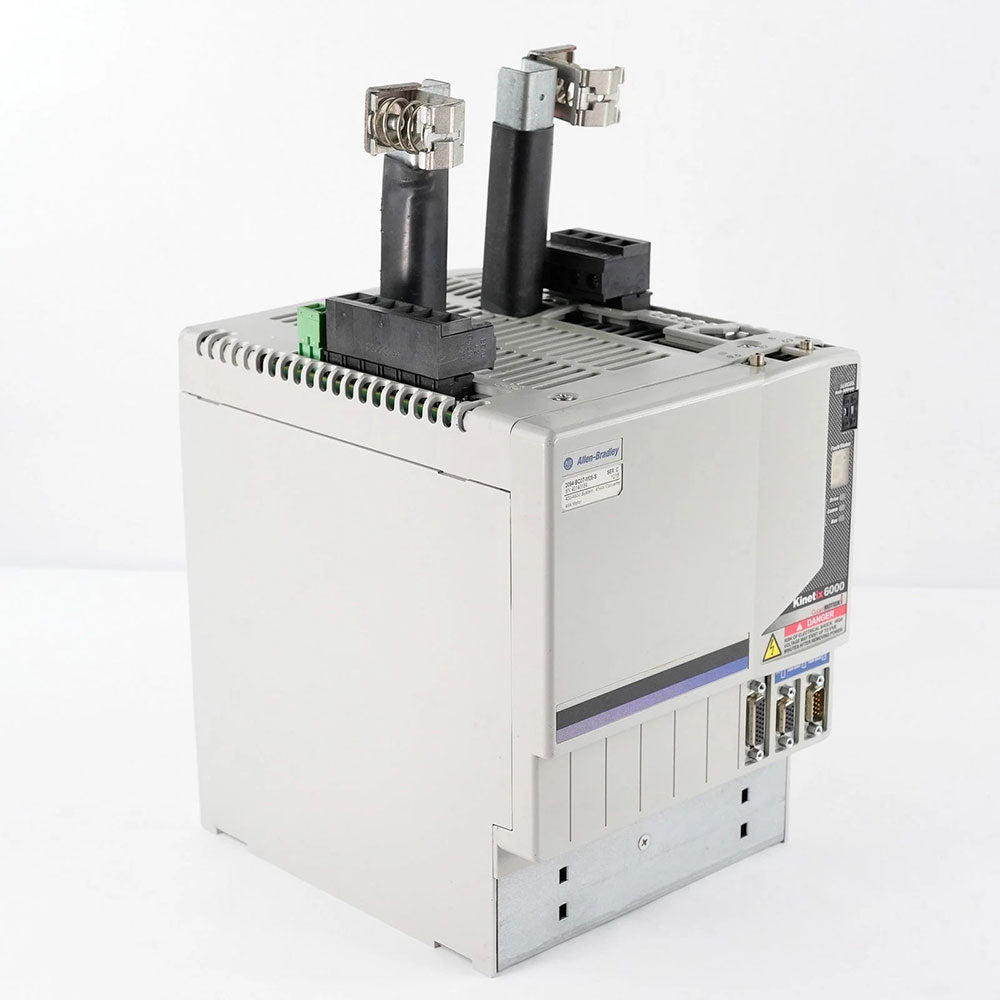

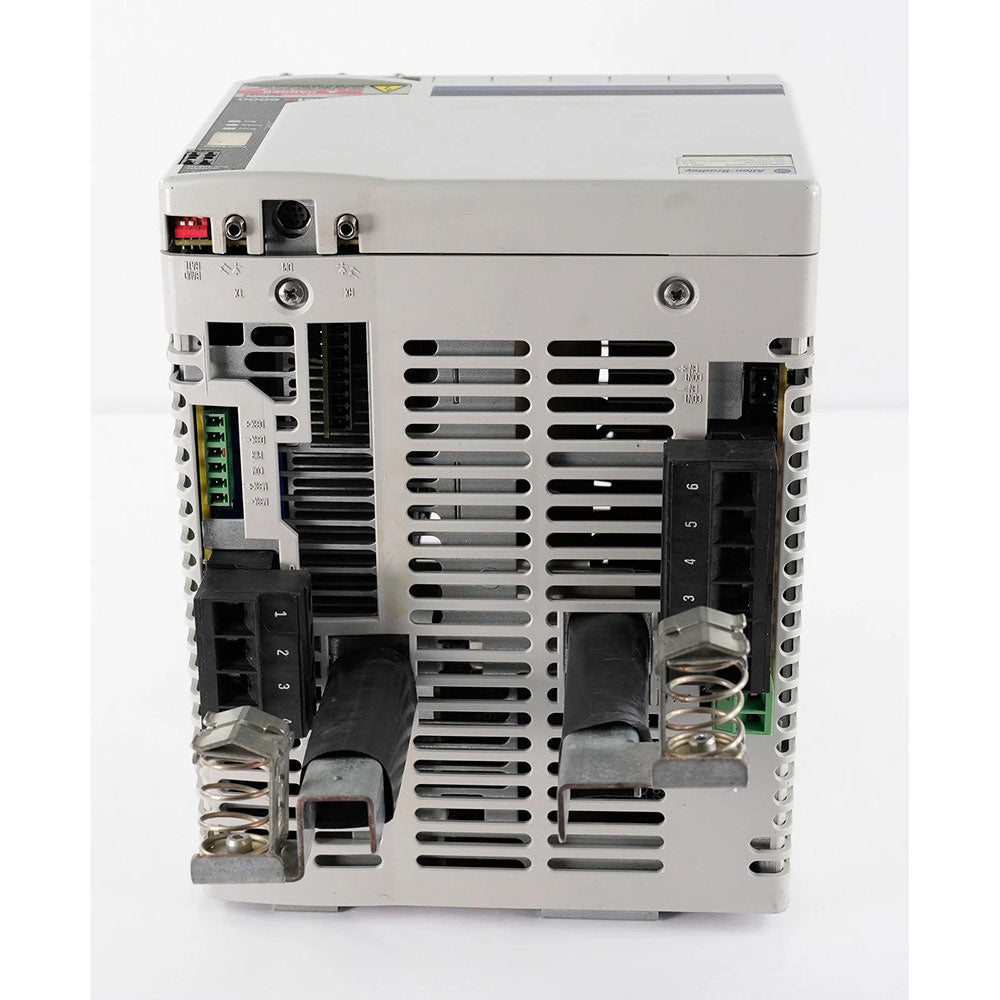

The 2094-BC07-M05-S Integrated Axis Module belongs to Allen Bradley's Kinetix 6000 series. It operates efficiently with a nominal input voltage between 380 and 480 volts AC (3-phase) and supports a broad input voltage range as well as varying frequencies.

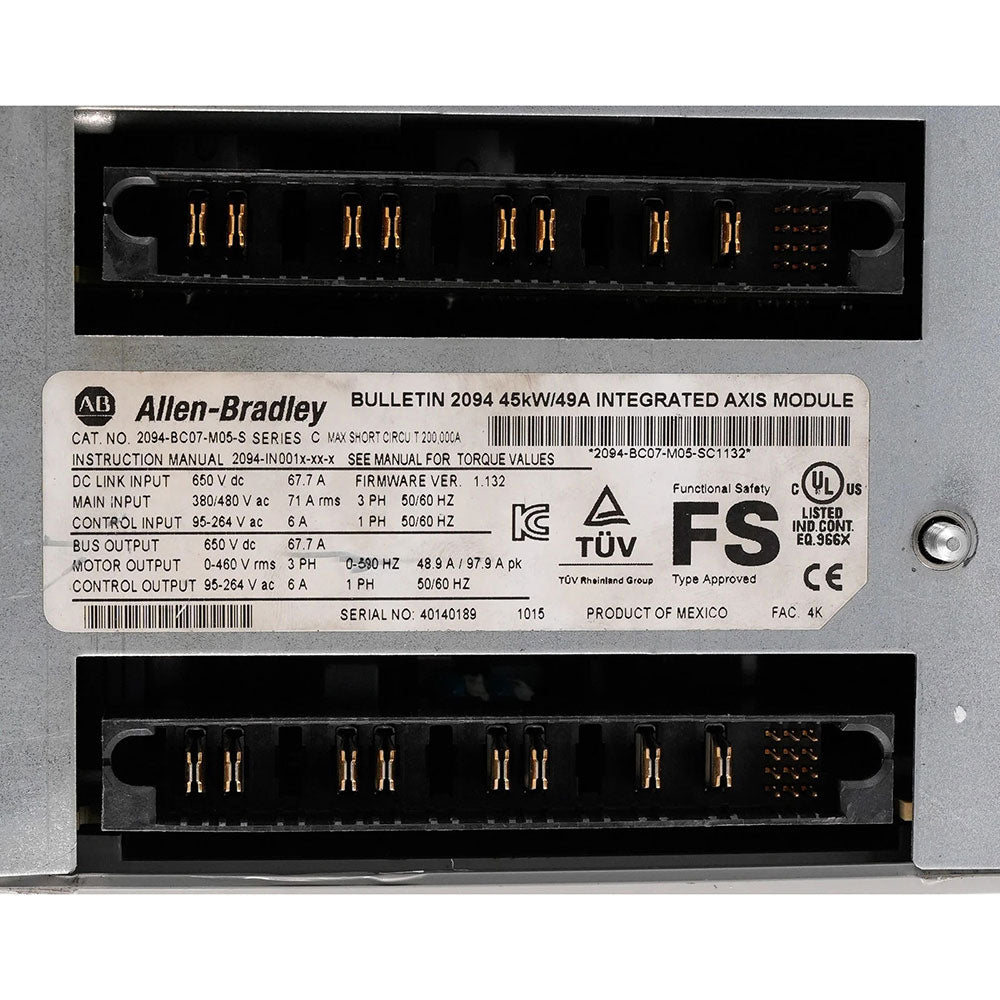

Technical specifications for 2094-BC07-M05-S
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Integrated Axis Module (IAM Module) |
| Product Line | Kinetix 6000 |
| Part Number | 2094-BC07-M05-S |
| UPC | 820919595691 |
| Weight | 20.31 lbs (9.21 kg) |
| Nominal Input Voltage | 380-480V AC (3-Phase) |
| Input Voltage Range | 324-528V AC (RMS, 3-Phase) |
| Input Frequency | 47-63 Hz |
| DC Input Voltage for Common Bus Follower | 458-747V DC |
| DC Input Current for Common Bus Follower | 67.7 Amps |
| Bus Output Voltage | 650V DC Nominal |
| Bus Overvoltage | 825V DC |
| Bus Undervoltage | 275V DC |
| Shunt On Voltage | 805V DC |
| Shunt Off Voltage | 755V DC |
| Max. Efficiency Rating | 97% |
| Short-Circuit Current | 200,000 Amps Symmetrical (RMS) |
Description
The Allen Bradley 2094-BC07-M05-S is an Integrated Axis Module designed for precise motor control and performance in the Kinetix 6000 series. Specifically, it operates effectively within a nominal input voltage range of 380 to 480 volts AC in a 3-phase setup.
This module is capable of accepting input voltages within the range of 324 to 528 volts AC (RMS), accommodating various power situations while maintaining performance. The input frequency operates between 47 and 63 Hz, which provides versatility in different applications.
For situations requiring a common bus follower, this module uses a DC input voltage ranging from 458 to 747 volts DC, drawing a current of 67.7 amps. The bus output voltage is nominally rated at 650 volts DC, with specific thresholds for overvoltage (825 volts DC) and undervoltage (275 volts DC) to protect the system and ensure stability. On this bus, the shunt operates with an on voltage at 805 volts DC and an off voltage at 755 volts DC.
One key attribute of the 2094-BC07-M05-S is its maximum efficiency rating of 97%, highlighting its energy-saving capabilities during operations. Additionally, it can withstand a short-circuit current of up to 200,000 amps symmetrical (RMS), offering robust protection in the event of electrical faults. The integration of these specifications makes this module a valuable asset in high-performance automation applications.
