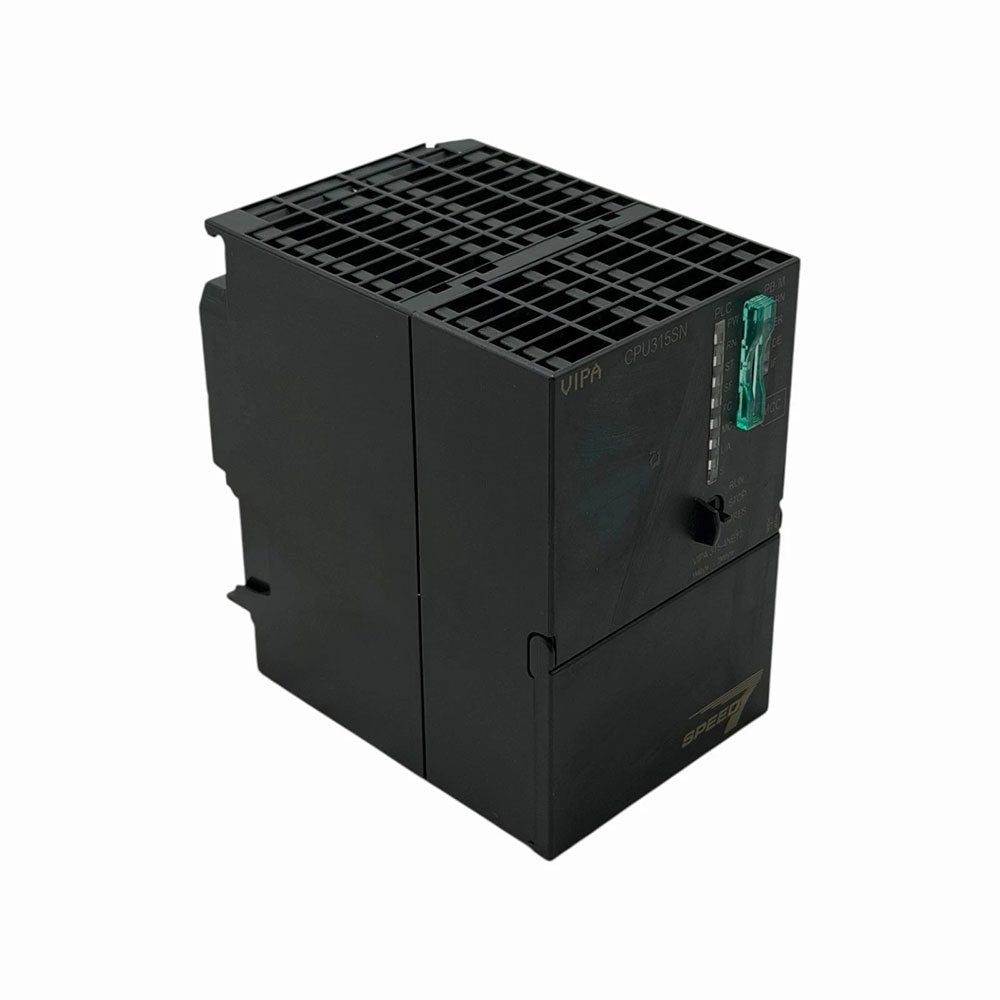

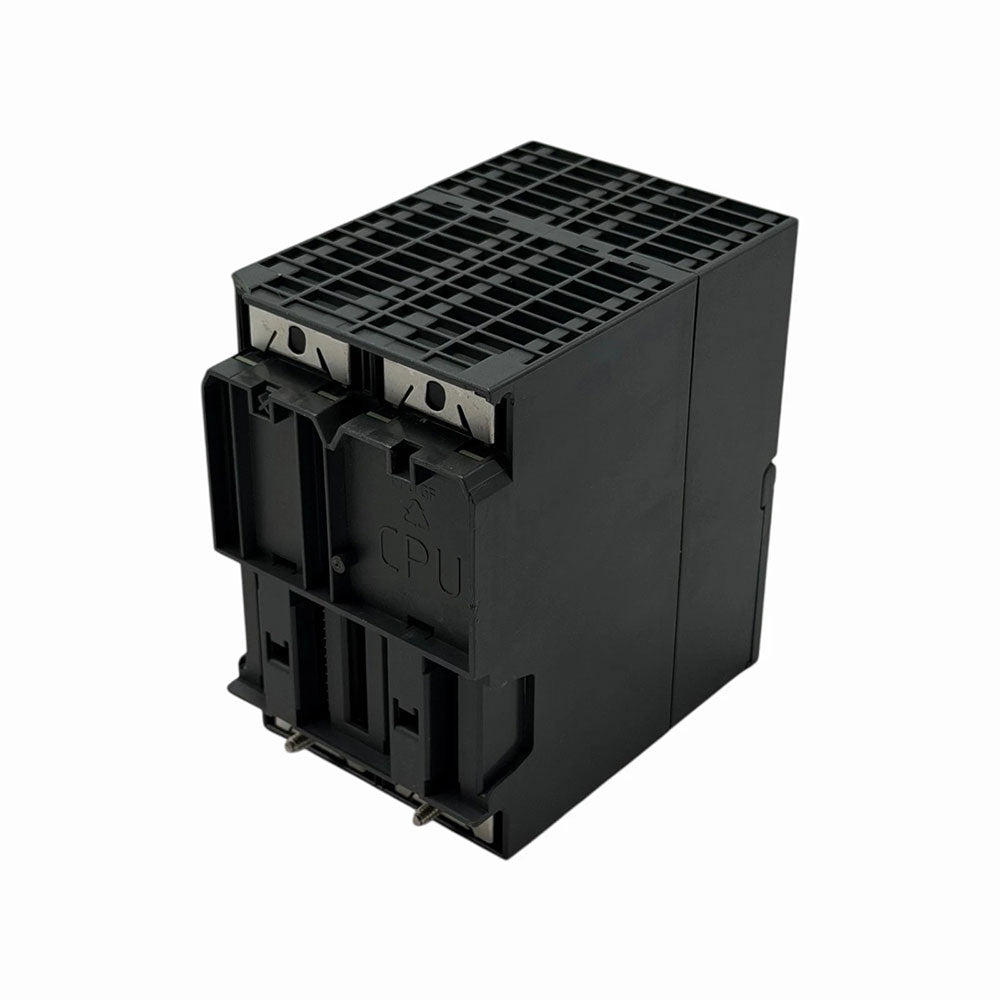

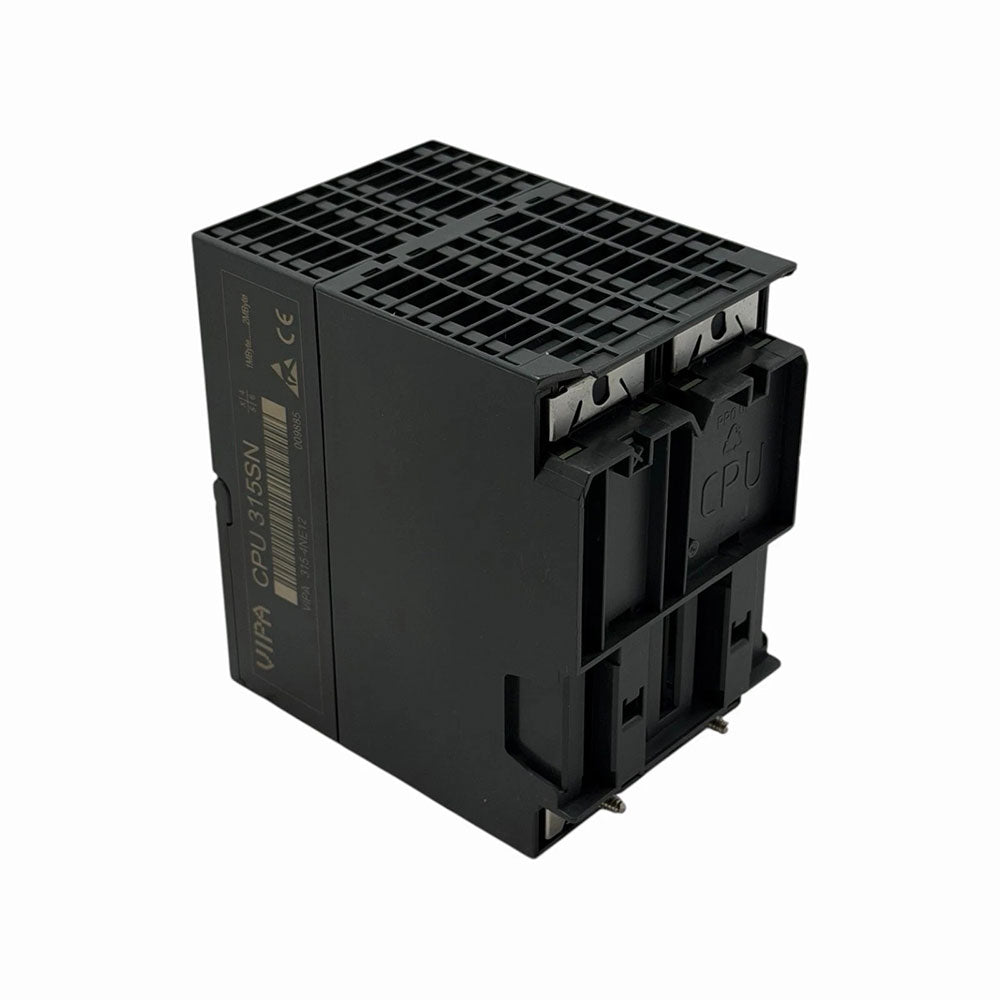

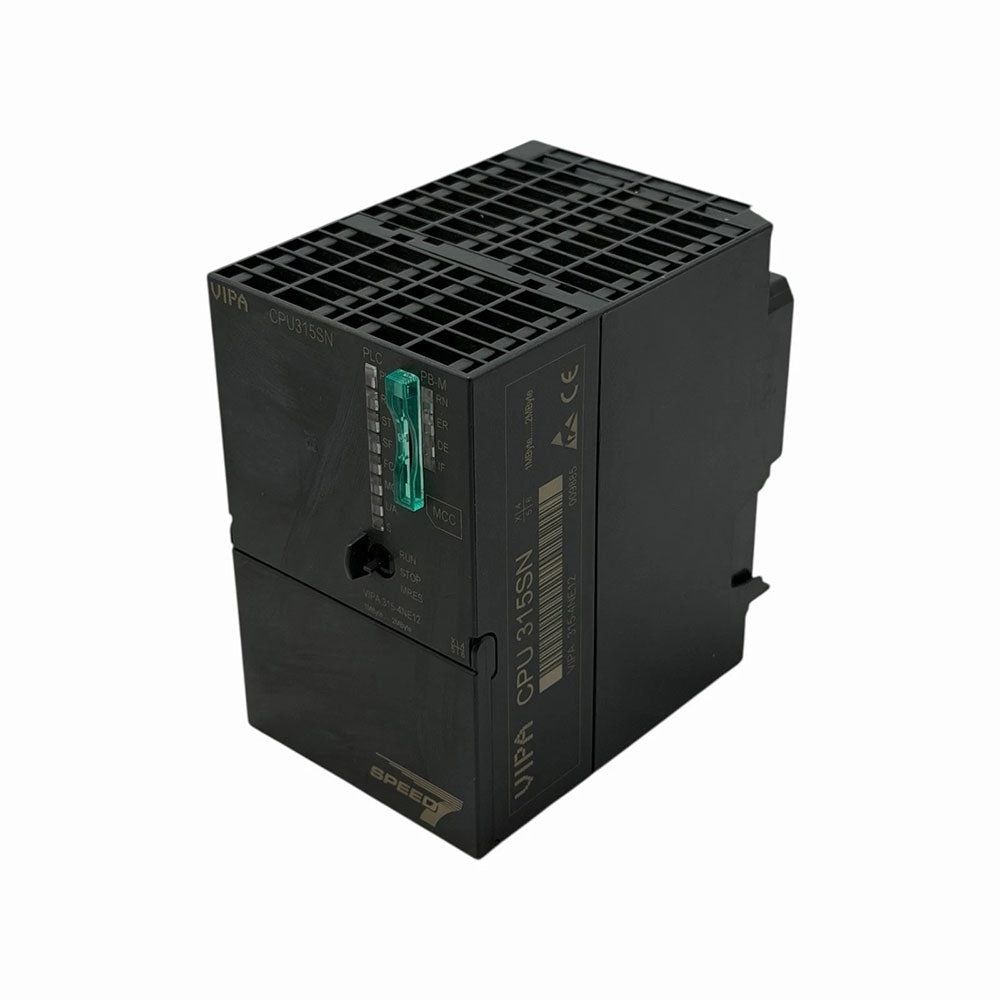

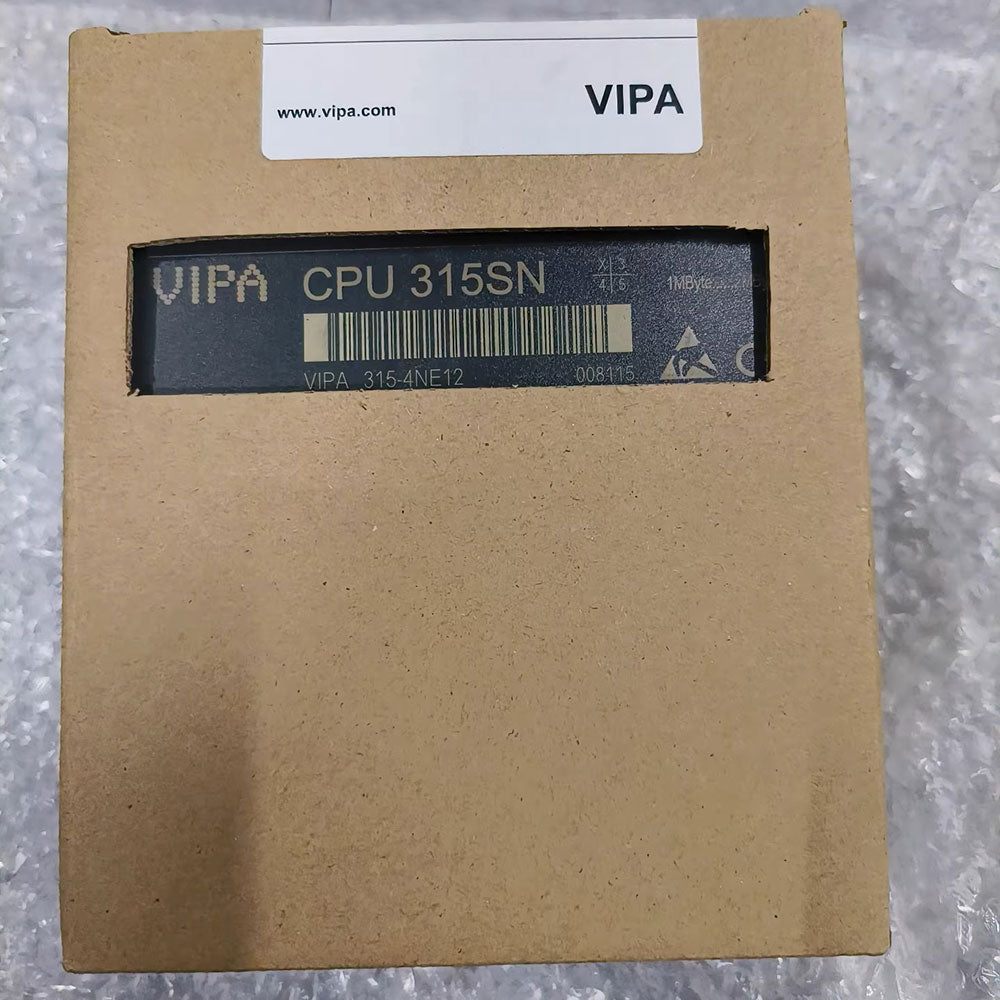

VIPA 315-4NE12 CPU 315SN/NET Central Processing Unit
The VIPA 315-4NE12 is a high-performance central processing unit based on SPEED7 technology, belonging to the VIPA System 300S series. Designed for industrial automation and control systems, this CPU is suitable for medium to large-scale applications in centralized and distributed control systems. The instruction set is compatible with Siemens S7-400, supporting STEP 7 programming platforms (SIMATIC Manager or TIA Portal).
Key Specifications:
· Brand: VIPA (Germany, now part of Yaskawa Group)
· Model: 315-4NE12 / CPU 315SN/NET
· Core Technology: SPEED7 technology
· Working Memory: 1 MByte (expandable to 2 MByte)
· Profibus-DP Master Speed: 12 Mbit/s, max. 125 slave stations

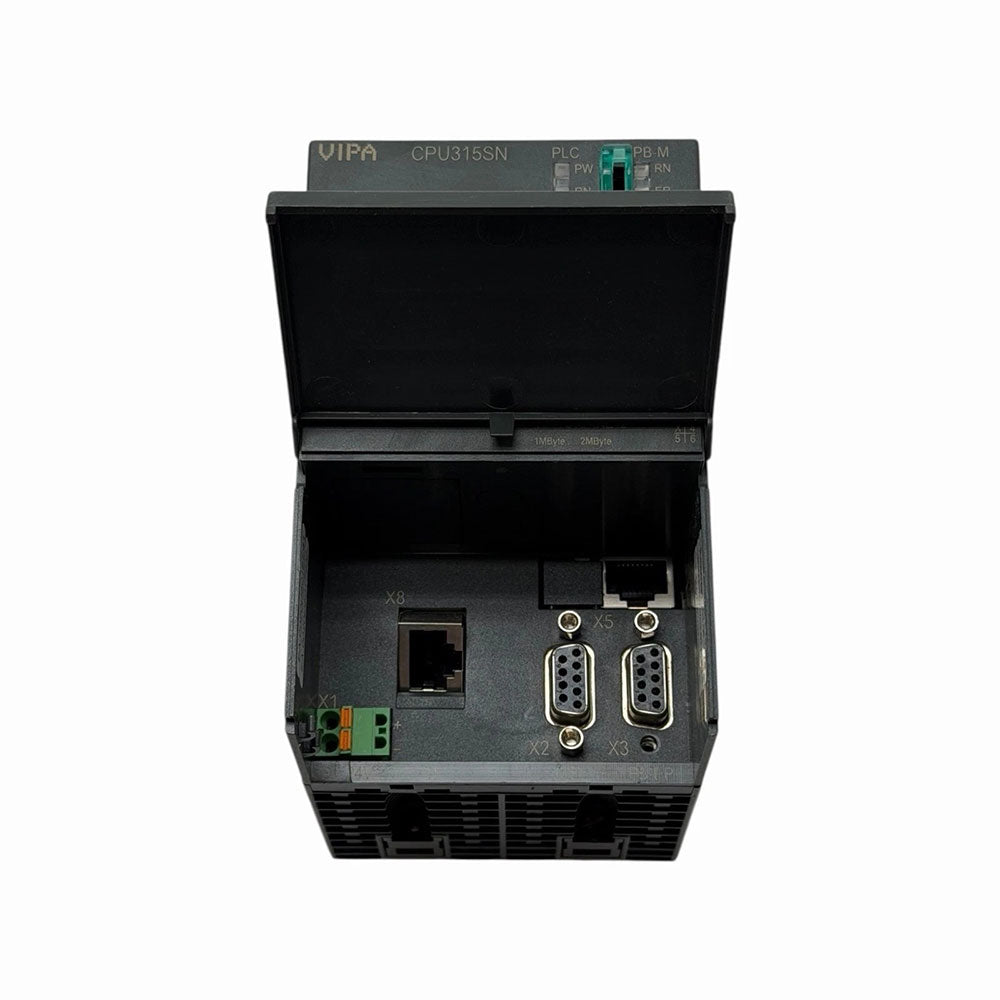

· Communication Interfaces: Profibus-DP master, MPI, Ethernet PG/OP (RJ45, 10/100 Mbit), Point-to-point RS485
· Supply Voltage: 24V DC
· Dimensions: 80 x 125 x 120 mm (W x H x D)
· Weight: 0.43 kg
Applications: Industrial Automation Control Systems, Process Control
