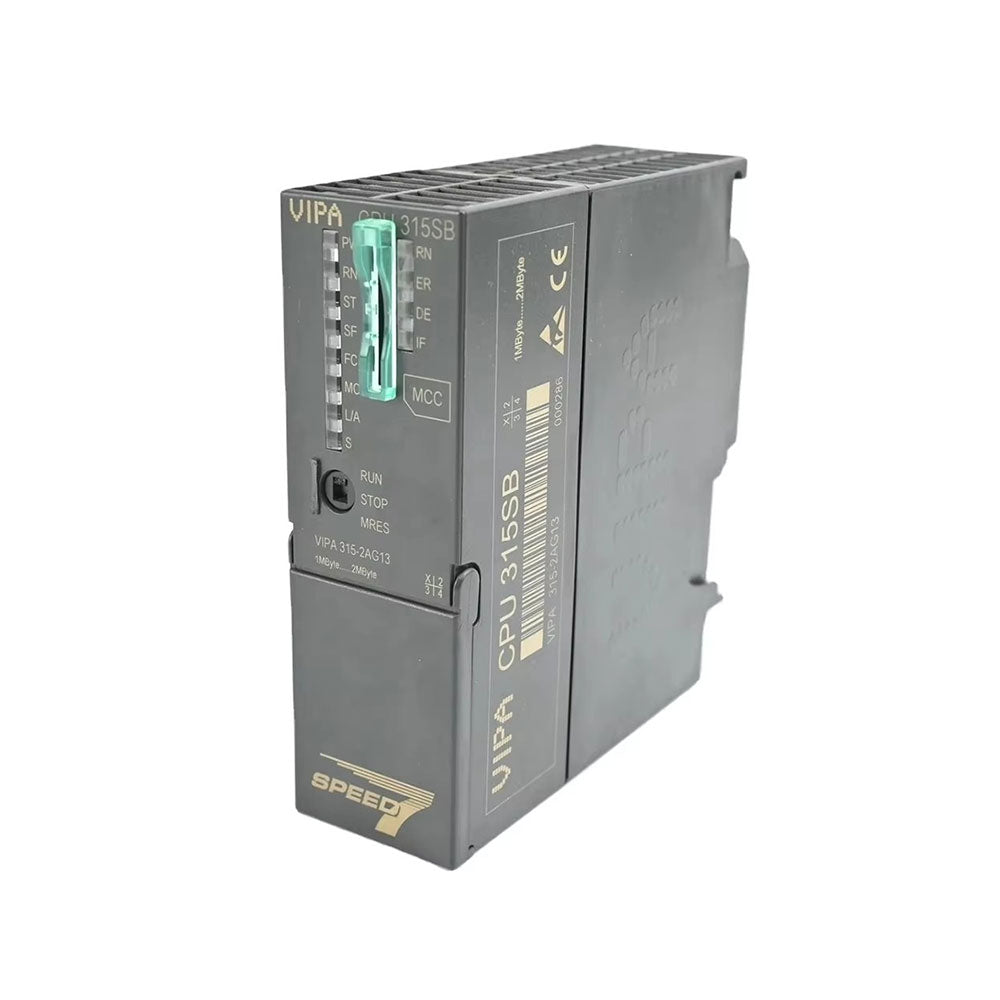

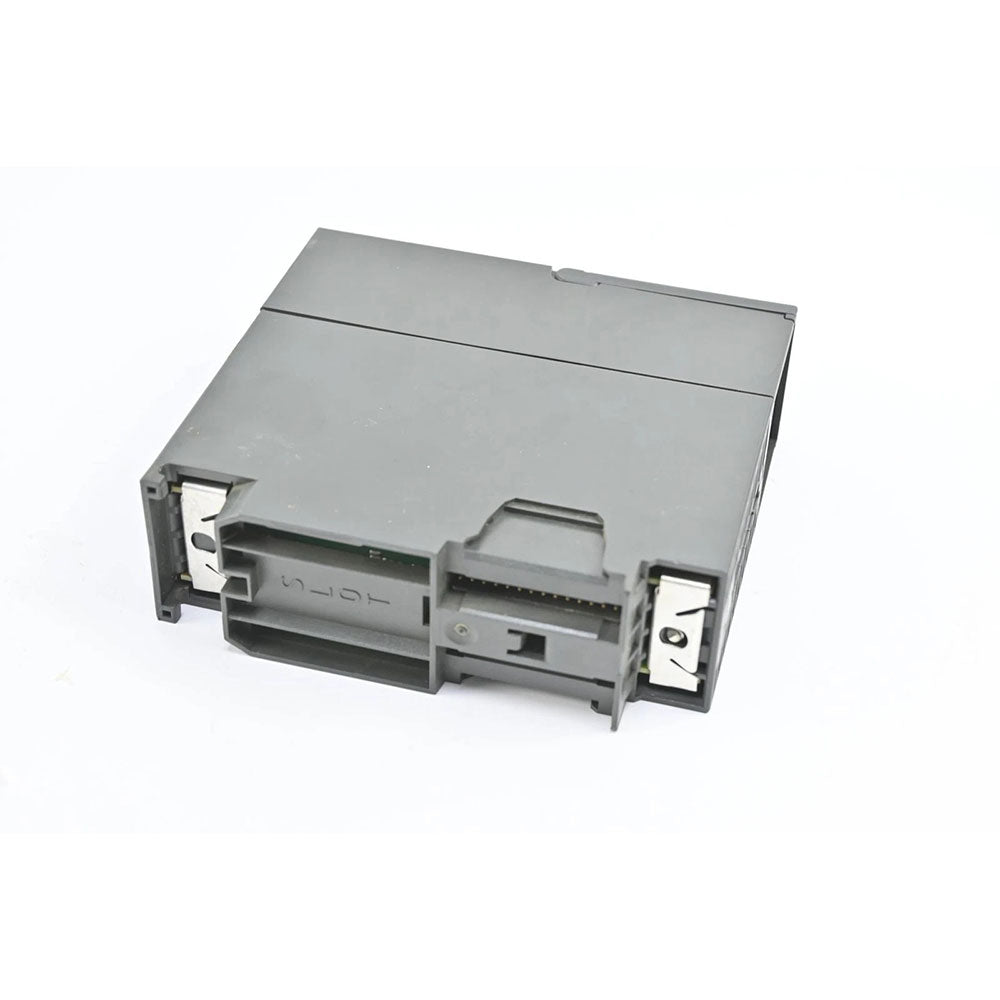

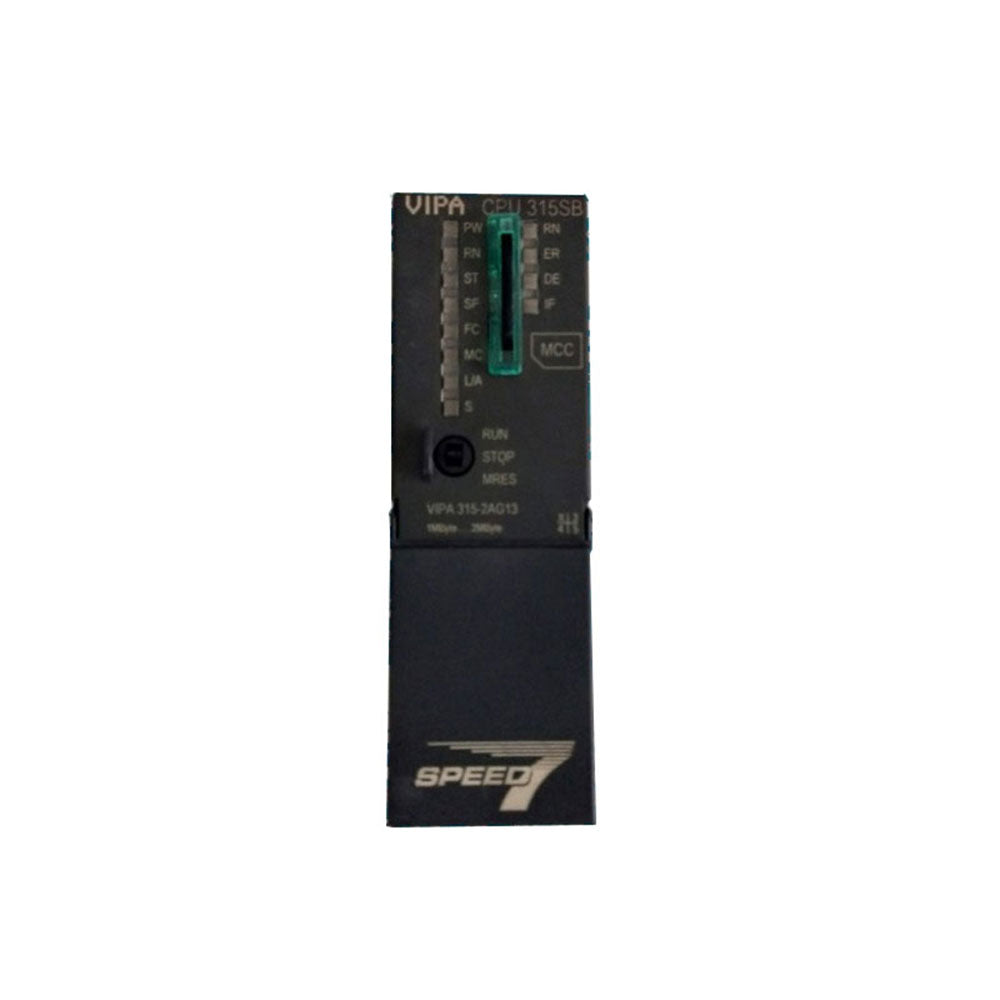

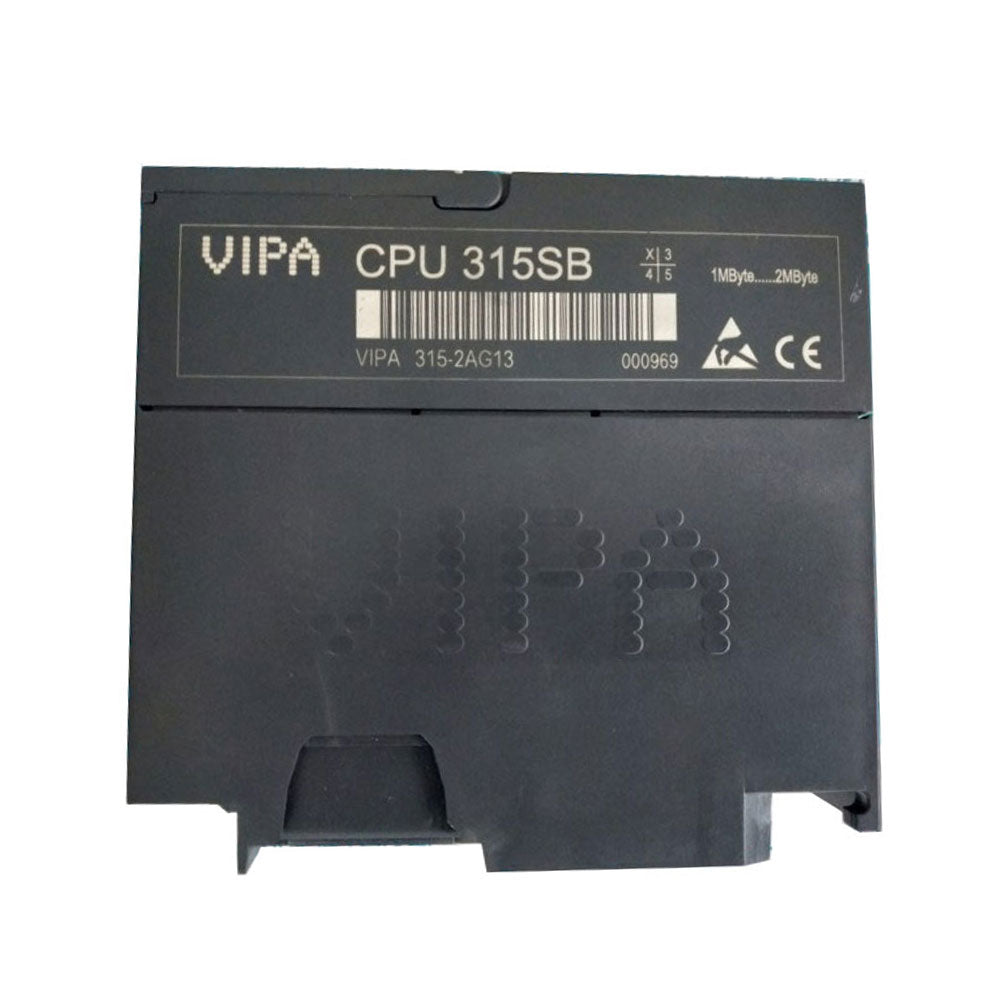

VIPA 315-2AG13 CPU 315SB/DPM Central Processing Unit
The VIPA 315-2AG13 is a high-performance central processing unit based on SPEED7 technology, belonging to the VIPA System 300S series. Designed for industrial automation and control systems, this CPU features the advanced SPEED7 processor chip, which is the fastest PLC processor for handling Siemens STEP 7 programming language, with instruction execution speed 4-8 times faster than traditional solutions. Suitable for high-performance control tasks in complex industrial environments, widely used in industrial automation, process control, building automation, and other fields.
Key Specifications:
· Brand: VIPA (Germany)
· Model: 315-2AG13 / CPU 315SB/DPM
· Core Technology: SPEED7 technology
· Working Memory: 1 MByte (expandable to 2 MByte)
· Profibus-DP Master Speed: 12 Mbit/s, max. 125 slave stations
· Communication Interfaces: Profibus DP master, MPI, Ethernet PG/OP, RS485
· Supply Voltage: 24V DC
· Operating Temperature: 0°C to +60°C
· Protection Rating: IP20
· Dimensions: 40 x 125 x 120 mm (W x H x D)
· Weight: Approx. 0.29 kg
Compatibility:
This CPU is fully compatible with Siemens SIMATIC S7-300 systems. It can directly replace the corresponding Siemens CPU model without any hardware configuration or PLC program changes. Supports STEP 7 programming languages (LAD, FBD, STL, SCL, CFC, Graph7) and can be configured and programmed in TIA Portal or SIMATIC Manager.
Applications: Industrial Automation Control Systems, Process Control, S7-300 System Upgrades and Replacements
