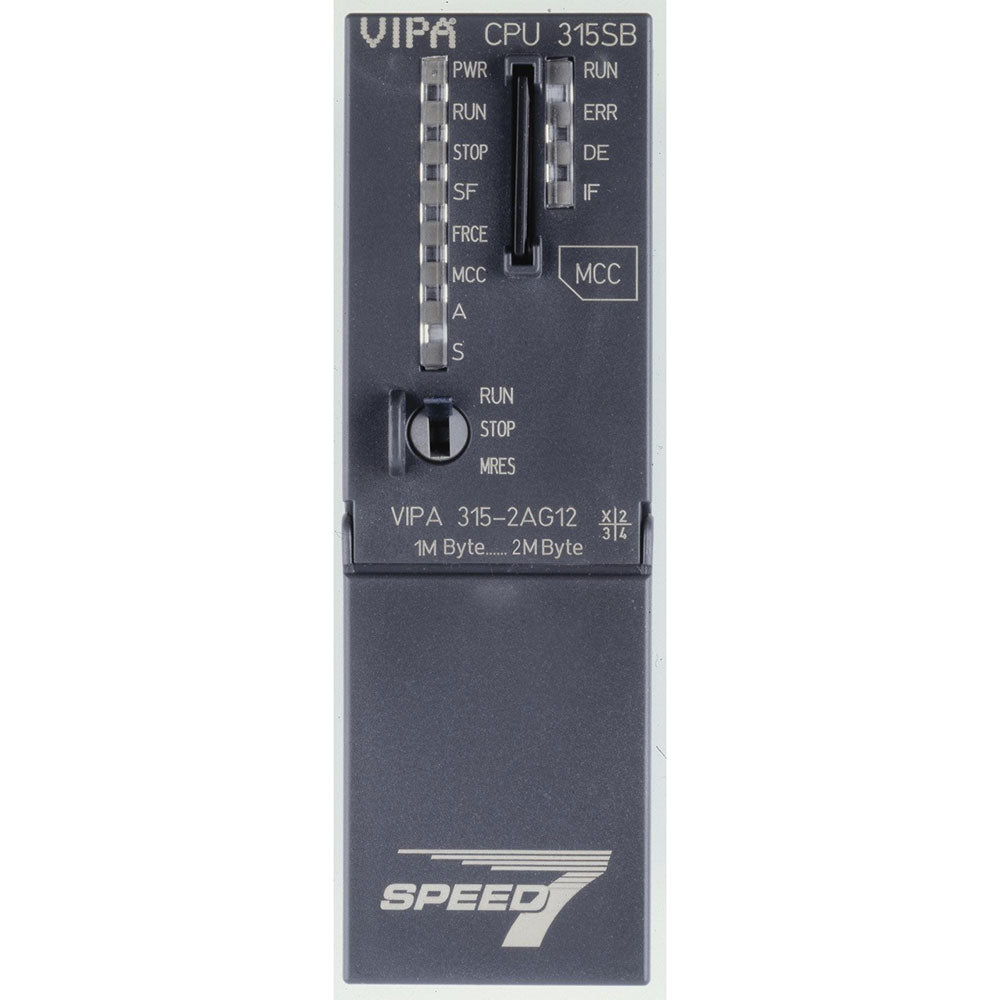

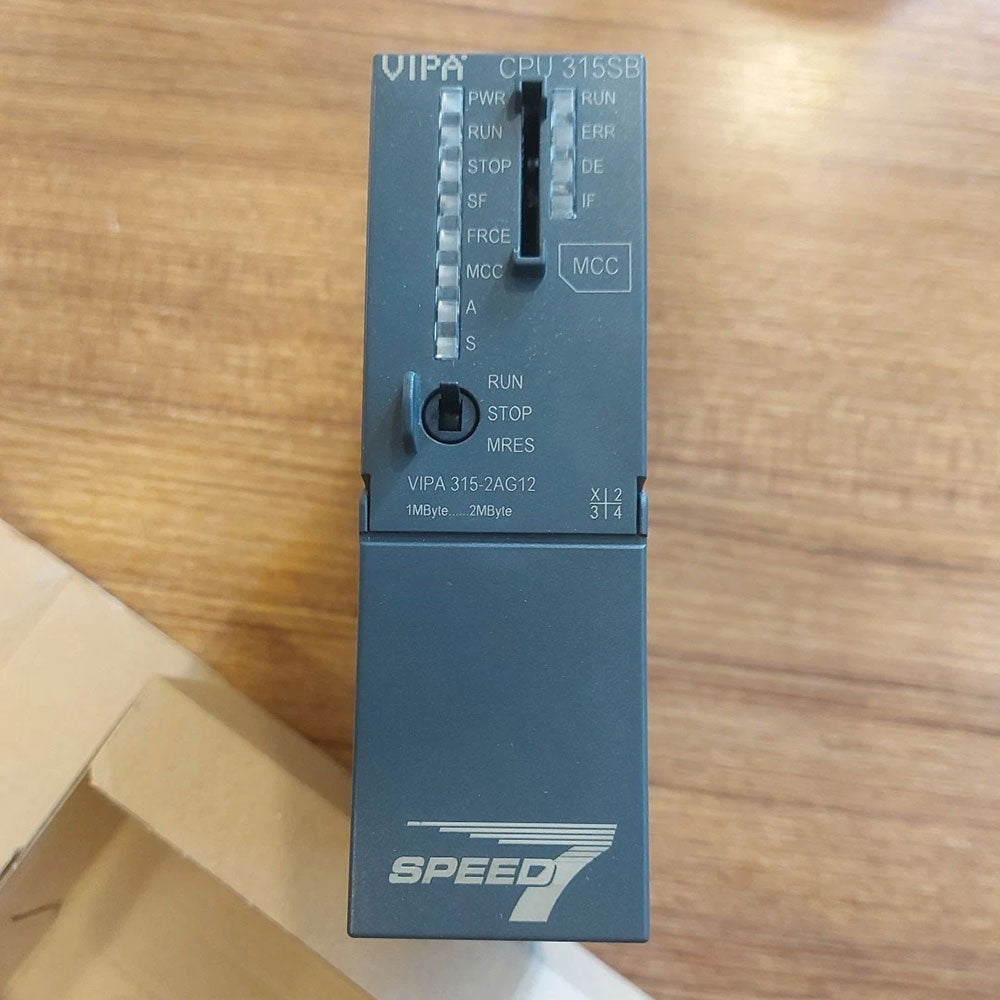

VIPA 315-2AG12 CPU 315SB/DPM Central Processing Unit
The VIPA 315-2AG12 is a high-performance central processing unit based on SPEED7 technology, belonging to the VIPA System 300S series. Designed for industrial automation and control systems, this CPU features the advanced SPEED7 processor chip, which is the fastest PLC processor for handling Siemens STEP 7 programming language, with instruction execution speed 4-8 times faster than traditional solutions. Suitable for high-performance control tasks in complex industrial environments, widely used in industrial automation, process control, building automation, and other fields.
Key Specifications:
· Brand: VIPA (Germany)
· Model: 315-2AG12 / CPU 315SB/DPM
· Core Technology: SPEED7 technology
· Working Memory: 1 MByte (512kByte code, 512kByte data), expandable to 2 MByte
· Program/Data Ratio: 50% Program / 50% Data
· Profibus-DP Master Speed: 12 Mbit/s, max. 125 slave stations

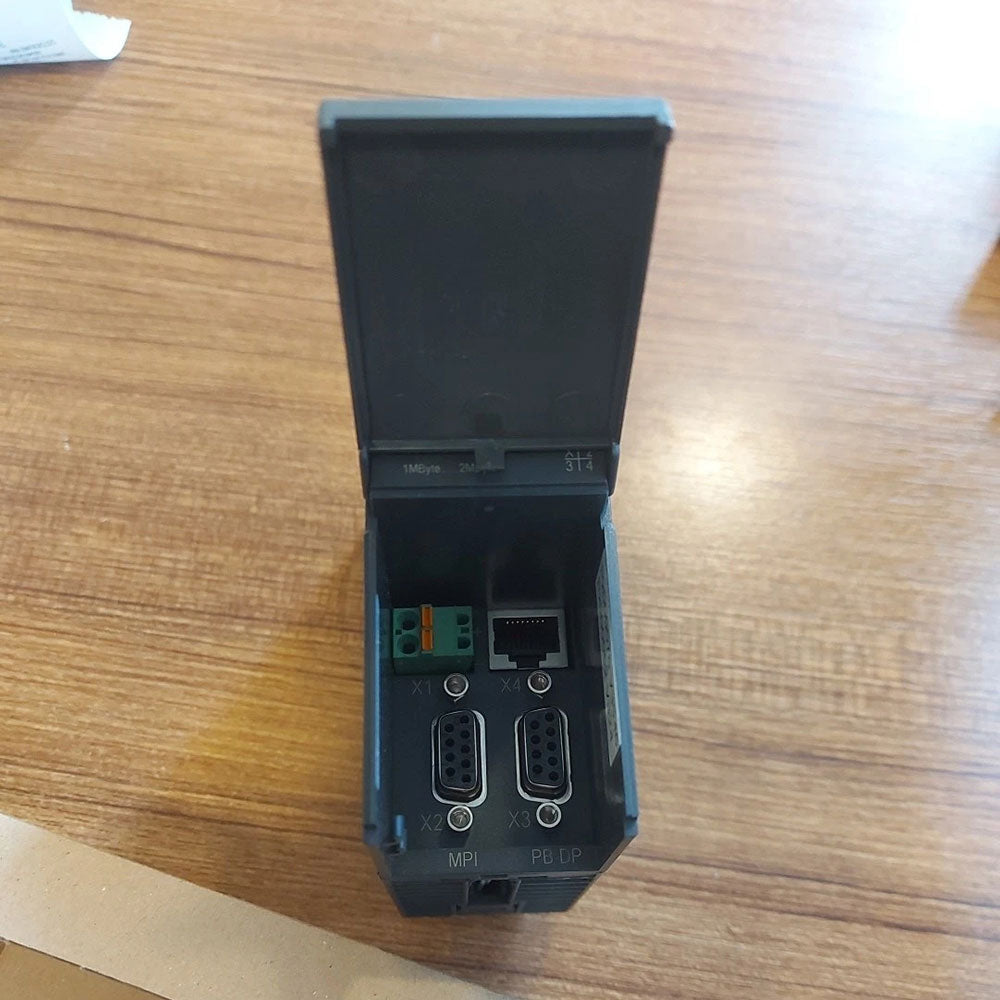

· Communication Interfaces: Profibus DP master, MPI, Ethernet PG/OP, RS485 configurable for PtP communication
· Supply Voltage: 24V DC
· Real-Time Clock: Built-in, battery buffered
· Protection Rating: IP20
· Dimensions: 16 x 10 x 7.4 cm
· Weight: 0.25 kg
Applications: Industrial Automation Control Systems, Process Control, S7-300 Compatible System Integration
