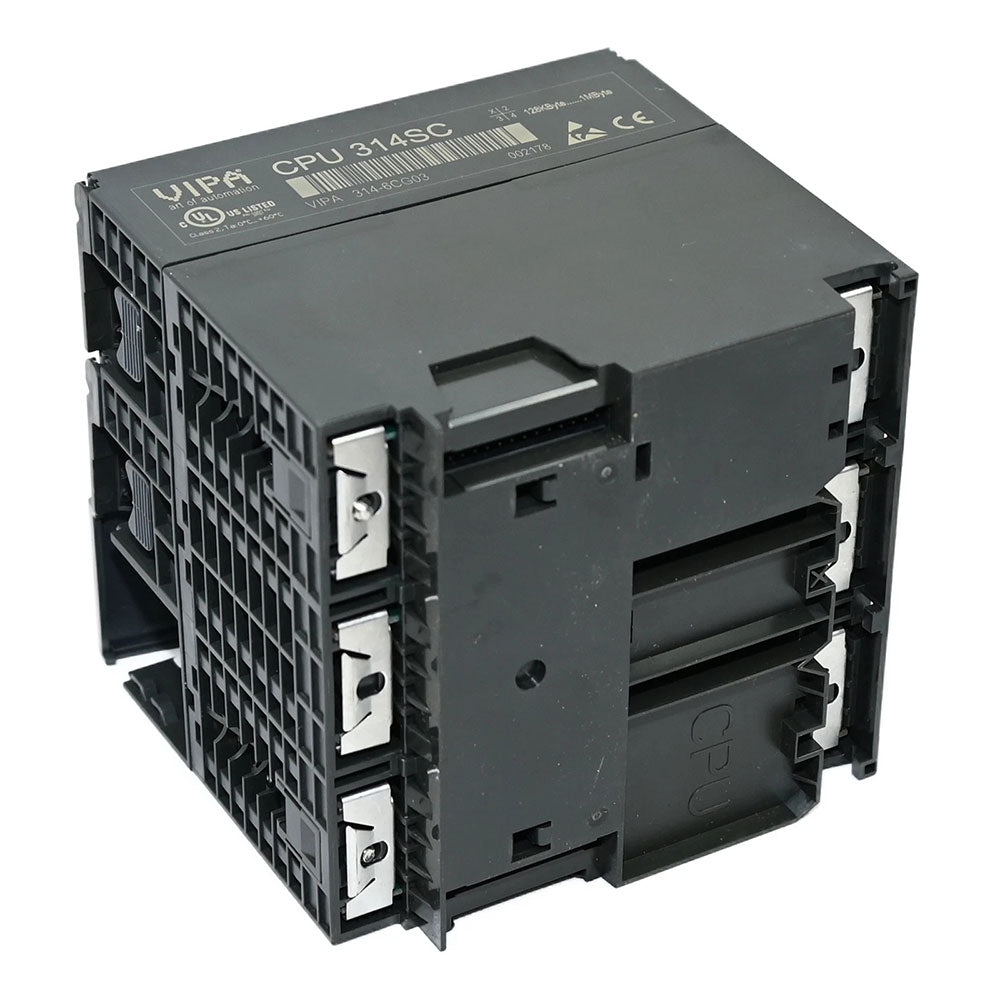

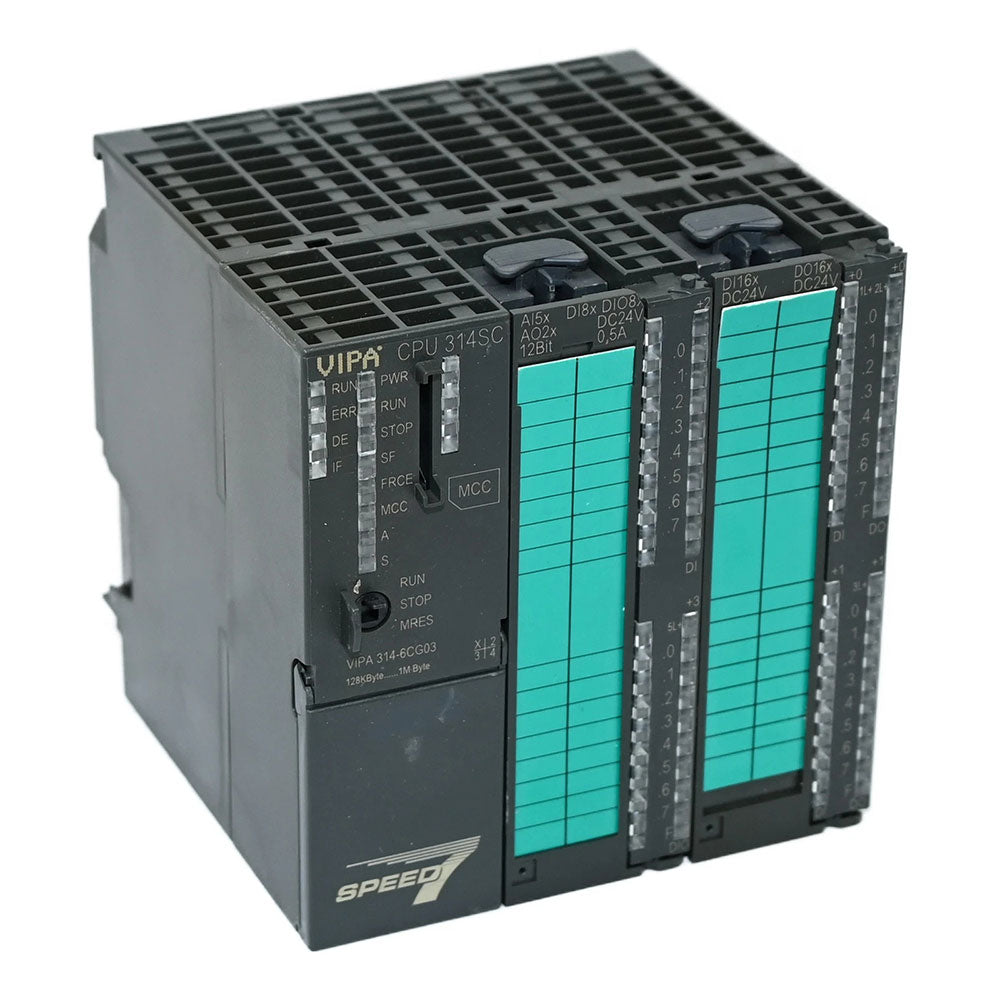

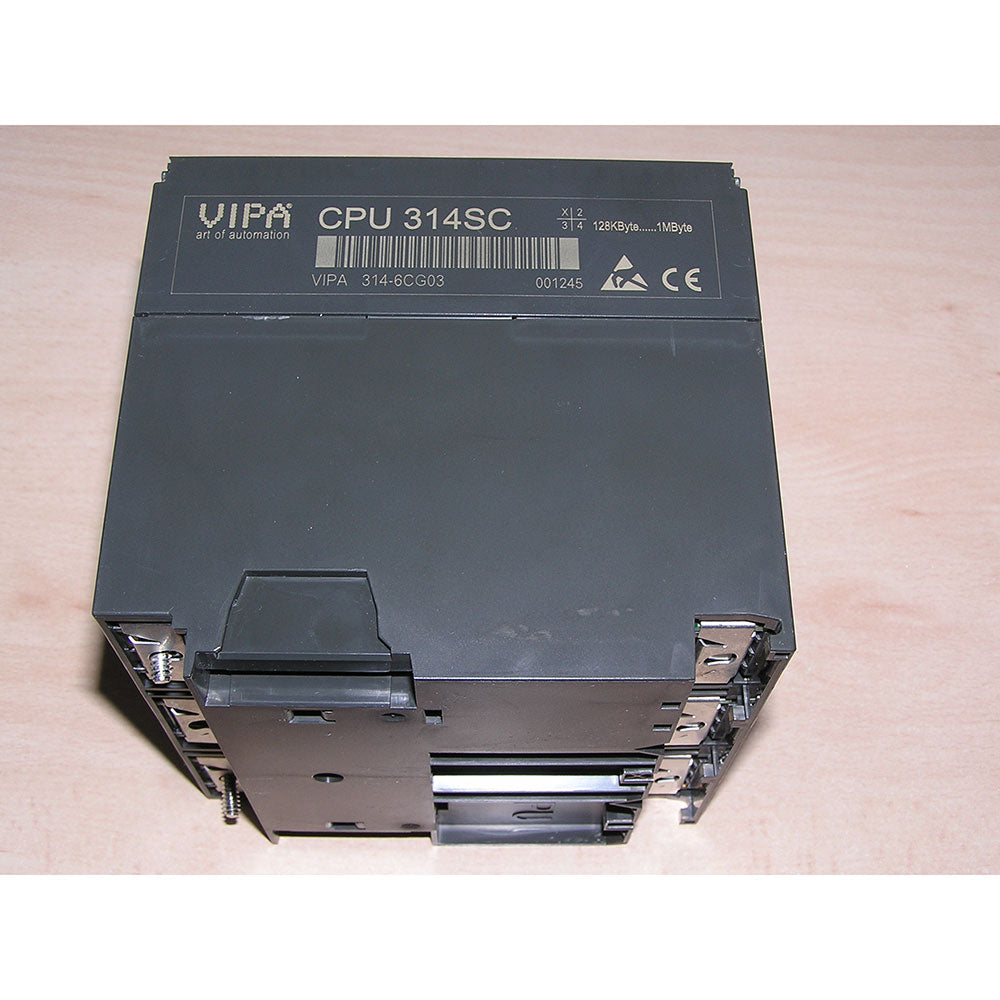

VIPA 314-6CG03 CPU 314SC/DPM Central Processing Unit
The VIPA 314-6CG03 is a high-performance compact central processing unit based on SPEED7 technology, belonging to the VIPA System 300S series. Designed for industrial automation and control systems, this CPU is suitable for medium to large-scale applications in centralized and distributed control systems. It is fully compatible with Siemens SIMATIC S7-300 systems and can be programmed using the STEP 7 programming platform (SIMATIC Manager or TIA Portal).
Core Technology
SPEED7 technology is VIPA's proprietary real-time automation solution core, utilizing a coprocessor design that significantly enhances the CPU's programming and communication capabilities, providing powerful performance for demanding applications.
Key Features
· High-Performance Processing: Integrated SPEED7 technology for high-speed data processing and real-time control
· Large Memory Capacity: 128 KByte work memory (expandable to 1 MByte), 50% program / 50% data
· No onboard I/O: I/O expansion via external modules
· Comprehensive Communication Interfaces:
· Profibus-DP master interface, up to 12 Mbit/s, max. 125 slaves
· Point-to-point (PtP) RS485 interface, electrically isolated, supporting ASCII, STX/ETX, 3964R, Modbus master, USS master protocols
· Ethernet PG/OP channel for programming device communication
· MPI (Multi-Point Interface) for programming and monitoring
· Real-Time Clock: Built-in, battery buffered
· Expansion Capability: MMC slot for external memory card and memory expansion
Technical Specifications
· Brand: VIPA (Germany, now part of Yaskawa Group)
· Model: 314-6CG03 / CPU 314SC/DPM
· Processor Type: 32-bit microprocessor, SPEED7 technology
· Work Memory: 128 KByte (expandable to 1 MByte, 50% program/50% data)
· Profibus-DP Master Speed: 12 Mbit/s, max. 125 slaves
· Communication Interfaces: Profibus-DP master, MPI, Ethernet PG/OP, PtP RS485, MMC slot
· Supply Voltage: 24V DC
· Real-Time Clock: Built-in, battery buffered
· Operating Temperature: 0°C to +60°C
· Protection Rating: IP20
· Dimensions (W x H x D): 120 x 120 x 130 mm (12 x 12 x 13 cm)
· Weight: Approx. 0.6 kg (600 g)
Applications
· Industrial Automation Control Systems
· Process Control and Monitoring
· Medium to Large-Scale Centralized and Distributed Control Systems
· Metallurgical Industry (e.g., Electroslag Furnace Control Systems)
· Machine Control and Manufacturing Automation Lines
· Building Automation
Compatibility
This CPU is fully compatible with Siemens SIMATIC S7-300 systems. It supports STEP 7 programming languages (LAD, FBD, STL, SCL, CFC, Graph7) and can be configured and programmed in SIMATIC Manager or TIA Portal. VIPA and Siemens modules can be mixed on the same bus.
