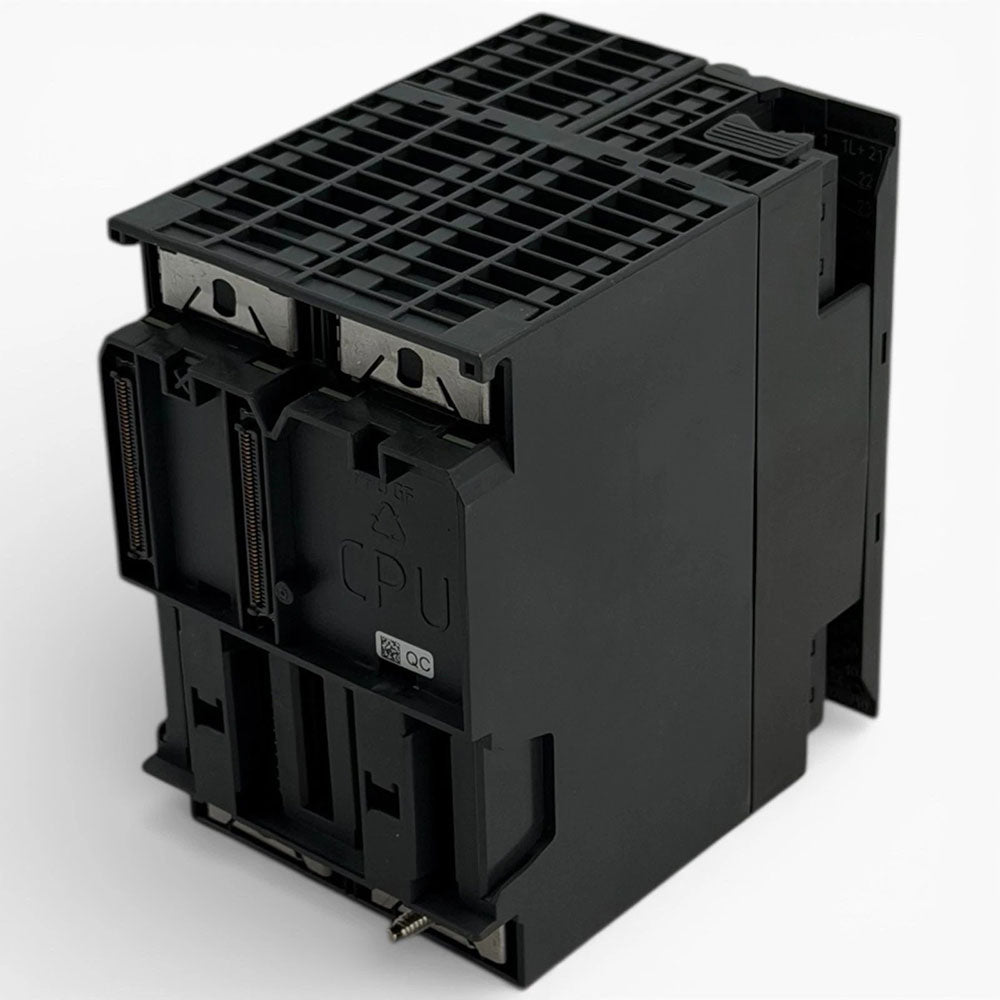

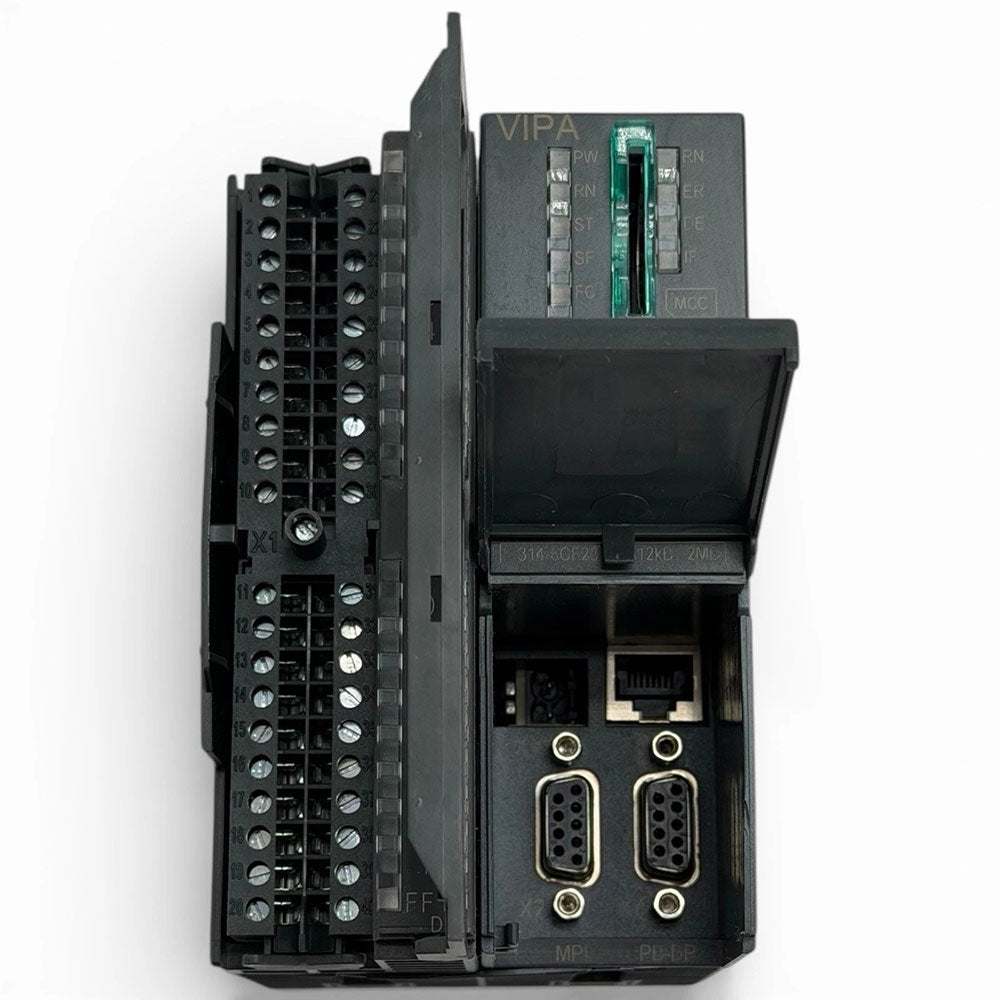

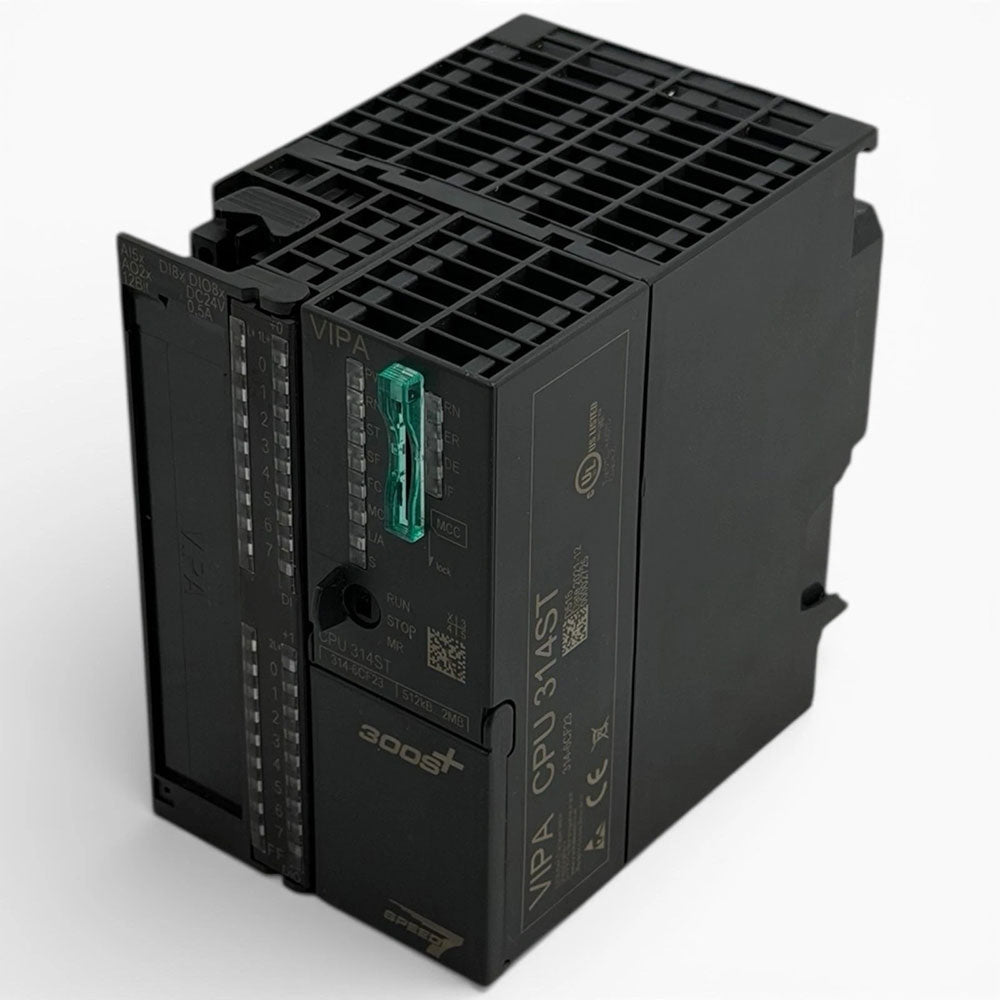

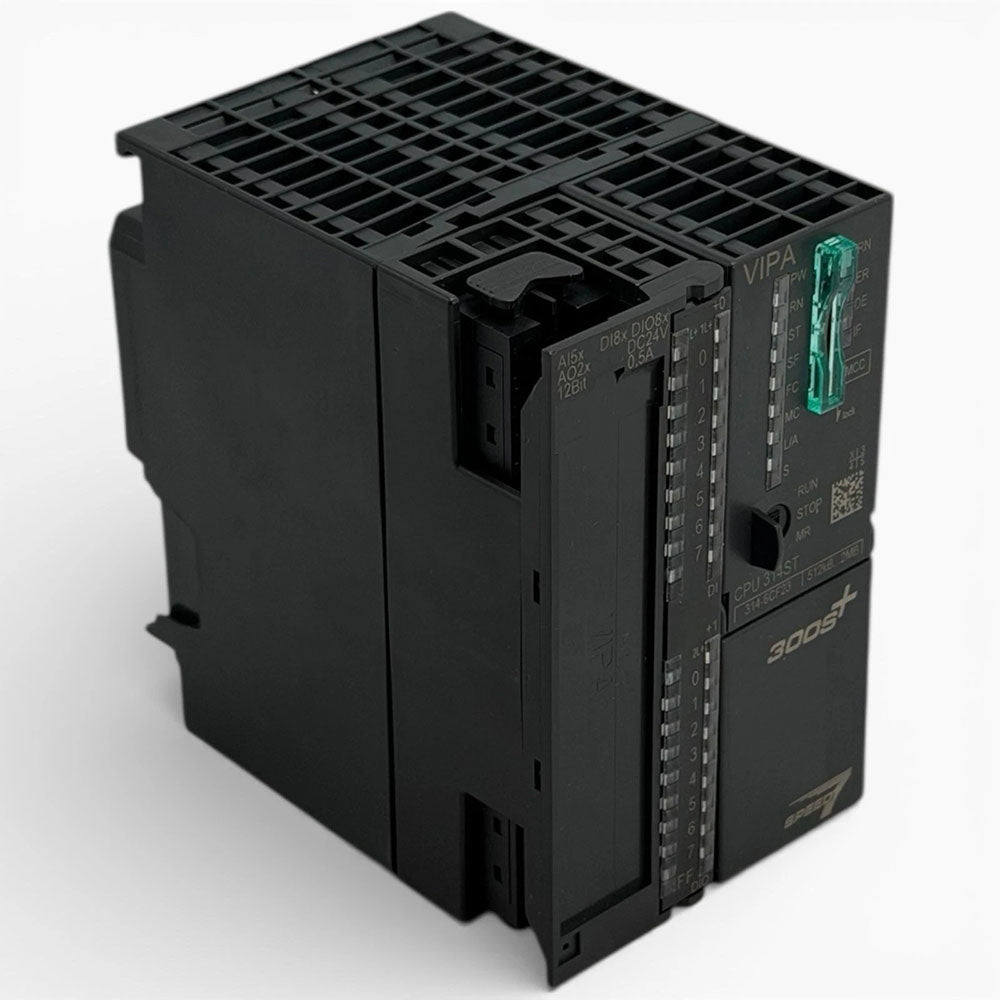

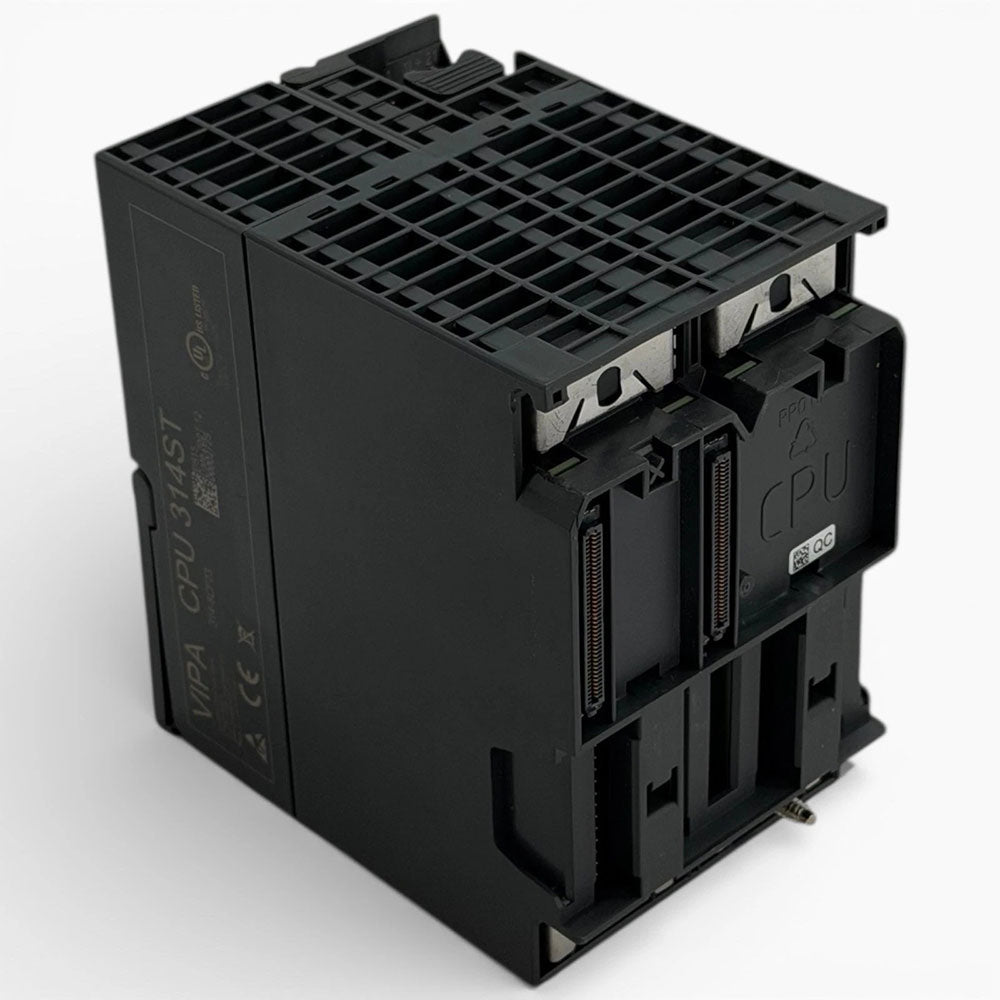

VIPA 314-6CF23 CPU 314ST/DPM Central Processing Unit
The VIPA 314-6CF23 is a high-performance compact central processing unit based on SPEED7 technology, belonging to the VIPA System 300S+ series. Designed for industrial automation and control systems, this CPU is suitable for medium to large-scale applications in centralized and distributed control systems. With ultra-fast SPEED7 processing technology, integrated PROFIBUS-DP interface, and TIA Portal compatibility, it excels in multi-tasking control and real-time data processing in high-speed production lines and complex processes in industries such as food & beverage, chemical, and packaging machinery.
Core Technology:
SPEED7 technology is VIPA's proprietary real-time automation solution core, utilizing a coprocessor design that significantly enhances the CPU's programming and communication capabilities, providing powerful performance for demanding applications. This technology achieves a bit instruction execution speed of 10 ns, a substantial improvement over traditional solutions.
Key Features:
· High-Performance Processing: Integrated SPEED7 technology with 10 ns bit instruction speed for high-speed data processing and real-time control
· Large Memory Capacity: 512 KByte work memory (expandable to 2 MByte), 50% program / 50% data
· Rich Onboard I/O:
· 8 Digital Inputs (DI)
· 8 Configurable Digital I/O (DIO)
· 4 Analog Inputs (AI), 12-bit, voltage/current signals
· 2 Analog Outputs (AO)
· 1 Pt100 RTD input
· Comprehensive Communication Interfaces:
· PROFIBUS DP master/slave interface, up to 12 Mbit/s, max. 124 slaves
· SPEED-Bus expansion bus, up to 10 SPEED-Bus modules
· MPI (Multi-Point Interface) for programming and monitoring
· Ethernet PG/OP channel for programming device communication
· Point-to-point (PtP) RS485 interface supporting ASCII, 3964R, etc.
· Real-Time Clock: Built-in, battery buffered
· Expansion Capability: MMC slot for external memory card and memory expansion
Technical Specifications:
· Brand: VIPA (Germany, now part of Yaskawa Group)
· Model: 314-6CF23 / CPU 314ST/DPM
· Processor Type: 32-bit microprocessor, SPEED7 technology
· Bit Instruction Execution Time: 10 ns
· Work Memory: 512 KByte (expandable to 2 MByte)
· Program/Data Ratio: 50% Program / 50% Data
· PROFIBUS DP Master Speed: 12 Mbit/s, max. 124 slaves
· Communication Interfaces: PROFIBUS DP master/slave, SPEED-Bus, MPI, Ethernet PG/OP, PtP RS485
· Onboard I/O: 8 DI, 8 DIO, 4 AI, 2 AO, 1 Pt100
· Supply Voltage: 24V DC
· Real-Time Clock: Built-in, battery buffered
· Operating Temperature: 0°C to +60°C
· Protection Rating: IP20
· Dimensions (W x H x D): 80 x 125 x 120 mm
· Weight: Approx. 0.48 kg
Applications:
· Industrial Automation Control Systems
· Process Control and Monitoring
· High-Speed Production Line Control (e.g., Food & Beverage, Packaging Machinery)
· Complex Process Control (e.g., Chemical Industry)
· Machine Control and Manufacturing Automation Lines
· Building Automation
Compatibility:
This CPU is fully compatible with Siemens SIMATIC S7-300 systems. Supports STEP 7 programming languages (LAD, FBD, STL, SCL, CFC, Graph7) and can be configured and programmed in SIMATIC Manager or TIA Portal. VIPA and Siemens modules can be mixed on the same bus.
