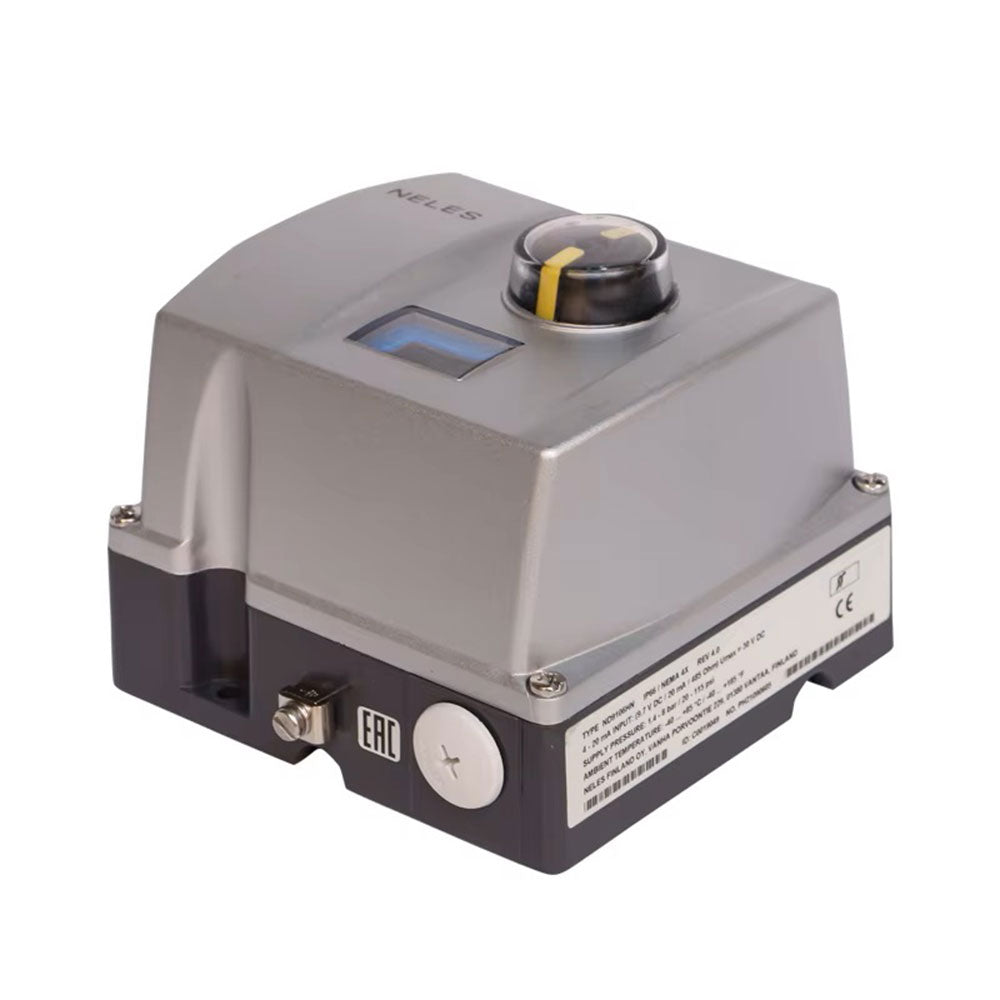

Metso ND9106HN IP66 Valve Positioner 4-20mA Input 9.7V DC 1.4-8 bar
The Metso ND9106HN is a high-performance, rugged valve positioner designed for precise control of pneumatic actuators in industrial process applications. It accepts a standard 4-20 mA control signal and converts it into a pneumatic output to accurately position the valve. Encased in an IP66 / NEMA 4X housing, it is suitable for harsh environments including dust, moisture, and outdoor installations.
Key Specifications
· Model: ND9106HN
· Input Signal: 4-20 mA (with 9.7V DC supply)
· Supply Pressure: 1.4 – 8 bar (20 – 115 psi)
· Ambient Temperature: –40°C to +85°C
· Protection Rating: IP66 / NEMA 4X
· Communication: 4-20 mA analog (HART capable, optional)
· Mounting: Suitable for linear and rotary actuators
· Materials: Corrosion-resistant housing
Features
· High accuracy and repeatability
· Low air consumption
· Easy one‑touch auto‑calibration
· Local LCD display (optional)
· Rugged design for severe environments
Applications
· Chemical and petrochemical plants
· Oil and gas industries
· Power generation
· Pulp and paper mills
· Water and wastewater treatment
