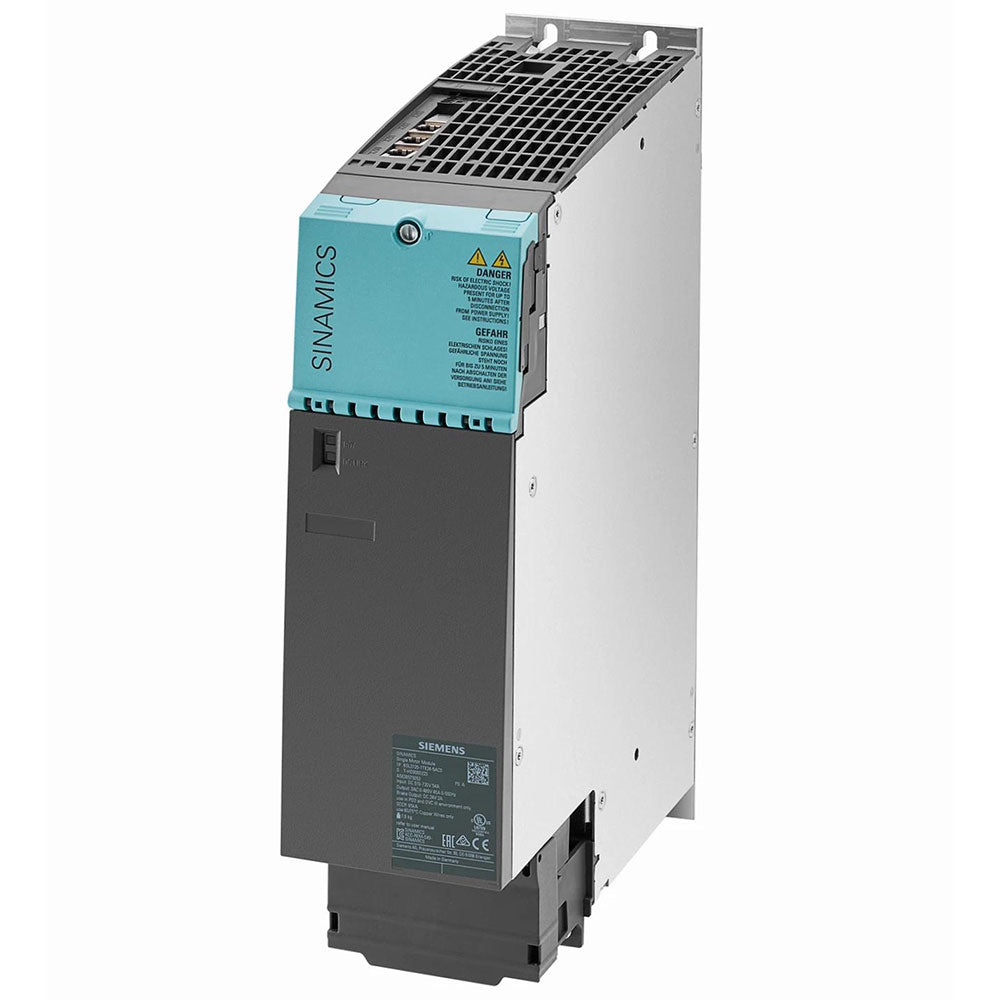

Siemens 6SL3120-1TE24-5AC0 SINAMICS S120 Single Motor Module

Overview

The Siemens 6SL3120-1TE24-5AC0 is a sophisticated single motor module within the SINAMICS S120 range, designed to deliver precise and reliable control for industrial motors. This AC drive module is engineered to handle demanding applications, providing excellent performance and flexibility for various automation needs. Its robust construction and advanced features ensure efficient motor management and system integration.

Design and Specifications

The 6SL3120-1TE24-5AC0 operates with a DC input voltage of 600V and outputs a three-phase AC voltage of 400V, with a maximum current rating of 45A. This configuration allows the drive to power motors effectively and efficiently across various applications. The module is housed in a booksize frame, specifically a C-Type, designed to optimize space utilization and facilitate integration into control panels or cabinets.

Cooling and Environmental Considerations

To ensure reliable operation and longevity, the 6SL3120-1TE24-5AC0 features internal air cooling. This cooling mechanism maintains optimal operating temperatures and prevents overheating during extended use. The drive is designed to function effectively within an ambient temperature range of 0 to 40°C (32 to 104°F), making it suitable for various industrial environments with manageable temperature control.

Safety and Standards

Safety is a critical aspect of the 6SL3120-1TE24-5AC0's design. The module adheres to stringent safety standards, including SIL 2 according to IEC 61508, PL d according to EN ISO 13849-1, and Category 3 according to EN ISO 13849-1. These certifications ensure the drive meets high safety requirements, making it suitable for safety-critical applications where risk mitigation is essential.

The drive also complies with CE and cULus standards, reflecting its adherence to European and North American safety and quality requirements. This compliance underscores the module's reliability and suitability in diverse global markets.

Physical Dimensions

The 6SL3120-1TE24-5AC0 is designed with a compact form factor to fit into various installation scenarios. Its dimensions are 14.96 inches in height, 3.94 inches in width, and 10.63 inches in depth. This size ensures the drive can be accommodated in tight spaces while providing robust performance and functionality.
