GEFRAN 2301-SI-0-2R-1 Temperature Controller 2 Relay Output

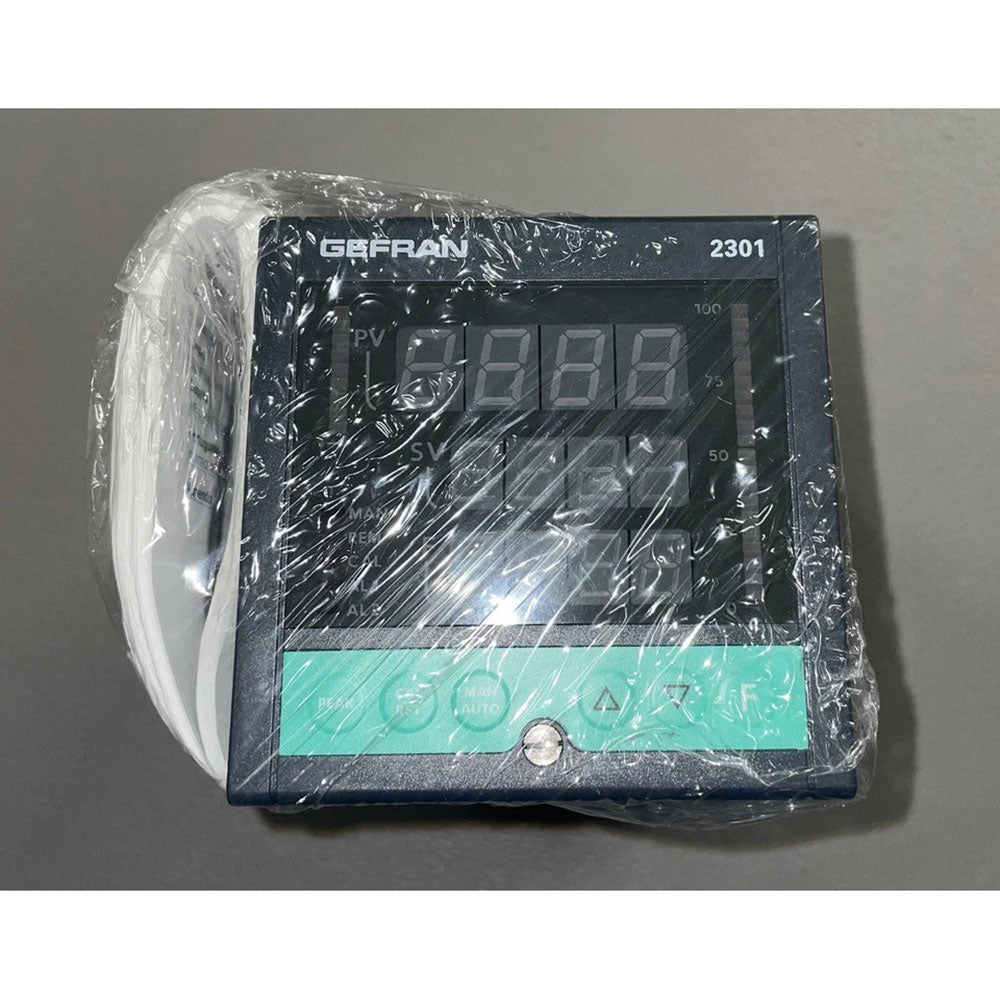

This is a GEFRAN 2301 series temperature controller, model 2301-SI-0-2R-1, designed for precise temperature control in industrial applications.

Key Specifications:

· Model: 2301-SI-0-2R-1
· Output Type: 2 Relay Output
· Input Type: Thermocouple / PT100 / Linear
· Control Range: -50~100°C (customizable based on sensor)
· Power Supply: 100-240V AC (or 24V DC, depending on version)
· Accuracy: ±0.5% FS
· Display: LED Digital Display
· Mounting: Panel Mount
· Protection: IP65 (front panel)
· Dimensions: 96 × 96 × 100 mm (1/8 DIN)
· Net Weight: approx. 0.5 kg

Main Features:

· PID control with auto-tuning
· Dual relay output for heating/cooling or alarm
· Universal input (TC, RTD, linear)
· Simple parameter setting via front panel
· Robust design for industrial environments

Applications:
Ideal for plastic machinery, packaging equipment, ovens, furnaces, and HVAC systems.

Package Includes:
1 × GEFRAN 2301-SI-0-2R-1 Temperature Controller (unit only, sensor not included)

Important:
Please verify your input type and power supply before ordering.
