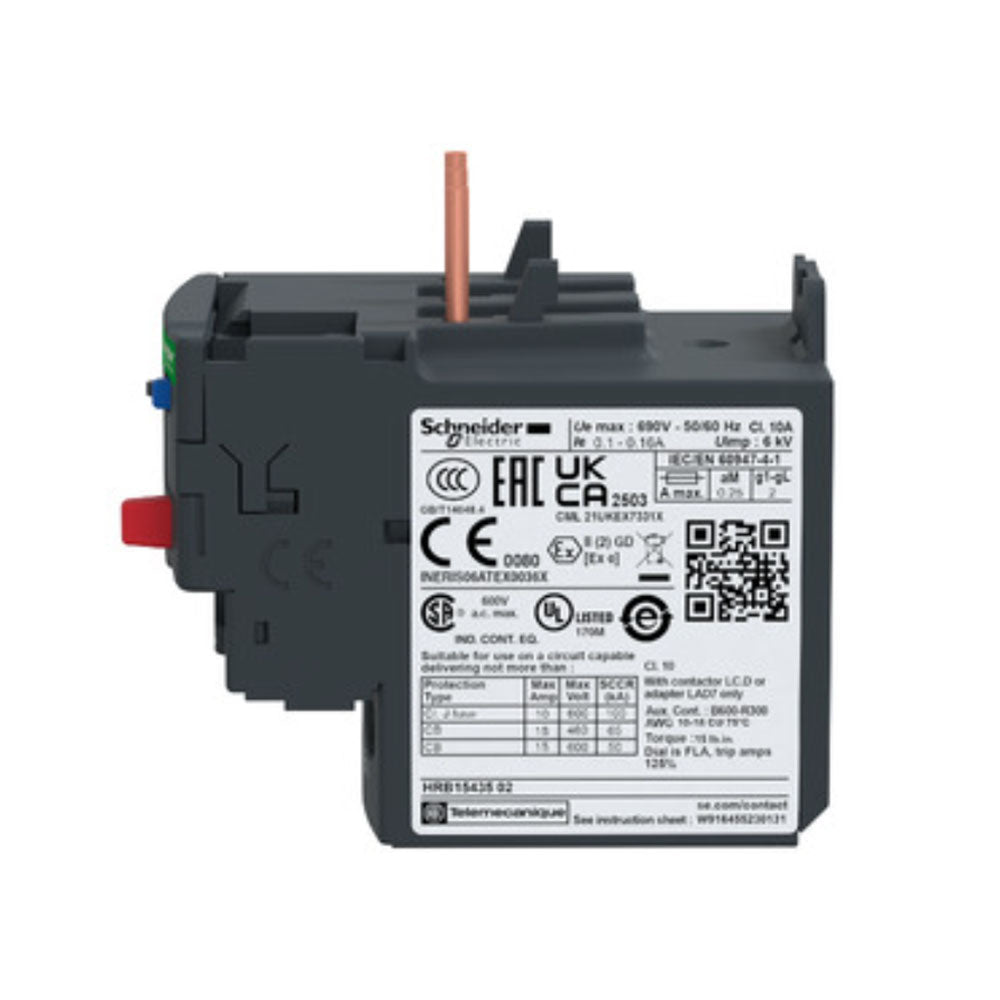

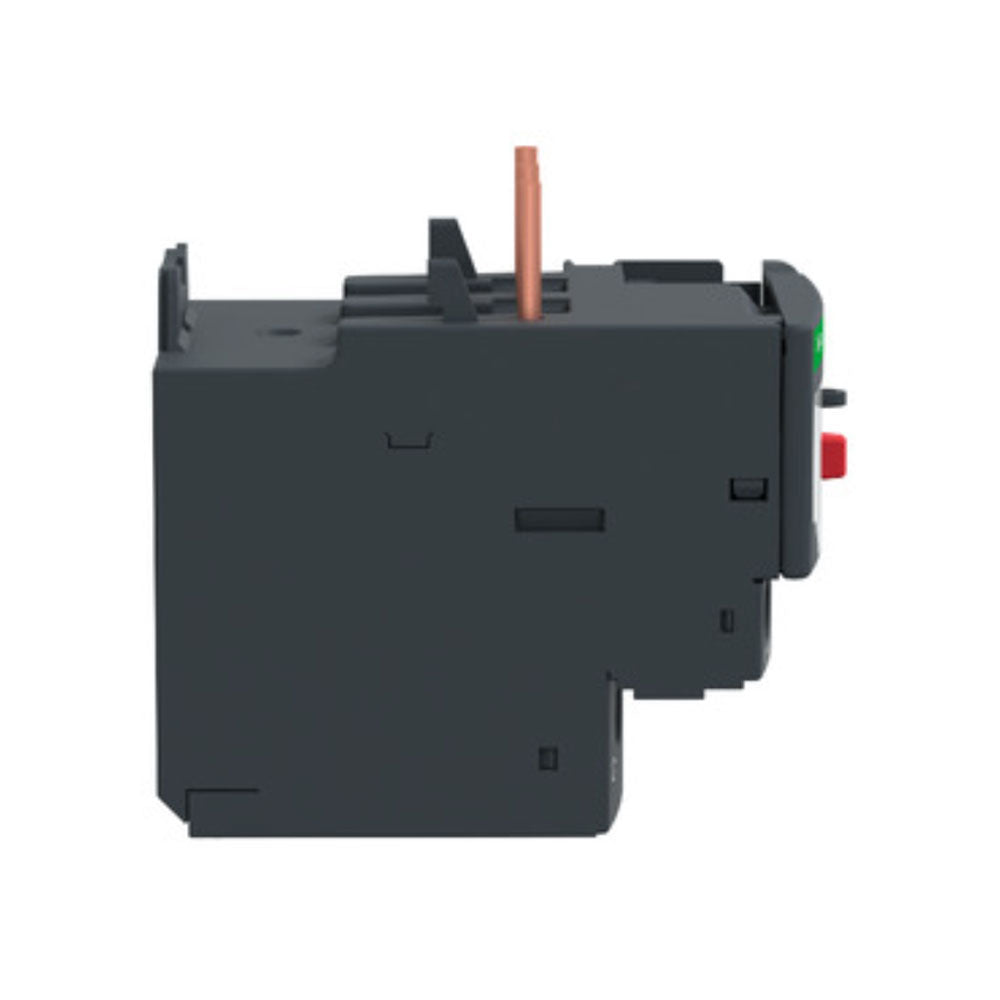

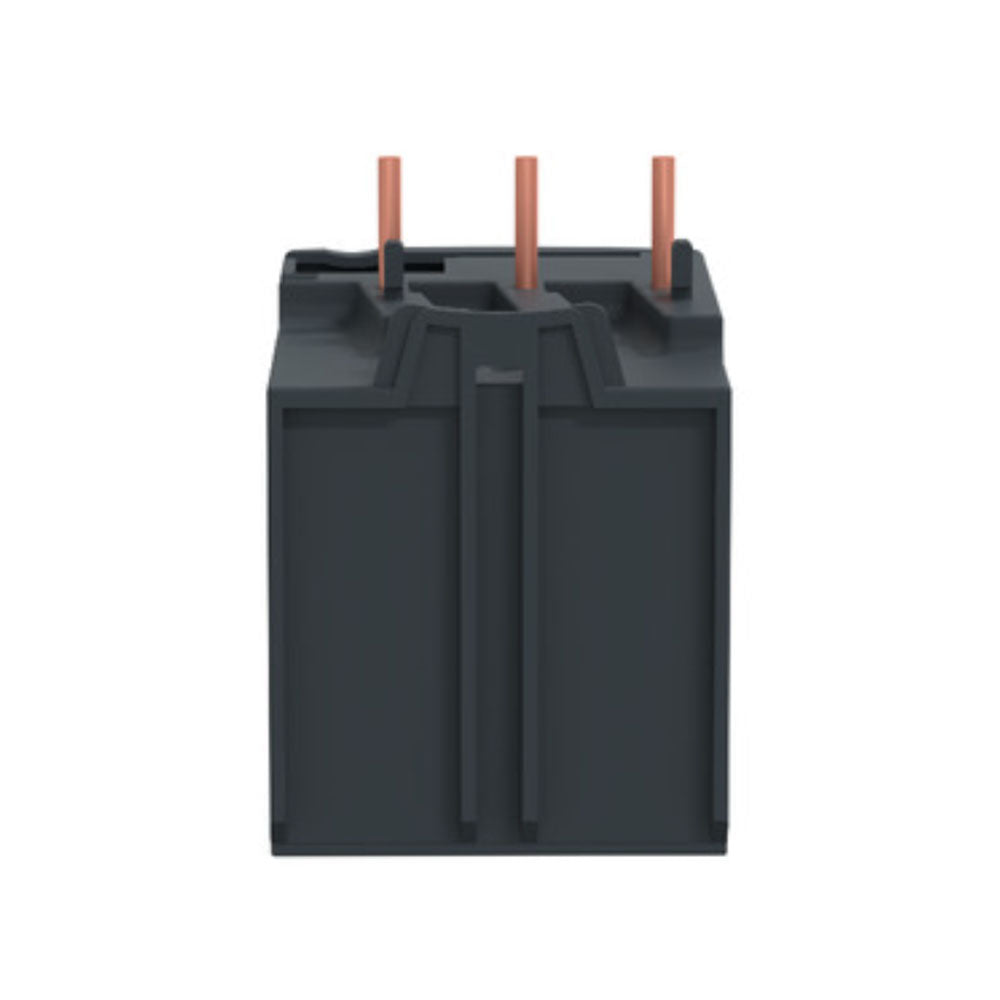

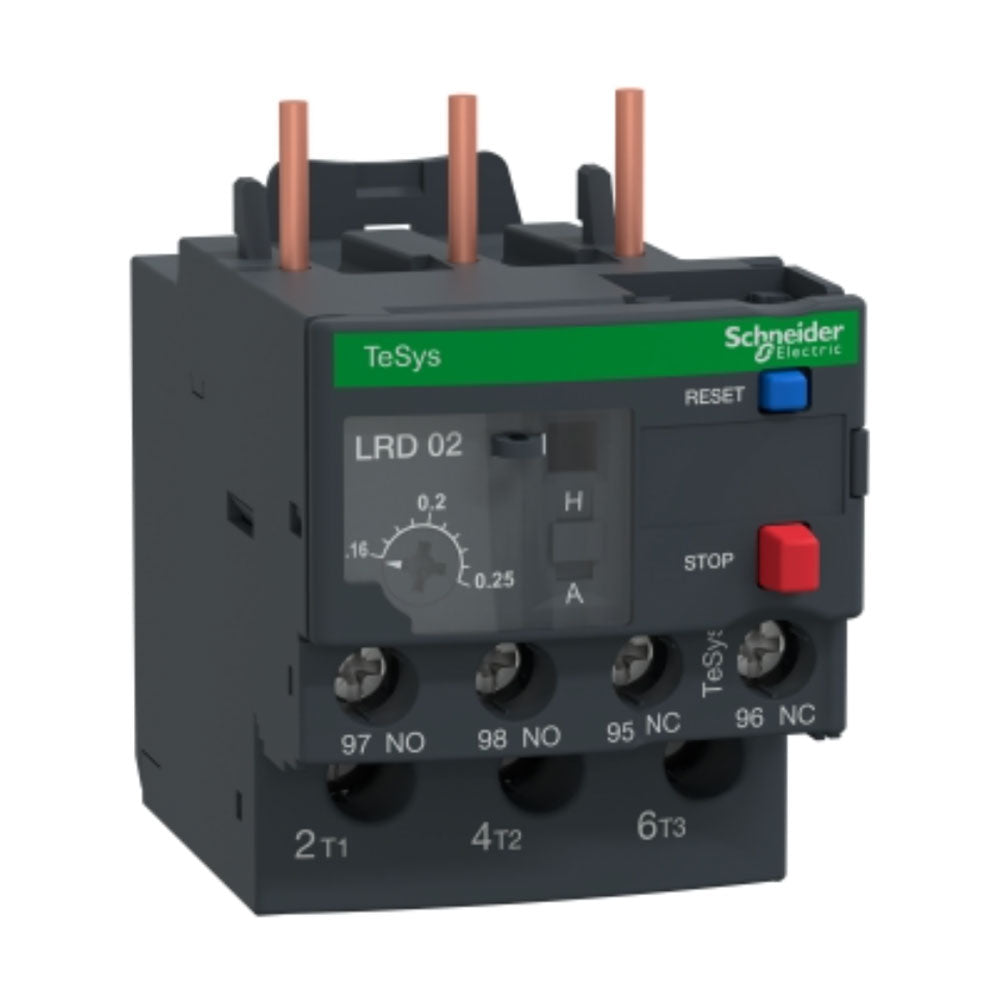

Schneider Electric LRD02 Thermal Overload Relay 0.16-0.25A (TeSys Deca Series)

This is an original Schneider Electric LRD02 thermal overload relay, part of the TeSys Deca series. Designed for three-phase motor protection, it provides reliable overload and phase-failure protection.

Key Specifications:

· Model: LRD02
· Current Setting Range: 0.16 – 0.25 A
· Tripping Class: Class 10A
· Contact Configuration: 1 NO + 1 NC
· Rated Insulation Voltage: 690V
· Protection Degree: IP20
· Net Weight: 0.124 kg
· Dimensions (L×W×H): 7 × 4.5 × 6.6 cm

Main Features:

· Accurate protection against overload and phase loss.
· Easy current adjustment with a clear dial.
· Compact size saves panel space.
· Robust construction ensures long service life.
· Compliant with IEC and UL standards.

Compatible Contactors:
Perfectly fits Schneider TeSys D contactors (e.g., LC1D09…D38).

Applications:
Widely used in motor control centers, pumps, fans, compressors, and industrial machinery.

Package Includes:
1 × LRD02 Thermal Overload Relay (contactor not included)

Important:
Please verify that your contactor is TeSys D series and that the motor full-load current falls within 0.16–0.25 A.
