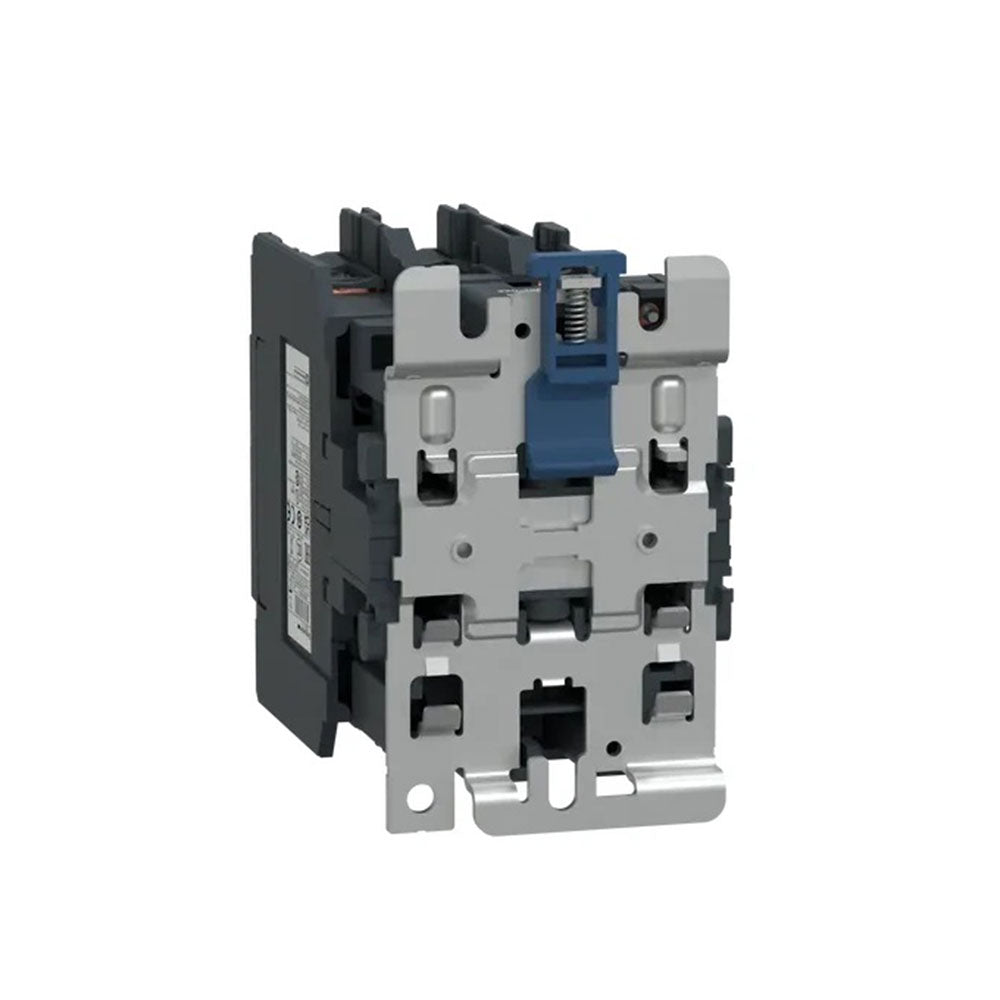

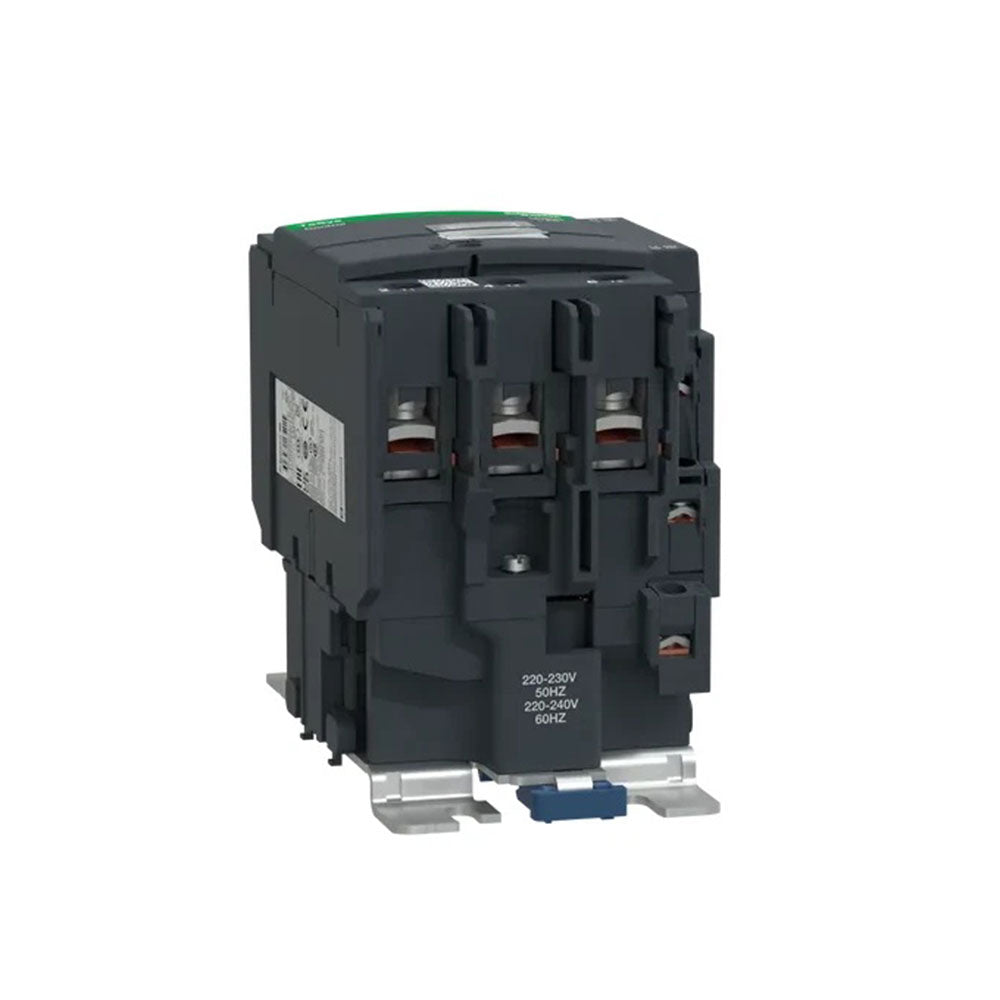

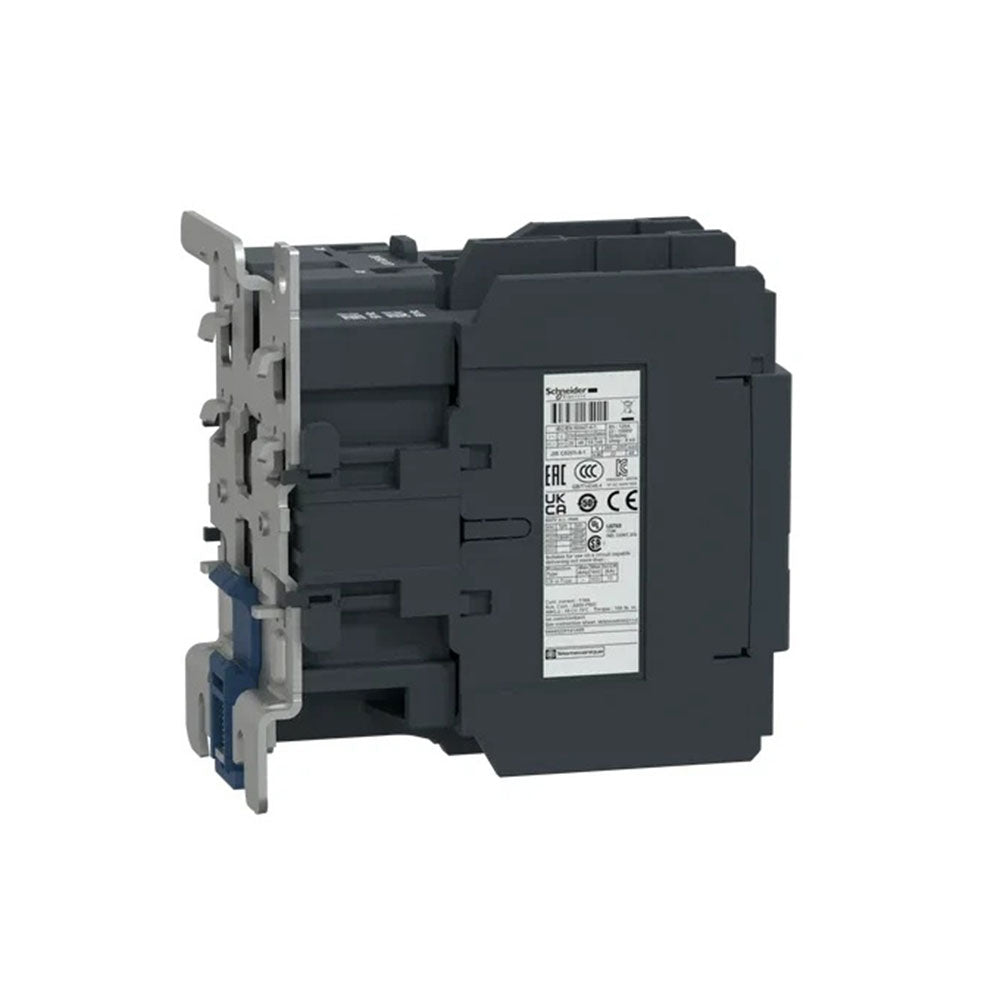

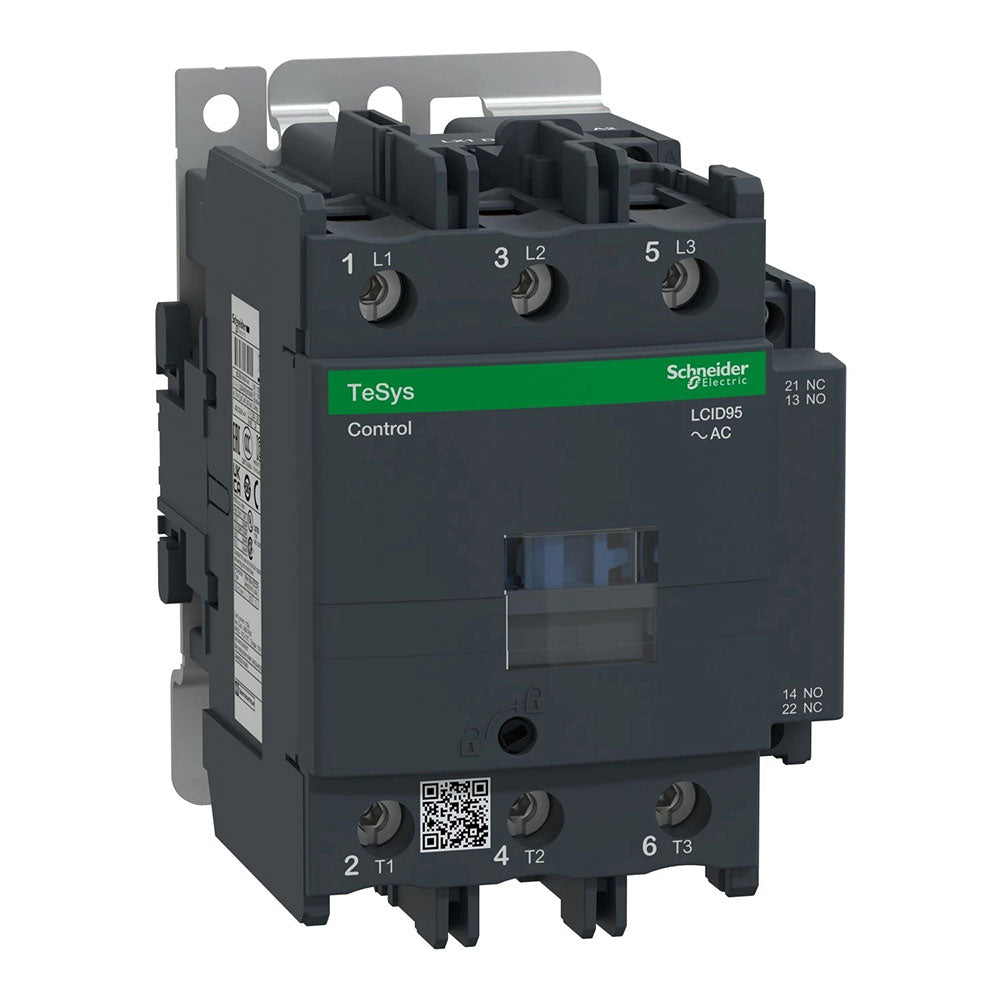

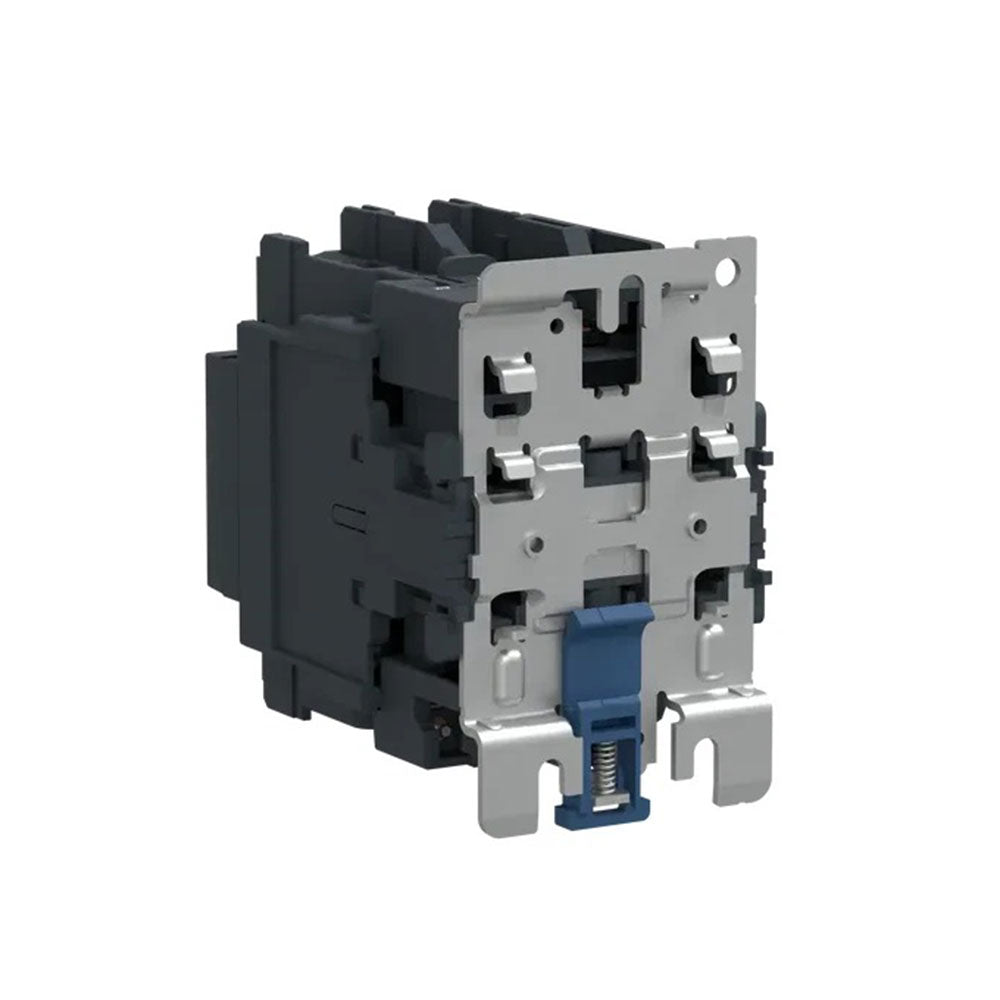

Schneider Electric LC1D95M7 TeSys Deca 95A 3 Pole AC Contactor 220V 50/60Hz

The Schneider Electric LC1D95M7 is a high-performance TeSys Deca series AC contactor designed for motor control and industrial automation applications. Known for its robust construction and reliable switching performance, this contactor is ideal for handling heavy electrical loads in demanding environments .

Key Specifications:

· Model: LC1D95M7
· Series: TeSys Deca
· Rated Current: 95A (AC-3 category at ≤440V)
· Pole Configuration: 3 Pole (3P) with 3 Normally Open (3NO) main contacts
· Coil Voltage: 220V AC 50/60Hz
· Rated Power: Up to 45kW at 380-400V (AC-3)
· Auxiliary Contacts: 1NO + 1NC built-in
· Connection Type: Screw clamp terminals for power and control circuits
· Protection Degree: IP20 (finger-safe terminals) front face
· Mounting: DIN rail or screw fixing
· Dimensions (W x H x D): 85 mm x 127 mm x 130 mm (3.35" x 5.00" x 5.12")
· Net Weight: 1.61 kg (3.55 lbs)
· Standards: IEC 60947, UL, CSA, CCC, EAC, Marine certified
· Environmental Compliance: Green Premium product (RoHS/REACh compliant)

Features & Benefits:

· Long durability with high operating rate (up to 3600 cycles/hour)
· Reliable performance in high temperature environments up to 60°C
· Compact design for easy installation and maintenance
· Mirror contact on NC auxiliary contact for safety applications
· Extensive range of modular accessories for application flexibility
· Multi-standard certified for global acceptance

Applications:

· Motor starting and stopping (pumps, fans, compressors)
· Industrial machinery control
· HVAC systems
· Lighting and heating control panels
· Resistive load switching

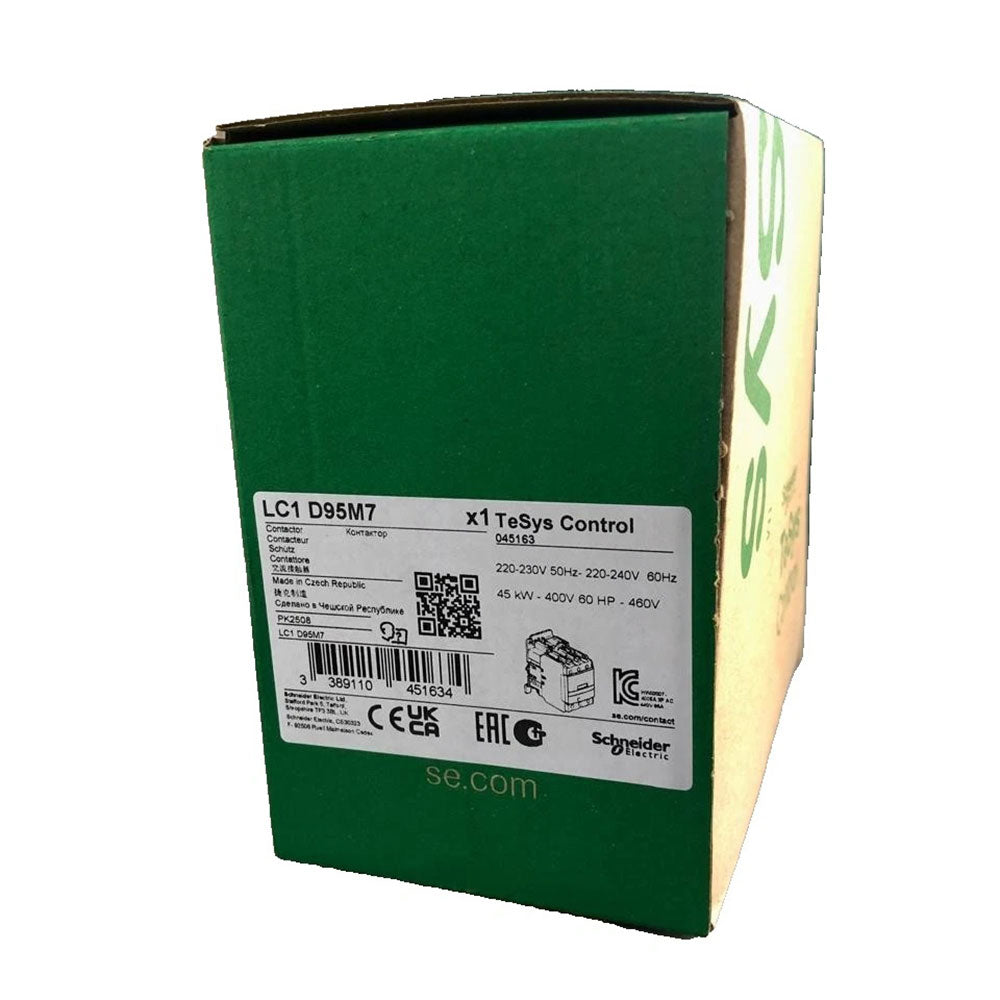

Package Includes:
1 x Schneider Electric LC1D95M7 AC Contactor with built-in 1NO+1NC auxiliary contacts
