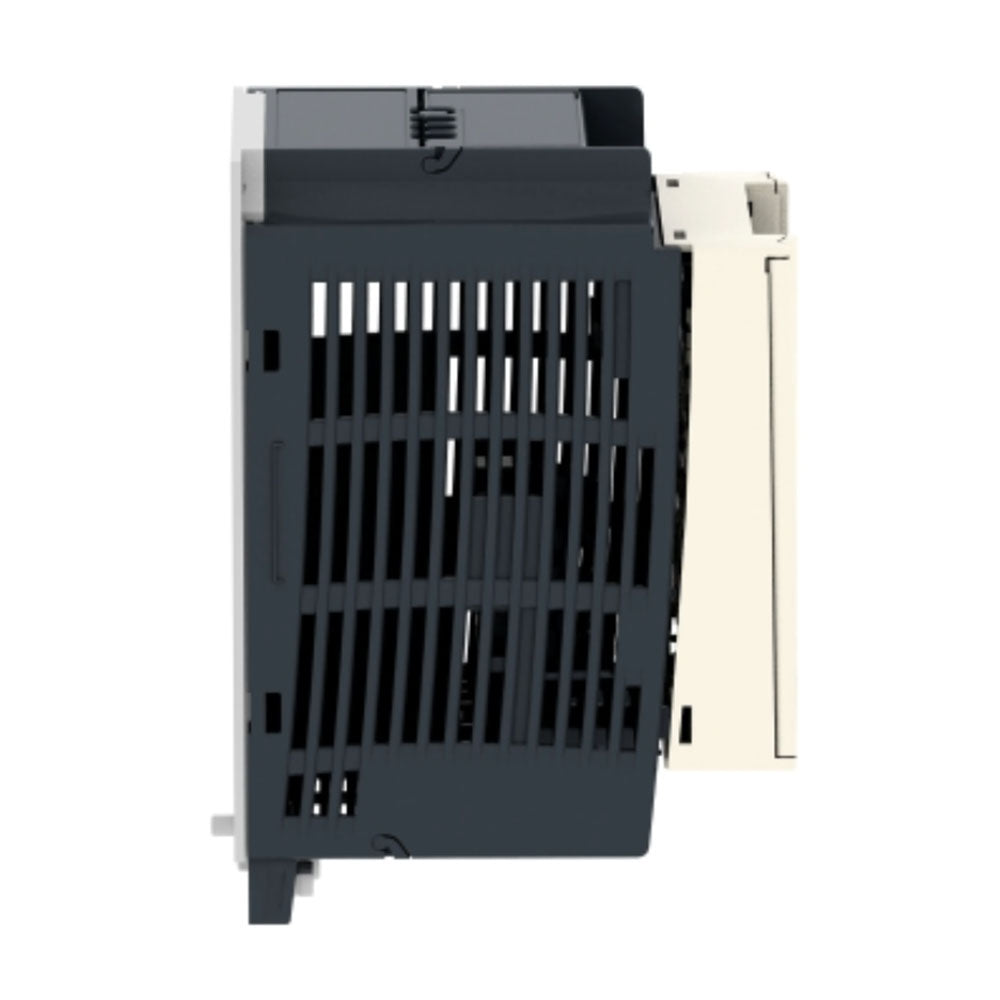

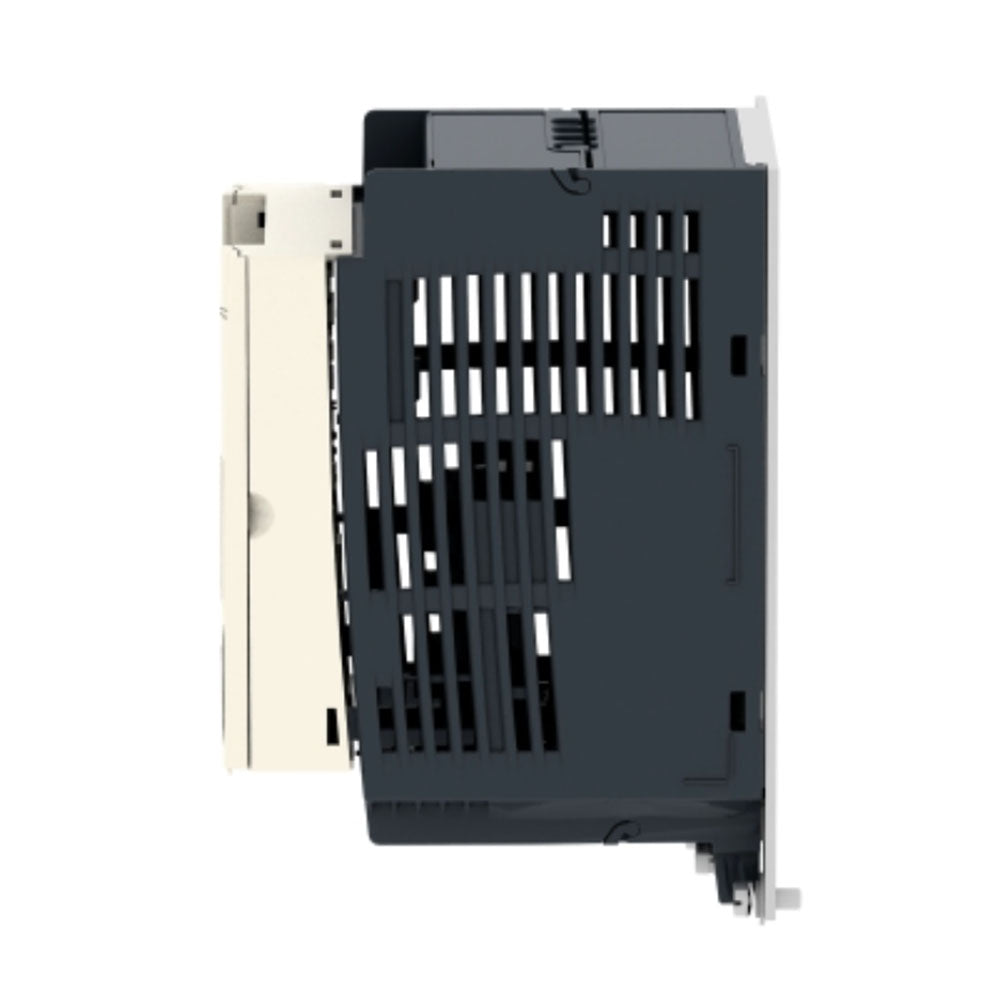

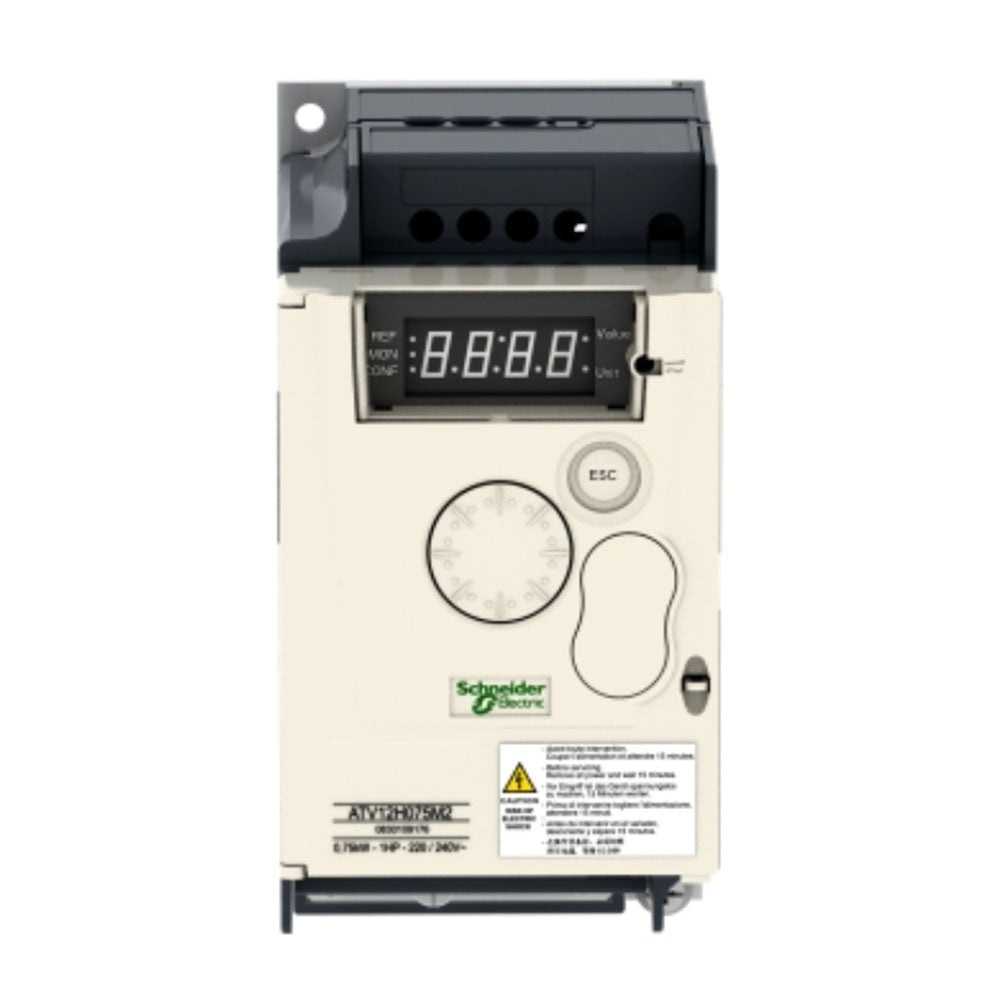

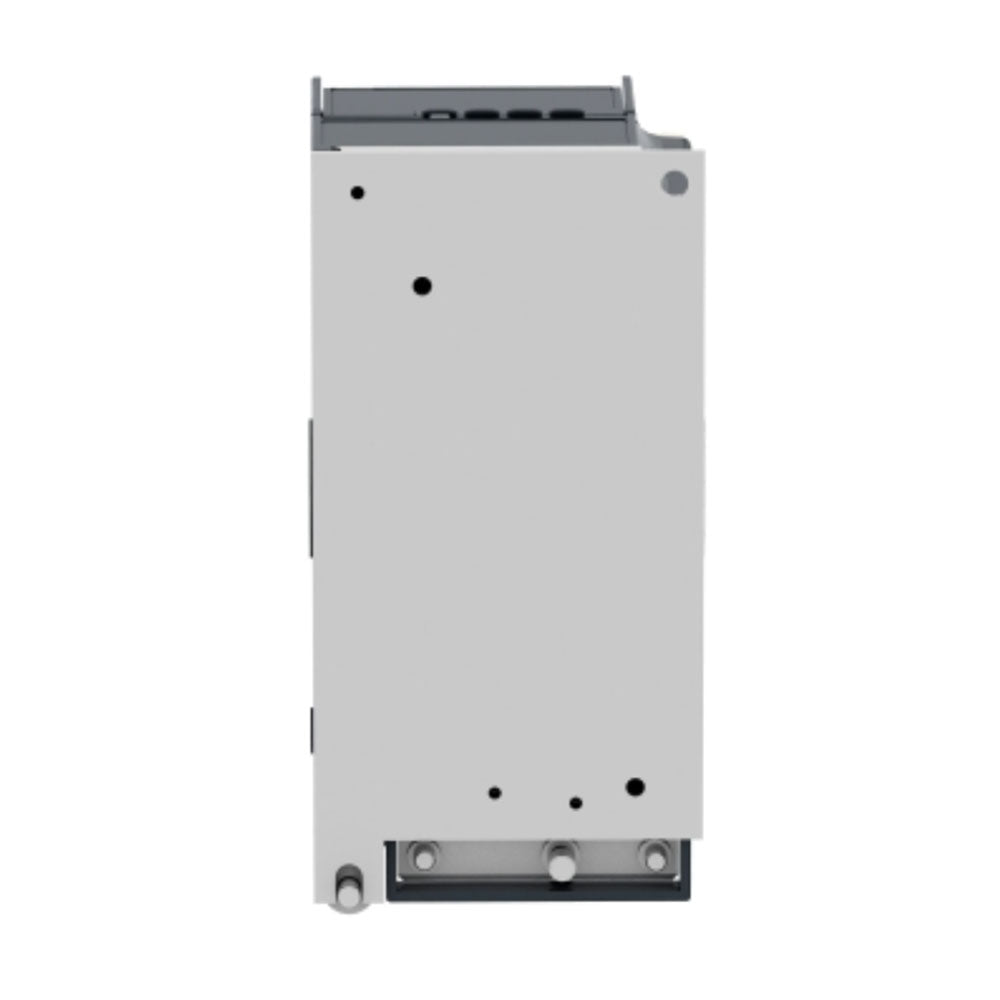

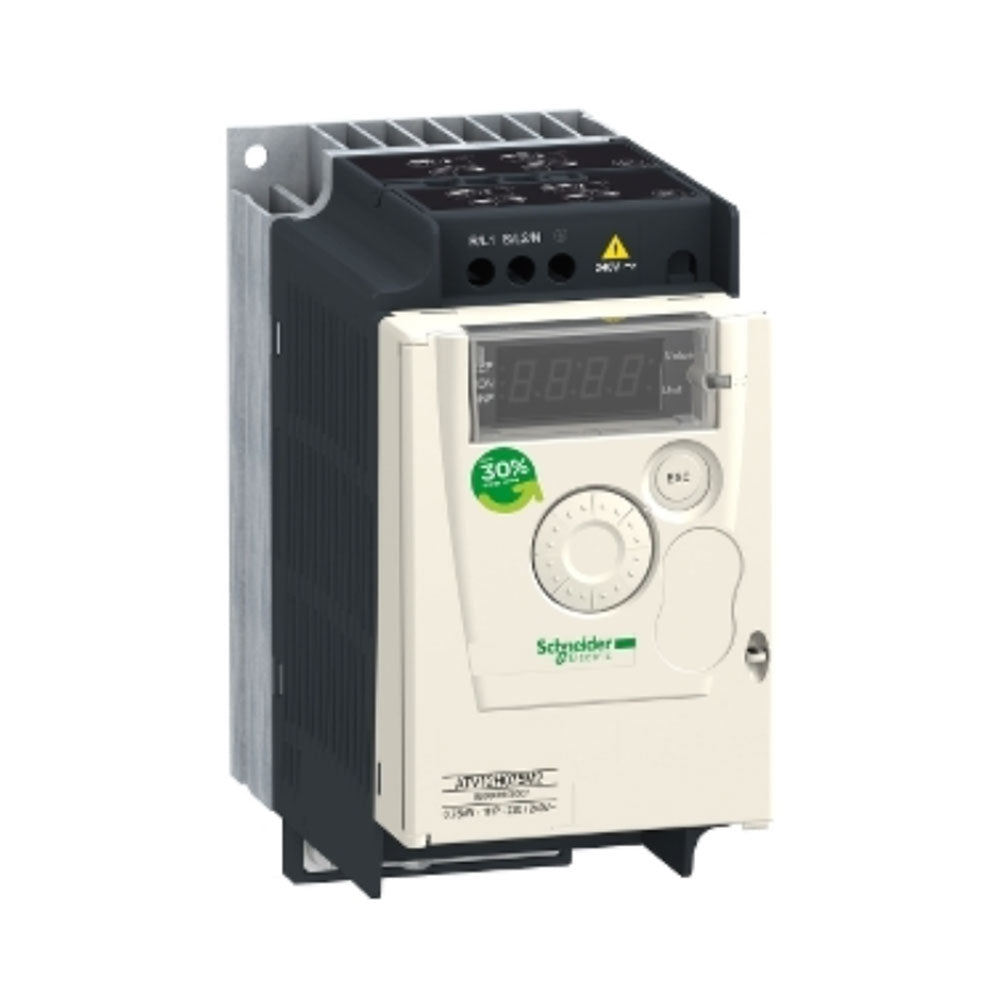

The Altivar Machine ATV12 is a variable speed drive designed for commercial equipment and simple industrial machines. This model is rated at 0.75kW / 1HP, 200-240V AC, featuring a heat sink design and fan-cooled enclosure for standard industrial environments.

Key Features:

· Advanced PID and catch-on-the-fly functionality
· Built-in EMC filter (Class C1)
· Integrated Modbus communication
· SoMove software compatible for configuration backup
· Up to 30% energy saving in ventilation and pumping applications
· Simple wiring and easy motor control setup
· Overcurrent, overheating, short circuit protection

Technical Specifications:

· Model: ATV12H075M2
· Power Rating: 0.75 kW / 1 HP
· Input Voltage: Single-phase 200-240V AC
· Output Voltage: 3-phase 200-240V AC
· Output Frequency: 0.5-400 Hz
· Rated Output Current: 4.2 A
· IP Rating: IP20 with heat sink
· Communication: Modbus RTU (RS485)
· Dimensions: 143 x 72 x 131.2 mm
· Net Weight: 0.8 kg

Applications:
Conveyors, pumps, exhaust fans, access barriers, treadmills, HVAC, packaging machines, mixers
