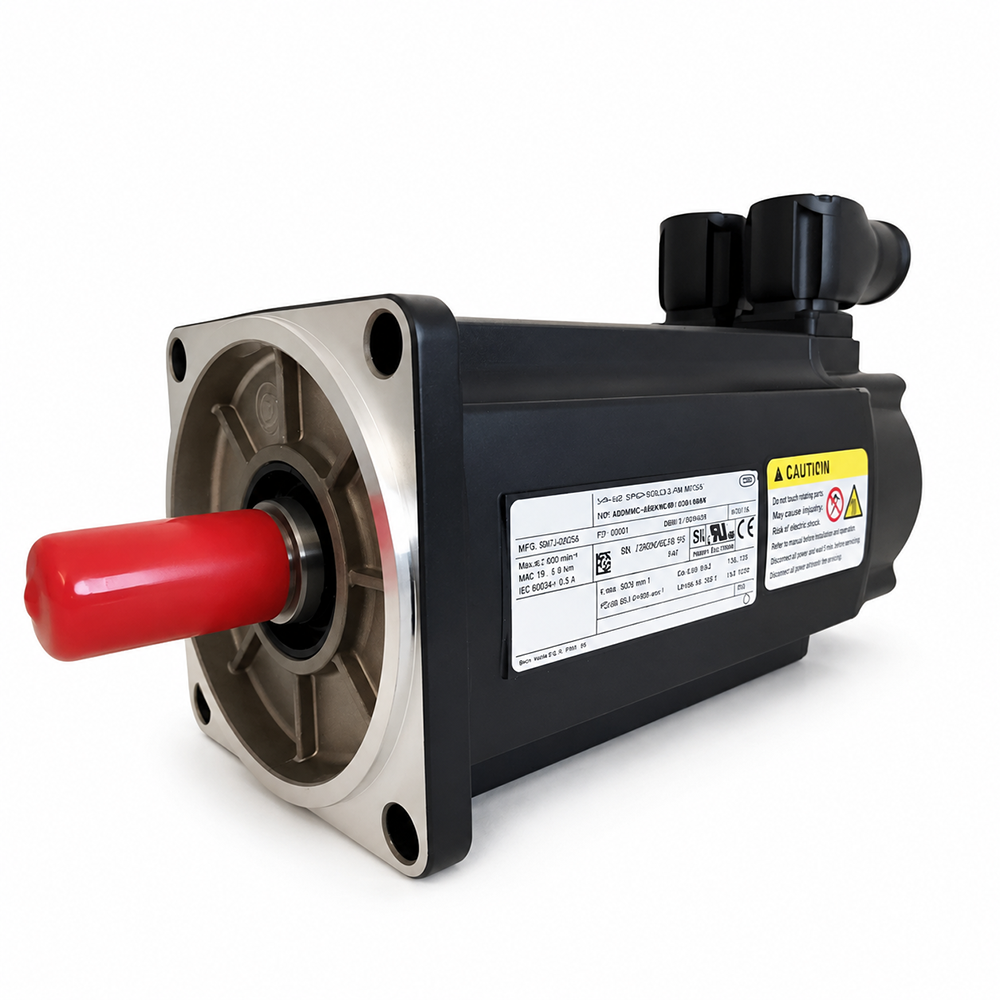

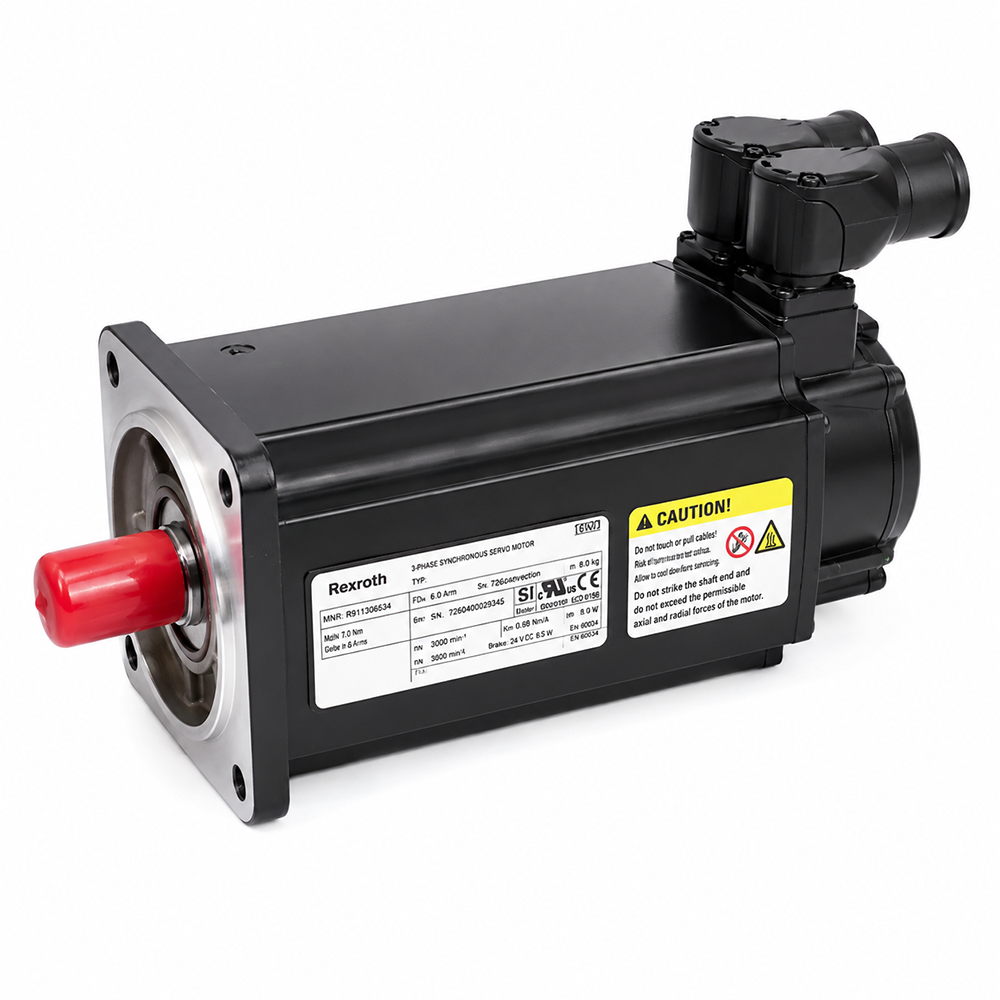

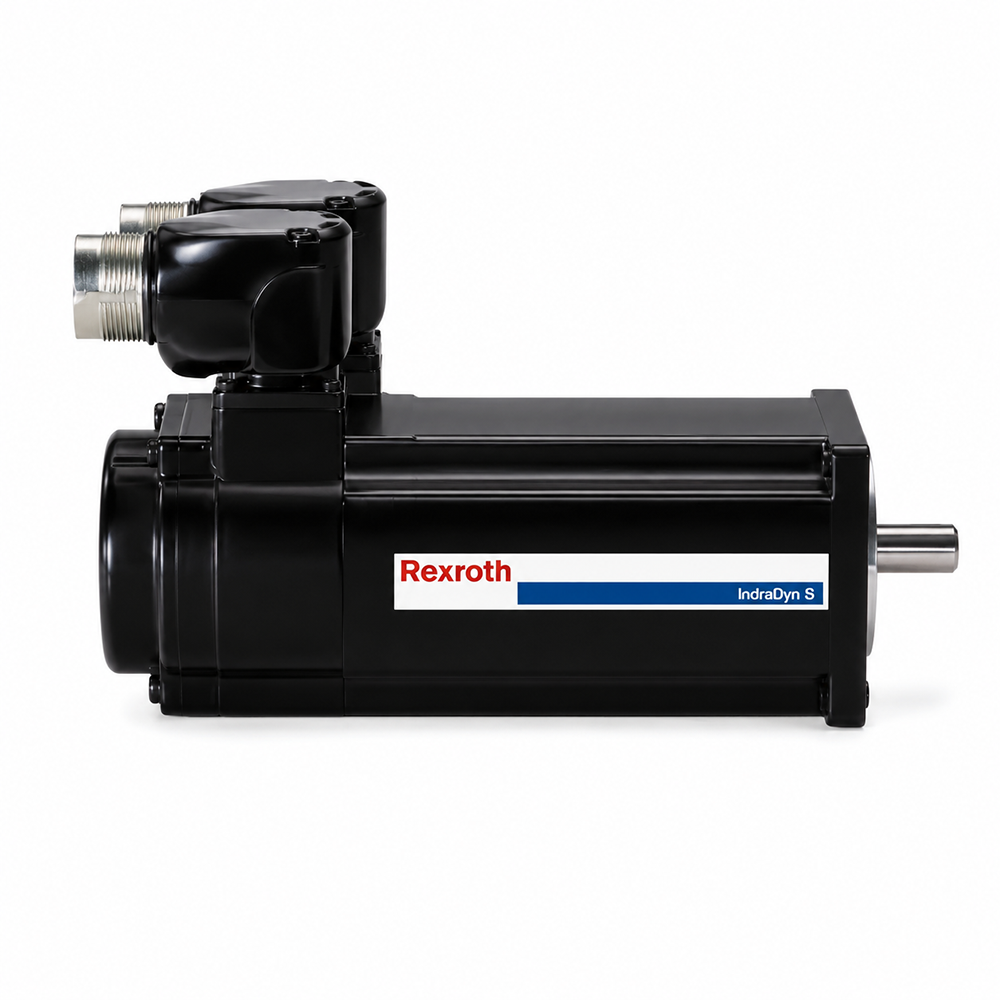

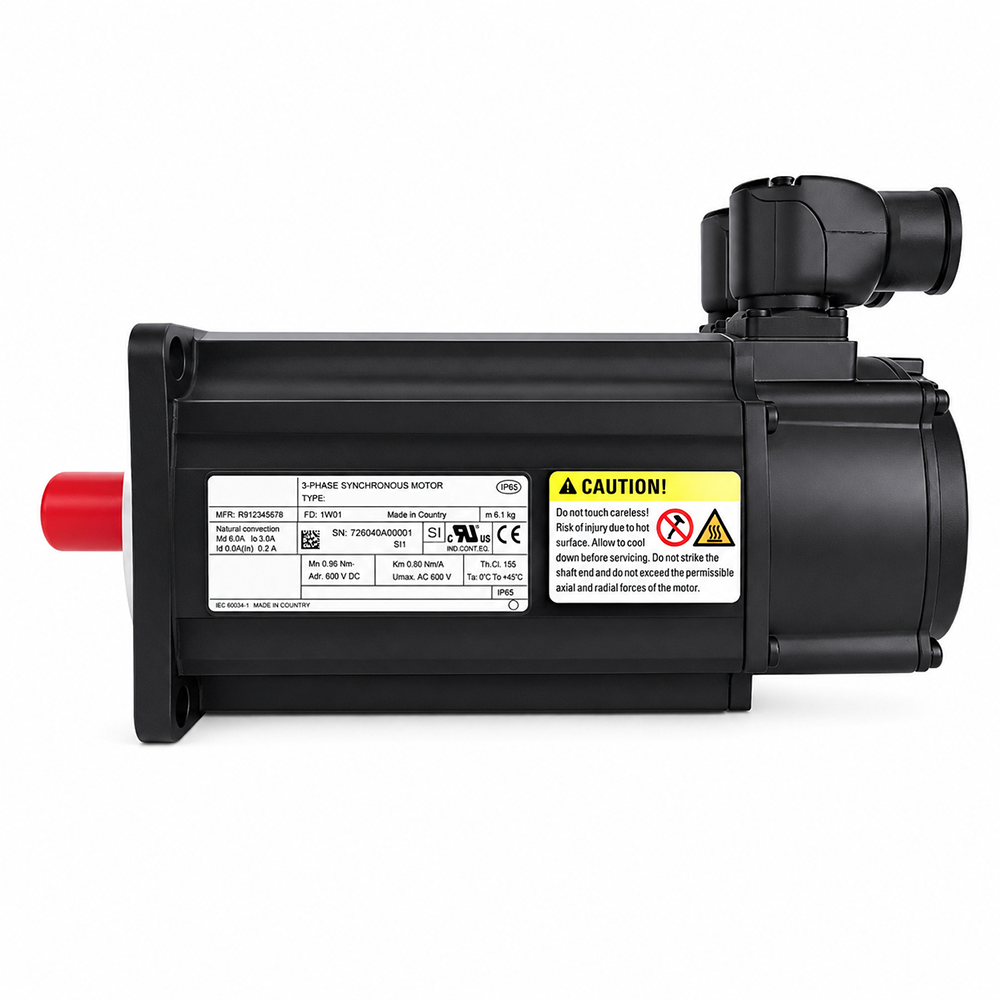

The MSK060B-0600-NN-M1-UG1-NNNN is a synchronous servo motor manufactured by Bosch Rexroth Indramat and assigned to the MSK IndraDyn S Synchronous Motors series. Within an automation cell, the motor works with IndraDrive controllers to deliver precise torque, speed, and position control to rotary axes such as pick-and-place wrists, feed rollers, or tool spindles. Its standard construction and compact 060 frame allow integration into machines that require high dynamic accuracy without increasing enclosure depth. The motor is suited to applications that need repeatable motion and stable closed-loop response during frequent speed changes.

This motor is cooled by natural convection, allowing installation without forced-air components when thermal losses are moderate. The feedback system relies on an optical sensor that delivers 128 signal periods per revolution, supplying fine angular resolution to the drive. Communication between the encoder and the control electronics uses the Hiperface interface, so absolute position data and incremental signals share one bidirectional link. For flexible cable routing inside tight cabinets, the encoder connector can be rotated through 240° after mounting. This arrangement helps reduce cable strain near the motor and supports clean routing around adjacent machine hardware.

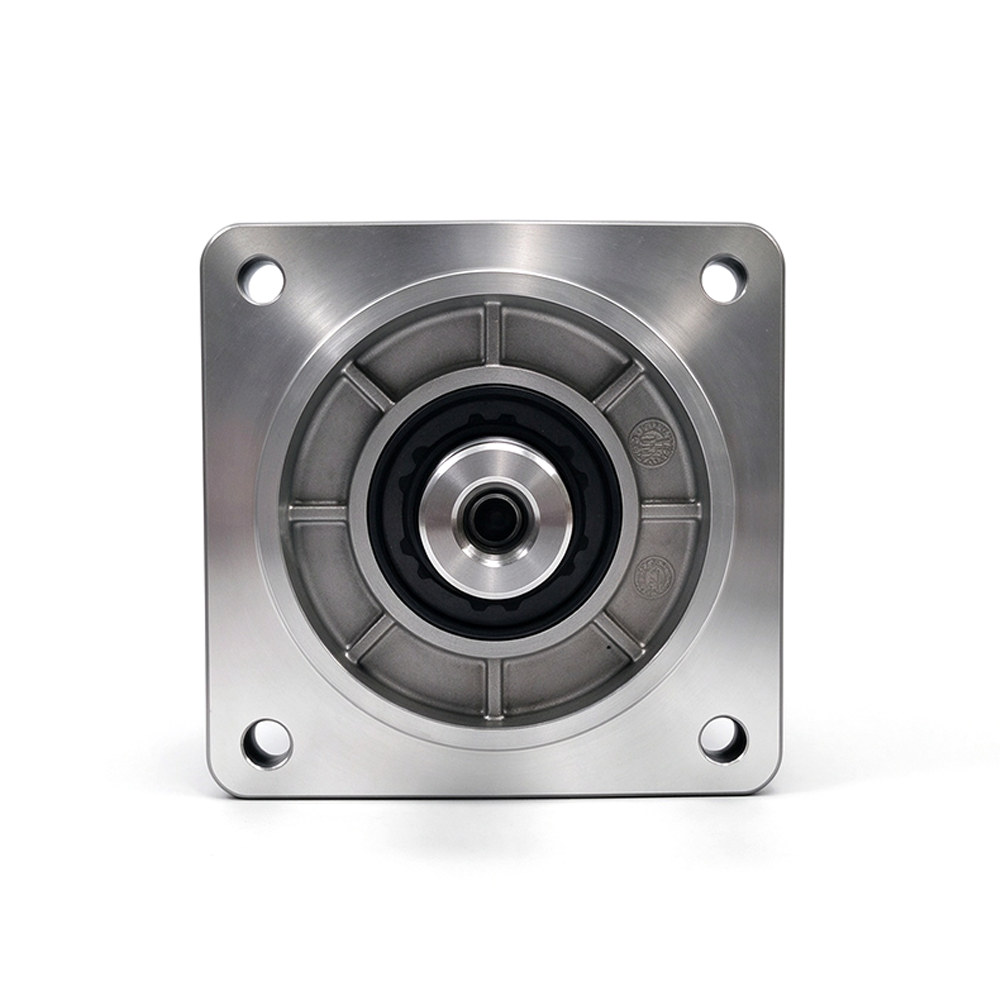

An electrically released holding brake supplies 10 Nm of static torque to secure the axis when power is removed. Position data is retained over multiple turns because the encoder is a multi-turn absolute type, which eliminates startup homing cycles after a shutdown. Power is transmitted through a plain shaft, which mates directly with clamp couplings or belt pulleys. The stator uses the 0600 winding code, which matches voltage constants used by mid-range IndraDrive power sections. Length code B and the standard housing design keep the motor compact, making it easier to place near moving assemblies where installation space is limited.
