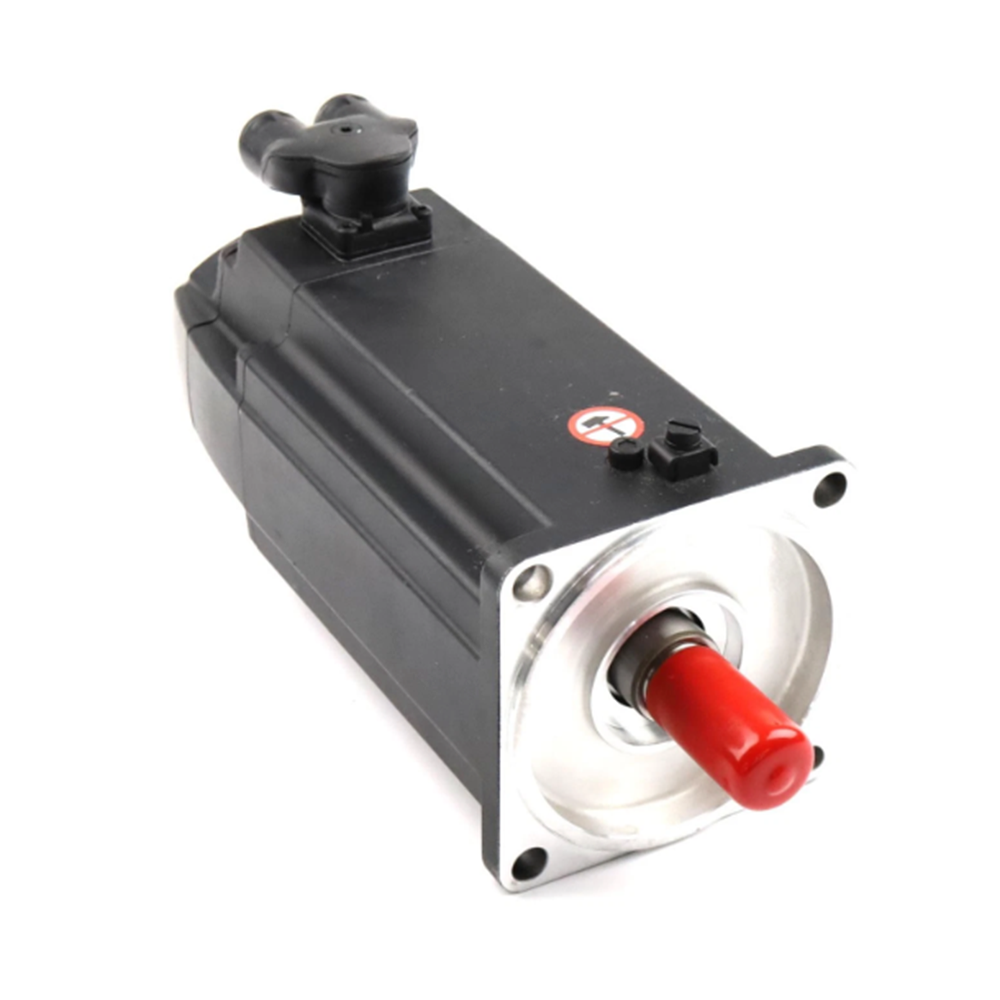

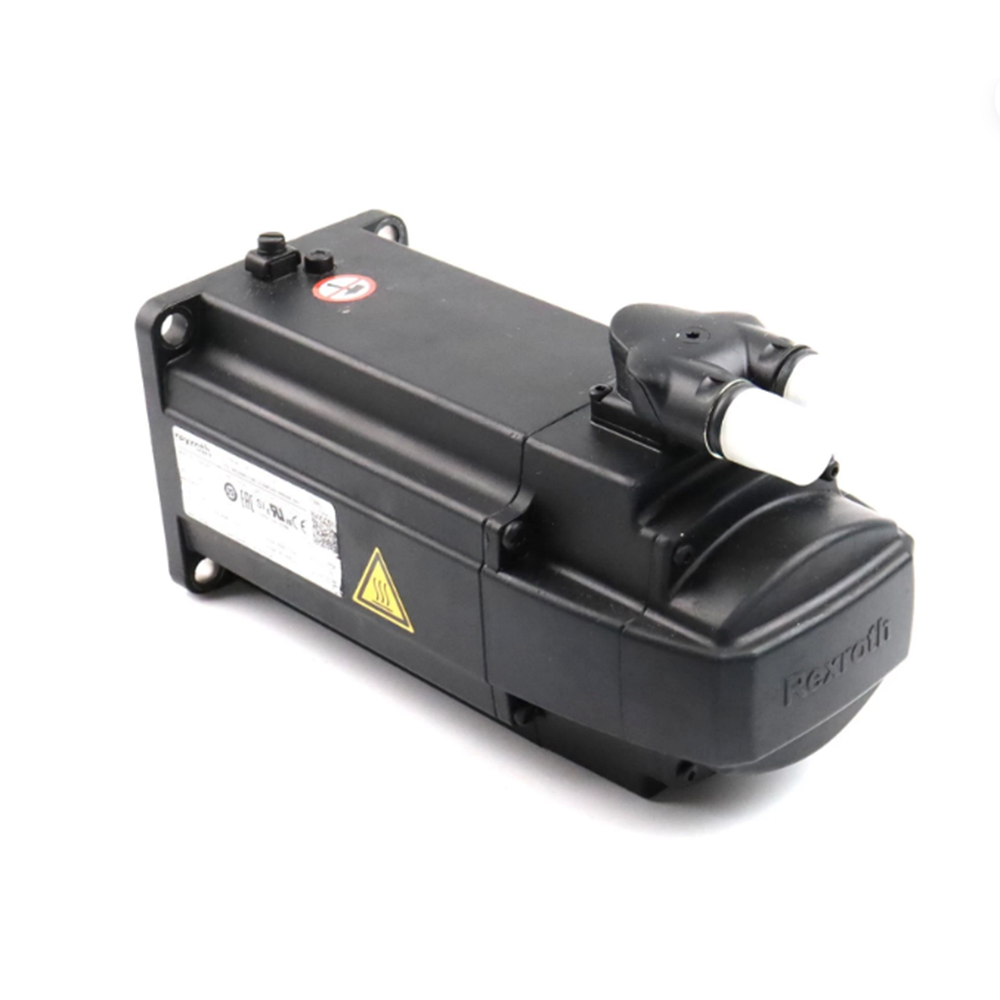

The MS2N05-C0BTN-BMDH0-NNNNN-NN is a synchronous servo motor manufactured by Bosch Rexroth Indramat for the MS2N Synchronous Servo Motors series. It converts regulated three-phase current from a drive controller into accurate rotary motion required by automated feed axes, pick-and-place gantries, and compact machining spindles. The B5 / IM3001 flange pattern provides face mounting, while an integrated PT1000 sensor delivers winding temperature data for real-time thermal supervision. This combination supports closed-loop motion tasks that require accurate shaft response and continuous temperature monitoring in a compact installation.

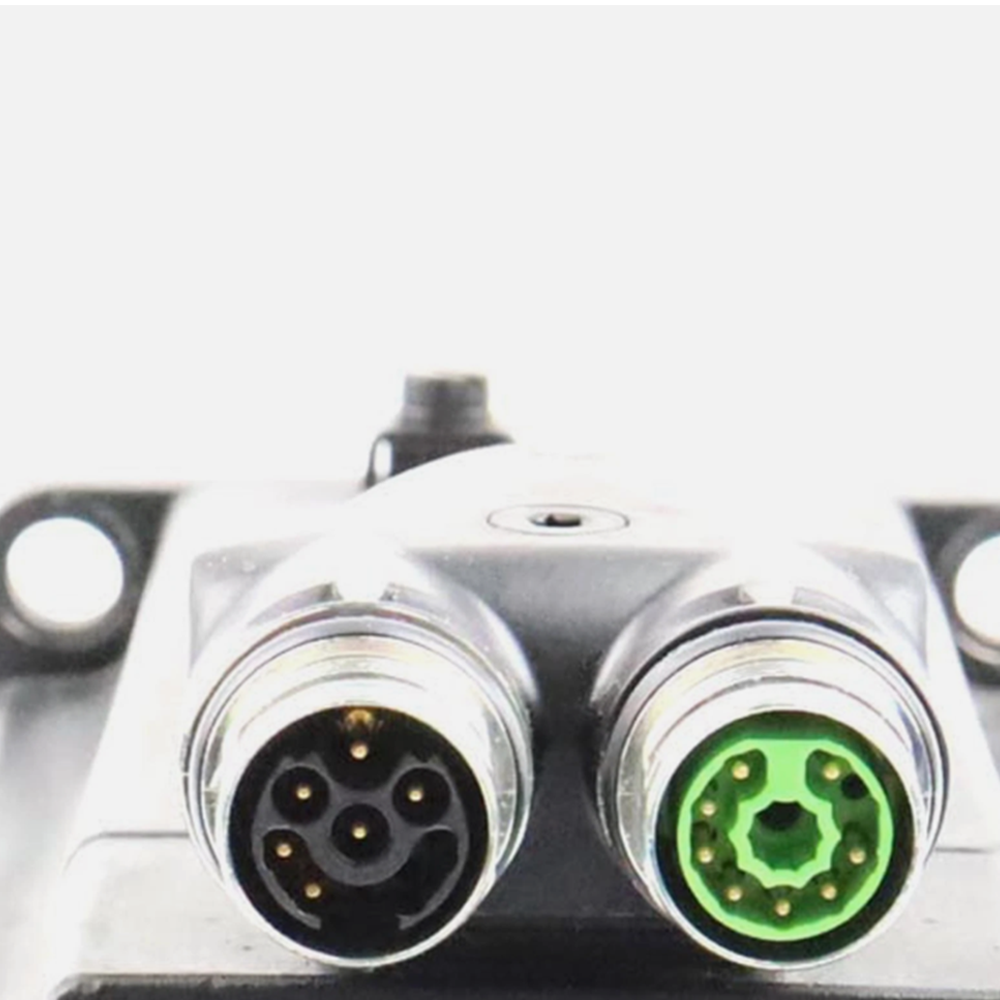

With a 100 K winding rise, the motor supplies 3.52 Nm at a rated speed of 6000 rpm, producing 1.51 kW and drawing 4.43 A. This operating point is maintained by self-cooling through the aluminum housing. The low-inertia rotor accelerates quickly, and lifetime-lubricated standard bearings eliminate routine service. A smooth shaft without a sealing ring transfers torque to couplings, and power and feedback enter through a rotatable double M17 cable set. The multiturn Hiperface encoder resolves up to 4,096 revolutions absolute with 128 incremental periods, enabling tight position control during indexing, positioning, and speed regulation. Frame length C and a black RAL 9005 varnish complete the motor.

For short overloads, the electromagnetic system reaches 22.6 Nm using peak phase currents of 30.2 A. At standstill, it can hold 7.15 Nm with 8.35 A, while alternate 60 K data lower these limits to 6.10 Nm and 7.1 A. The motor is supplied without a holding brake, so external locking or continuous current is necessary on vertical axes when power is removed. With a total mass of 5.9 kg, the unit adds minimal reflected inertia to lightweight stages. It is suitable for applications that require fast acceleration and repeated load changes during operation.
