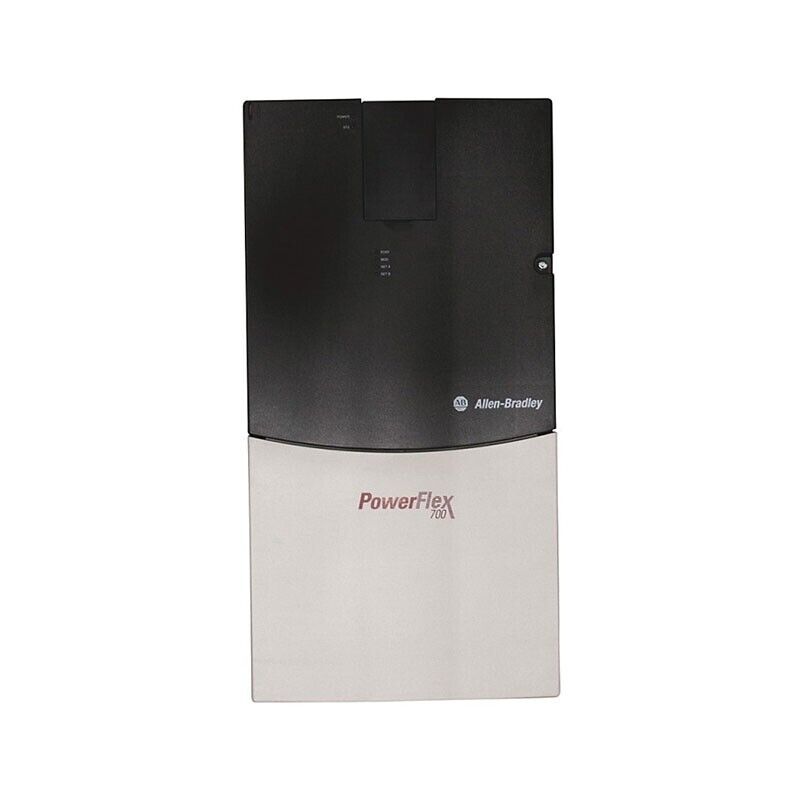

20BC140A0AYNANC0 | Allen Bradley PowerFlex 700 AC Drive

20BC140A0AYNANC0 | Allen Bradley PowerFlex 700 AC Drive

Regular price $13,200.00 USD
Regular price $15,200.00 USD Sale price $13,200.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

 Technical Specifications for 20BC140A0AYNANC0

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 20BC140A0AYNANC0
Voltage 400V AC
Phases 3
Precharge -
Amps 140
kW 75
Frame 5
Enclosure IP20, NEMA/UL Type 1
Operator Interface Blank Cover
Documentation Type Manual
w/Brake Yes
w/Resistor No
CE Filter Yes
CM Choke Yes
Network Type None
Control Vector
I/O Volts 24V DC/AC
Feedback Type None

Weight: 1kg



About 20BC140A0AYNANC0

The Allen-Bradley/Rockwell Automation 20BC140A0AYNANC0 drive from the PowerFlex 700 product family offers a variety of features and it is used for different applications that demand the specific customization and configuration of the drive. The PowerFlex 700 drive series offers a great number of different variants that are built for 200 to 240 Volts, 380 to 480 Volts, 500 to 600 Volts, and 690 Volts power sources. The drives from this series are categorized through different frames that have different amperage ratings. The amperage range that is covered with the PowerFlex 700 series is 1.1 to 260 Amps, and it also has a power output of 0.37 to 132 kilowatts or 0.5 to 150 Horsepower. Besides that, these drives have numerous features installed and their control cassette includes all of the options that are added.



The 20BC140A0AYNANC0 AC drive has an operating voltage of 400 Volts AC and its maximum amperage output is 140 Amps. The drive has an impressive power output of 75 kilowatts and it comes with a blank cover operator interface. The enclosure of the drive carries an IP20 NEMA/UL Type 1 marking and its frame is labeled as “frame number 5.” The frame 5 PowerFlex 700 drive with this kind of enclosure has dimensions that include a width of 308.9 millimeters (12.16 inches), a height of 689.6 millimeters (27.15 inches), and a depth of 275.4 millimeters (10.84 inches). The 20BC140A0AYNANC0 drive does not include feedback, a communication port, or resistor devices but it includes options such as a brake, CE filter, and a CM choke. Besides that, the drive has vector control and 24 Volts DC of its I/O Volts rating. In addition, the weight of the drive with all included accessories is 24.49 kilograms or 54 pounds. The 20BC140A0AYNANC0 drive features a typical temperature rating of 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit) and it can be stored in temperatures from -40 to 70 degrees Celsius (-40 to 158 degrees Fahrenheit).



Technical Description of 20BC140A0AYNANC0

This PowerFlex 700 drive is a 400V AC unit with 75 kW and has an Enclosure Type of IP20, NEMA/UL Type 1
