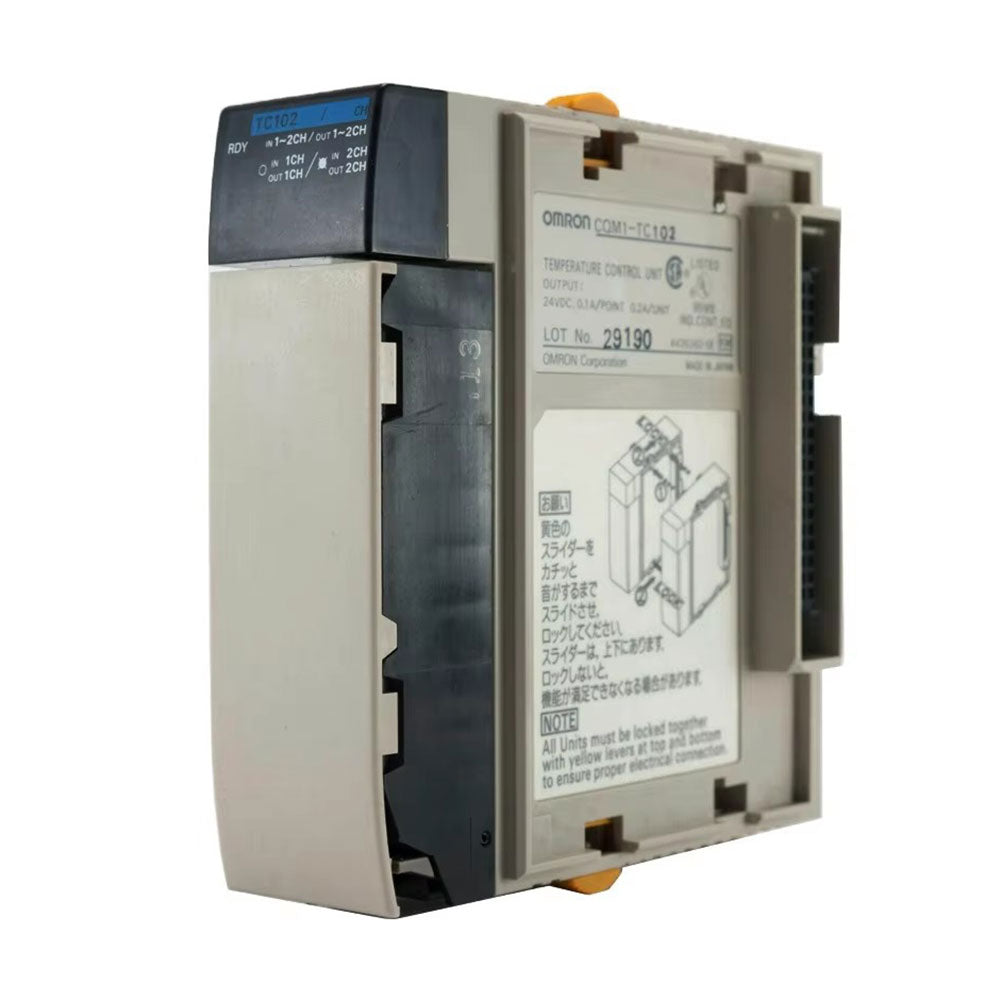

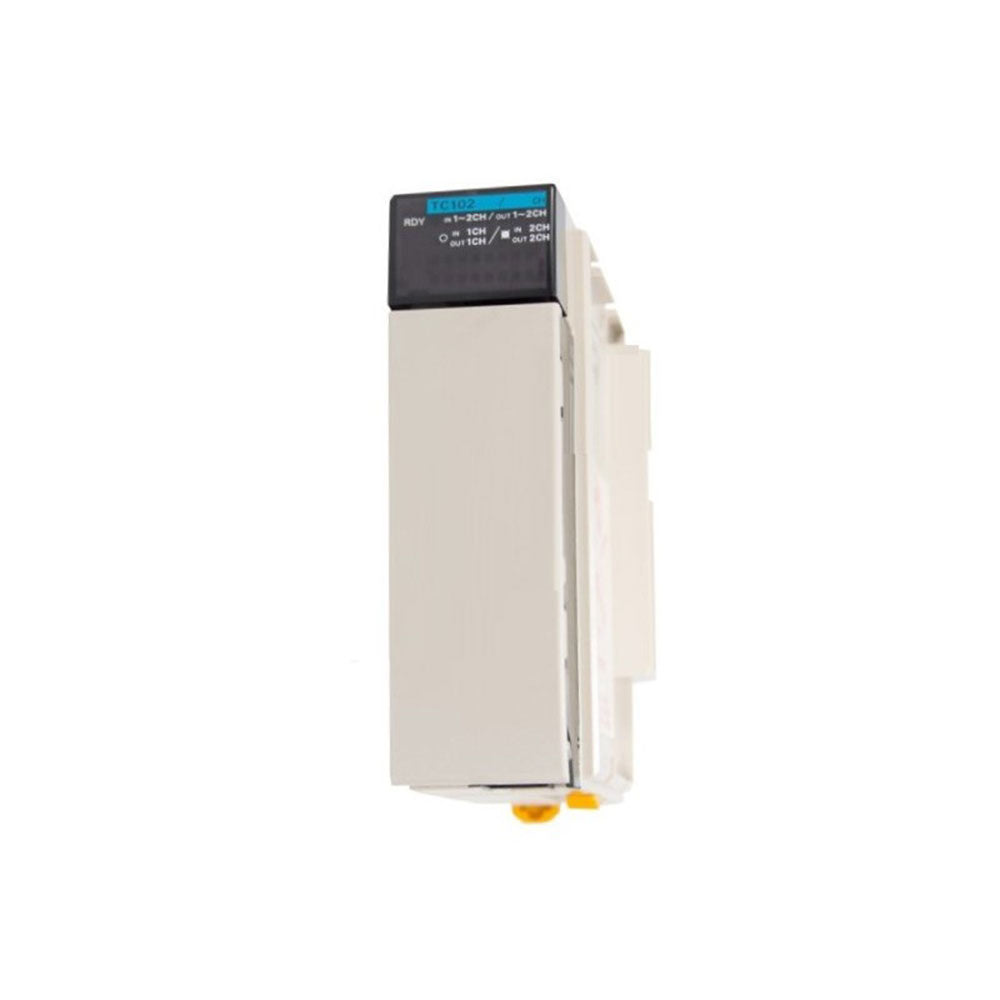

The Omron CQM1-TC102 is a temperature control module designed for the CQM1/CQM1H series Programmable Logic Controllers (PLCs). It provides precise temperature control for industrial automation applications requiring accurate thermal management .
Key Specifications:
· Input Type: Platinum resistance thermometer (Pt100 / JPt100)
· Temperature Range: -99.9 to 450.0 °C
· Number of Loops: 2 loops (supports 4-loop or 2-loop control; heater burnout alarm available for 2-loop control)
· Control Method: PID control with feedback loop / ON/OFF control
· Output Type: PNP transistor output (pulse)
· Data Exchange: TRANSFER I/O command via internal bus (one word allocated for inputs and outputs)
· Mounting: DIN Rail
· Termination Type: Screw terminal
· Dimensions (W × H × D): 25 × 110 × 107 mm
· Weight: Approx. 0.17 kg (0.38 lbs)
· Certifications: CE, CSA, UL
Key Features:
· Platinum resistance thermometer input (Pt100 / JPt100) for precise temperature measurement
· High-density temperature control with only one word allocated for I/O
· Advanced PID control with feed-forward circuitry ensures stable temperature control
· Can be set to ON/OFF control as an alternative control method
· Supports heater burnout alarm function for 2-loop control applications
· Easy command transfer using TRANSFER I/O command
Applications:
· Industrial temperature control systems
· Plastic molding and extrusion equipment
· Heat treatment processes
· Process control requiring precise temperature regulation
