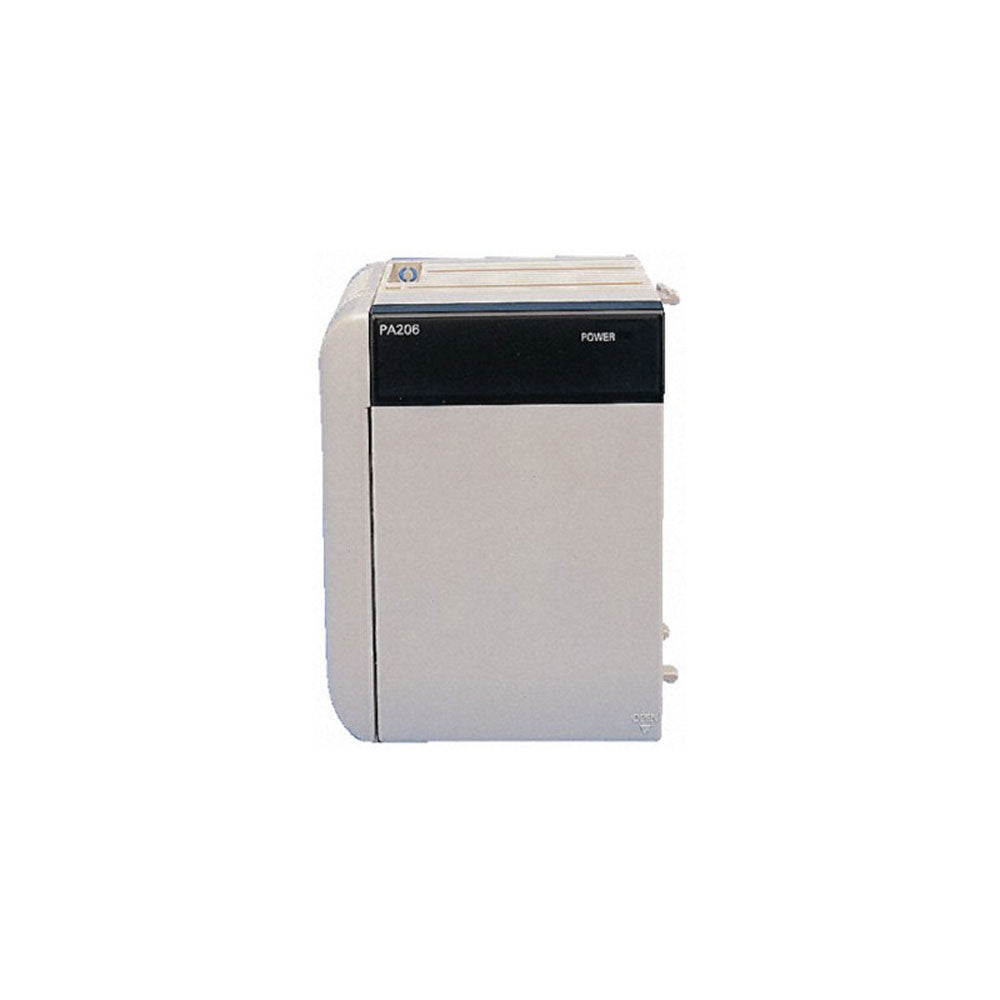

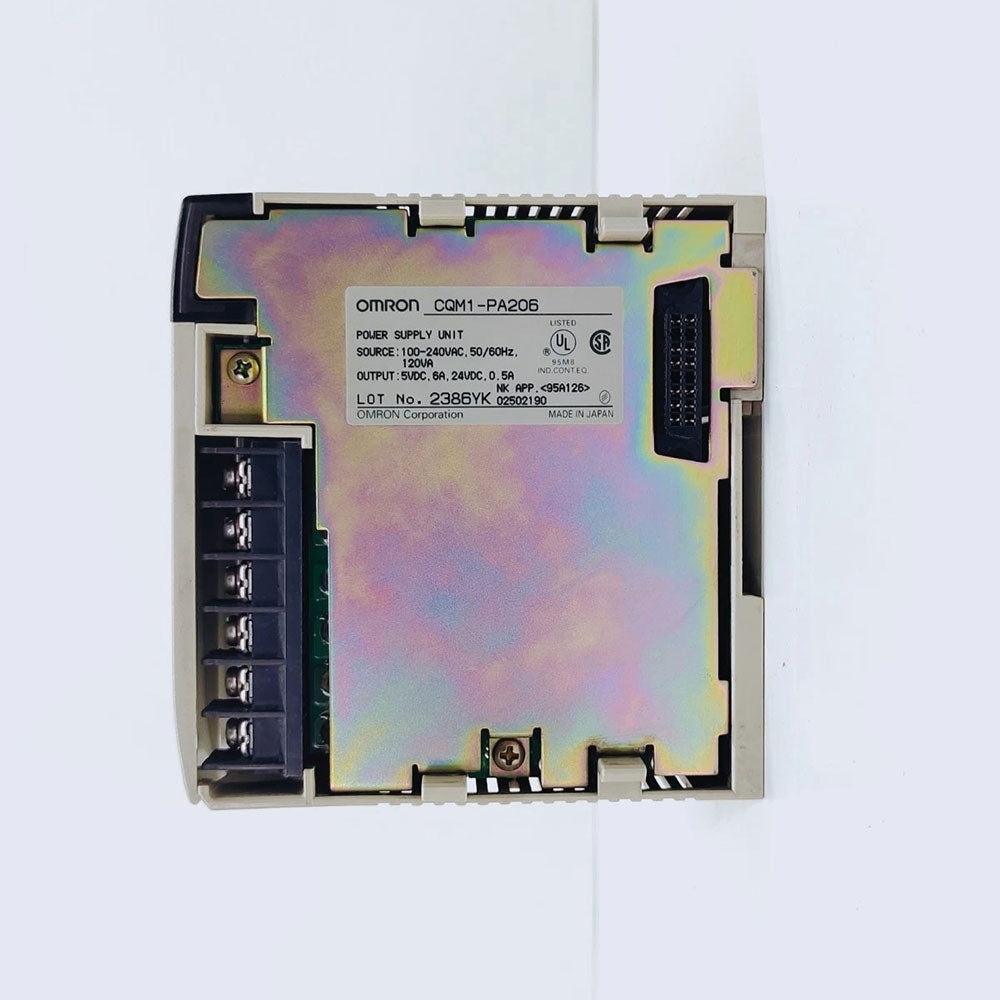

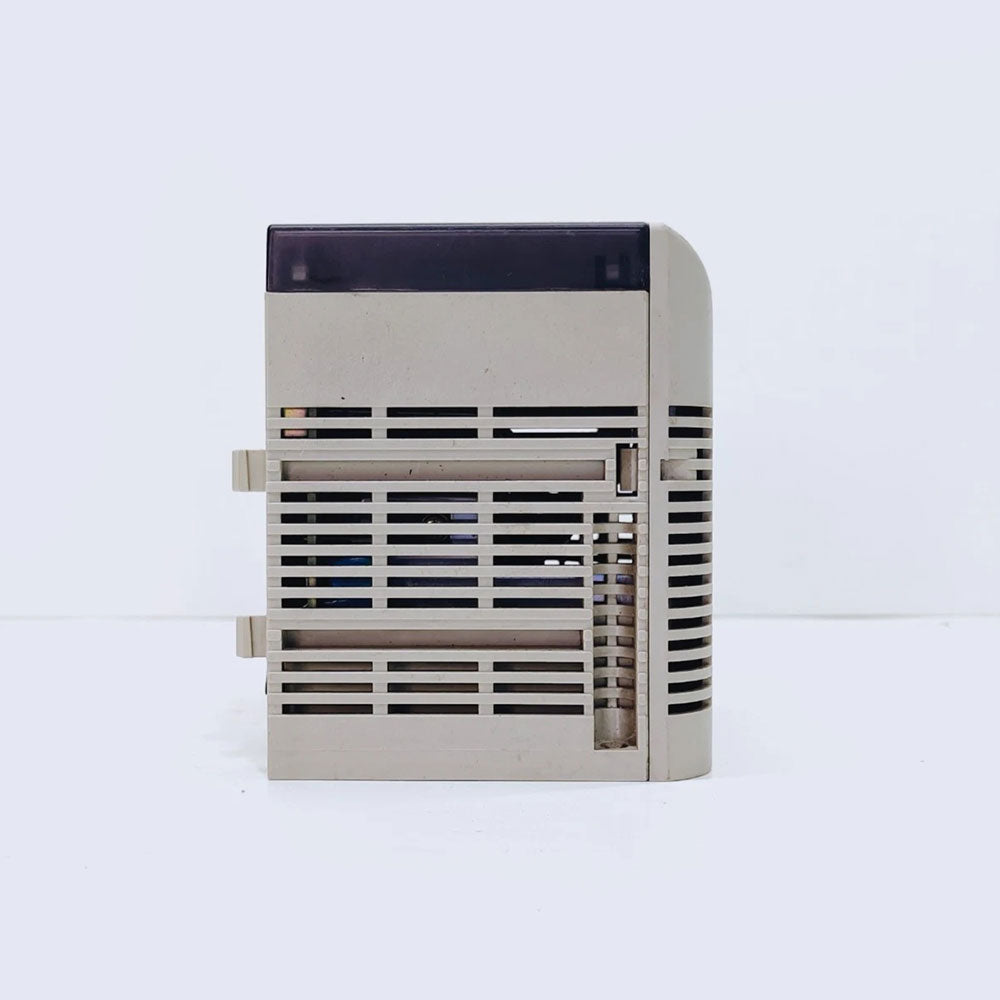

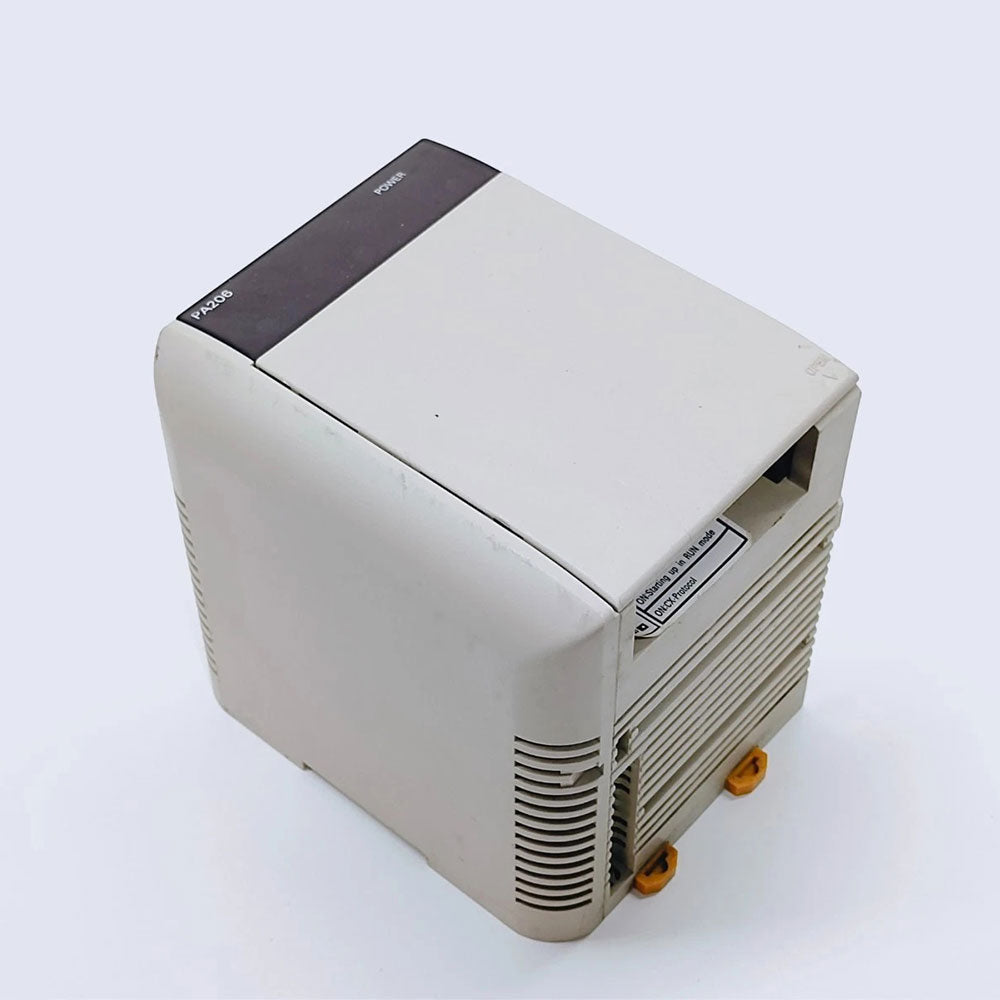

The Omron CQM1-PA206 is a power supply unit designed for the CQM1/CQM1H series Programmable Logic Controllers (PLCs). It provides stable and reliable DC power to the CPU unit and I/O modules in the PLC system .
Key Specifications:
· Input Voltage: 100 to 240 V AC, 50/60 Hz (wide range)
· Operating Voltage Range: 85 to 264 V AC
· Output Capacity: 5 V DC / 6 A + 24 V DC / 0.5 A (30 W total)
· Power Consumption: 120 VA max.
· Inrush Current: 30 A max.
· Insulation Resistance: 20 MΩ min. at 500 V DC
· Dielectric Strength: 2,300 V AC (AC external to GR), 1,000 V AC (DC external to GR)
· Noise Immunity: Conforms to IEC61000-4-4, 2 kV (power lines)
· Ambient Temperature: Operating: 0 to 55 °C, Storage: -20 to 75 °C

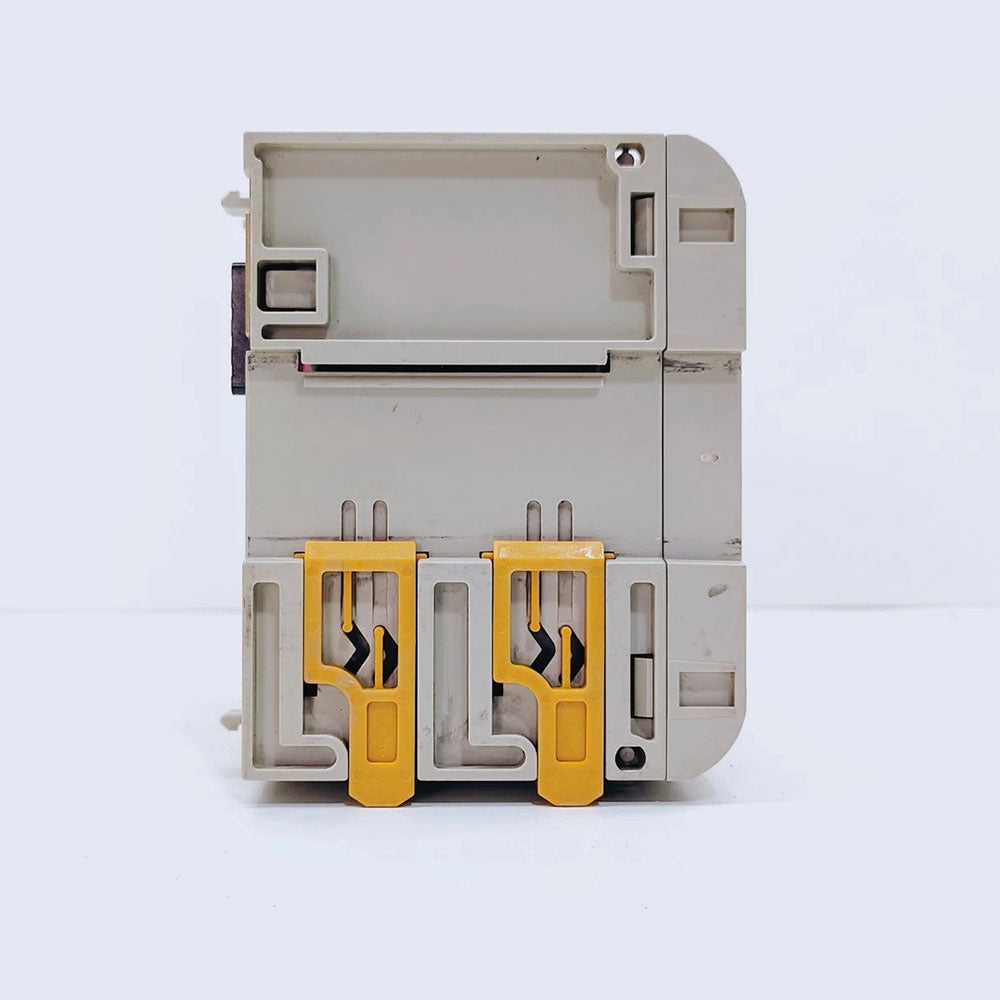

· Mounting: DIN Rail
· Dimensions (W × H × D): 40 × 110 × 107 mm
· Weight: Approx. 0.57 - 0.60 kg (1.25 lbs)
· Certifications: CE, CSA, Lloyd, NK, UL
Key Features:
· Wide input voltage range (85 to 264 V AC) for global compatibility
· Provides 5 V DC / 6 A output to power CPU and I/O modules, plus 24 V DC / 0.5 A service power supply
· High insulation resistance and dielectric strength for reliable operation
· Excellent noise immunity (conforms to IEC61000-4-4)
· LED status indication
· DIN rail mountable for easy installation
Applications:
· Power supply for CQM1/CQM1H series PLC systems
· Industrial automation control panels
· Distributed control systems
