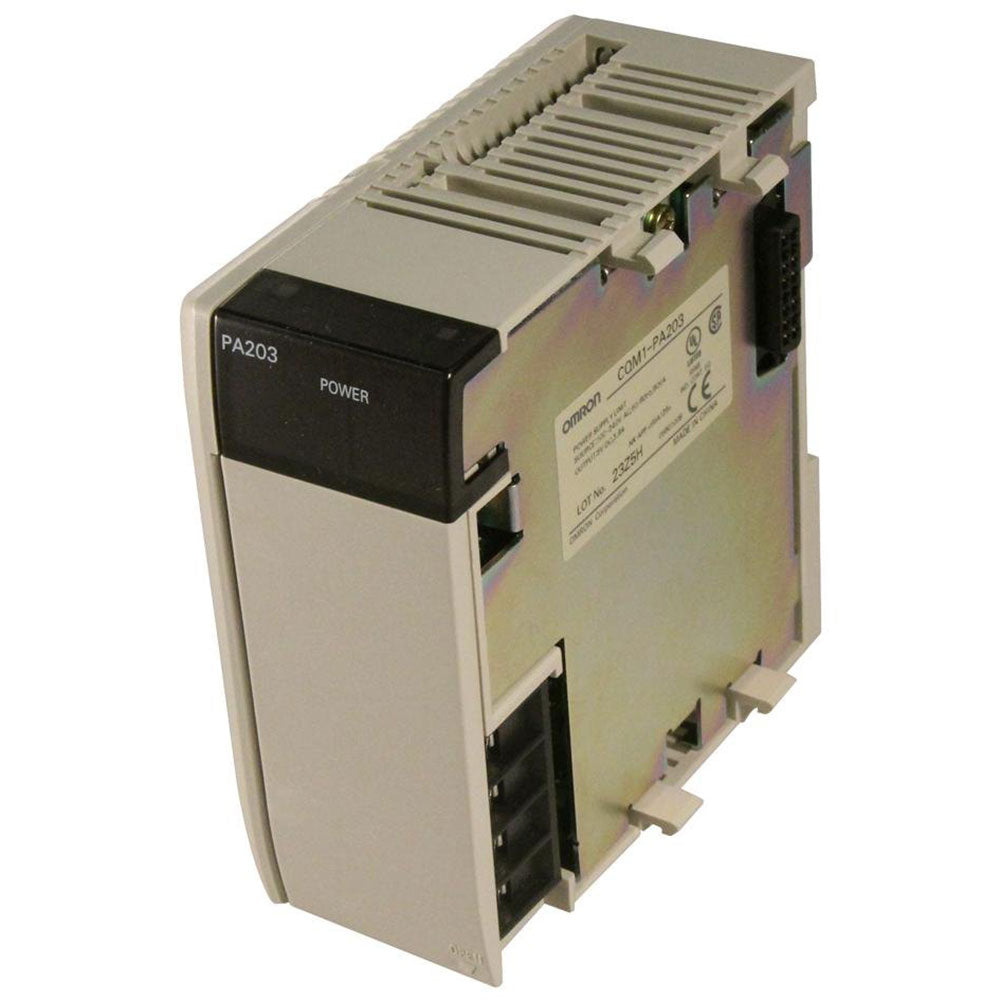

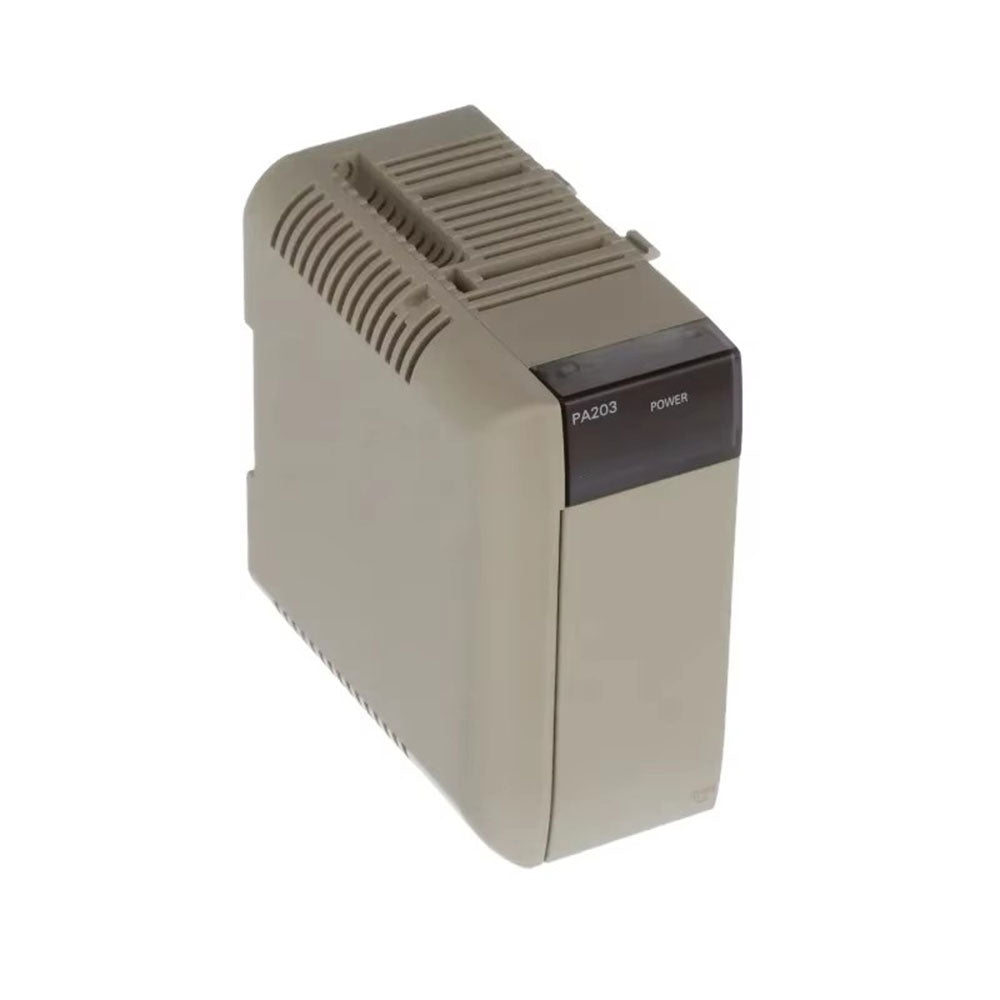

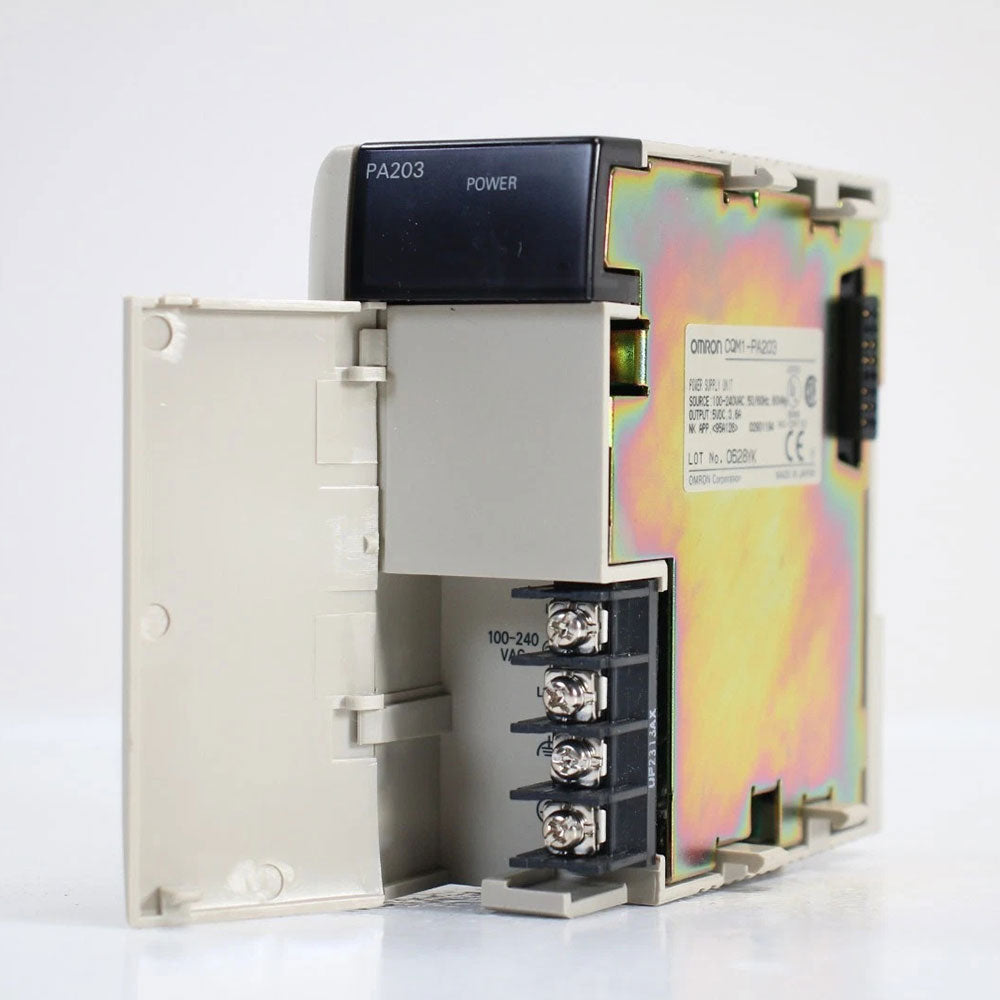

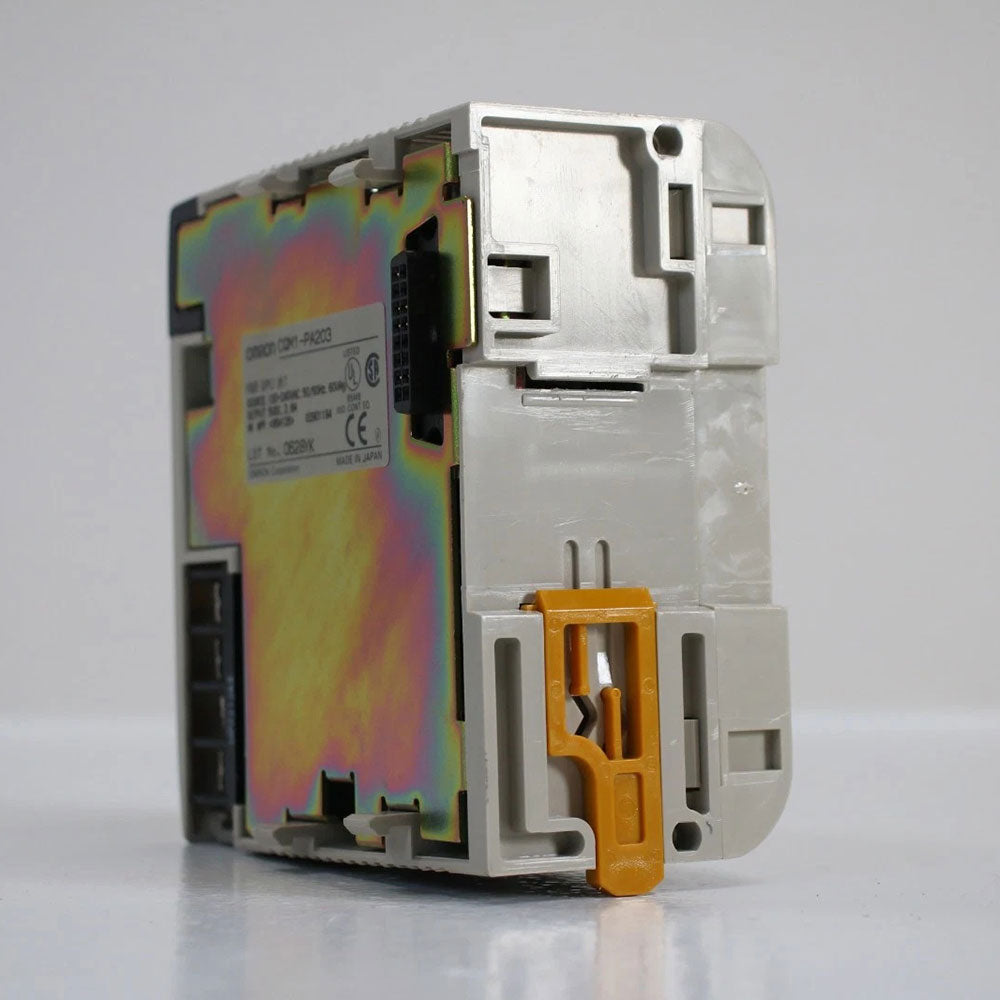

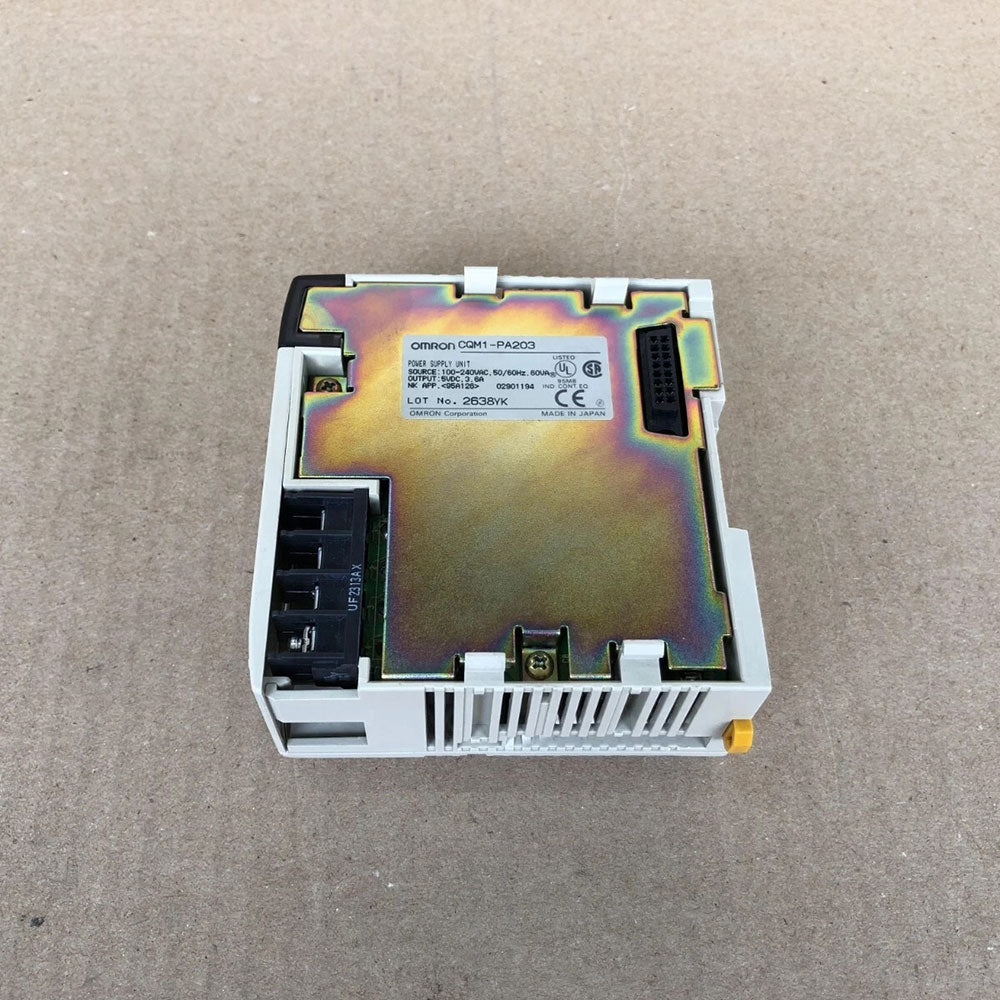

The Omron CQM1-PA203 is a power supply unit designed for the CQM1/CQM1H series Programmable Logic Controllers (PLCs). It provides stable DC power to the CPU unit and I/O modules in the PLC system.
Key Specifications:
· Input Voltage: 100 to 240 V AC
· Input Frequency: 50/60 Hz
· Output Capacity: 5 V DC / 3.6 A
· Internal Current Consumption: 500 mA max. at 5 V DC
· Mounting: DIN Rail
· Dimensions (W × H × D): 40 × 110 × 107 mm
· Weight: Approx. 0.45 kg
· Certifications: CE, CSA, NK, UL
Key Features:
· Wide input voltage range: 100-240 V AC for global compatibility
· Provides 5 V DC / 3.6 A output to power the entire PLC system
· DIN rail mountable for easy installation
· Reliable protection for CPU and I/O modules
Applications:
· Power supply for CQM1/CQM1H series PLC systems
· Industrial automation control panels
