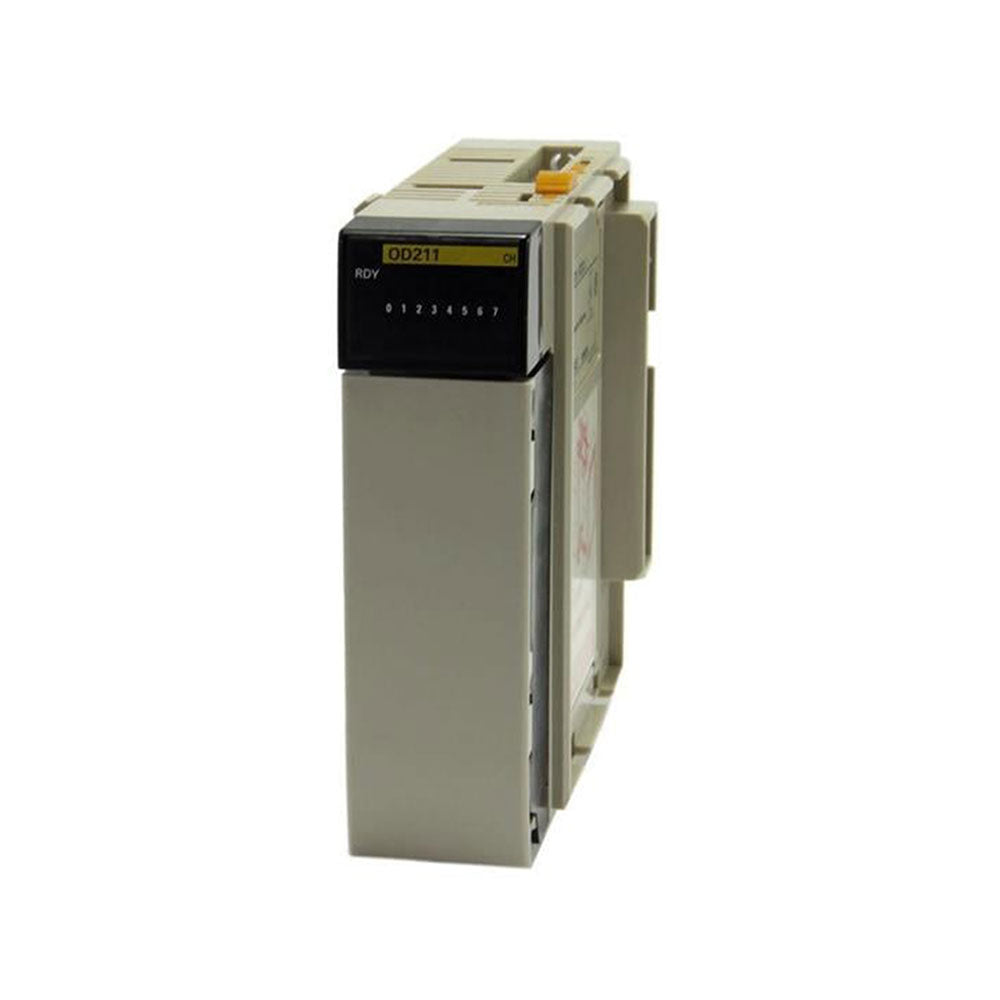

The Omron CQM1-OD211 is a transistor output module designed for the CQM1/CQM1H series Programmable Logic Controllers (PLCs). It provides reliable digital output control for driving external loads such as relays, solenoid valves, indicator lights, and other actuators in industrial automation applications.
Key Specifications:
· Number of Outputs: 8 points
· Output Type: Transistor
· Rated Voltage: 12 to 24 V DC
· Operating Voltage Range: 10.2 to 26.4 V DC
· Maximum Switching Capacity: 2 A at 24 V DC
· Points per Common: 8 points/common
· Response Time (ON): 0.1 ms max.
· Response Time (OFF): 0.3 ms max.
· Leakage Current: 0.1 mA max.
· Residual Voltage: 0.7 V max.
· Internal Current Consumption: 90 mA max. at 5 V DC
· External Connection: Screw terminal
· Mounting: DIN Rail
· Dimensions (W × H × D): 25 × 110 × 107 mm
· Weight: Approx. 0.2 kg
· Certifications: CE, CSA, Lloyd, NK, UL
Key Features:
· 8 output points with 2 A per channel at 24 V DC
· High-speed response: 0.1 ms ON / 0.3 ms OFF
· Screw terminal connection for secure wiring
· Compact 25 mm wide design for DIN rail mounting
Applications:
· Driving relays, solenoid valves, and contactors
· Controlling indicator lights and alarm devices
· Actuator control in packaging and material handling systems
· General-purpose output control for industrial automation
