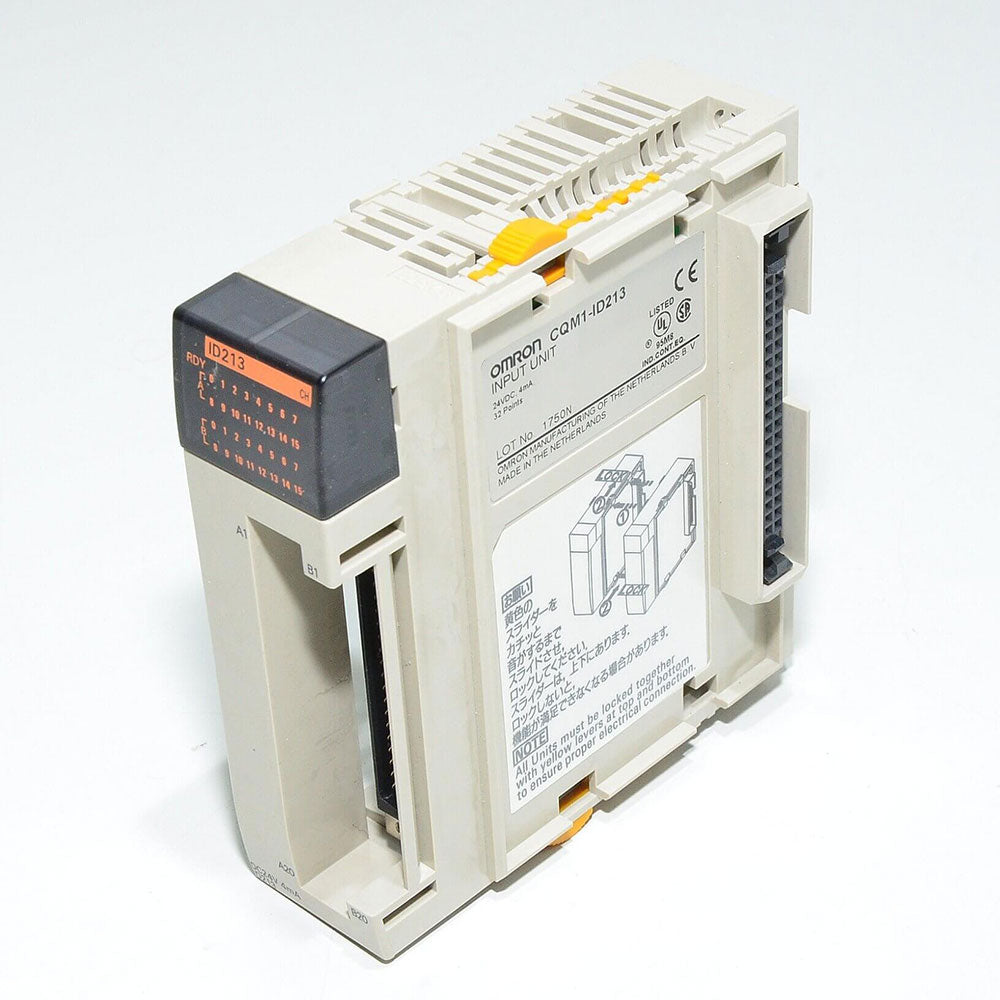

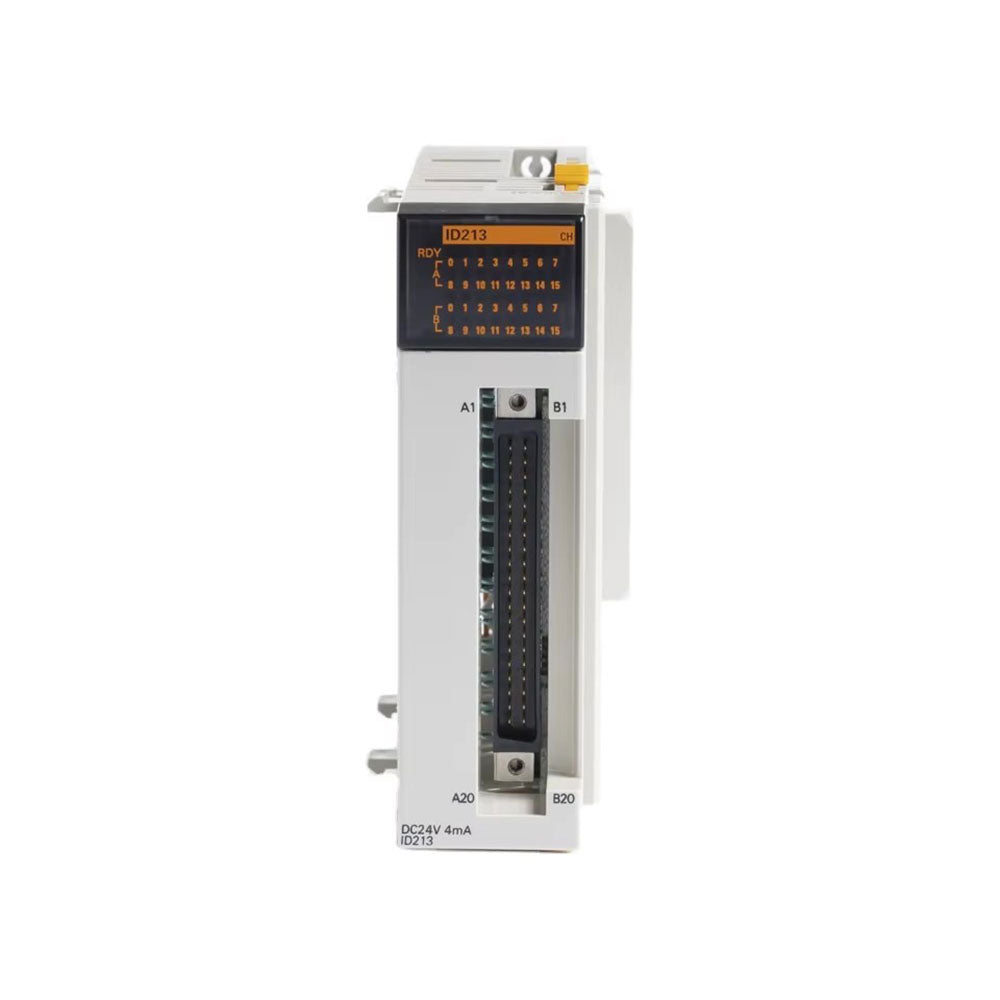

The Omron CQM1-ID213 is a DC input module designed for the CQM1/CQM1H series Programmable Logic Controllers (PLCs). It receives external DC24V digital signals (such as sensor and switch signals) and is widely used in industrial automation applications.
Key Specifications:
· Number of Inputs: 32 points
· Input Voltage: 24 V DC (+10% / -15%)
· Input Current: 4 mA at 24 V DC
· Input Impedance: 5.6 kΩ
· ON Voltage: 14.4 V DC min.
· OFF Voltage: 5.0 V DC max.
· Response Time: 8 ms max.
· Isolation Method: Photocoupler isolation
· Internal Current Consumption: 170 mA max. at 5 V DC
· External Connection: Connector
· Dimensions (W × H × D): 25 × 110 × 107 mm
· Weight: Approx. 0.16 kg
· Certifications: CE, CSA, NK, UL
Key Features:
· 32 DC input points for receiving digital signals from sensors, switches, and field devices
· 8 ms max. response time for reliable signal acquisition
· Photocoupler isolation protects the PLC system from electrical interference
· Compact 25 mm wide design for DIN rail mounting
Applications:
· Receiving sensor signals (photoelectric, proximity, pressure, etc.)
· Receiving pushbutton, switch, and relay contact signals
· Industrial automation production line signal acquisition
