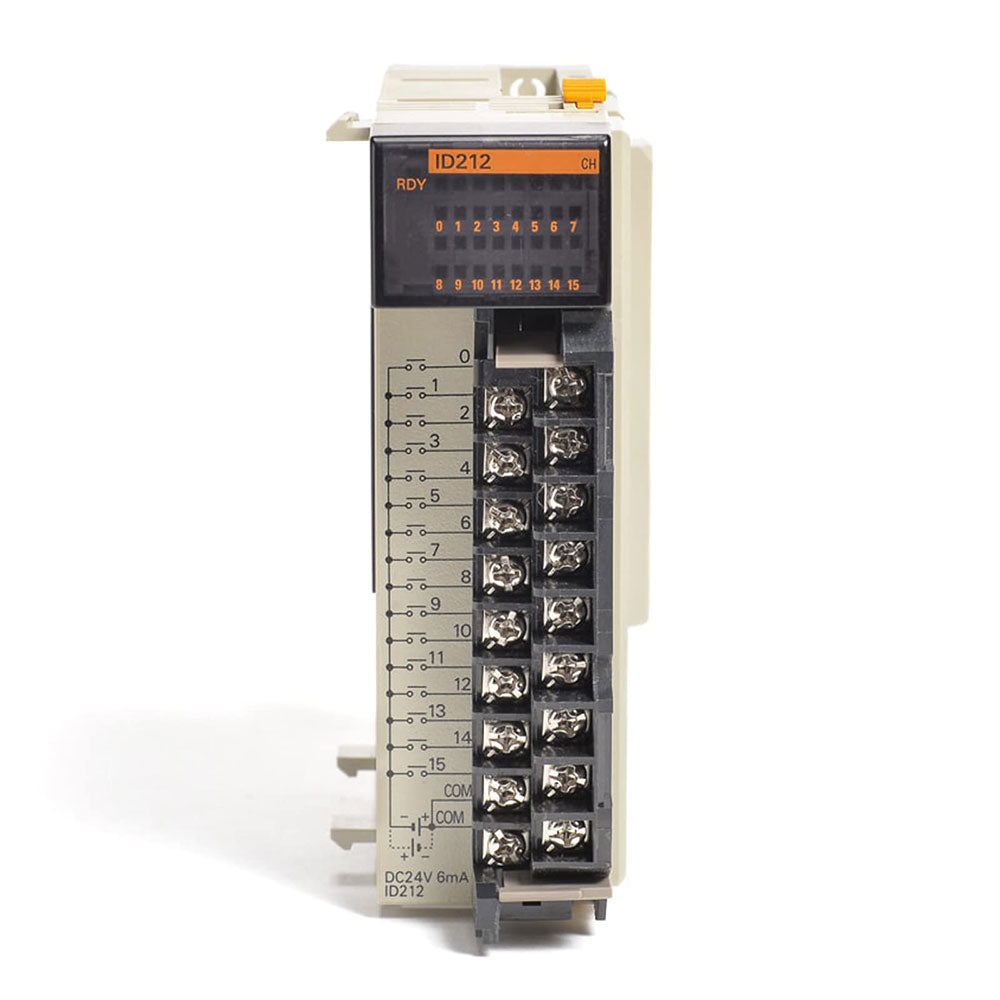

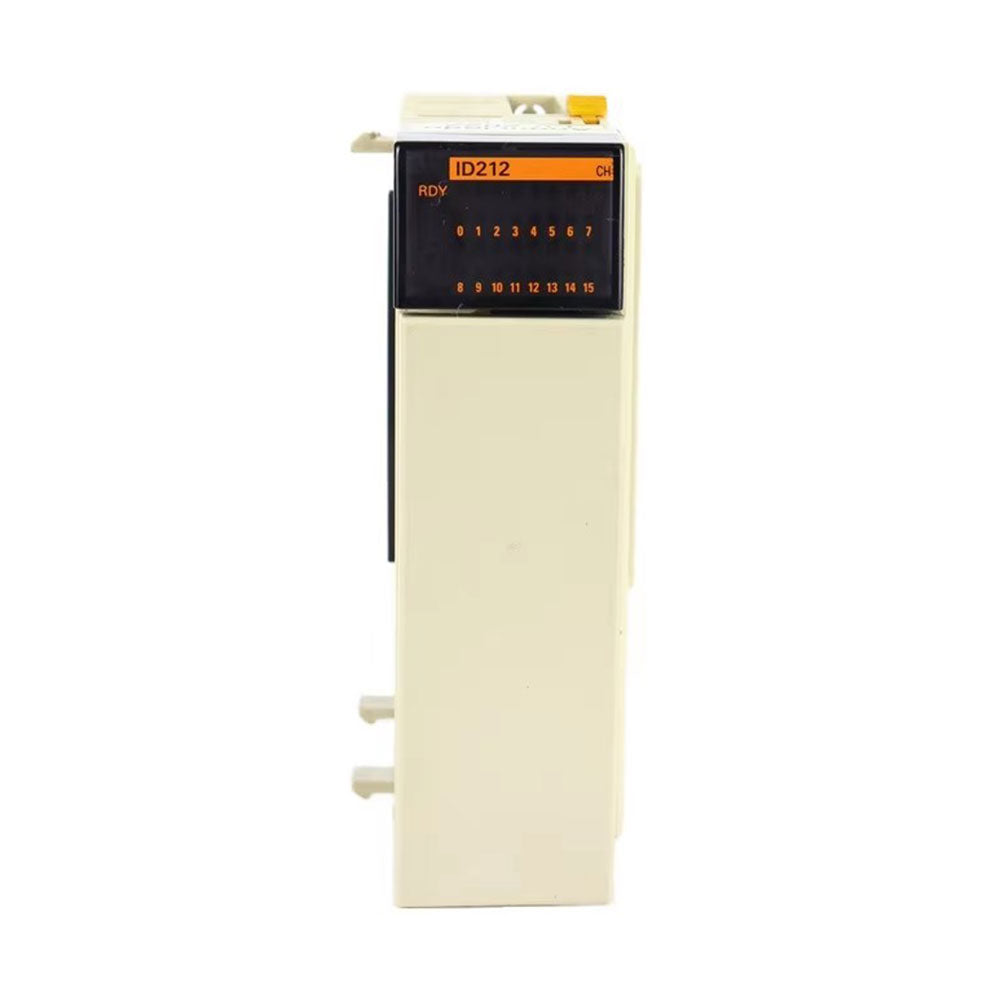

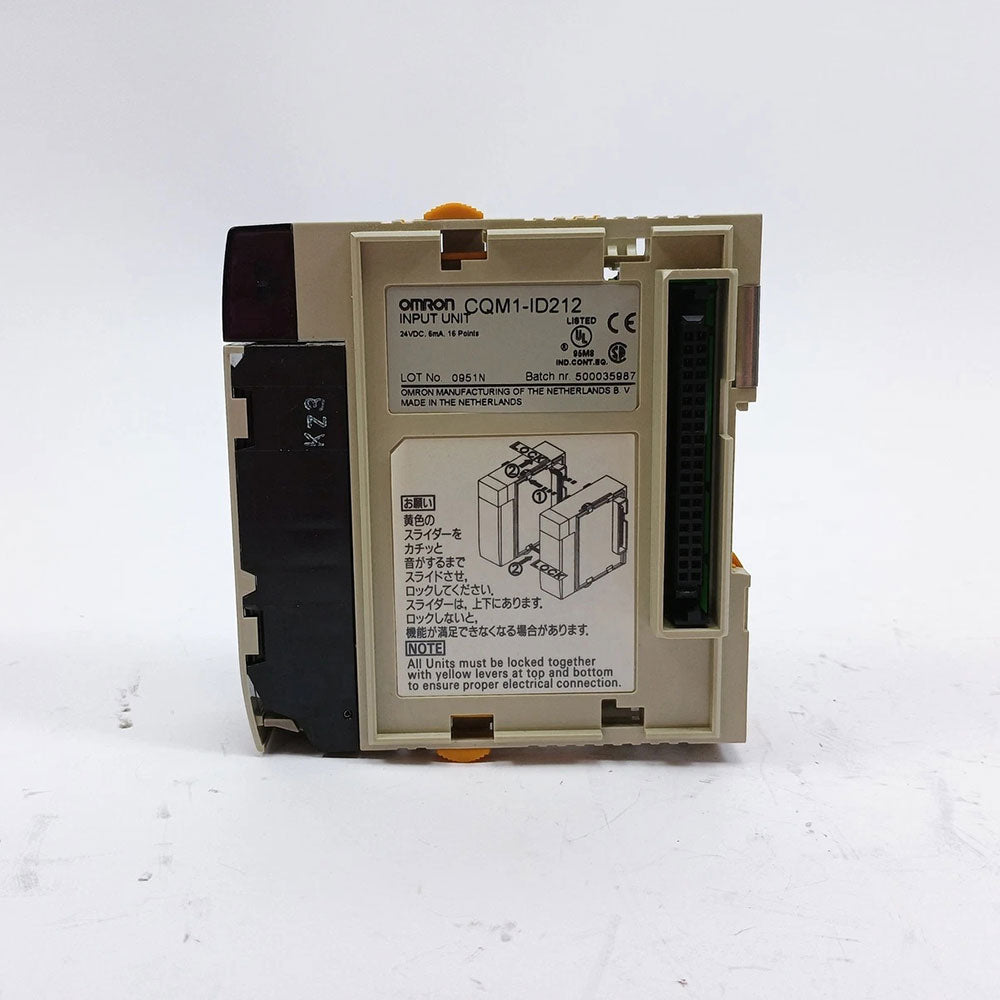

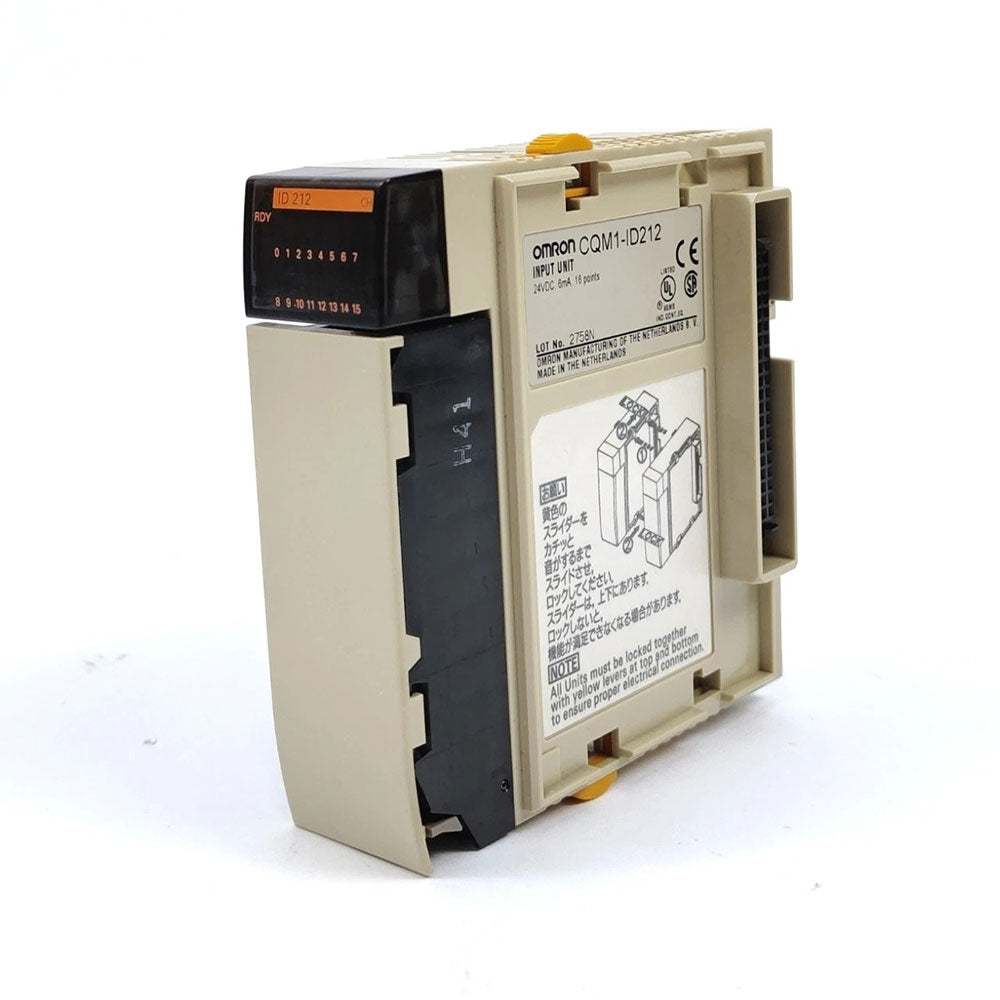

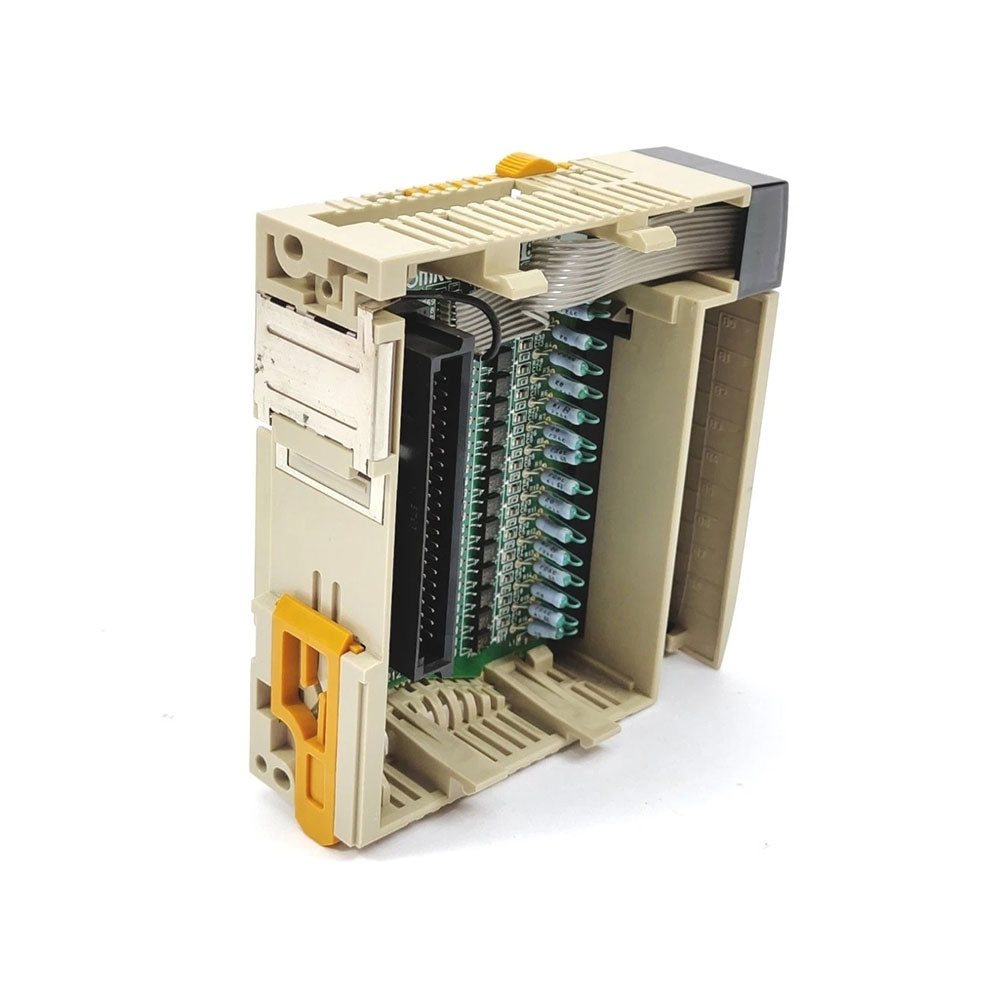

The Omron CQM1-ID212 is a DC input module designed for the CQM1/CQM1H series Programmable Logic Controllers (PLCs). It receives external DC24V digital signals (such as sensor and switch signals) and is widely used in industrial automation applications.
Key Specifications:
· Number of Inputs: 16 points
· Input Voltage: 24 V DC (+10% / -15%)
· Input Current: 6-7 mA (approx. 6 mA at 24 V DC)
· Input Impedance: 3.3-3.9 kΩ
· ON Voltage: 14.4 V DC min.
· OFF Voltage: 5.0 V DC max.
· Response Time (ON/OFF Delay): 8 ms max. (configurable: 0 to 32 ms)
· Isolation Method: Photocoupler isolation
· Internal Current Consumption: 85 mA max. at 5 V DC
· Terminal Type: Screw terminal
· Common Points: 16 points share common
· Mounting: DIN Rail
· Dimensions (W × H × D): 25 × 110 × 107 mm
· Weight: Approx. 0.20 kg (0.44 lbs)
· Certifications: CE, CSA, Lloyd, NK, UL
Key Features:
· High-Speed Response: Fast input signal acquisition for industrial automation applications
· Flexible Wiring: Supports both sink and source input types, compatible with NPN and PNP output sensors
· Adjustable Input Filter: Configurable OFF response time from 0 to 32 ms allows customization for specific application requirements
· Reliable Isolation: Photocoupler isolation effectively protects the PLC system from electrical interference
· Compact Design: 25 mm wide, DIN rail mountable for space-saving control cabinet installation
Applications:
· Receiving sensor signals (photoelectric, proximity, pressure, etc.)
· Receiving pushbutton, switch, and relay contact signals
· Connecting to NPN or PNP type output devices
· Industrial automation production line signal acquisition
