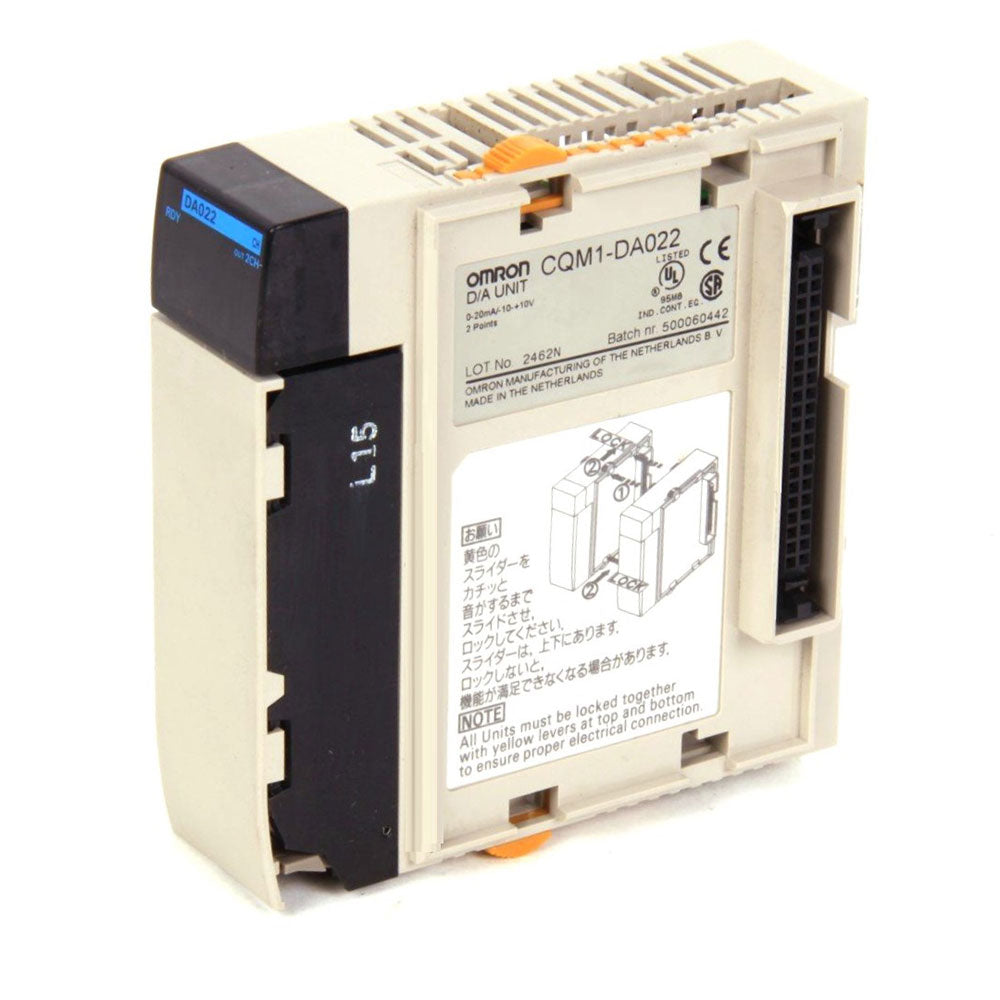

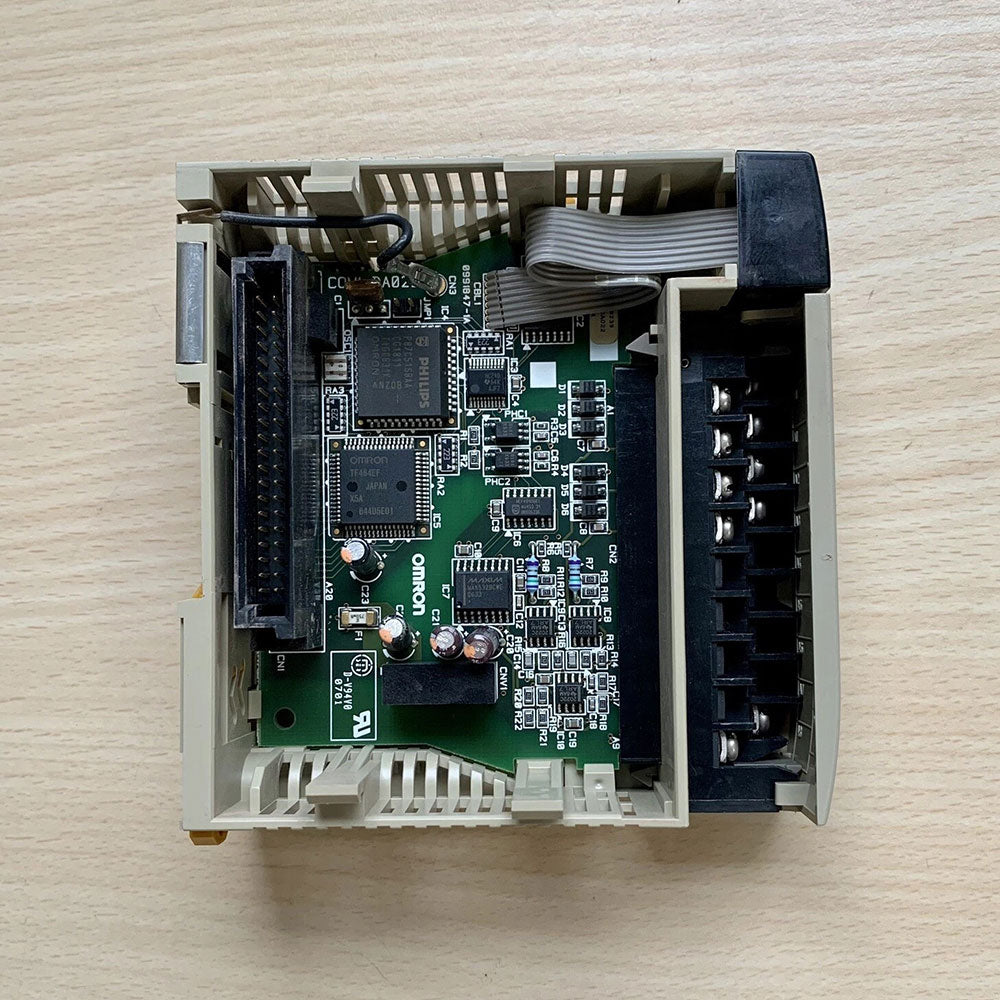

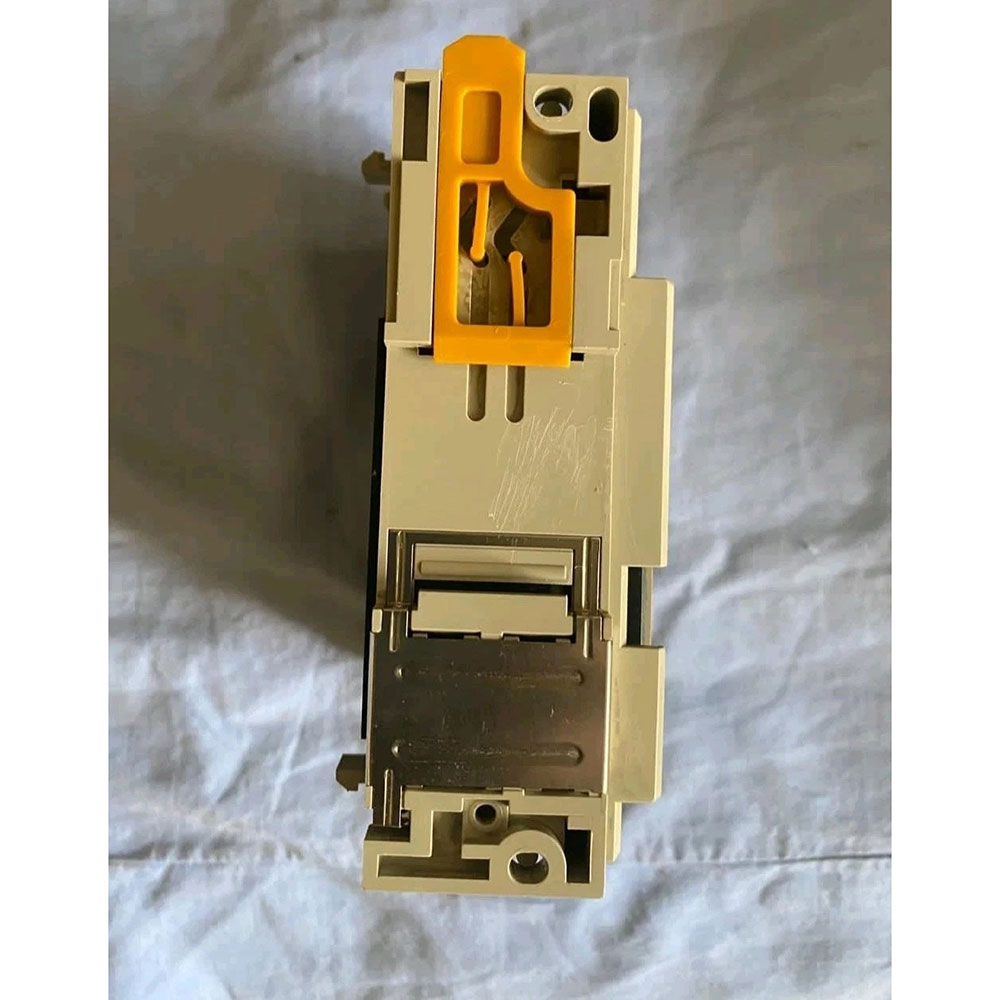

The Omron CQM1-DA022 is a high-performance analog output module designed specifically for the CQM1/CQM1H series programmable logic controllers (PLCs). As a reliable digital-to-analog (D/A) converter, it accurately converts the PLC's digital control commands into standard analog voltage or current signals, and is widely used in industrial automation control systems.
This module integrates a DC/DC converter as its built-in power supply, eliminating the need for an external power supply unit like some other models, effectively simplifying system installation and wiring.
Specifications
· Brand: OMRON
· Model: CQM1-DA022
· Type: Analog Output Unit / Analog Output Module

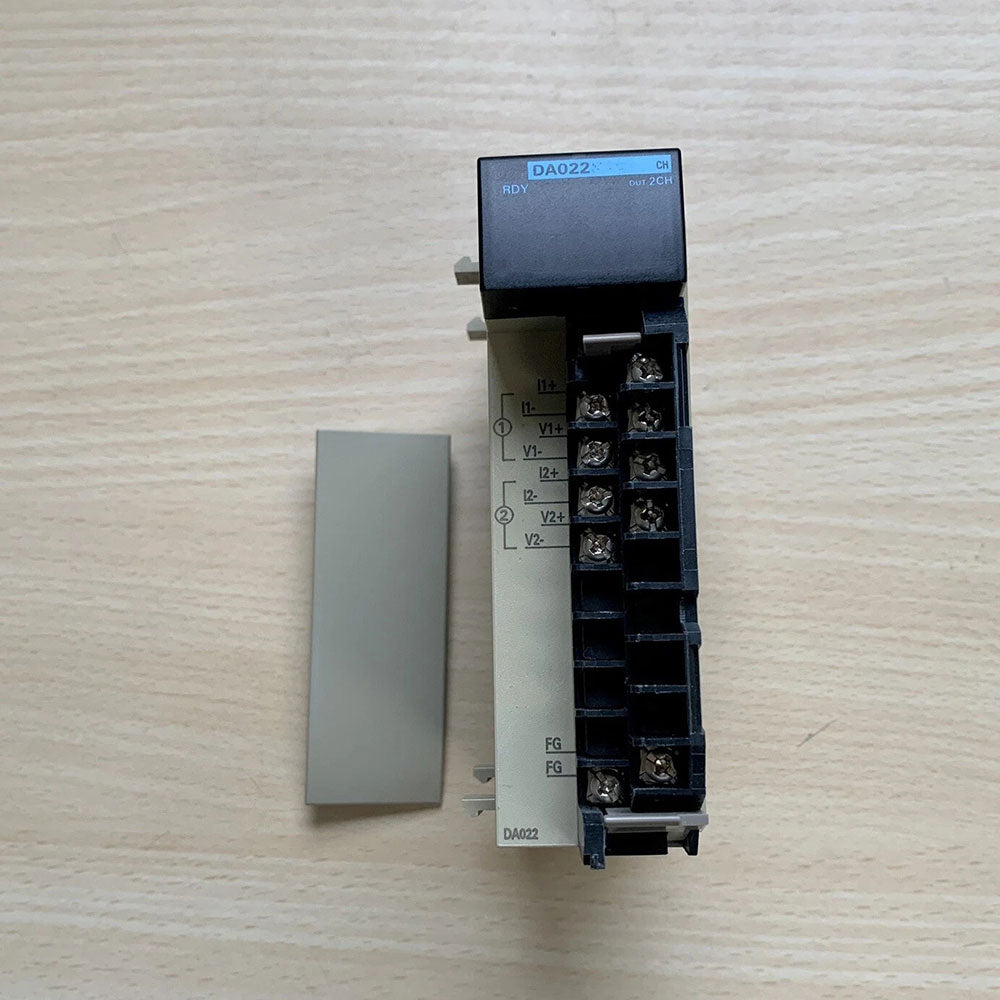

· Analog Output Channels: 2 points
· Output Signal Range:
· Voltage: -10 V to +10 V
· Current: 0 mA to 20 mA
· Resolution:
· Voltage output: 12-bit (1/4096)
· Current output: 11-bit (1/2048)
· Conversion Speed: 0.5 ms / 2 channels
· Accuracy:
· At 25°C: ±0.5%
· At 0 to 55°C: ±1.0%
· Load Impedance:
· Voltage output: ≥ 2 kΩ
· Current output: ≤ 350 Ω
· Insulation Withstand Voltage: 500 V AC between outputs and PLC bus, effectively suppressing electrical interference
· Power Supply: Built-in DC/DC converter (integrated power supply)
· Current Consumption: 340 mA at 5 V DC
· Applicable CPU Units: CQM1H-CPU51/61
· Dimensions (W × H × D): 25 × 110 × 107 mm
· Weight: Approx. 90 g
Core Features and Advantages
· High-Precision Signal Output: Provides both voltage and current output ranges to meet the control requirements of various actuators. The voltage output resolution is as high as 12-bit, and the current output resolution is 11-bit, ensuring precise control.
· High-Speed Conversion: The total conversion time for the two channels is only 0.5 milliseconds, enabling fast response to control commands and making it suitable for applications with high real-time requirements.
· Reliable Electrical Isolation: Features up to 500 V AC isolation between the output channels and the PLC system bus, effectively resisting electrical interference in industrial environments and improving system stability and safety.
· Stable Operation over a Wide Temperature Range: Maintains an output accuracy of ±1.0% within the wide temperature range of 0°C to 55°C, ensuring reliable operation in harsh environments.
Application Scenarios
· Motor Speed Control: Outputs analog signals to drive a frequency converter, achieving stepless speed regulation of motors.
· Valve and Actuator Positioning: Outputs 4-20 mA current signals to precisely control valve opening or actuator position.
· Process Control: In process industries such as chemical and metallurgical plants, serves as a signal interface between the PLC control system and field instruments (e.g., control valves, recorders).
· General Automation Equipment: Suitable for injection molding machines, printing machinery, packaging production lines, and other automation equipment that requires precise analog control.
