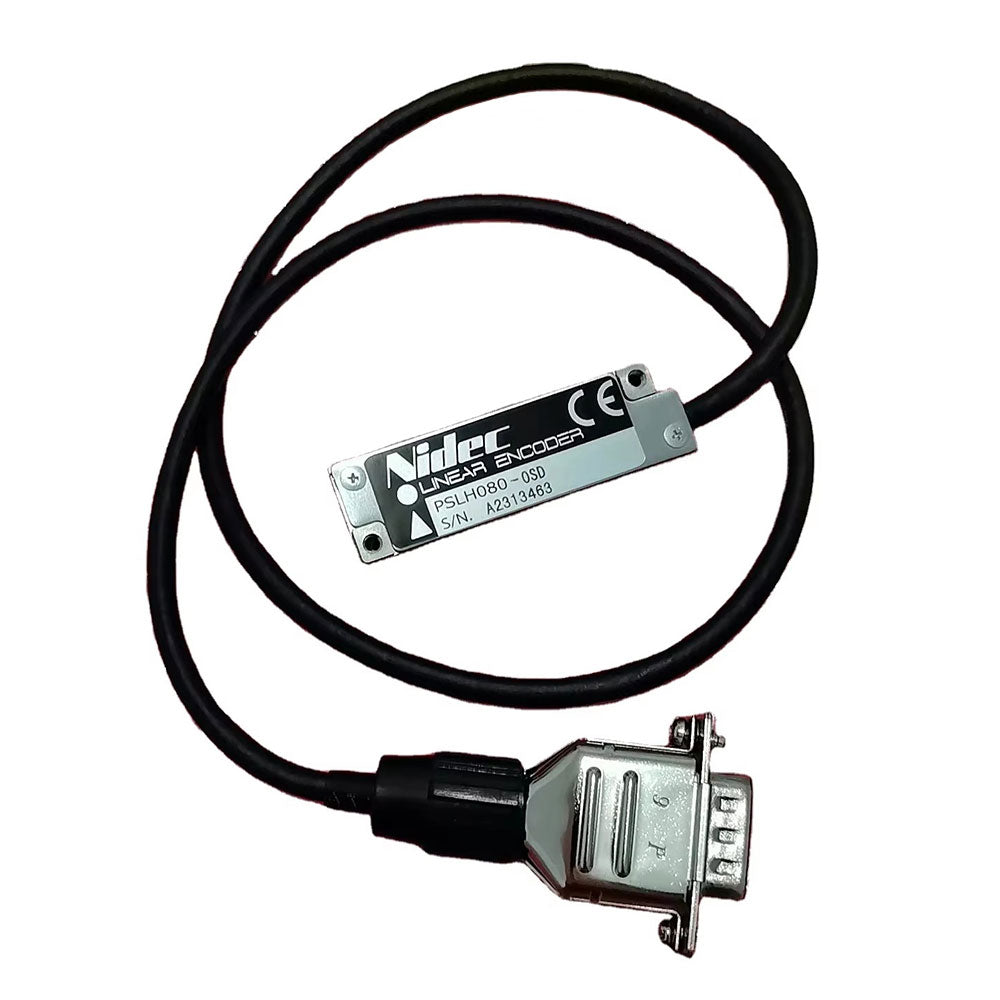

The Nidec PSLH080-OSD is a high-precision, incremental integrated magnetic scale reader head designed for precision linear position feedback in CNC machine tools and automation systems.
Core Specifications
· Resolution: 0.2 μm, 0.5 μm or 1.0 μm (depending on configuration)
· Max. Response Speed: Up to 5 m/s
· Supply Voltage: 3.7 V ~ 5.5 V
· Repeat Accuracy: 2~3 μm/m
· Protection Class: IP67 (dustproof, waterproof, oil-proof)
Technical Features
· Output Signal: ABZ differential signals with enhanced noise immunity, suitable for long-distance transmission
· Response Time: 28 ms on power-up, 4~6 ns during operation
· Non-contact sensing: Tolerant to coolants and chips in harsh industrial environments, with low maintenance costs
