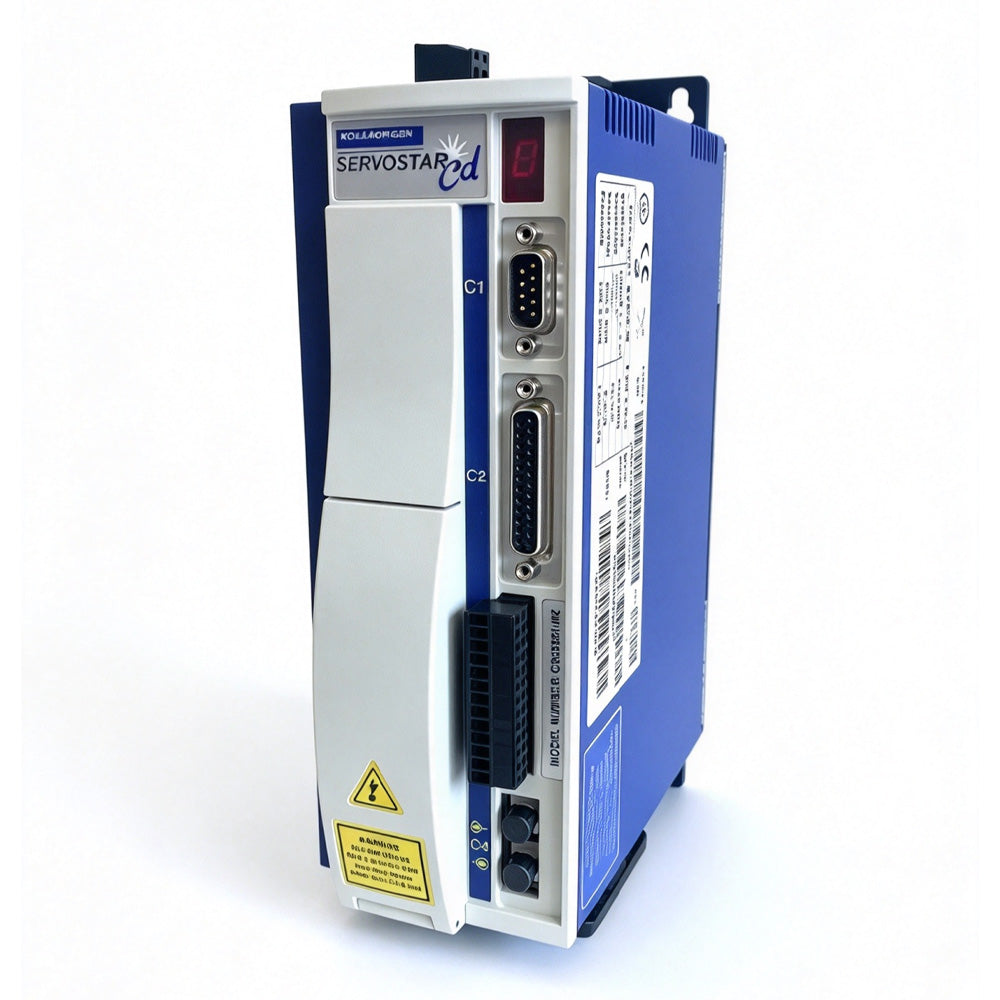

Kollmorgen ServoStar CD CB06561-MZ (PRD-MZ40SSIz-62) — Compact Digital Servo Drive
The Kollmorgen ServoStar CD CB06561-MZ (alternate part no. PRD-MZ40SSIz-62) is a compact digital servo amplifier from the ServoStar CD/CB platform, rated 6 A continuous output. It provides precise digital control of torque, speed and position for brushless synchronous servo motors with resolver or encoder feedback — in a space-saving, DIN-friendly package.
The "-MZ" suffix denotes the configured option set (per Kollmorgen PRD order code, typically including absolute/SSI feedback interface). The drive features Safe Torque Off (STO), built-in regenerative braking, and flexible communication options including EtherCAT, CANopen, SERCOS III and analog/pulse interfaces.
Your Benefits at a Glance
- 6 A continuous output — solid performance for compact servo axes
- Compact ServoStar CD design — saves cabinet space
- Safe Torque Off (STO) — machine safety function included
- Built-in regenerative braking — energy-efficient deceleration
- Resolver & encoder feedback — wide motor compatibility
- EtherCAT / CANopen / SERCOS III / analog-pulse — flexible communication
- Proven ServoStar platform — trusted worldwide in machine automation
Key Features
Compact, High-Density Design The ServoStar CD platform packs full servo performance into a compact footprint, ideal for space-constrained control cabinets in multi-axis machines.
Integrated Safety Built-in Safe Torque Off (STO) supports simplified machine safety integration, reducing external safety components.
Flexible Communication Multiple fieldbus options — EtherCAT, CANopen, SERCOS III — plus analog/pulse command interfaces provide maximum integration flexibility.
Energy-Efficient Operation Built-in regenerative braking recovers energy during deceleration, improving efficiency in cyclic applications.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Kollmorgen |
| Product Series | ServoStar CD / CB (compact digital servo drive) |
| Model | CB06561-MZ (alt. PRD-MZ40SSIz-62) |
| Continuous Output Current | 6 A RMS |
| Control | Digital torque, speed, position |
| Feedback | Resolver, encoder (per option; -MZ config) |
| Safety | STO (Safe Torque Off) |
| Braking | Built-in regenerative braking |
| Communication | EtherCAT, CANopen, SERCOS III, analog/pulse (per option) |
| Enclosure | IP20 (typical) |
| Status | Discontinued by manufacturer — supplied as spare part / refurbished |

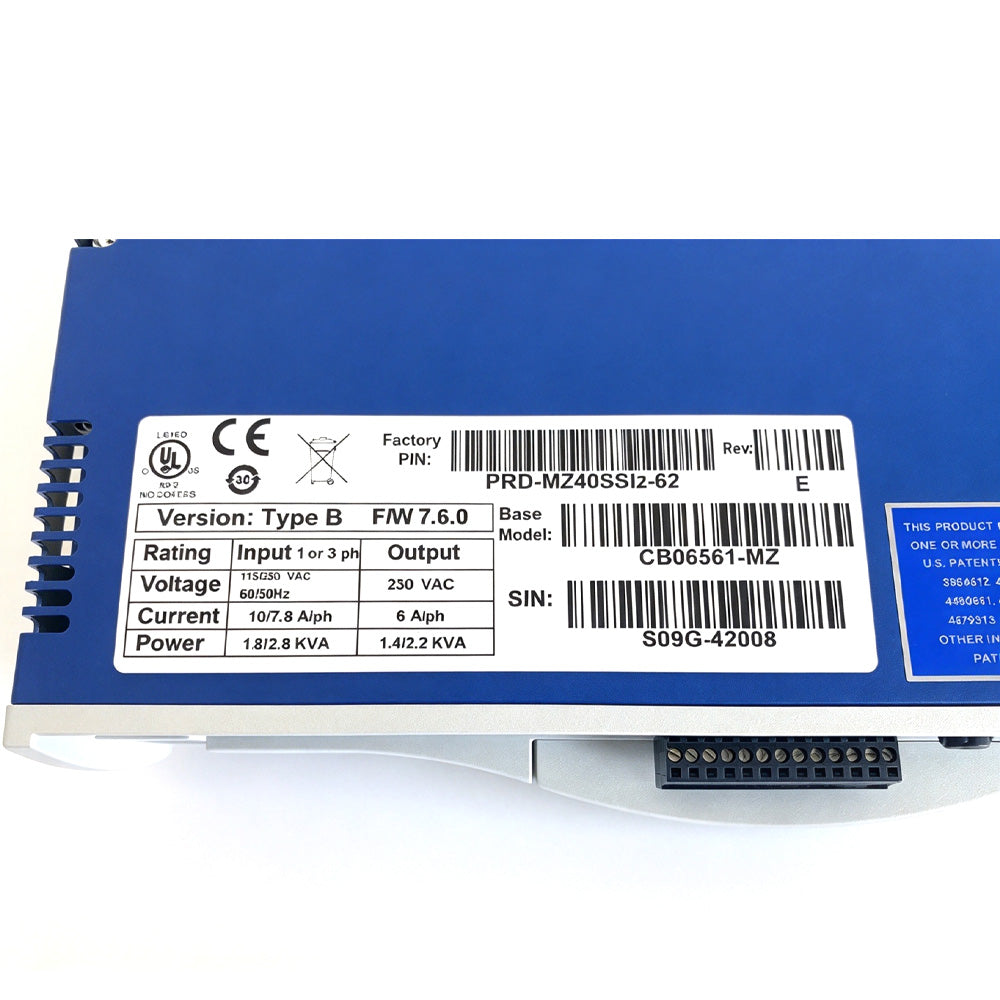

Note: Exact electrical data (supply voltage, peak current, feedback/fieldbus configuration) is per the nameplate / manual of your specific unit; please verify before ordering.
Typical Applications
- Packaging, assembly and printing machinery
- Multi-axis machine control
- Material handling and general industrial automation
- Replacement and retrofit of ServoStar CD series drives
