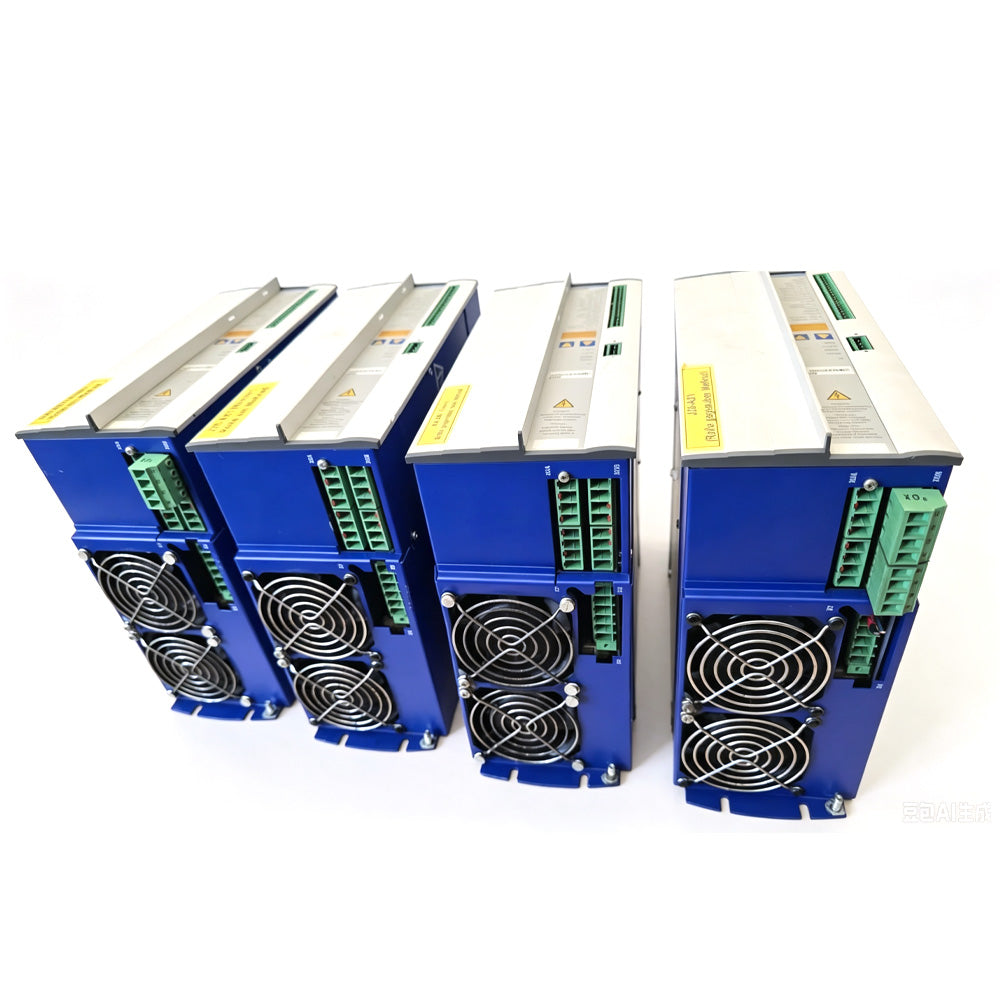

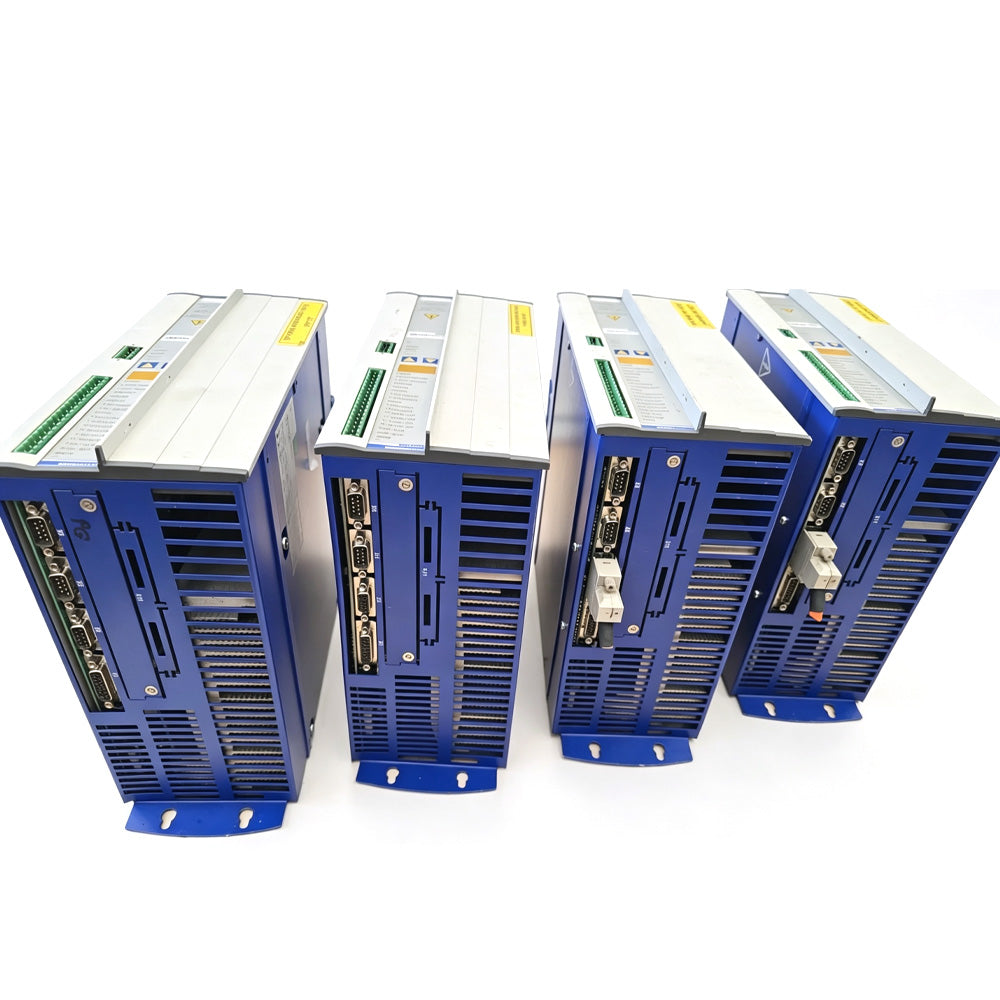

Kollmorgen SERVOSTAR 620 (TM620 / S62000) — SERVOSTAR 600 Series Digital Servo Drive
The Kollmorgen SERVOSTAR 620 (TM620 / S62000) is a compact, mains-fed digital servo amplifier from the proven SERVOSTAR 600 family, rated 20 A RMS at 230–480 VAC, 3-phase, 50/60 Hz (14 kVA). It provides precise, low-latency motion control for brushless servo motors with resolver or high-resolution sin/cos encoder feedback — a high-power, high-dynamics drive for demanding industrial axes.
The S62000 part number denotes the standard version (no option cards). Servo loops, RS232 setup and encoder emulation (ROD426-compatible / SSI) are all built in as standard. DC-link circuits can be connected in parallel, enabling compact multi-axis systems.
Your Benefits at a Glance
- 20 A rated output / 14 kVA — high power for demanding servo axes
- Direct mains operation — 230–480 VAC, 3-phase, no separate supply needed
- Resolver or high-resolution sin/cos encoder feedback — wide motor compatibility
- Fully programmable via RS232 — quick setup with PC-based software
- Encoder emulation ROD426-compatible or SSI — flexible integration with existing controls
- Parallel DC-link capability — compact multi-axis systems with shared bus
- Proven SERVOSTAR 600 platform — trusted worldwide in machine automation
Key Features
High-Power Output With 20 A RMS rated output and 14 kVA power, the SERVOSTAR 620 drives large brushless servo motors — ideal for heavy-duty converting, printing, packaging and material-handling applications.
Flexible Feedback Feedback is supported from resolver or high-resolution sin/cos encoder, covering a broad range of Kollmorgen and third-party brushless servo motors.
Easy Integration Encoder emulation outputs (ROD426-compatible, decimal/binary, or SSI Gray/binary) make it simple to interface with existing position displays and controls; RS232 setup software provides fast commissioning.
Multi-Axis Ready The DC-link circuits can be connected in parallel (with patented ballast handling), enabling compact, cost-effective multi-axis systems with a shared supply.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Kollmorgen (formerly Danaher Motion) |
| Product Family | SERVOSTAR 600 Series Digital Servo Amplifier |
| Device Name | SERVOSTAR 620 (TM620) |
| Model | S62000 (standard version) |
| Rated Output Current | 20 A RMS |
| Rated Power | 14 kVA |
| Input Voltage | 230–480 VAC, 3-phase, 50/60 Hz (direct mains operation) |
| Feedback | Resolver or high-resolution sin/cos encoder |
| Encoder Emulation | ROD426-compatible (dec/bin) or SSI (Gray/binary), selectable |
| Setup Interface | RS232 (PC setup software) |
| Expansion | None (standard version) |
| DC-Link | Parallel connection supported (patented ballast handling) |
| Enclosure | IP20 |
| Status | Discontinued by manufacturer — supplied as spare part / refurbished |

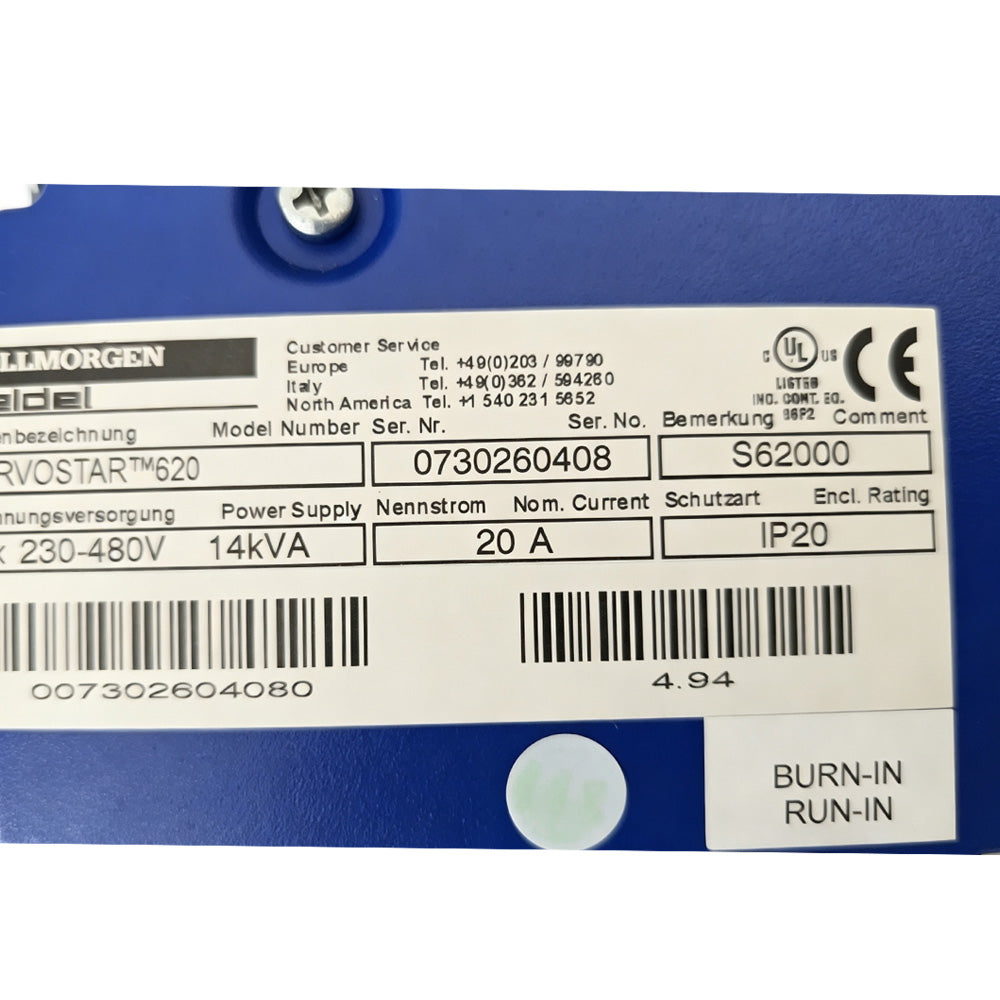

Note: Exact electrical data is per the nameplate / manual of your specific unit; please verify before ordering.
Typical Applications
- Heavy-duty packaging, printing and converting machinery
- Material handling and conveying systems
- High-power single- and multi-axis machines
- Multi-axis systems with shared DC bus
- Replacement and retrofit of SERVOSTAR 600 series drives
