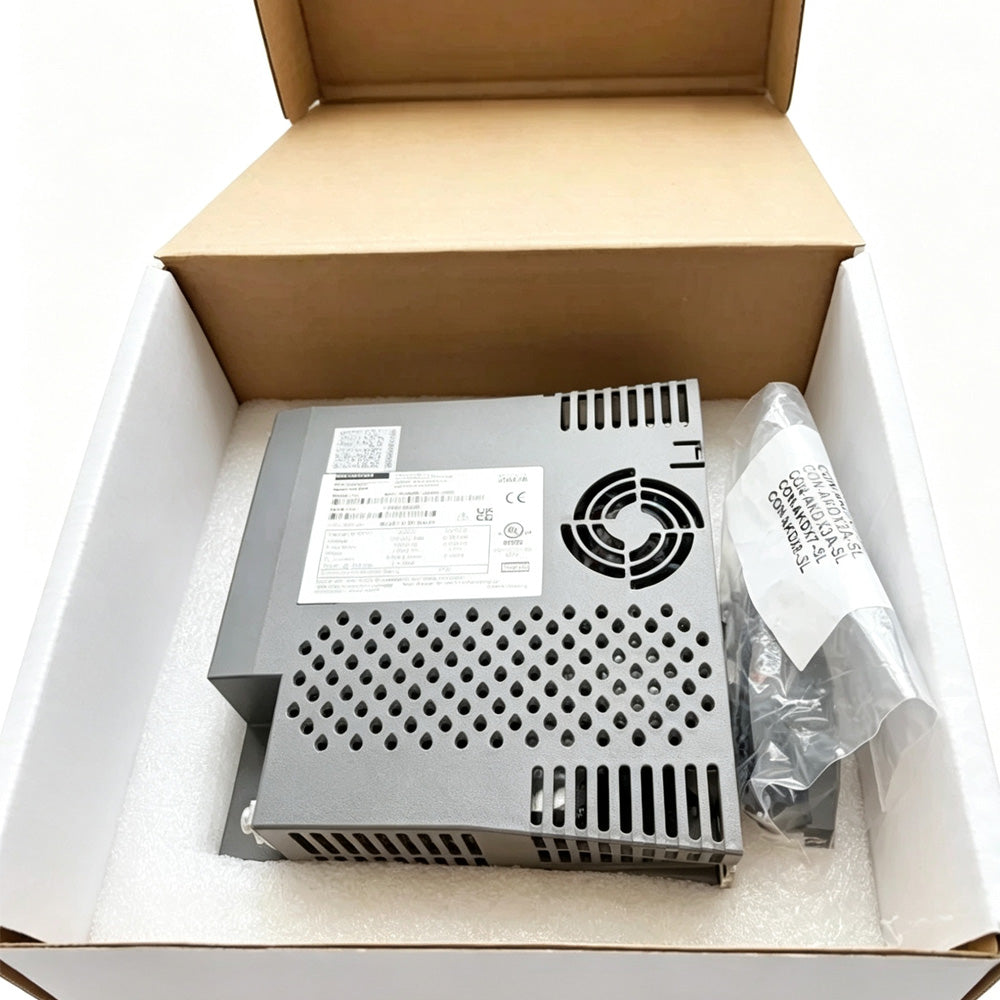

Kollmorgen SERVOSTAR 603-AS (S60301) — SERVOSTAR 600 Series Digital Servo Drive with -AS- Safety Option
The Kollmorgen SERVOSTAR 603-AS (S60301) is a compact, mains-fed digital servo amplifier from the proven SERVOSTAR 600 family, rated 3 A RMS at 230–480 VAC, 3-phase, 50/60 Hz (2 kVA). It provides precise, low-latency motion control for brushless servo motors with resolver or high-resolution sin/cos encoder feedback — now with the -AS- safety option (built-in restart lock / safety relay per EN 954-1) for personnel protection.
The "-AS-" option adds a 24 VDC safety relay with forced-guided contacts (controlled externally via the additional X10 front connector) that safely cuts the drive power supply to the motor — preventing unexpected machine restart after a safety circuit trip. This is a personnel-protection restart lock; it is not an STO function.
Your Benefits at a Glance
- -AS- restart lock (EN 954-1) — built-in safety relay prevents unexpected restart
- 3 A rated output — solid performance for mid-power servo axes
- Direct mains operation — 230–480 VAC, 3-phase, no separate supply needed
- Resolver or high-resolution sin/cos encoder feedback — wide motor compatibility
- Fully programmable via RS232 — quick setup with PC-based software
- Encoder emulation ROD426-compatible or SSI — flexible integration with existing controls
- Parallel DC-link capability — compact multi-axis systems with shared bus
Key Features
-AS- Safety Option (Restart Lock) The built-in 24 VDC safety relay (approved, forced-guided contacts, positive action) is controlled externally through the additional X10 connector. Its contacts switch off the drive supply to the motor, locking out unexpected restart after safety shutdown — for personnel protection per EN 954-1.
Note: The -AS- restart lock is a restart-prevention function and is not equivalent to an STO safety function (per Kollmorgen documentation).
Flexible Feedback Feedback is supported from resolver or high-resolution sin/cos encoder, covering a broad range of Kollmorgen and third-party brushless servo motors.
Easy Integration Encoder emulation outputs (ROD426-compatible, decimal/binary, or SSI Gray/binary) make it simple to interface with existing position displays and controls; RS232 setup software provides fast commissioning.
Multi-Axis Ready The DC-link circuits can be connected in parallel (with patented ballast handling), enabling compact, cost-effective multi-axis systems with a shared supply.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Kollmorgen (formerly Danaher Motion) |
| Product Family | SERVOSTAR 600 Series Digital Servo Amplifier |
| Device Name | SERVOSTAR 603-AS |
| Model | S60301 (with -AS- option) |
| Rated Output Current | 3 A RMS |
| Rated Power | 2 kVA |
| Input Voltage | 230–480 VAC, 3-phase, 50/60 Hz (direct mains operation) |
| Feedback | Resolver or high-resolution sin/cos encoder |
| Safety Option | -AS- restart lock, safety relay per EN 954-1 (X10 connector) |
| Encoder Emulation | ROD426-compatible (dec/bin) or SSI (Gray/binary), selectable |
| Setup Interface | RS232 (PC setup software) |
| DC-Link | Parallel connection supported (patented ballast handling) |
| Enclosure | IP20 |
| Status | Discontinued by manufacturer — supplied as spare part / refurbished |
Note: Exact electrical data is per the nameplate / manual of your specific unit; please verify before ordering.
Typical Applications
- Mid-power single-axis positioning and feed systems with personnel protection requirements
- Packaging, printing and converting machinery
- Material handling and general machine automation
- Machines with safety interlocks / restart-lock requirements
- Replacement and retrofit of SERVOSTAR 600 series drives
