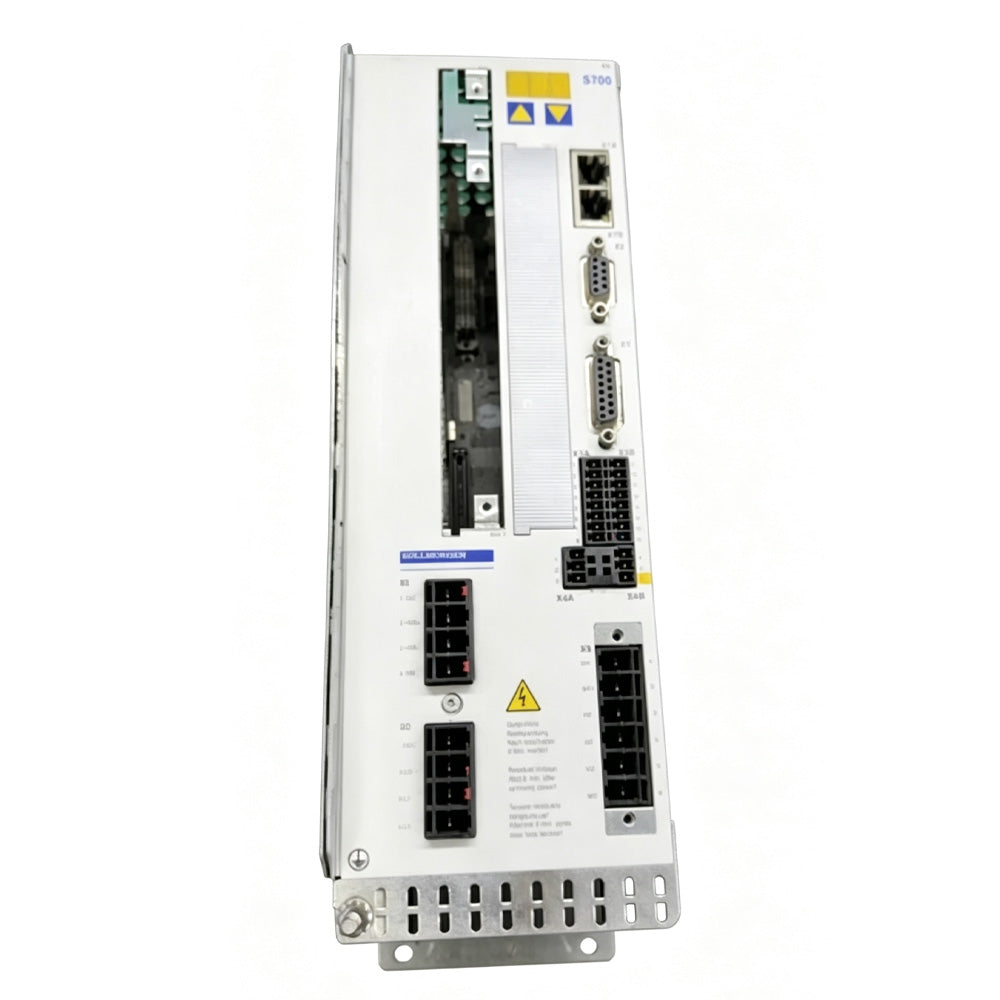

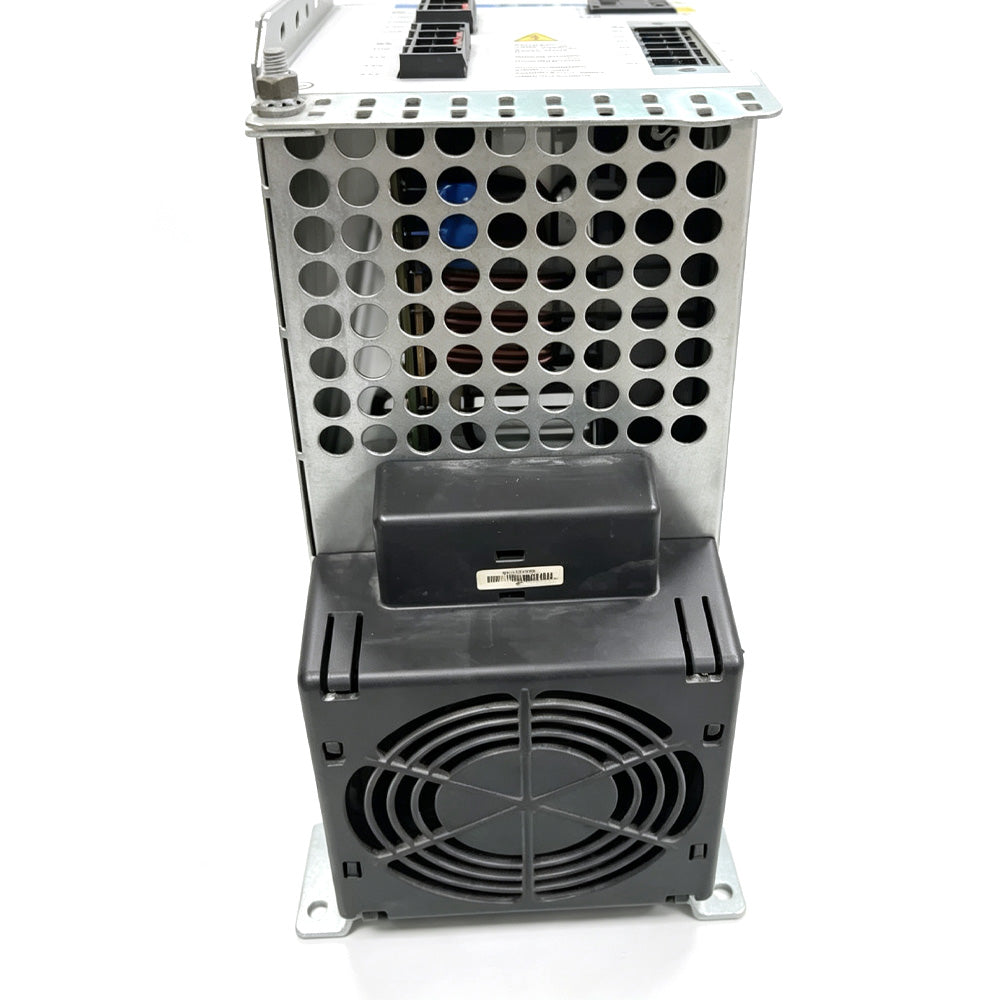

Kollmorgen S72401-NANANA — S700 Series Digital Servo Drive
The Kollmorgen S72401-NANANA is the flagship high-current drive of the S700 series, rated 24 A continuous (48/72 A peak) at 208–480 VAC, 3-phase, 50/60 Hz (approx. 18 kVA, S1). It delivers precise, low-latency motion control for Kollmorgen servo motors with resolver or encoder feedback — the drive of choice for the most demanding, high-power industrial axes.
The "NANANA" US order code denotes the standard configuration: CANopen and EtherCAT onboard, internal brake resistor, and single-channel STO safety — with no optional add-on boards. This drive suits packaging, printing, converting and material-handling machinery, including multi-axis systems with shared DC bus.
Your Benefits at a Glance
- 24 A continuous / 48–72 A peak — maximum S700 output for large, heavy-duty servo axes
- CANopen + EtherCAT onboard — fieldbus connectivity included as standard, no add-on card needed
- Internal brake resistor — simplifies installation in typical servo applications
- Single-channel STO — safety torque off for simplified machine safety integration
- Ultra-fast current loop (0.5 µs) — high-dynamics, low-latency control
- 16 kHz switching frequency — quiet, smooth motor operation
- Resolver & encoder feedback — wide motor compatibility
- Wide supply range — 208–480 VAC, 3-phase, 50/60 Hz; max. DC bus 900 VDC
- Proven S700 platform — trusted worldwide in machine automation
Key Features
Maximum Power Output With 24 A continuous and 48/72 A peak current, the S72401 delivers the highest power in the S700 family — designed for large servo motors and heavy-duty industrial applications.
Standard Connectivity The S72401-NANANA includes CANopen and EtherCAT onboard as standard — a clean, cost-effective way to integrate into modern motion networks without fieldbus expansion cards.
Quiet, Smooth Operation A 16 kHz output-stage switching frequency ensures low audible noise and smooth current control even at high power.
Safety & Protection Single-channel STO (Safe Torque Off) is built in as standard, supporting simplified machine safety concepts. Overvoltage, overcurrent and thermal protection keep the drive reliable in industrial environments.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Kollmorgen |
| Product Series | S700 Series Digital Servo Drive |
| Model | S72401-NANANA (US order code; standard configuration) |
| Product Type | Digital servo drive / amplifier |
| Continuous Output Current | 24 A RMS |
| Peak Output Current | 48 / 72 A RMS (approx., 2 s, ±3 %) |
| Rated Line Power (S1) | approx. 18 kVA |
| Input Voltage | 208–480 VAC, 3-phase, 50/60 Hz |
| Max. DC Bus Voltage | 900 VDC |
| Control Loop Timing | Current 0.5 µs (S700 series) |
| Switching Frequency | 16 kHz (output stage) |
| Voltage Rise Speed | dU/dt 6.9 kV/µs @ 3 × 480 V |
| Feedback | Resolver, encoder |
| Fieldbus | CANopen + EtherCAT (onboard) |
| Safety | Single-channel STO (standard) |
| Brake Resistor | Internal (standard) |
| AC Supply Fusing | 30 A |
| Height (incl. connectors) | 382 mm |
| Noise Emission | Max. 65 dB(A) |
| Enclosure | IP20 |
| Operating Temperature | 0…40 °C |
| Status | Standard production configuration |

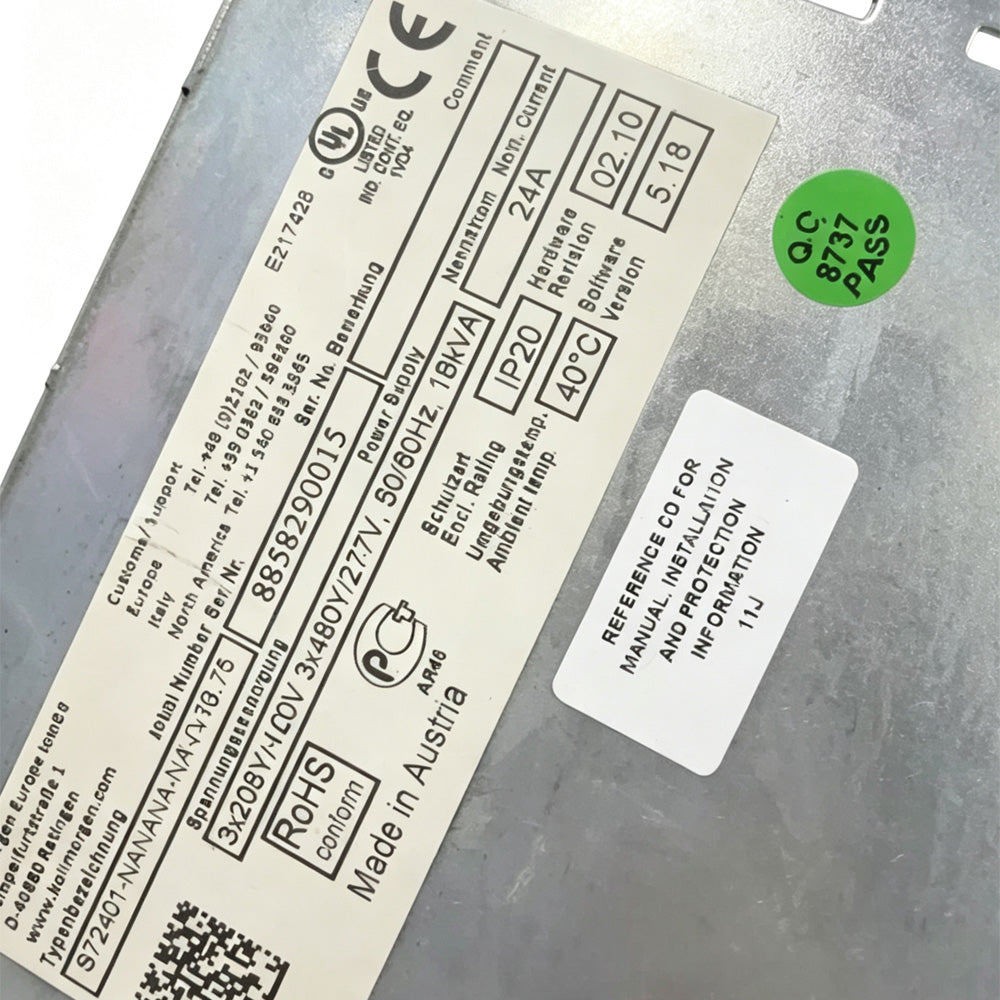

Note: Exact electrical data is per the nameplate / manual of your specific unit; please verify before ordering.
Typical Applications
- Heavy-duty packaging, printing and converting machinery
- Material handling and conveying systems
- Robotics and general machine automation
- Multi-axis systems with shared DC bus
- Replacement and retrofit of S700/S600 series drives
