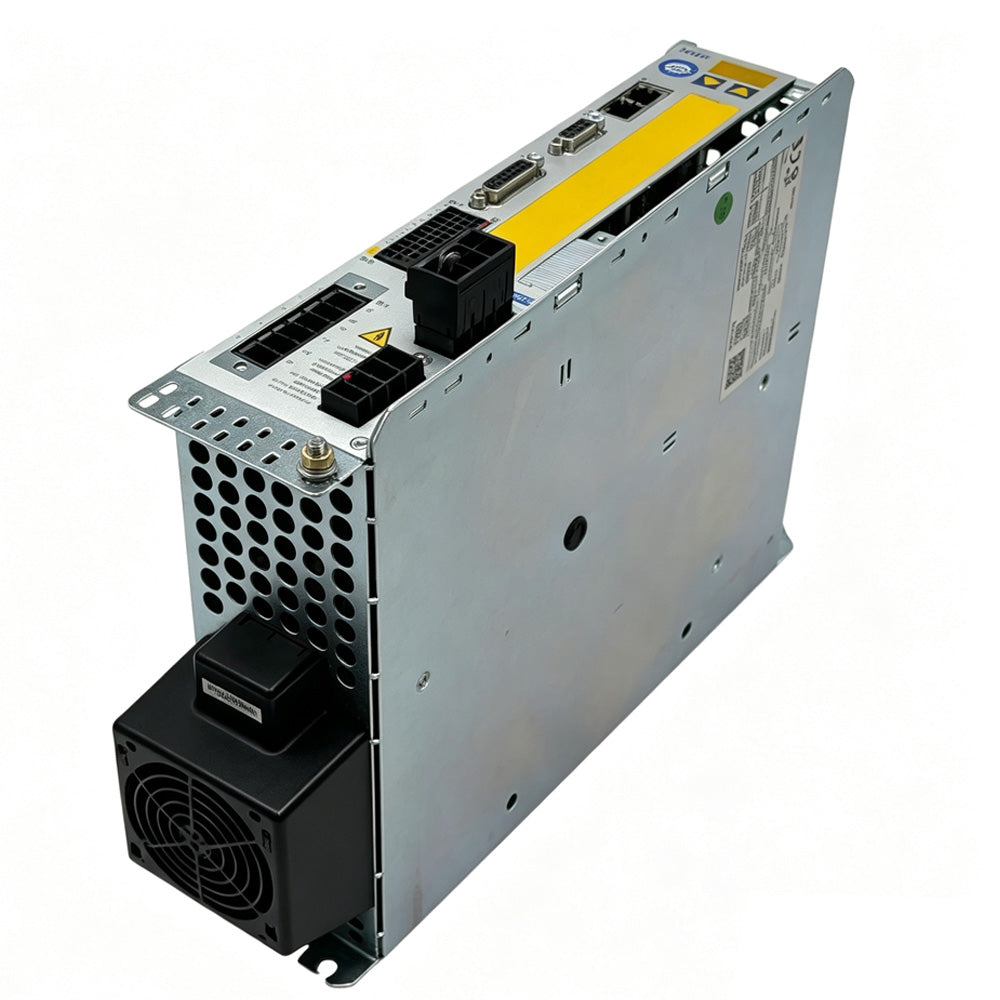

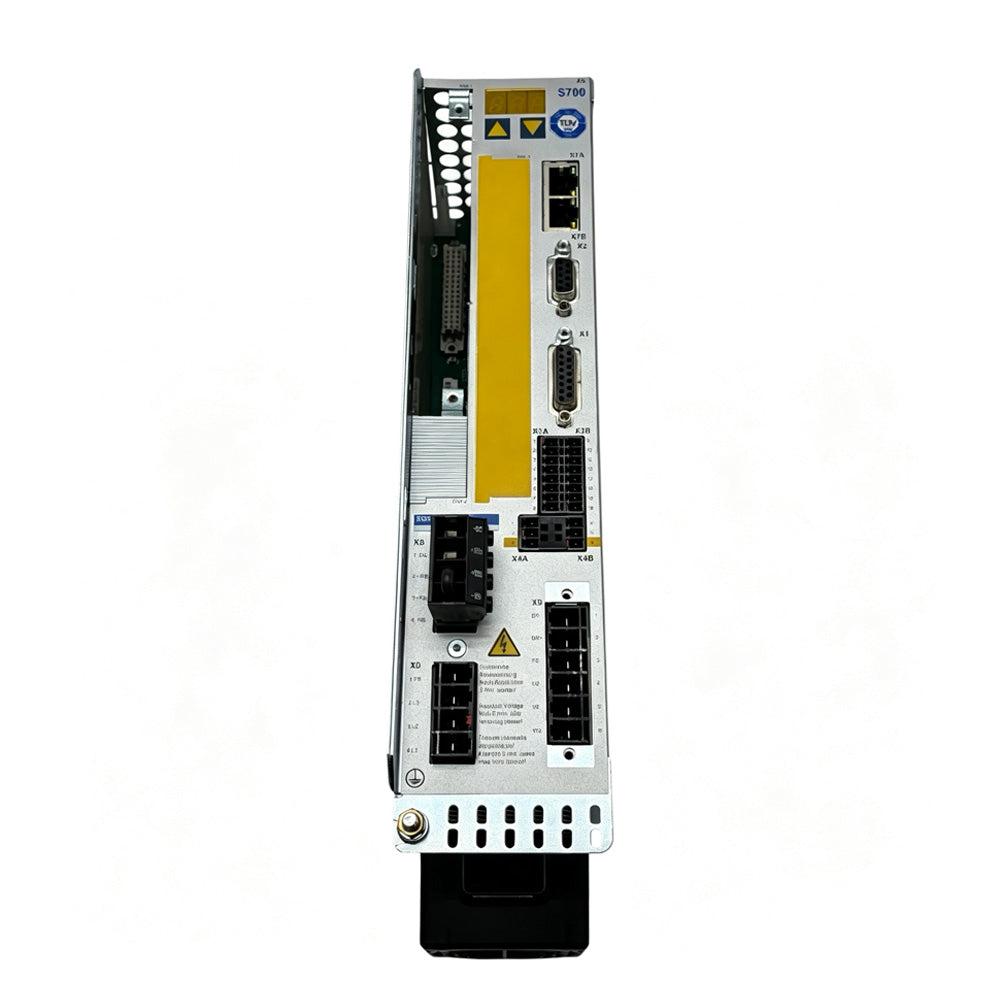

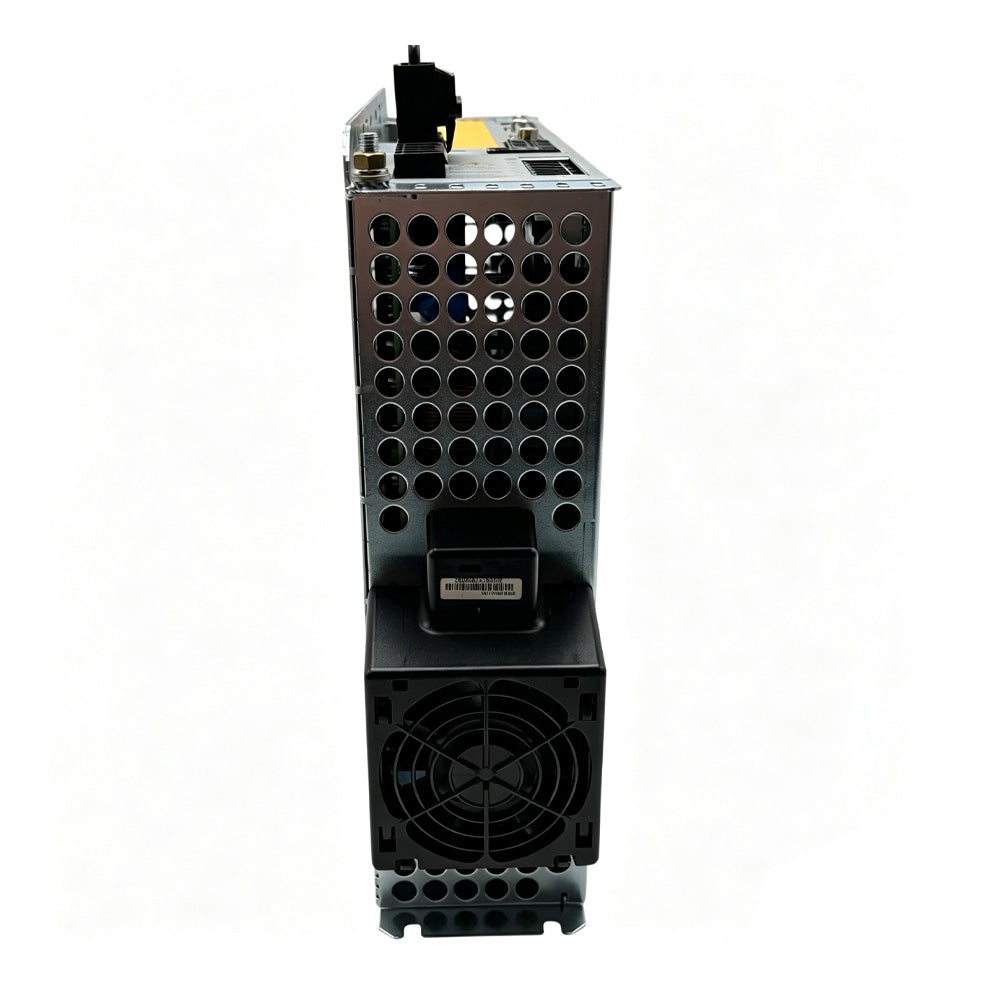

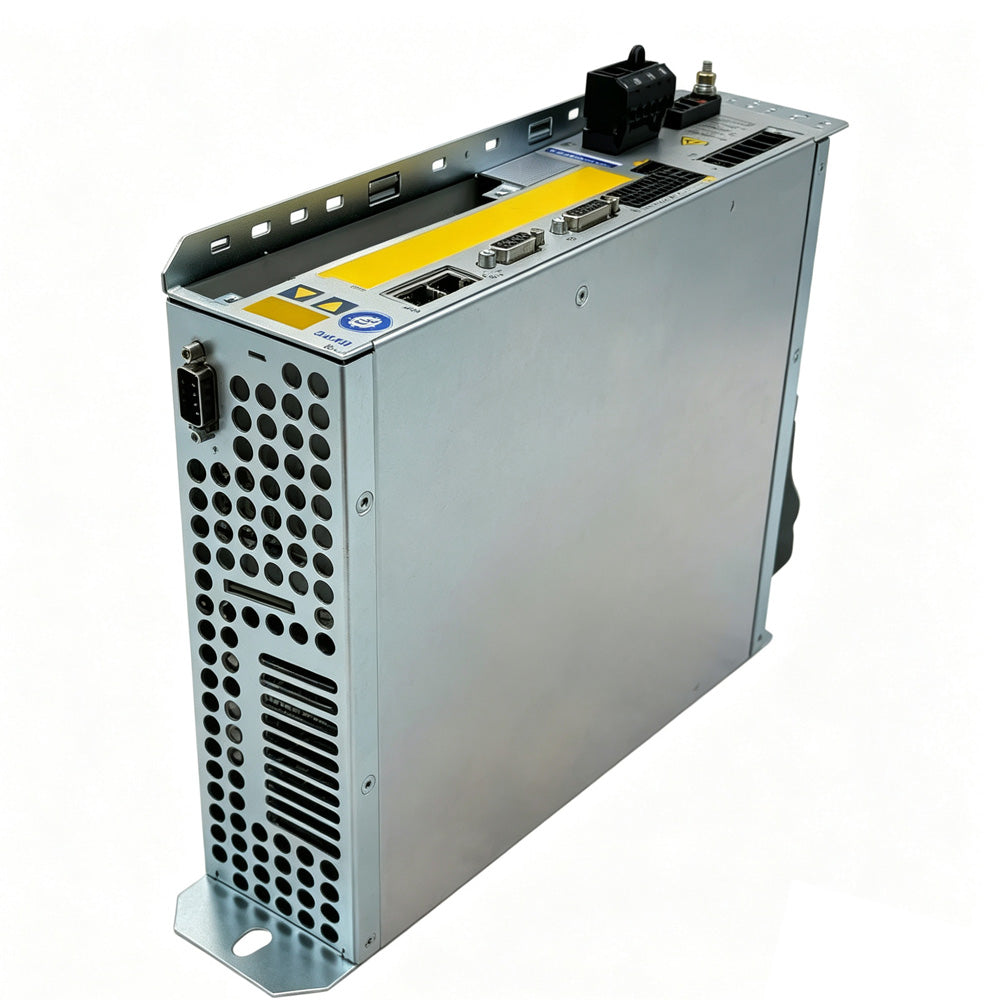

Kollmorgen S70102-NANANA — S700 Series Digital Servo Drive

The Kollmorgen S70102-NANANA is a compact, high-performance digital servo drive from the S700 series, rated 1.5 A continuous (4.5 A peak) at 208–480 VAC, 3-phase, 50/60 Hz (1.1 kVA, S1). It delivers precise, low-latency motion control for Kollmorgen servo motors with resolver, sine-encoder or digital encoder feedback — in a space-saving single-drive package.

The "NANANA" US order code denotes the standard configuration: CANopen and EtherCAT onboard, internal brake resistor, single-channel STO safety, and no optional add-on boards. This drive suits packaging, printing, converting and material-handling machinery, including multi-axis systems with shared DC bus.

Your Benefits at a Glance

• 1.5 A continuous / 4.5 A peak — compact drive for small to mid-power servo axes
• CANopen + EtherCAT onboard — fieldbus connectivity included as standard, no add-on card needed
• Internal brake resistor — simplifies installation in typical servo applications
• Single-channel STO — safety torque off for simplified machine safety integration
• Ultra-fast current loop (0.5 µs) — high-dynamics, low-latency control
• Wide feedback support — resolver, sine-encoder, digital encoder
• Wide supply range — 208–480 VAC, 3-phase, 50/60 Hz; max. DC bus 900 VDC
• Proven S700 platform — trusted worldwide in machine automation

Key Features

Standard Connectivity The S70102-NANANA includes CANopen and EtherCAT onboard as standard — a clean, cost-effective way to integrate into modern motion networks without fieldbus expansion cards.

Safety & Protection Single-channel STO (Safe Torque Off) is built in as standard, supporting simplified machine safety concepts. Overvoltage, overcurrent and thermal protection keep the drive reliable in industrial environments.

Precision Control Current loop timing of 0.5 µs, with speed and position loops optimized for high-bandwidth servo control, delivers smooth torque and fast settling for demanding applications.

Flexible Feedback & Power Resolver, sine-encoder and digital encoder feedback covers a broad range of Kollmorgen motors; 208–480 VAC 3-phase input (max. DC bus 900 VDC) fits global machine platforms and common-bus configurations.

Technical Specifications

表格

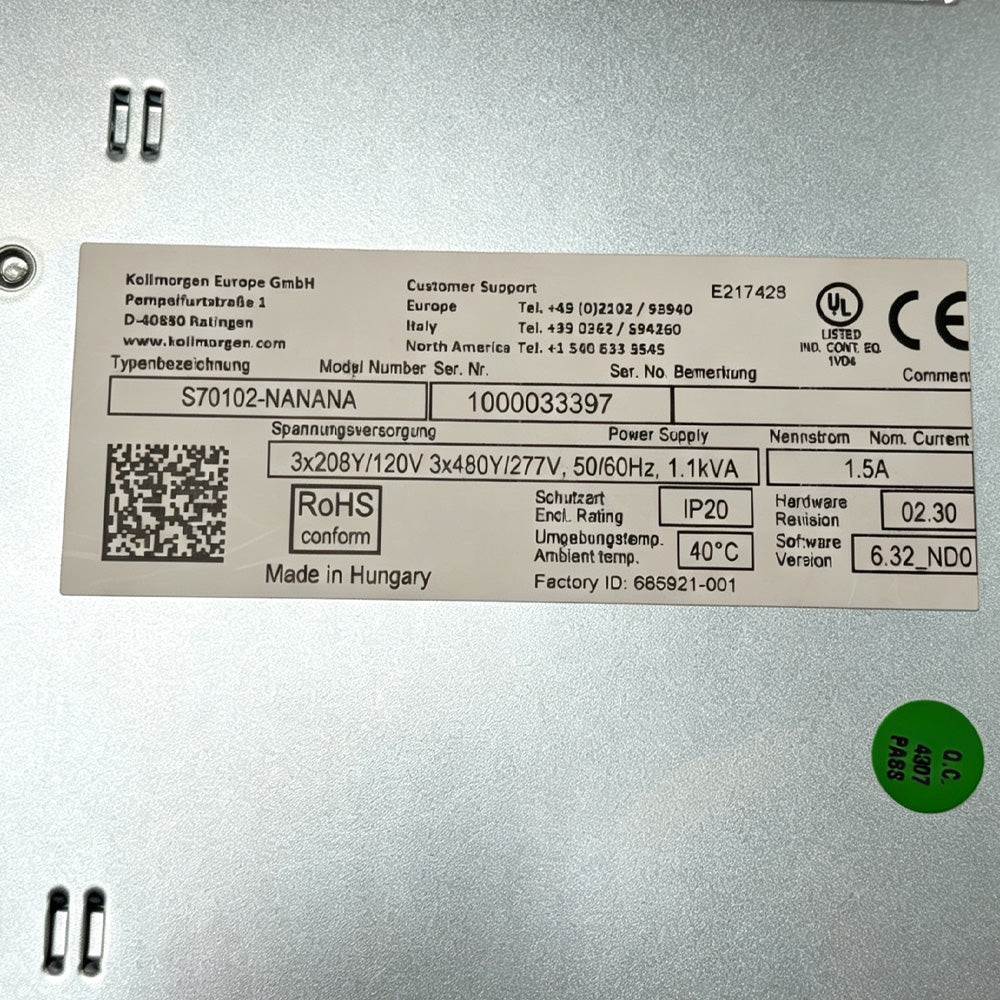

Note: Exact electrical data is per the nameplate / manual of your specific unit; please verify before ordering.

Typical Applications

• Packaging, printing and converting machinery
• Material handling and conveying systems
• Robotics and general machine automation
• Multi-axis systems with shared DC bus
• Replacement and retrofit of S700/S600 series drives
