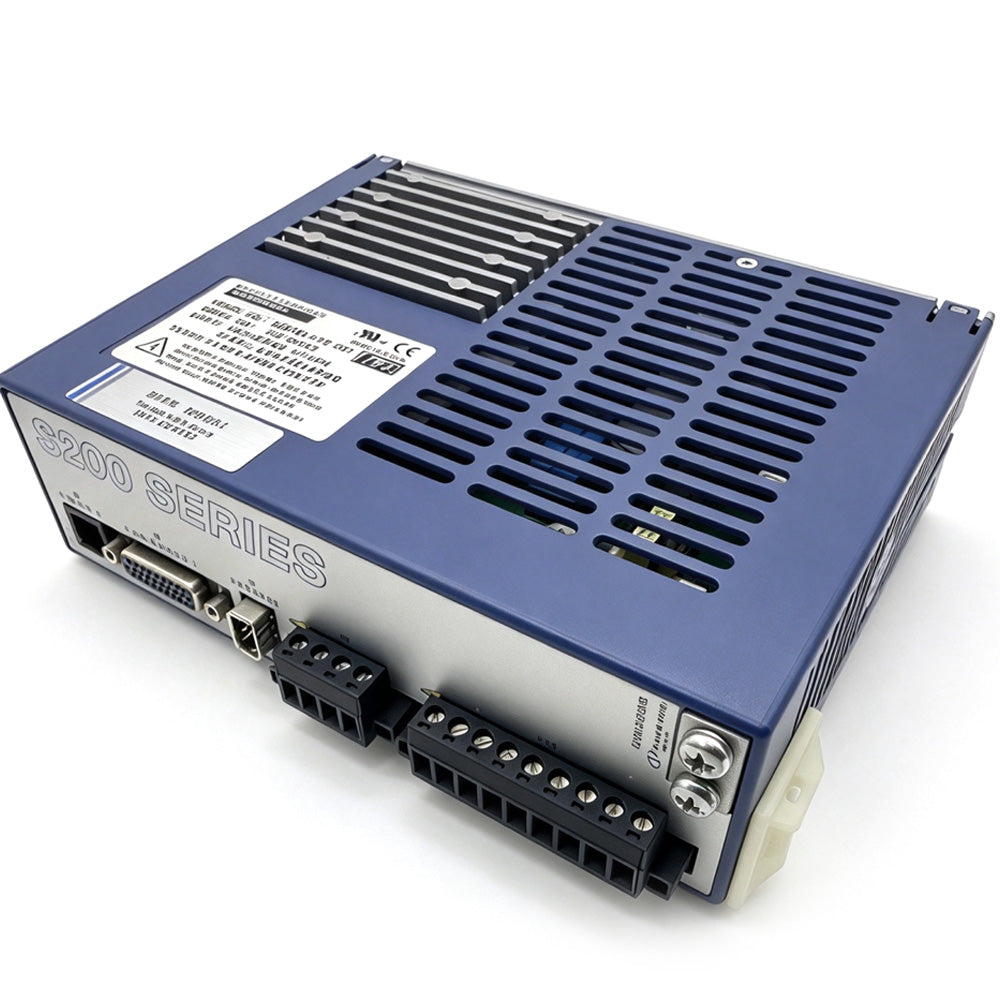

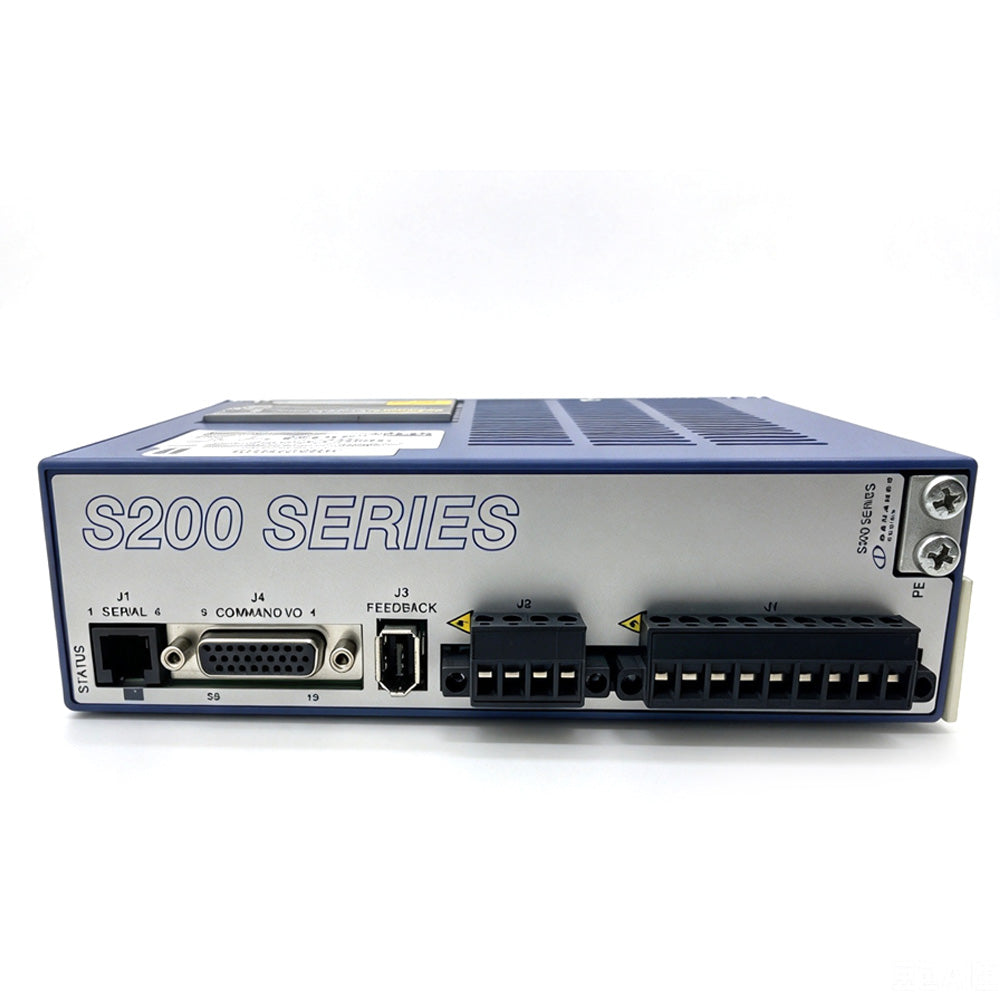

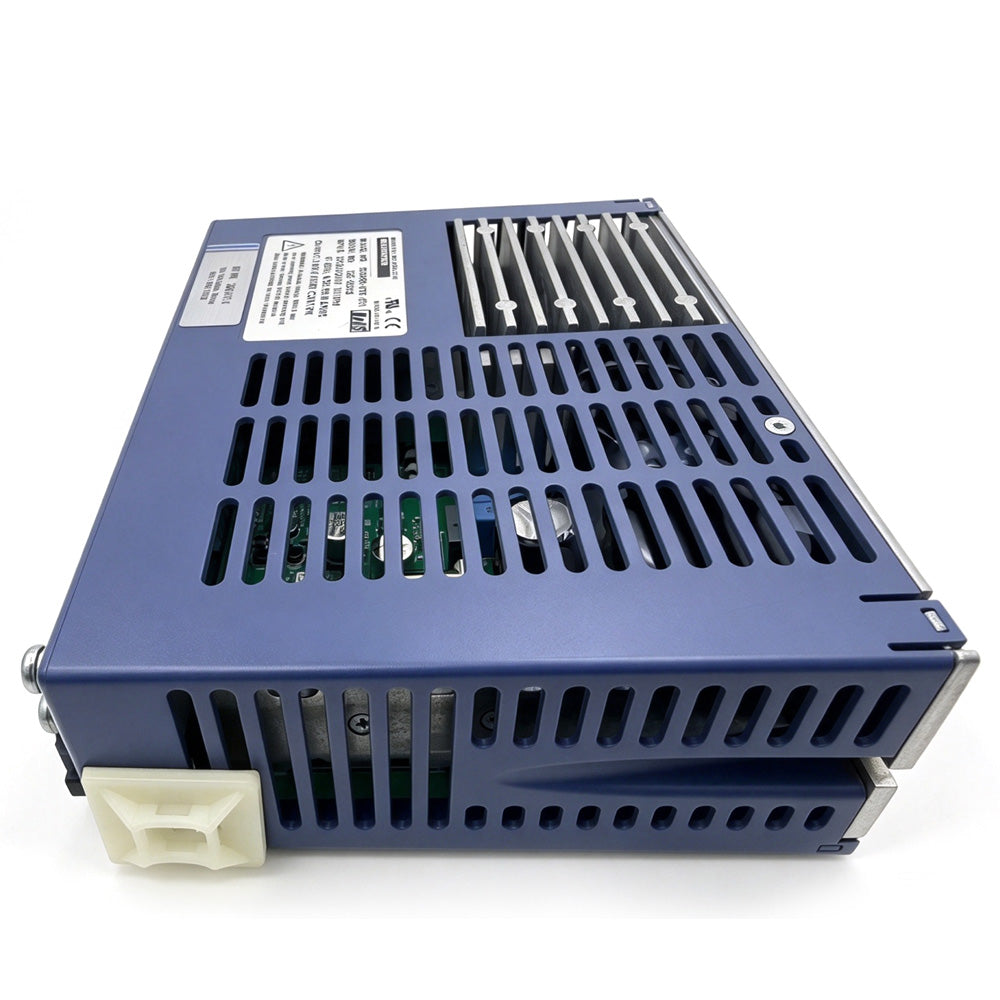

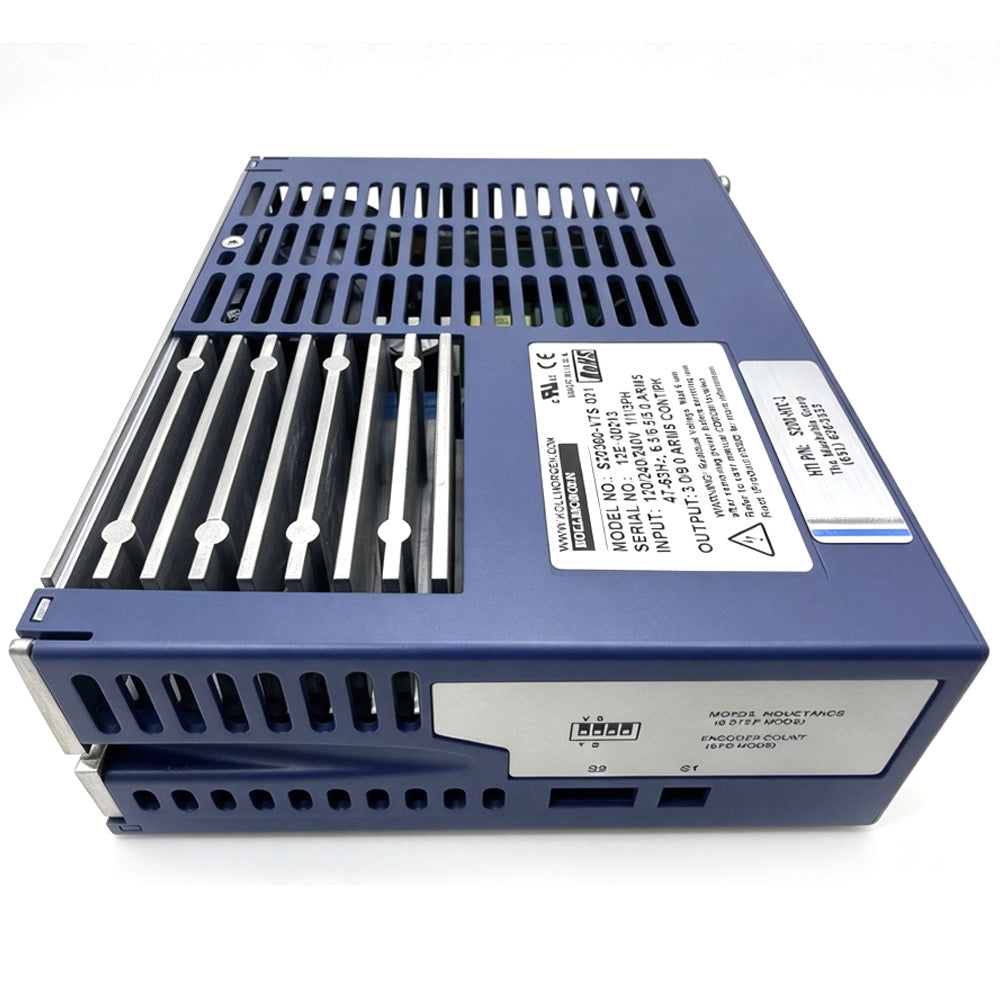

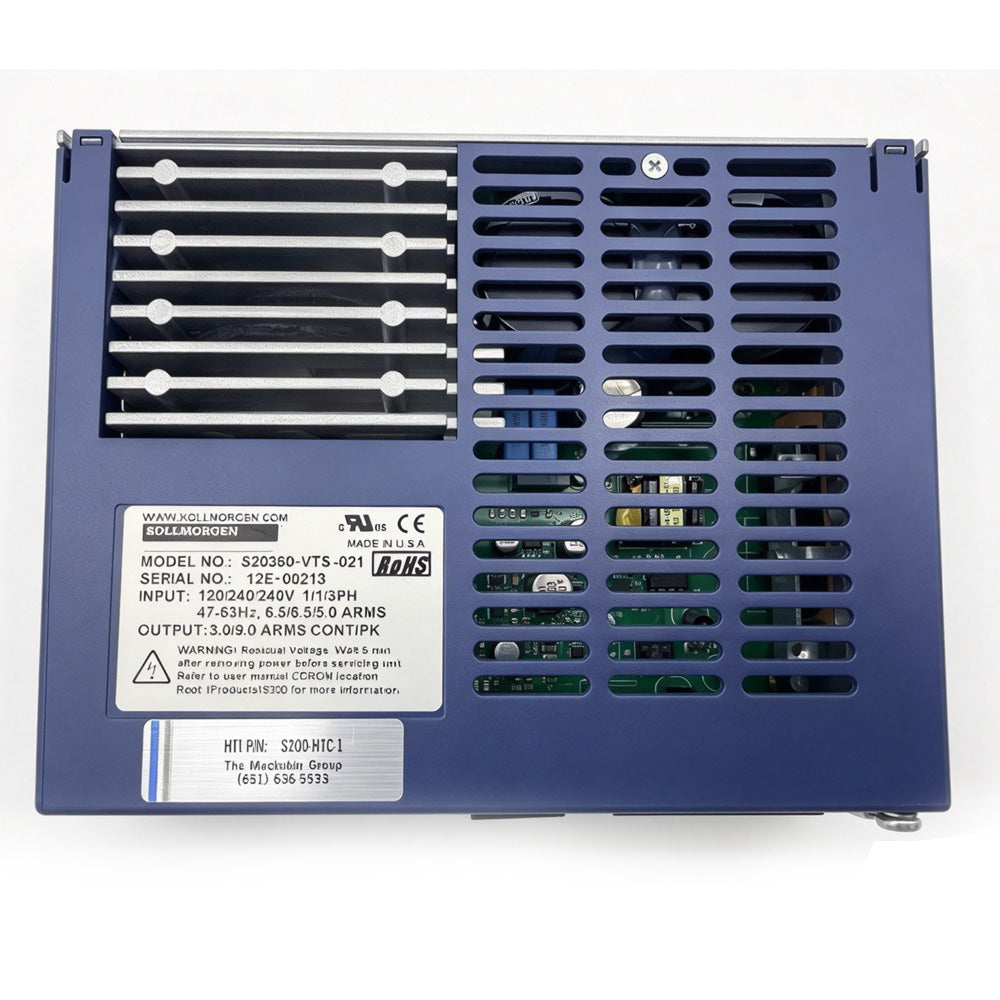

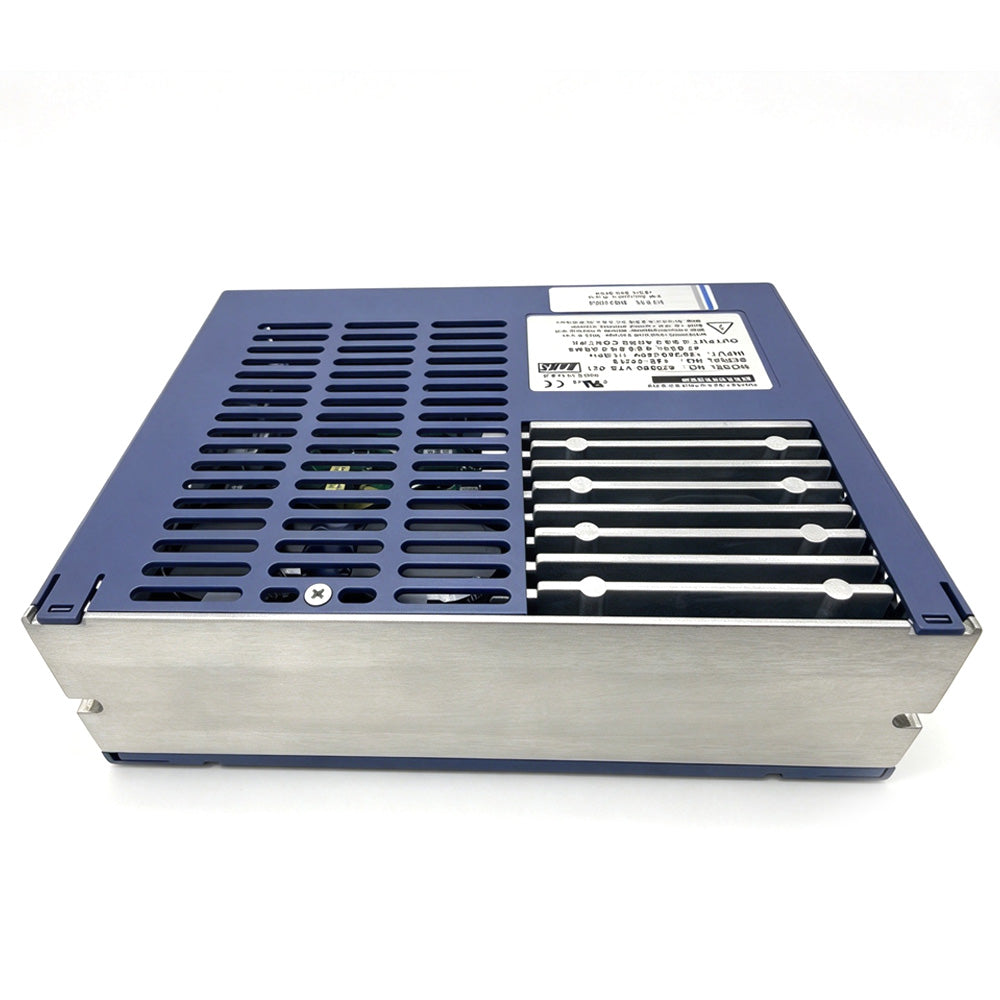

Kollmorgen S200 S20360-VTS-021 — Compact High-Performance Digital Servo Drive
The Kollmorgen S20360-VTS-021 is a compact, high-performance digital servo drive from the S200 (SERVOSTAR 200) series. It delivers 3 A continuous / 9 A peak (3 s) output with 120–240 VAC single- or three-phase input, generating approx. 1.1 kW continuous power — in a space-saving package (0.8 kg).
Designed for velocity and torque (current) control modes, the S20360-VTS provides 3 kHz current-loop bandwidth and up to 800 Hz velocity-loop bandwidth (with SFD feedback), delivering smooth, responsive performance for demanding motion applications. The -021 suffix denotes the firmware/revision level.
Your Benefits at a Glance
- 3 A continuous / 9 A peak (3 s) — high torque density in compact size
- 120–240 VAC 1/3-phase — flexible machine supply integration
- ≈1.1 kW continuous power — solid performance for small-medium axes
- Velocity & torque control — precise speed/current regulation
- 3 kHz current-loop / 800 Hz velocity-loop bandwidth — dynamic response
- Compact, lightweight (0.8 kg) — space-saving cabinet design
- Proven S200 platform — trusted worldwide in machine automation
Key Features
Compact High-Performance Design The S200 series packs high servo bandwidth into a small footprint — ideal for space-constrained machines and retrofit applications.
Velocity & Torque Control Dedicated velocity and torque (current) control modes provide precise speed or current regulation for a wide range of applications.
High Bandwidth Performance 3 kHz current-loop bandwidth and 800 Hz velocity-loop bandwidth (with SFD feedback) enable fast, stable dynamic response.
Flexible Power Supply Operates from 120–240 VAC single- or three-phase, simplifying integration across global machine platforms.
SFD Feedback Compatible Optimized for SFD (high-resolution feedback) motors — matching Kollmorgen AKM and compatible servo motors for plug-and-play performance.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Kollmorgen (formerly Danaher Motion) |
| Product Series | S200 (SERVOSTAR 200) Digital Servo Drive |
| Model | S20360-VTS-021 |
| Continuous Output Current | 3 A RMS |
| Peak Output Current | 9 A RMS (3 s) |
| Continuous Power | Approx. 1.1 kW |
| Supply Voltage | 120–240 VAC, single or 3-phase |
| Control Modes | Velocity, torque (current) |
| Current Loop Bandwidth | 3 kHz (max.) |
| Velocity Loop Bandwidth | 800 Hz (max., with SFD feedback) |
| Update Rate | 1.25 MHz |
| Feedback | SFD high-resolution (typical) |
| Weight / Dimensions | 0.8 kg / 5.1 × 17.8 × 12.7 cm |
| Status | Discontinued by manufacturer — supplied as spare part / refurbished |
Note: Exact electrical data is per the nameplate / product manual of your specific unit; please verify before ordering.
Typical Applications
- High-speed indexing and positioning systems
- Packaging, converting and printing machinery
- Small to medium servo axes in general automation
- Replacement and retrofit of S200 series drives
