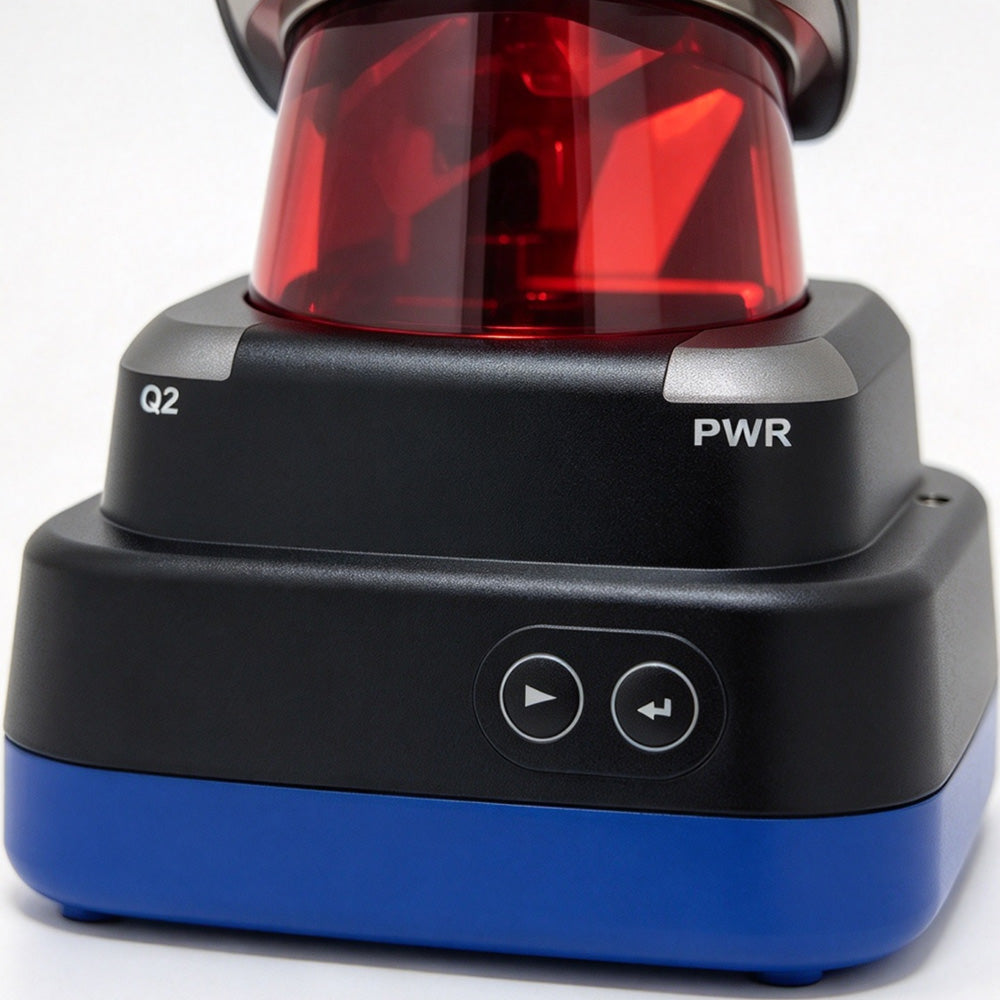

Kollmorgen NDC LS2000 (63032-01H) — 2D Laser Scanner for AGV & AMR Navigation
The Kollmorgen NDC LS2000 (part no. 63032-01H) is a high-resolution, top-precision 2D laser scanner for AGV/AMR navigation — supporting both reflector navigation and natural navigation from the proven NDC8 platform.
Equipped with Pulse Ranging Technology, the LS2000 delivers reliable, extremely precise measurements with great repeat accuracy and short response times. It accurately detects reflectors for NDC8 laser navigation (up to 100 m) and performs precise environment measurements for NDC8 Natural Navigation (0.1–30 m). With a full 360° angle of measurement and best-in-class angle accuracy of < 1 mrad, it is the navigation sensor of choice for demanding AGV applications.
Your Benefits at a Glance
- 360° angle of measurement — complete surround sensing
- Best-in-class angle accuracy < 1 mrad — highly repeatable navigation
- Reflector detection up to 100 m — works in large layouts
- Natural navigation 0.1–30 m — environment-based positioning
- NDC8 fully integrated — plug-and-play with Kollmorgen AGV systems
- Laser Class 1 (IEC 60825-1) — eye-safe operation
- Robust Ethernet communication — reliable data transfer
- IP65 protected — rugged for industrial vehicles
Key Features
One-Model Navigation Solution The LS2000 covers flat reflector, cylindrical reflector and combined reflector/natural navigation — one scanner for multiple navigation modes.
High Precision Measurement Pulse Ranging Technology with < 1 mrad angle accuracy and top-tier distance measurement provides repeatable, dependable positioning for AGV guidance.
Large-Layout Support Reflector detection up to 100 m enables fast initialization in large facilities, reducing commissioning time.
Fully Integrated with NDC8 Configured in Vehicle Application Designer and diagnosed in Vehicle Diagnostic Tool, the LS2000 works seamlessly within the complete NDC8 vehicle automation ecosystem.
Status & Diagnostics Display A 360° information display window shows status and diagnostics at a glance for faster maintenance.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Kollmorgen (NDC Autonomous Mobile Solutions) |
| Product | LS2000 2D Laser Scanner |
| Part No. | 63032-01H |
| Measurement Technology | Pulse Ranging Technology (2D) |
| Measurement Angle | 360° |
| Angle Accuracy | < 1 mrad (0.057°) |
| Distance — Reflectors | Up to 100 m |
| Distance — Environment | 0.1–10 m (10 % reflectivity); 0.1–30 m (90 % reflectivity) |
| Supply Voltage | 24 VDC nominal (10–30 VDC) |
| Power Consumption | Max 10 W (≤ 400 mA @ 24 V) |
| Laser Class | Class 1, IEC 60825-1:2007 (eye-safe) |
| Communication | Robust Ethernet (NDC8 integrated) |
| Operating Temperature | −10 to +50 °C |
| Storage Temperature | −20 to +70 °C |
| Protection Class | IP65 |
| Dimensions (W × D) | 106 mm × 117.5 mm |
| Vibration / Climatic Class | IEC 60721-3-5 Class 5M2 / 5K2 |
| Compatibility | NDC8 laser navigation & NDC8 Natural Navigation |
Note: This is the standard LS2000 (not the LS2000T freezer version). Please verify your navigation system (NDC8) and layout configuration before ordering.
Typical Applications
- AGV / AMR navigation and positioning
- Material handling and warehouse automation
- Forklift and tugger guidance systems
- Mobile robot localization (reflector & natural navigation)
- Cold-storage-free standard industrial environments
