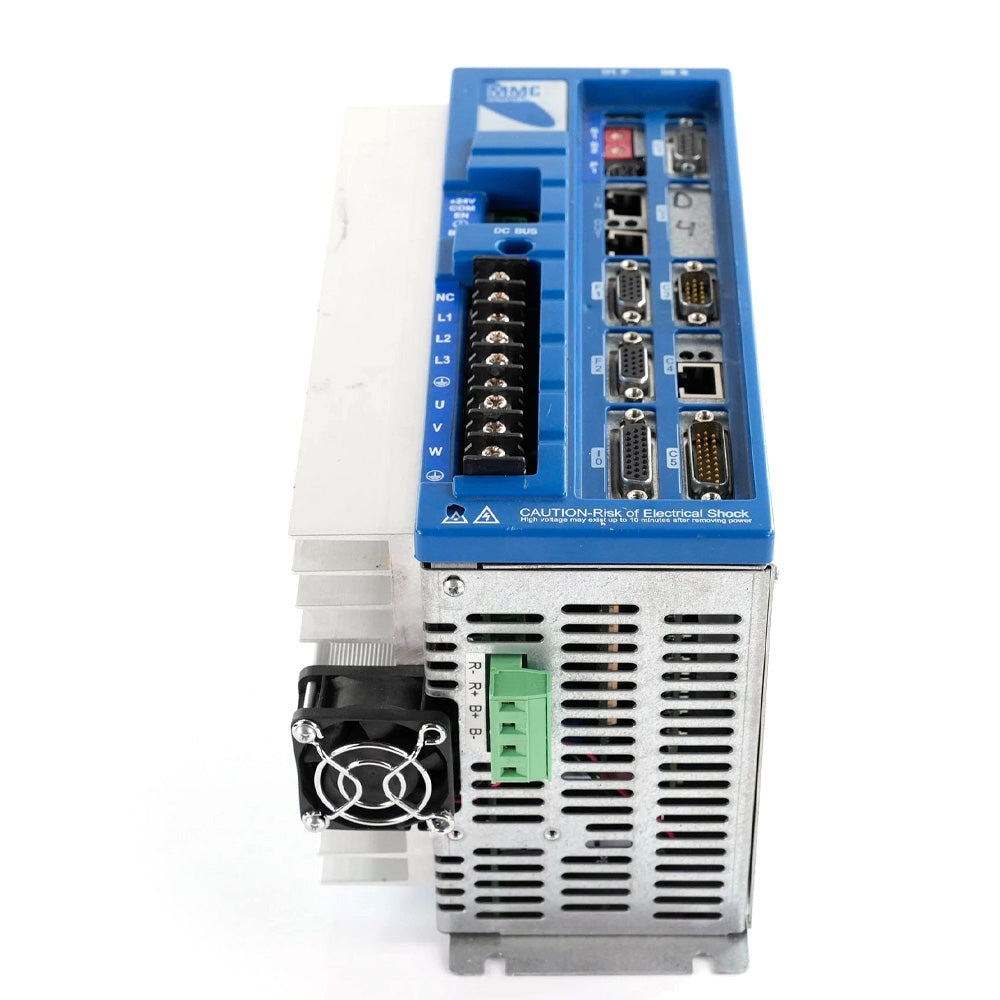

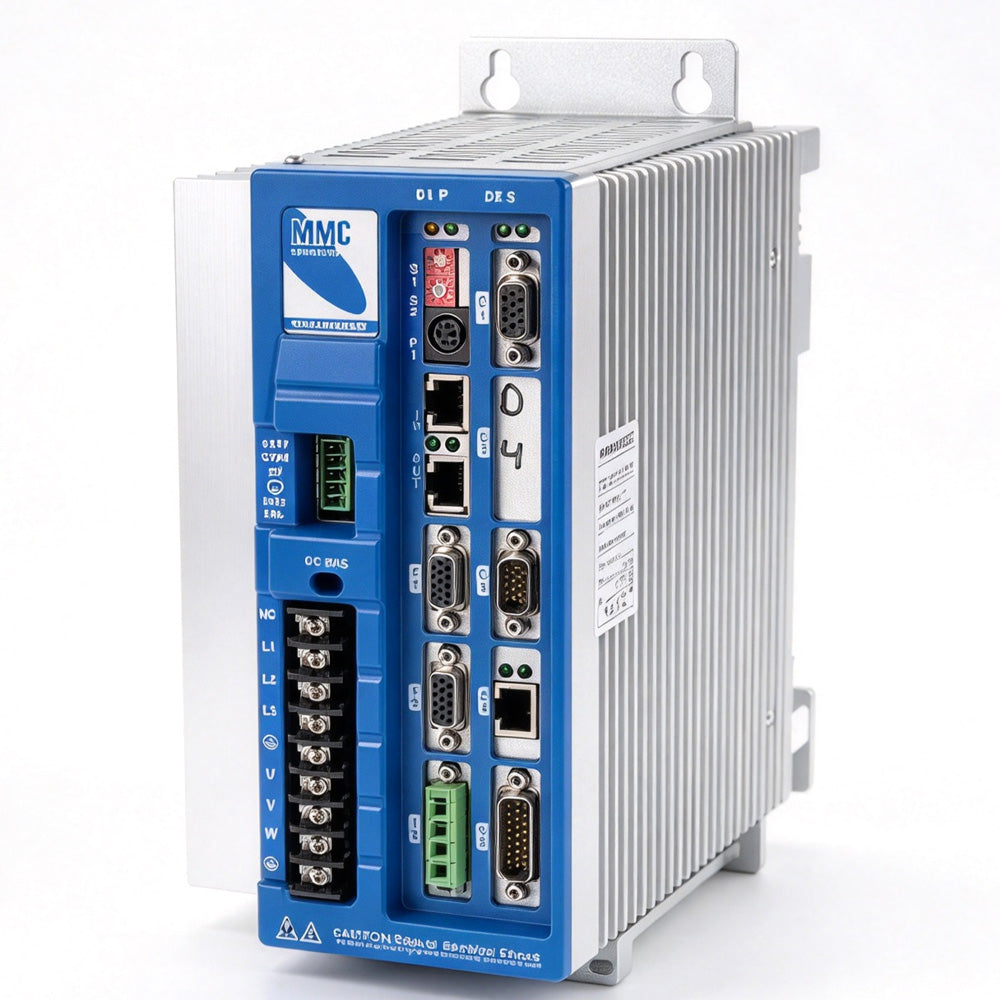

Kollmorgen MMC Smart Drive MMC-SD-3.0-230D — Digital Intelligent Servo Drive
The Kollmorgen MMC-SD-3.0-230D is a 3.0 kW digital intelligent servo drive from the renowned MMC Smart Drive series (formerly Giddings & Lewis / Danaher Motion). Operating from 100–240 VAC three-phase (230 V class) supply, it provides precise digital torque, speed and position control for brushless synchronous servo motors.
The "-D" designation indicates the drive is equipped with the drive-resident Digital MMC Control, programmable in PiCPro — enabling standalone motion control without an external controller. Feedback is supported from incremental encoder, high-resolution encoder or resolver, covering a broad range of Kollmorgen AKM and compatible servo motors.
Your Benefits at a Glance
- 3.0 kW continuous output — solid power for medium servo axes
- 100–240 VAC 3-phase (230 V class) — flexible supply compatibility
- Drive-resident Digital MMC Control (-D) — standalone PiCPro-programmable motion
- Digital torque/speed/position control — precise, low-latency motion
- Incremental / high-resolution encoder / resolver feedback — wide motor compatibility
- Space-saving MMC Smart Drive design — proven, compact package
- Flash-upgradeable firmware — easy field updates
Key Features
Proven MMC Smart Drive Platform The MMC Smart Drive family delivers 0.5 kW to 65 kW of continuous output in a compact package — a trusted platform in global machine automation.
Standalone Digital Control The -D version carries the drive-resident Digital MMC Control, programmable via PiCPro for complete motion applications without an external motion controller.
High-Performance Digital Loops Digital PI current regulator (125 µs) and digital PID velocity regulator (250 µs) with 3-phase sinusoidal space-vector modulation (SVM) provide smooth, high-bandwidth servo performance.
Flexible Feedback Supports incremental encoder, high-resolution encoder and resolver feedback — compatible with most Kollmorgen AKM and third-party brushless motors.
Built-In Convenience 8 general-purpose 24 VDC inputs, 4 general-purpose outputs, internal brake control switch, serial port for PC-based PiCPro commissioning, plus power and diagnostic LEDs.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Kollmorgen (formerly Danaher Motion / Giddings & Lewis) |
| Product Series | MMC Smart Drive (Digital Servo Amplifier) |
| Model | MMC-SD-3.0-230D |
| Continuous Output Power | 3.0 kW |
| Supply Voltage | 100–240 VAC, 3-phase (230 V class) |
| Control | Digital torque, speed, position |
| Drive-Resident Control | Digital MMC Control (-D), PiCPro programmable |
| Current Regulator | Digital PI, 125 µs update |
| Velocity Regulator | Digital PID, 250 µs update |
| Commutation | 3-phase sinusoidal, space-vector modulation (SVM) |
| Feedback | Incremental encoder, high-resolution encoder, resolver |
| I/O | 8 × 24 VDC inputs, 4 × general-purpose outputs (typical) |
| Brake Control | Internal switch for mechanical brake |
| Firmware | User-upgradeable Flash memory |
| Status | Discontinued by manufacturer — supplied as spare part / refurbished |

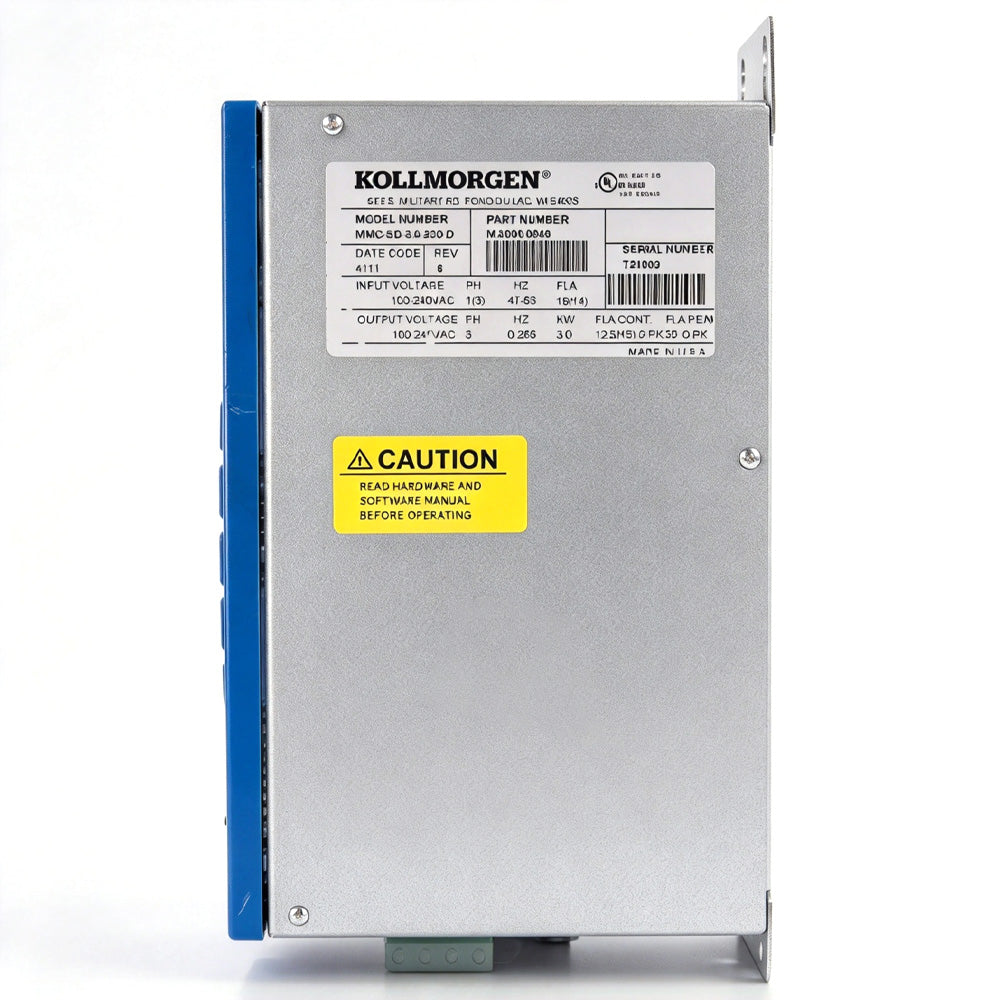

Note: Exact electrical data (continuous/peak current, I/O count) is per the nameplate / hardware manual of your specific unit; please verify before ordering.
Typical Applications
- Packaging, converting and printing machinery
- Standalone machine motion control (PiCPro)
- Material handling and general automation
- Replacement and retrofit of MMC Smart Drive systems
