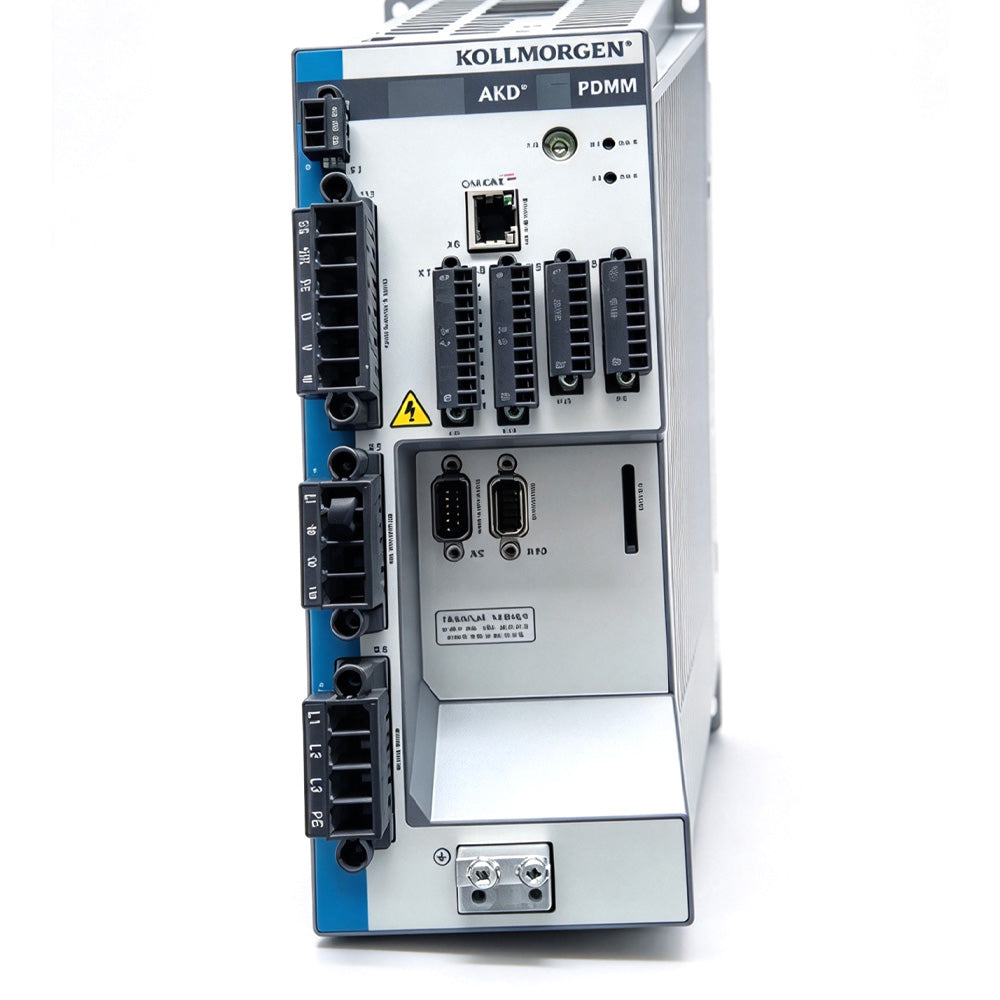

Kollmorgen AKD PDMM AKD-M01207-MCEC-I000 — Programmable Multi-Axis Servo Drive
The Kollmorgen AKD-M01207-MCEC-I000 is an AKD PDMM™ (Programmable Drive Multi-axis Master) — a single compact unit that combines one AKD servo axis (12 A continuous / 30 A peak) with a drive-resident automation controller for multi-axis motion. Rated for 240–480 VAC three-phase input, it controls the integrated axis plus up to seven or more additional AKD axes via EtherCAT.
Powered by an 800 MHz single-core processor (model code -MCEC) and programmed in KAS (Kollmorgen Automation Suite / KAS IDE), the AKD-M01207-MCEC-I000 delivers machine control, motion, I/O and HMI connectivity from one platform — reducing cabinet space, wiring and engineering time. The -I000 suffix denotes the revision level.
Your Benefits at a Glance
- 12 A continuous / 30 A peak integrated axis — powerful single-axis drive
- 240–480 VAC 3-phase — global machine platform compatibility
- Multi-axis master — controls up to 8+ AKD axes via EtherCAT
- 800 MHz drive-resident controller (-MCEC) — no separate PLC needed
- KAS programmable — one environment for motion & machine logic
- Rich on-board I/O — 13 DI / 6 DO / 1 AI / 1 AO / 1 STO input
- EtherCAT motion network — up to 4 kHz update rate
- Compact all-in-one design — saves cabinet space and wiring
Key Features
Integrated Multi-Axis Controller The PDMM combines an AKD servo axis with an automation controller in one unit — a complete multi-axis motion + machine control solution without a separate PLC.
KAS Automation Suite Programmed in KAS / KAS IDE, it supports EtherCAT masters, motion programs, I/O logic and HMI connectivity in a single, scalable development environment.
High-Performance EtherCAT EtherCAT motion network with up to 4 kHz update rate provides synchronized, high-performance multi-axis control.
Flexible Connectivity Includes 100BaseT Ethernet (UDP, HTTP, Modbus TCP, Ethernet/IP, PROFINET) plus programmable analog/digital I/O and encoder-emulation position output.
Built-In Safety STO input is included; drive supports Safe Torque Off per SIL 2 / PLd for simplified machine safety.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Kollmorgen |
| Product | AKD PDMM™ (Programmable Drive Multi-axis Master) |
| Model | AKD-M01207-MCEC-I000 |
| Continuous / Peak Current | 12 A RMS / 30 A RMS |
| Supply Voltage | 240–480 VAC, 3-phase |
| Controller | 800 MHz single-core (model code MCEC) |
| Motion Network | EtherCAT (up to 4 kHz update rate) |
| Network Protocols | 100BaseT: UDP, HTTP, Modbus TCP, Ethernet/IP, PROFINET |
| I/O | 13 digital inputs, 6 digital outputs, 1 analog in, 1 analog out, 1 Enable, 1 STO input |
| Multi-Axis | Controls integrated axis + up to 7+ AKD slaves (EtherCAT) |
| Software | KAS / KAS IDE (licensed) |
| Safety | STO (SIL 2 / PLd) |
| Dimensions (H × W × D) | 256 mm × 99 mm × 185 mm |
| Status | Discontinued by manufacturer — supplied as spare part / refurbished |

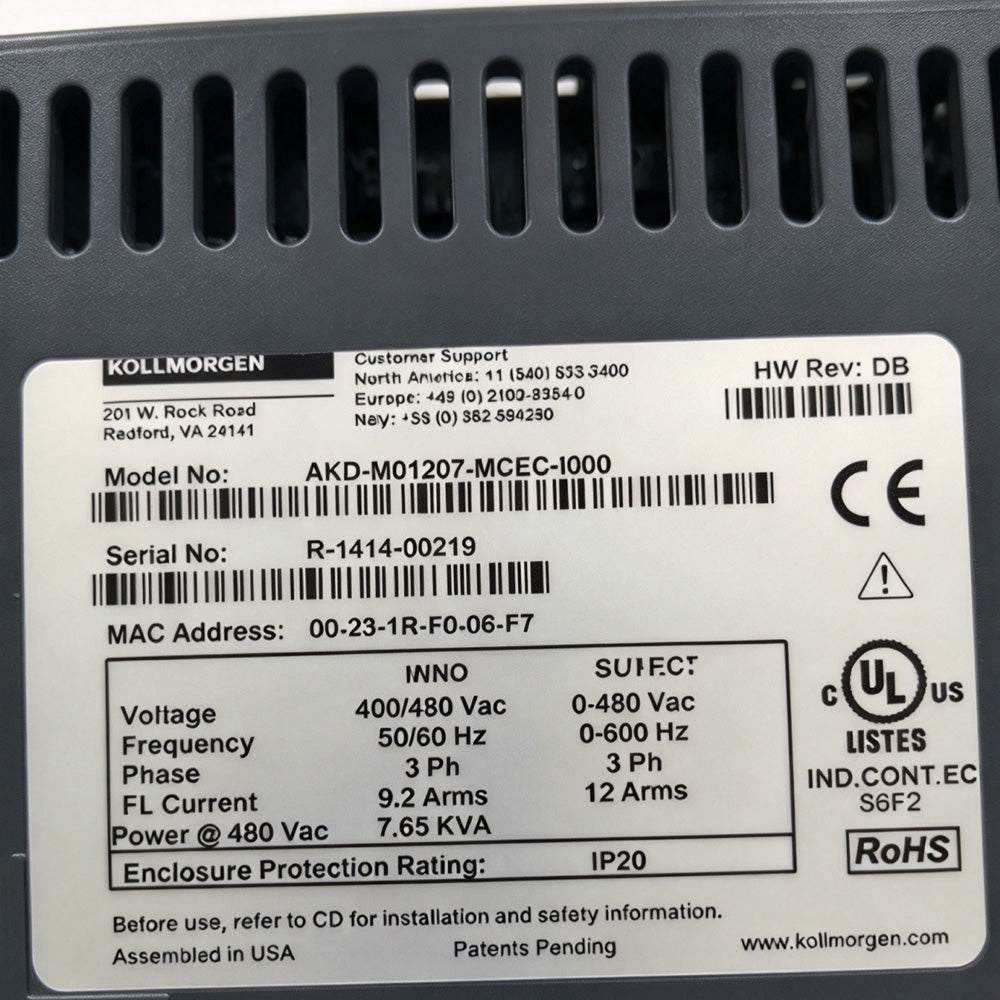

Note: Exact electrical data and firmware revision are per the nameplate / KAS documentation of your specific unit; KAS IDE is a licensed product. Please verify before ordering.
Typical Applications
- Multi-axis machine automation (packaging, converting, printing)
- Robotics and pick-and-place systems
- Motion + machine-logic integration without separate PLC
- Replacement and retrofit of AKD PDMM / KAS-based machines
