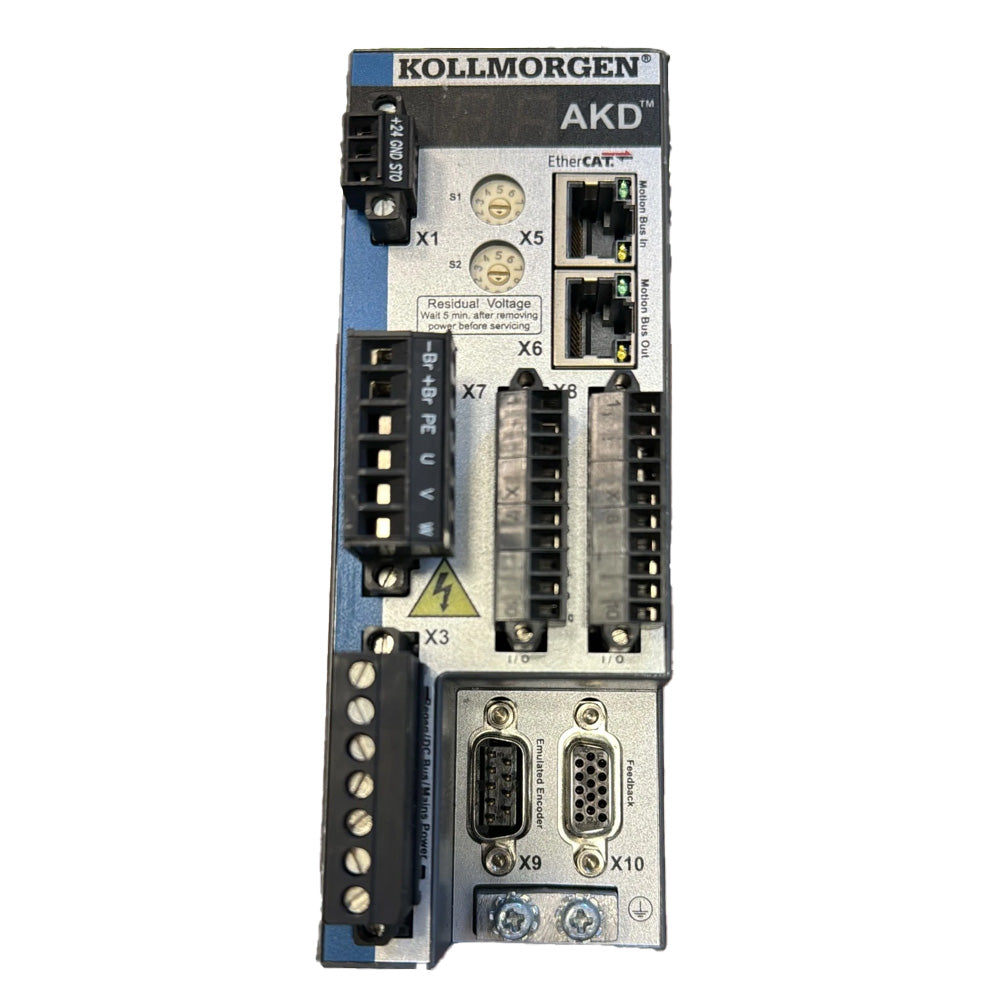

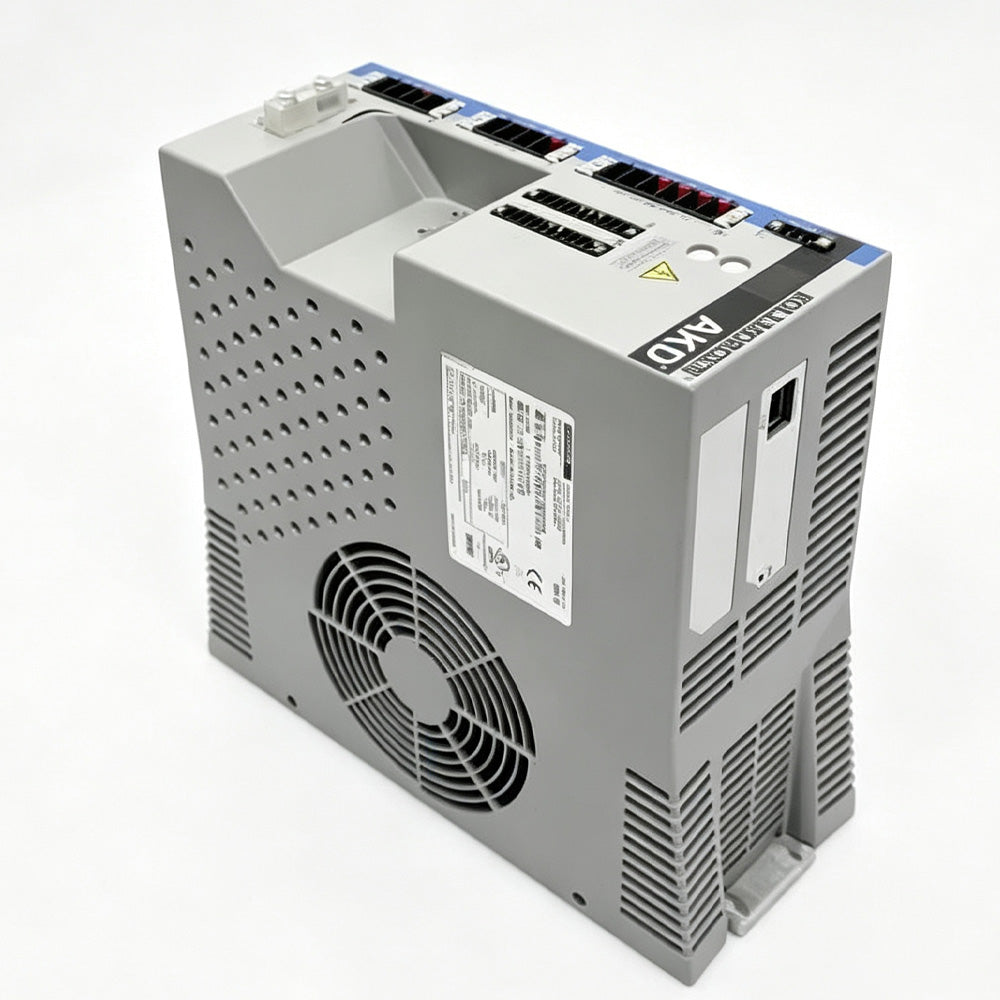

Kollmorgen AKD-P02406-NBAN-0000 — AKD Series Digital Servo Drive

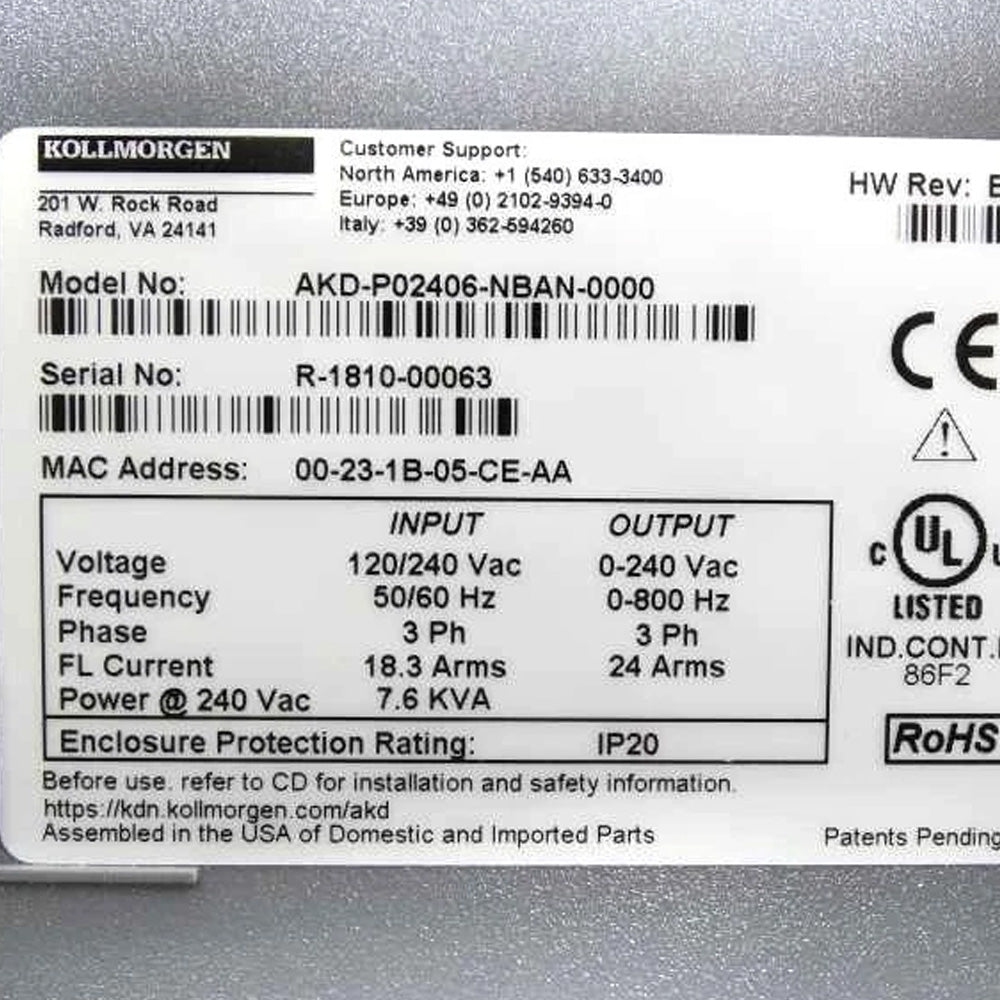

The Kollmorgen AKD-P02406-NBAN-0000 is a compact, high-performance digital servo drive from the AKD series, rated 24 A continuous (48 A peak, 5 s) at 120/240 VAC, 1-phase or 3-phase (7.6 kVA). Built as a position indexer, it delivers precise, ultra-low-latency motion control for a wide range of Kollmorgen servo motors — combining high power density, easy commissioning and integrated safety in one compact unit.

The model code breaks down as: AKD-P (Position Indexer) · 024 (24 A) · 06 (120/240 VAC, 1Ø/3Ø) · -N (standard feedback config) · -B (24 V holding-brake support) · -A (analog ±10V command) · -N (no extension) · -0000 (standard).

Your Benefits at a Glance

• 24 A continuous / 48 A peak — high power output for demanding servo axes
• 120/240 VAC, 1-phase or 3-phase — flexible mains connection, global suitability
• Analog ±10V command interface — simple integration with legacy and simple controllers
• Built-in STO (SIL 2 / PLd) — machine safety function included as standard
• One-command auto-tuning — fast, easy setup with WorkBench software
• Universal feedback support — SFD, EnDat, BiSS, Hiperface, resolver, incremental encoders
• Integrated EMC filter & internal regen resistor — reduced external components
• Position indexer functionality — local position control without a host controller
• Ultra-fast current loop (670 ns) — high-dynamics, low-latency control

Key Features

Position Indexer The AKD-P variant works as a position indexer, executing move profiles locally via programmable digital I/O — ideal for simple point-to-point applications without a separate motion controller.

Flexible Feedback Supports SFD, EnDat, BiSS, Hiperface, resolver and incremental encoder feedback, covering the full range of Kollmorgen AKM and third-party motors.

Fast Commissioning Auto-tuning with a single parameter set plus the graphical WorkBench setup software makes configuration quick and straightforward.

Integrated Safety Built-in Safe Torque Off (STO) per SIL 2 / PLd, with foldback over-temperature protection, controlled stop on disable, and programmable I/O for flexible machine integration.

Technical Specifications

表格

Note: Exact electrical data is per the nameplate / manual of your specific unit; please verify before ordering.

Typical Applications

• Point-to-point positioning (position indexer) without host controller
• Packaging, printing and converting machinery
• Material handling and general machine automation
• Robotics and assembly systems
• Retrofit and replacement of AKD/S700/SERVOSTAR series drives
