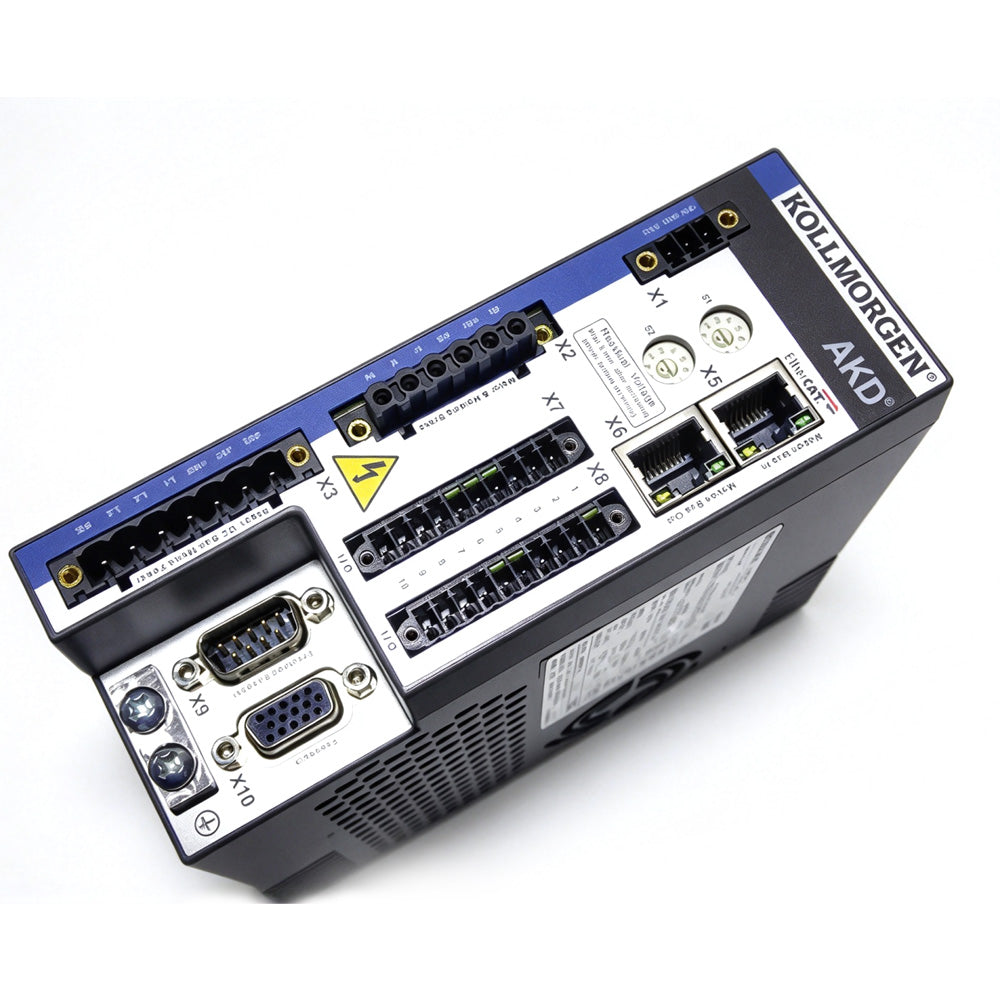

Kollmorgen AKD-P00306-NCEC-0091 — AKD-P Position Indexer Servo Drive
The Kollmorgen AKD-P00306-NCEC-0091 is a Position Indexer servo drive from the AKD series, rated 3 A continuous current with 120/240 VAC single/three-phase input. It provides precise digital position, velocity and torque control for Kollmorgen AKM and other feedback-compatible brushless servo motors.
Equipped with EtherCAT communication (per the -NCEC option code), the drive integrates seamlessly into modern machine networks. It features built-in Safe Torque Off (STO) per SIL 2 / PLd, wizard-based auto-tuning, and support for SFD, EnDat, BiSS, Hiperface, resolver and incremental feedback — all configured easily through Kollmorgen's WorkBench software. The -0091 suffix denotes the revision/firmware level.
Your Benefits at a Glance
- 3 A continuous, 120/240 VAC 1/3-phase — compact power for small to mid axes
- Position Indexer functionality — standalone positioning without full motion controller
- EtherCAT connectivity — high-speed machine network integration
- Built-in STO (SIL 2 / PLd) — safety function included
- Wizard-based auto-tuning — fast, single-parameter setup
- Wide feedback support — SFD, EnDat, BiSS, Hiperface, resolver, incremental
- WorkBench software — intuitive commissioning and diagnostics
Key Features
Position Indexer Mode The AKD-P operates as a standalone Position Indexer, executing programmed positioning moves — ideal for simple indexing applications without a dedicated motion controller.
EtherCAT Communication The -NCEC option provides EtherCAT fieldbus connectivity for high-speed, synchronized multi-axis control.
Integrated Safety Safe Torque Off (STO) per IEC 61800-5-2, SIL 2 / PLd is built in, simplifying machine safety design and reducing external components.
Fast, Easy Commissioning Wizard-based auto-tuning and single-parameter setup deliver optimized performance in minutes, configured via the free WorkBench tool.
Broad Motor Feedback Support Compatible with SFD, EnDat, BiSS, Hiperface, resolver and incremental encoders — matching most Kollmorgen and third-party servo motors.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Kollmorgen |
| Product Series | AKD (AKD-P Position Indexer) |
| Model | AKD-P00306-NCEC-0091 |
| Continuous Current | 3 A RMS |
| Supply Voltage | 120/240 VAC, single / three phase |
| Extension | None (-N) |
| Communication | EtherCAT |
| Safety | STO, SIL 2 / PLd (built-in) |
| Feedback Support | SFD, EnDat, BiSS, Hiperface, resolver, incremental |
| Control | Digital position, velocity, torque |
| Commissioning | WorkBench (wizard-based auto-tuning) |
| Revision | -0091 |
| Status | Discontinued by manufacturer — supplied as spare part / refurbished |

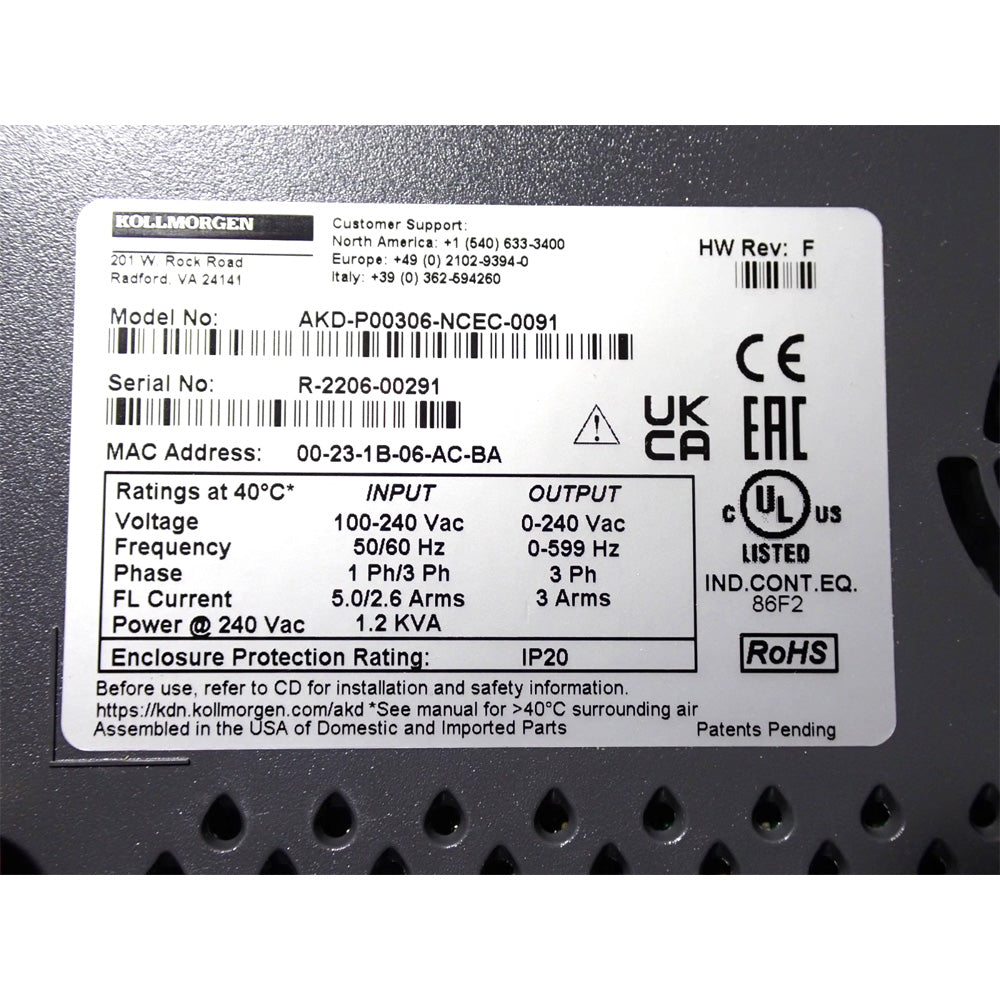

Note: Exact electrical data (peak current, input frequency, encoder compatibility) is per the AKD installation manual / nameplate of your specific unit; please verify before ordering.
Typical Applications
- Indexing and positioning stations
- Packaging, converting and printing machinery
- Material handling and general automation
- Replacement and retrofit of AKD series drives
