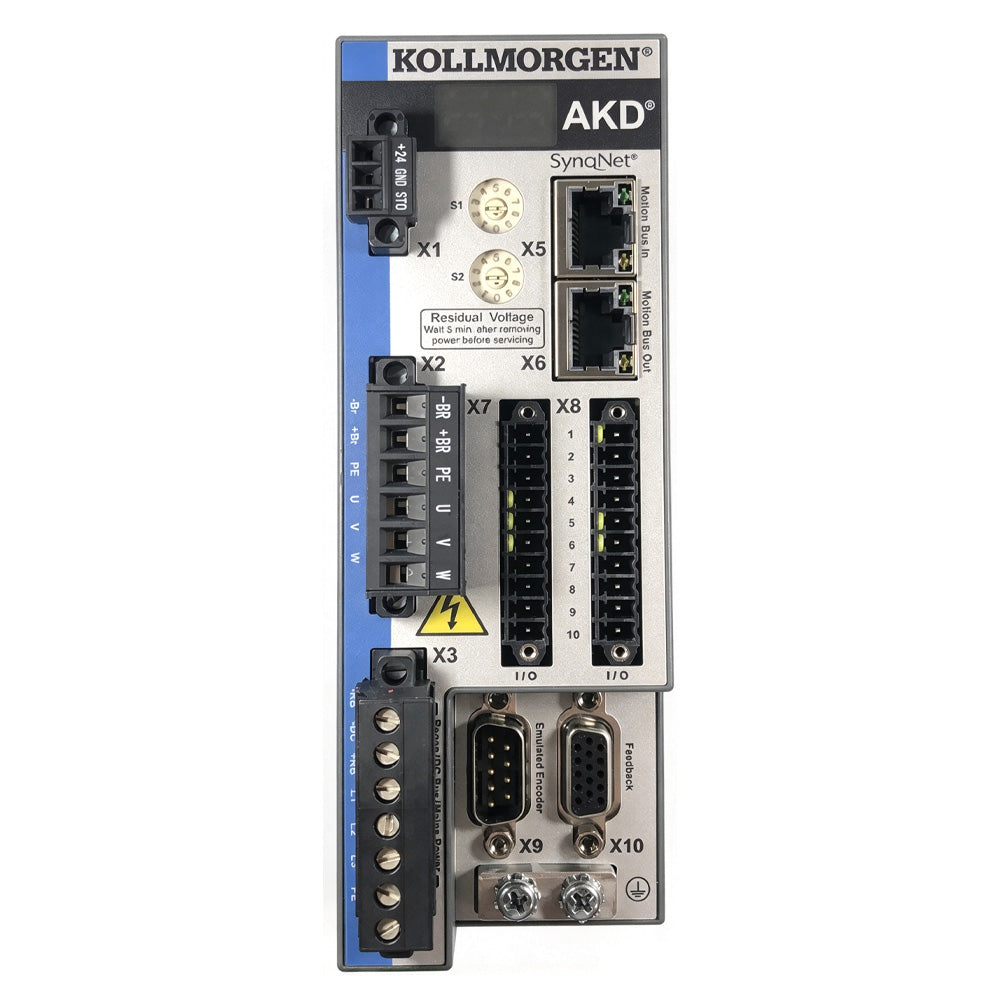

Kollmorgen AKD-B00606-NBSQ-0000 belongs to AKD-B base series digital servo drive. AKD-B is the economical base version of AKD family, compact cabinet mounting design, excellent motion control performance. This model provides 6A continuous output and 18A peak current, compatible with Kollmorgen synchronous servo motors. It can be configured and diagnosed via Kollmorgen WorkBench software, suitable for standard single-axis motion control applications.

Key Features

• AKD-B base economical single axis servo drive
• Continuous current: 6A, Peak current:18A
• Input Voltage:120/240V AC, single/three phase
• Support position, velocity and torque closed-loop control
• Multi feedback support: SFD, EnDat, BiSS, HIPERFACE, resolver, incremental encoder
• Built-in overvoltage, undervoltage, overload, short-circuit & overheat protection
• Compact size, simple wiring, easy installation in control cabinet
• Parameter setup and fault diagnosis by Kollmorgen WorkBench software
• Optional STO Safe Torque Off safety function

Applications

Packaging machinery, textile equipment, printing machines, automated assembly equipment, material handling, small CNC equipment and other standard precision single-axis motion control machines.

Specifications

Brand: Kollmorgen Model: AKD-B00606-NBSQ-0000 Series: AKD-B Type: Single Axis Base Digital Servo Drive Continuous Current: 6A Peak Current:18A Input Voltage:120/240V AC, single/three phase Control Mode: Position / Velocity / Torque Supported Feedback: SFD, EnDat, BiSS, HIPERFACE, resolver, incremental encoder Debug Software: Kollmorgen WorkBench
