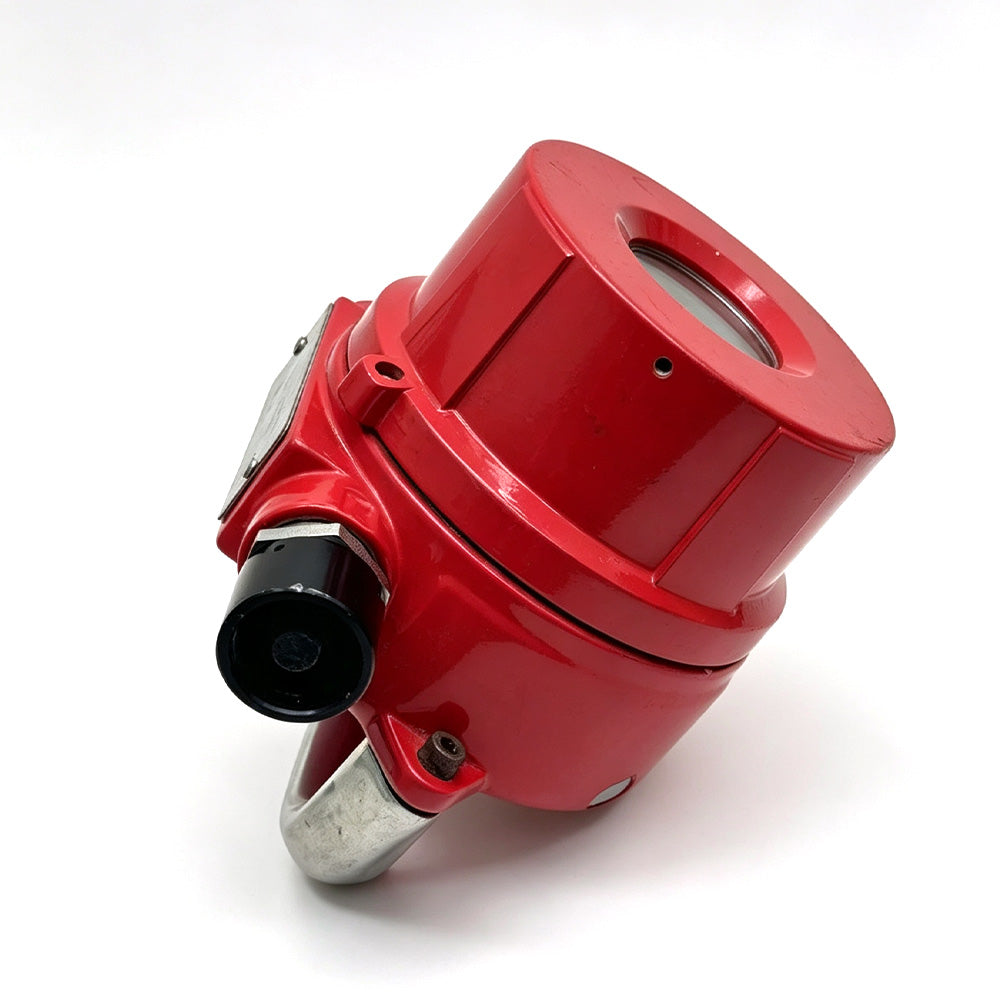

Honeywell Analytics TL-2055 — Explosion-Proof WideBand IR Test Lamp
The Honeywell Analytics TL-2055 is a portable, explosion-proof infrared test lamp (flame simulator) designed to functionally test Honeywell Fire Sentry flame detectors — FS18X, FS24X (IR3) and FS20X (UV / IR / UV-IR) — externally in hazardous locations, without opening the detector or exposing the site to a real flame.
Built into a rugged, copper-free aluminum housing with an explosion-proof design, the TL-2055 emits a wideband IR signal that simulates the spectral signature of a real fire, letting one person verify detector sensitivity, optical integrity, and alarm response in seconds. It is the field service professional's standard tool for planned maintenance and functional testing of Fire Sentry systems in classified areas.
Your Benefits at a Glance
- Explosion-proof & hazardous-location rated — Class I, Div. 1 & 2, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; Class III; NEMA 3, 4
- Safe functional testing — verifies Fire Sentry FS18X / FS24X / FS20X detectors in the field with no open flame
- Portable & self-contained — internal rechargeable 12 VDC battery pack; universal 110/220 VAC wall charger included
- Rugged construction — copper-free aluminum (≤ 0.4 % Cu) with powder-coated finish, tamper-resistant
- Wideband IR output — simulates fire signature for accurate detector response testing
- Replaceable service parts — gold-plated reflector lamp and NiMH battery pack are user-replaceable plug-in parts
- Wide temperature range — −30…+85 °C operating and storage
Key Features
Functional Field Testing in Hazardous Areas The TL-2055 radiates a wideband infrared signal matching the detection band of Fire Sentry IR and IR3 detectors, and a UV signature for UV / UV-IR models. One operator can sweep the detector's field of view, confirm alarm response and sensitivity, and record the test — no ladders full of test gear, no hot work permits, no real flames.
Explosion-Proof Design The housing is machined from copper-free aluminum (less than 0.4 % copper) with a powder-coated finish, designed and certified for use in Class I, Div. 1 & 2, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; and Class III locations per NEMA 3 and 4. Suitable for offshore, petrochemical, oil & gas, and process plant environments.
Rechargeable & Maintenance-Friendly Power is supplied by an internal 12 VDC nickel-metal hydride battery pack, recharged through the supplied AC/DC wall converter (110/220 VAC). The IR reflector lamp and battery are plug-in user-replaceable parts, keeping the tool in service with minimal downtime.
Optional Field-of-View Control A cylindrical tube can be fitted over the front lid to reduce the tester's radiated field of view, allowing selective testing of individual detectors in dense arrays.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Honeywell Analytics (Honeywell) |
| Model | TL-2055 (HAZLOC version; safe-area version: TL-1055) |
| Product Type | Explosion-proof IR test lamp / flame simulator |
| Application | Functional testing of FS18X, FS24X (IR3), FS20X (UV / IR / UV-IR) flame detectors |
| Power | Internal 12 VDC NiMH battery pack; rechargeable via AC/DC wall converter (110/220 VAC) |
| Housing | Copper-free aluminum (< 0.4 % Cu), powder-coated, tamper-resistant |
| Hazardous Location Rating | Class I, Div. 1 & 2, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; Class III; NEMA 3, 4 |
| Temperature Range | −30…+85 °C (−22…+185 °F), operating and storage |
| Dimensions (Ø × H) | 4.81 in × 4.40 in (approx. 122 mm × 112 mm) |
| Weight | approx. 4 lb (approx. 1.8 kg) |
| Replaceable Parts | IR gold-plated reflector lamp; NiMH battery pack (user replaceable) |
| Accessories | Universal wall charger included; optional FOV-reduction tube |
Typical Applications
- Planned / periodic functional testing of Fire Sentry flame detectors in hazardous areas
- Offshore platforms, oil & gas facilities, petrochemical and chemical plants
- Refineries, LNG terminals, power plants and process industries
- Detector maintenance, commissioning and troubleshooting
- Safety system inspection and audit programs
