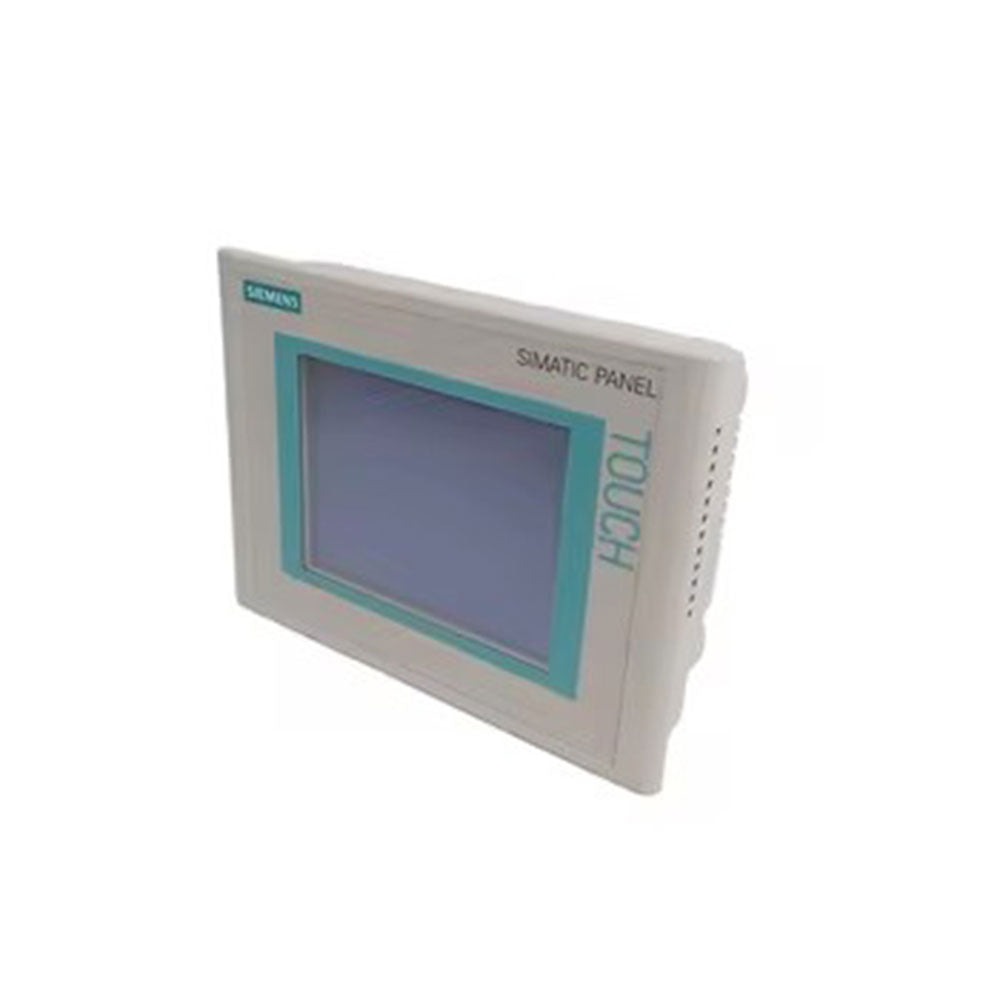

The Siemens 6AV6640-0CA11-0AX1 is a 5.7-inch SIMATIC HMI panel that enables intuitive touch operation. With a resolution of 320 x 240 pixels and a display type of STN featuring four blue levels, this device allows for clear visualization of data and controls.
Technical specifications for 6AV6640-0CA11-0AX1
| Manufacturer | Siemens |
|---|---|
| Product Line | SIMATIC |
| Part Number | 6AV6640-0CA11-0AX1 |
| EAN | 4025515076469 |
| Weight | 3.00 lbs (1.36 kg) |
| Description of module | SIMATIC HMI Panel |
| Rated Current Consumption | 240 mA |
| Operation | Touch |
| Screen Size | 5.7" |
| Display Type | STN, 4 Blue Levels |
| Resolution | 320 x 240 px |
| No. of function keys | 0 |
| Alphanumeric keyboard | Yes (onscreen) |
| Rated Voltage Supply | 24 VDC |
Description
The 6AV6640-0CA11-0AX1 model from Siemens represents a touch-operated HMI panel within the SIMATIC product line. This interface is built for simplicity, allowing users to interact with machinery through a user-friendly touch system. It boasts a screen size of 5.7 inches, making it suitable for various control applications, while its resolution of 320 x 240 pixels provides adequate clarity for most visual tasks.
This unit employs an STN display configured with four blue levels, ensuring that it offers good visibility under different lighting conditions. It has an alphanumeric keyboard available onscreen for input, eliminating the need for separate physical keys.
Weighing in at 0.75 kg (1.65 lbs), the panel is designed for easy installation and handling. It requires a power supply of 24 VDC and has a rated current consumption of 240 mA, making it efficient and manageable for most setups. The absence of physical function keys gives it a sleek profile while enhancing its touch-based operability.
