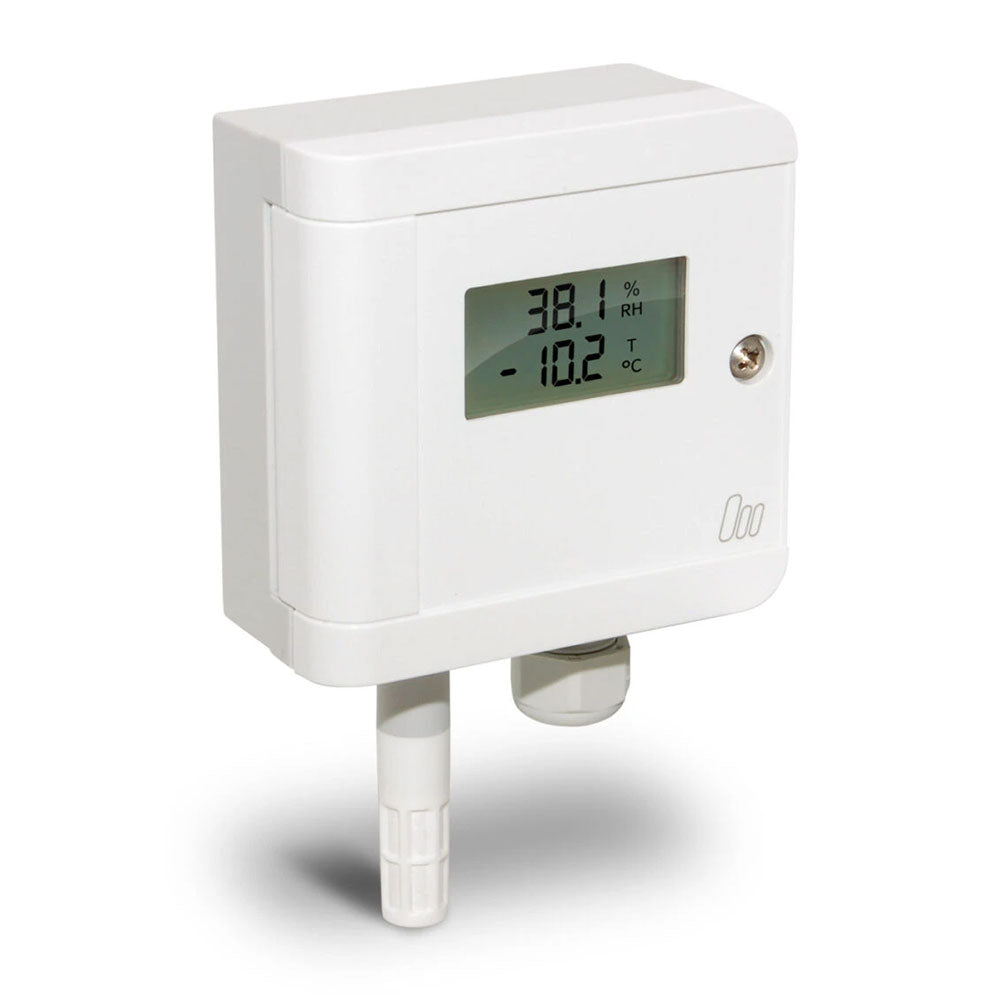

Galltec DWK300F137A08UD1 Wall Mount 4-20mA Humidity Transmitter with Display & USB
The Galltec DWK300F137A08UD1 is a high-precision industrial wall-mounted humidity transmitter featuring 4-20mA analog output, ZE08 membrane filter with IP30 protection, USB interface for easy on-site configuration, and integrated LCD display for real-time reading.
The core of the D Series is the digital calibrated dModul, which processes relative humidity and temperature measurement values individually. The values are compared to calibration data stored in the dModul and transmitted digitally to the transmitter electronics, where they are converted to standardized analog signals .

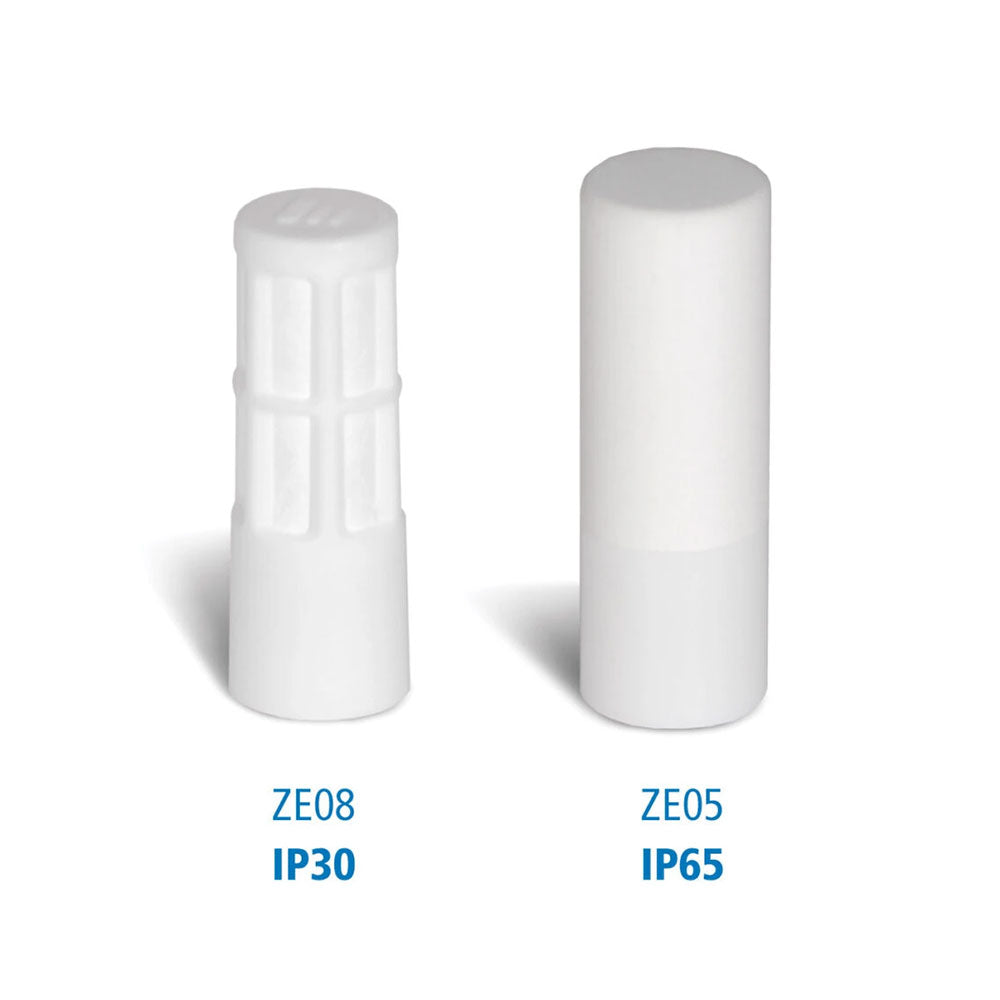

The industrial wall-mount version (DW series) is designed for operating temperatures from -30°C to +80°C. The housing meets IP65 protection class, while the measuring head with ZE08 membrane filter provides IP30 protection for indoor applications .
The USB interface allows for easy configuration and on-site calibration using a standard micro USB cable. The integrated display provides real-time humidity and temperature readings, making it ideal for applications where local monitoring is required.
Key Specifications:
· Output Signal: 4-20mA (2x)
· Filter Type: ZE08 Membrane Filter
· Protection Rating: IP30 (measuring head) / IP65 (housing)
· Mounting Type: Wall Mount
· Interface: USB Configurable
· Display: With Display
· Probe Size: Ø12 x 50mm
· Operating Temperature: -30°C to +80°C
· Supply Voltage: 10-30V DC
· Humidity Range: 0-100% RH
Applications:
· HVAC Systems
· Industrial Process Control
· Building Automation
· Cleanrooms and Laboratories
· Data Centers and Server Rooms
· Food Storage Facilities
100% Original Galltec. 4-20mA Output. USB Configurable. With Display. Ready to ship.
