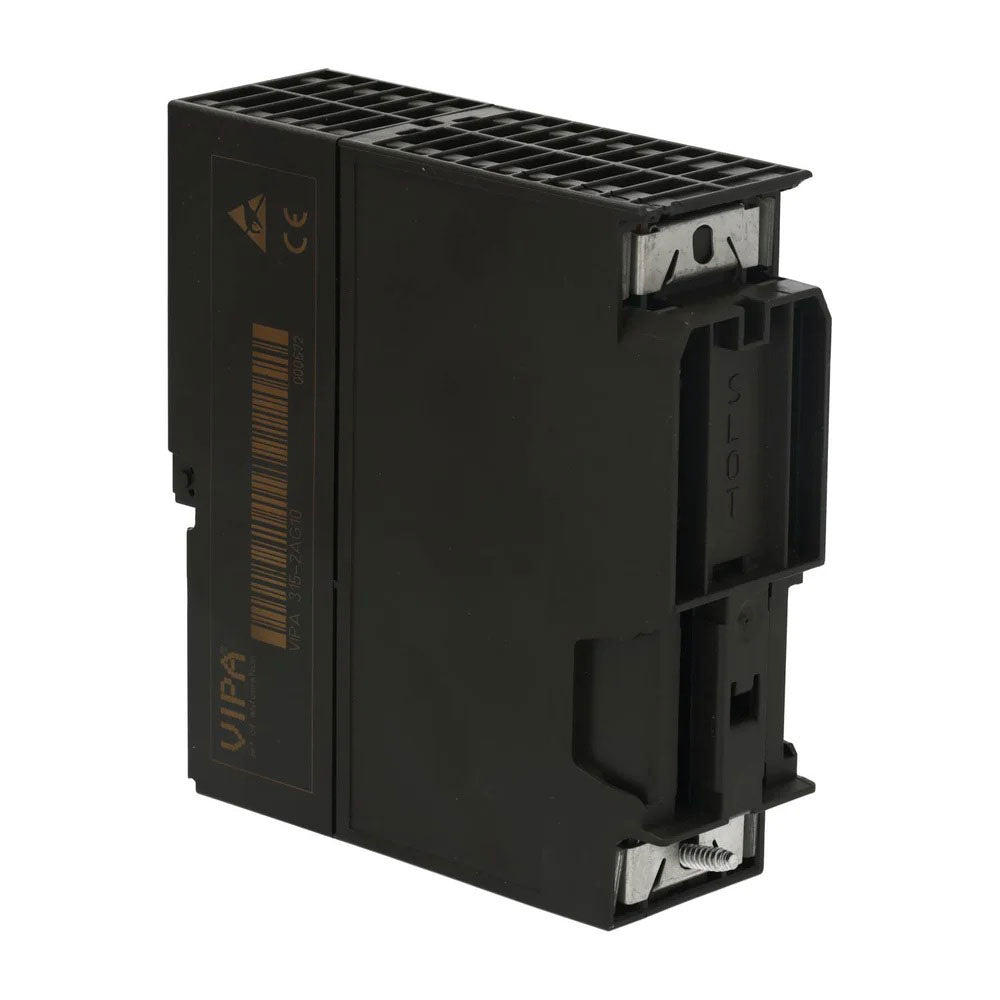

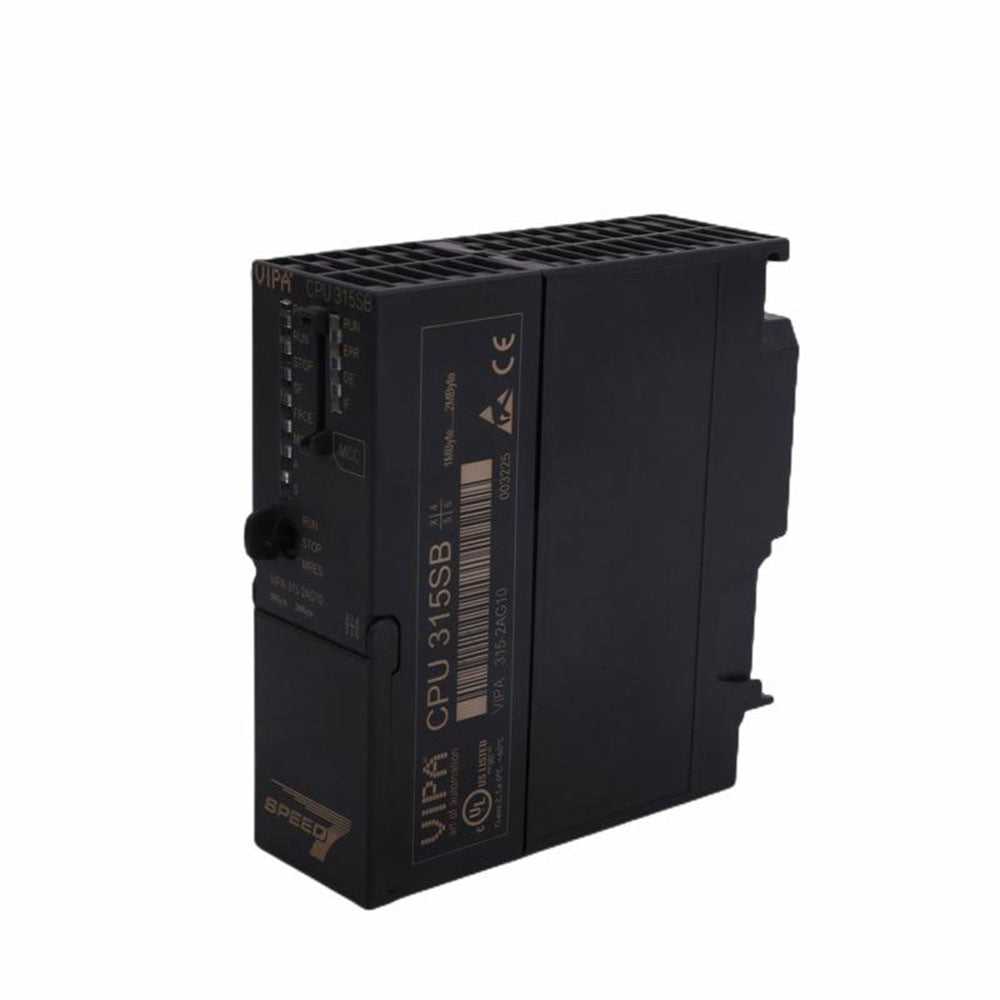

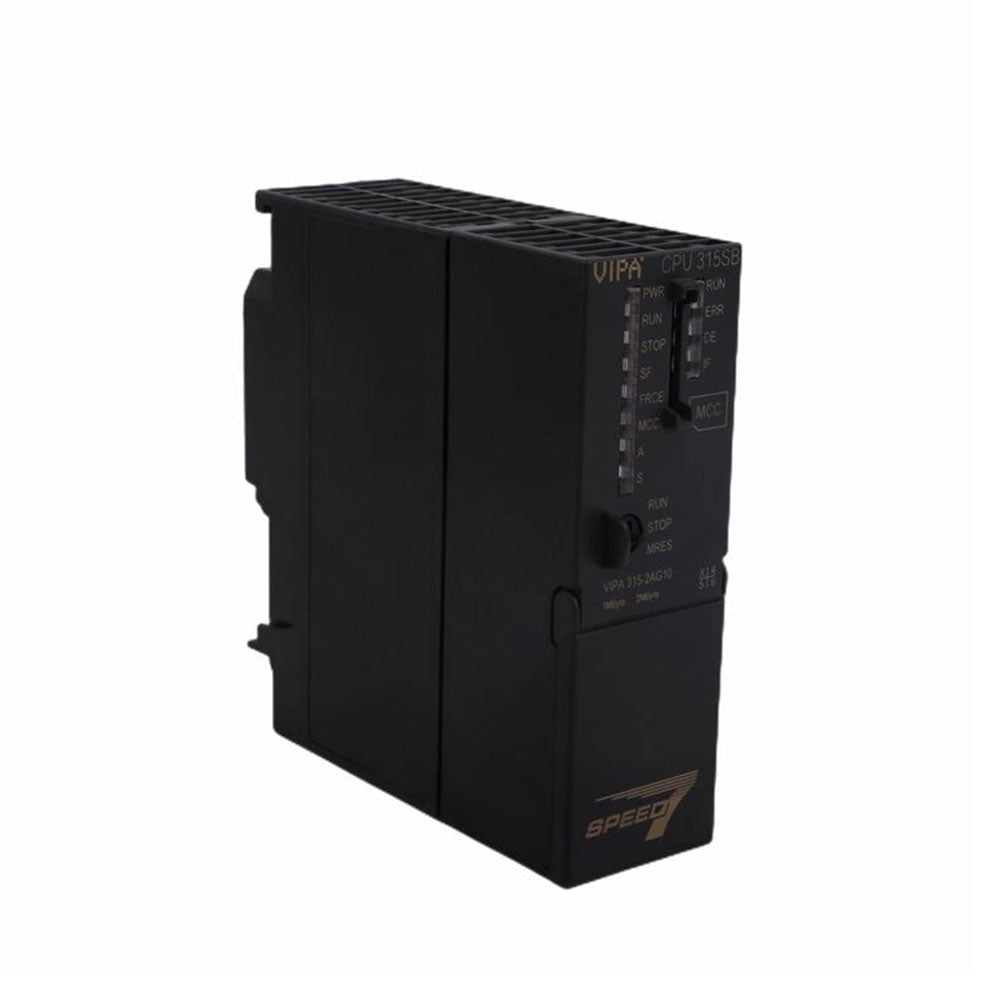

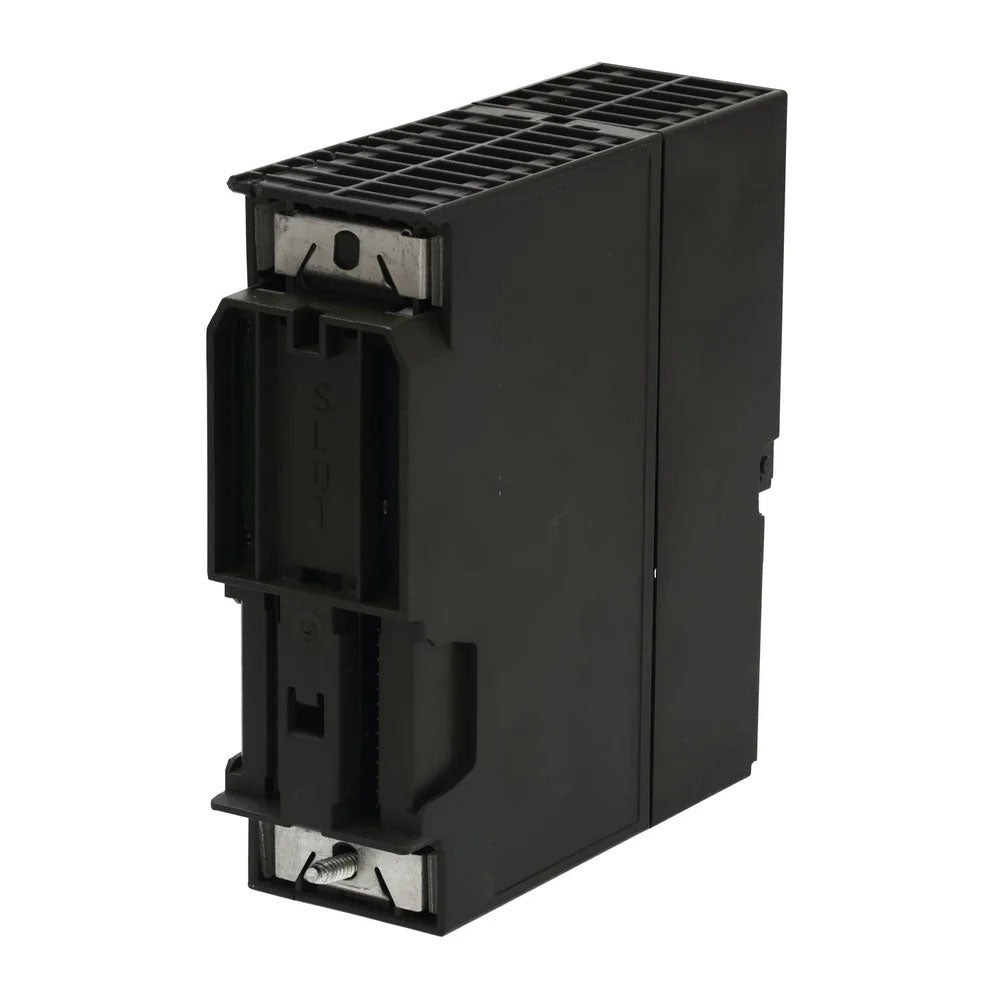

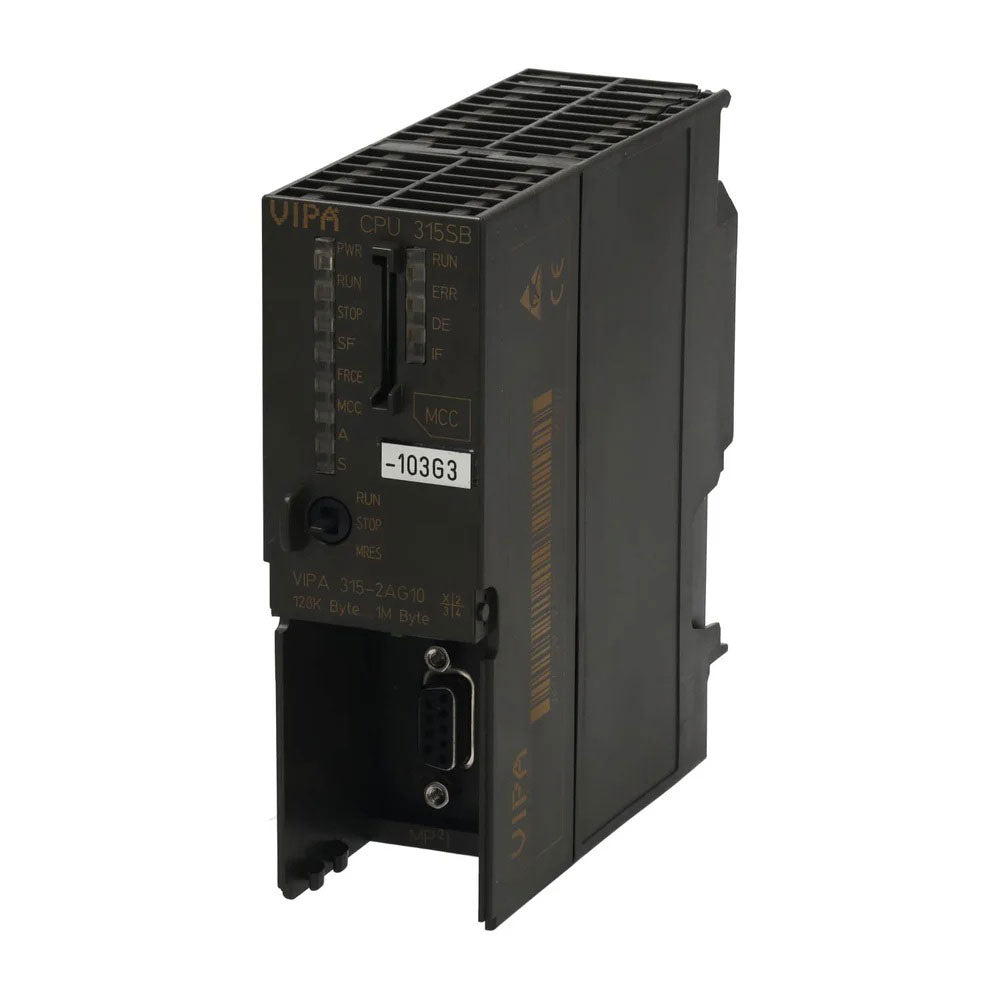

VIPA 315-2AG10 CPU 315SB Central Processing Unit
The VIPA 315-2AG10 is a high-performance central processing unit based on SPEED7 technology, belonging to the VIPA System 300S series. Designed for industrial automation and control systems, this CPU features the advanced SPEED7 processor chip, which is the fastest PLC processor for handling Siemens STEP 7 programming language, with instruction execution speed 4-8 times faster than traditional solutions. Suitable for high-performance control tasks in complex industrial environments, widely used in industrial automation, process control, building automation, and other fields.
Key Specifications:
· Brand: VIPA (Germany)
· Model: 315-2AG10 / CPU 315SB
· Core Technology: SPEED7 technology
· Working Memory: 1MByte (expandable to 2MByte)
· Profibus-DP Master Speed: 12Mbit/s, max. 125 slave stations
· Communication Interfaces: Profibus DP master, MPI, Ethernet PG/OP, RS485
· Supply Voltage: 24V DC
· Operating Temperature: -25°C to +60°C
· Protection Rating: IP20
· Dimensions: 40 x 125 x 120 mm
· Weight: 290g
Applications:
· Industrial Automation Control Systems
· Process Control and Monitoring
· Complex Data Processing Tasks
· Building Automation
· Machine Control
· Electronics, Metallurgy, Chemical, Power Plants, Steel Mills, Rubber, Cement, Mechanical Equipment, Construction, and other industries
Compatibility: This CPU is instruction set compatible with Siemens STEP 7 and supports all standard programming languages including LAD, FBD, STL, SCL, CFC, and Graph7. It can be seamlessly integrated into existing S7-300 systems as a high-performance alternative.
