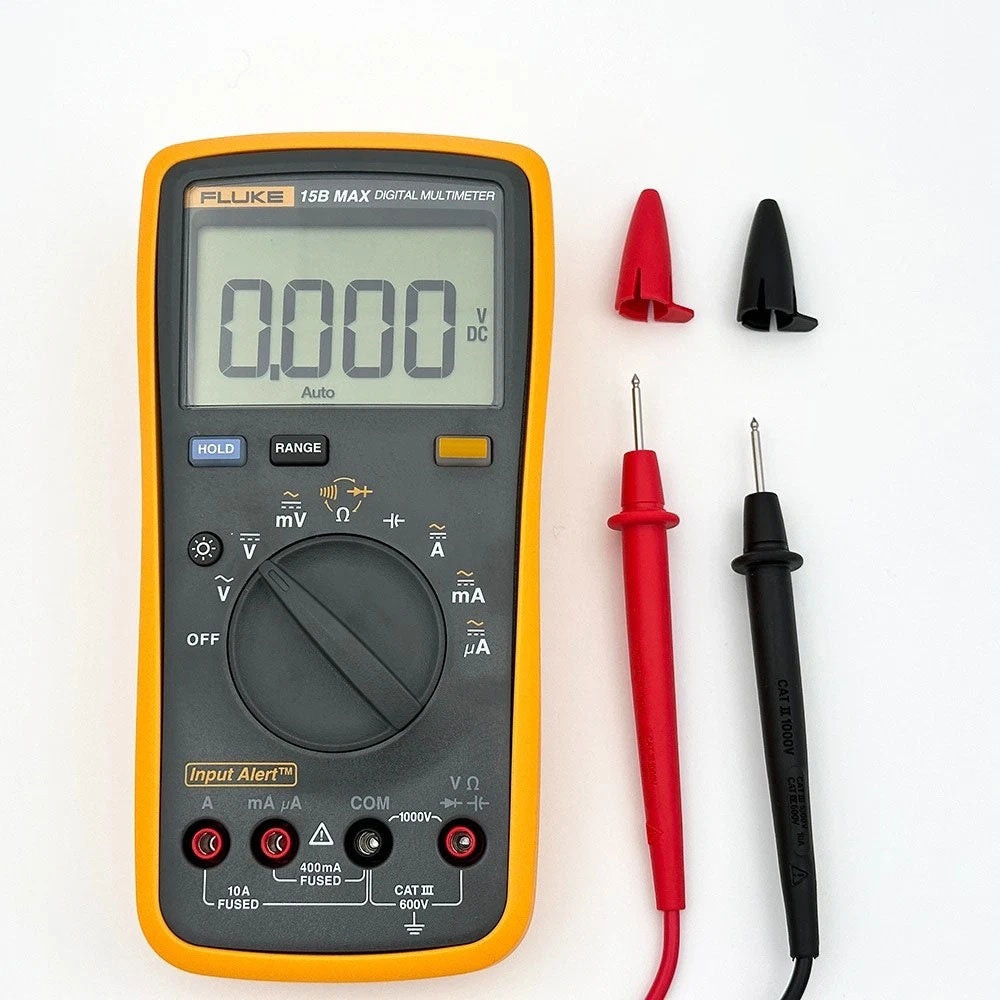

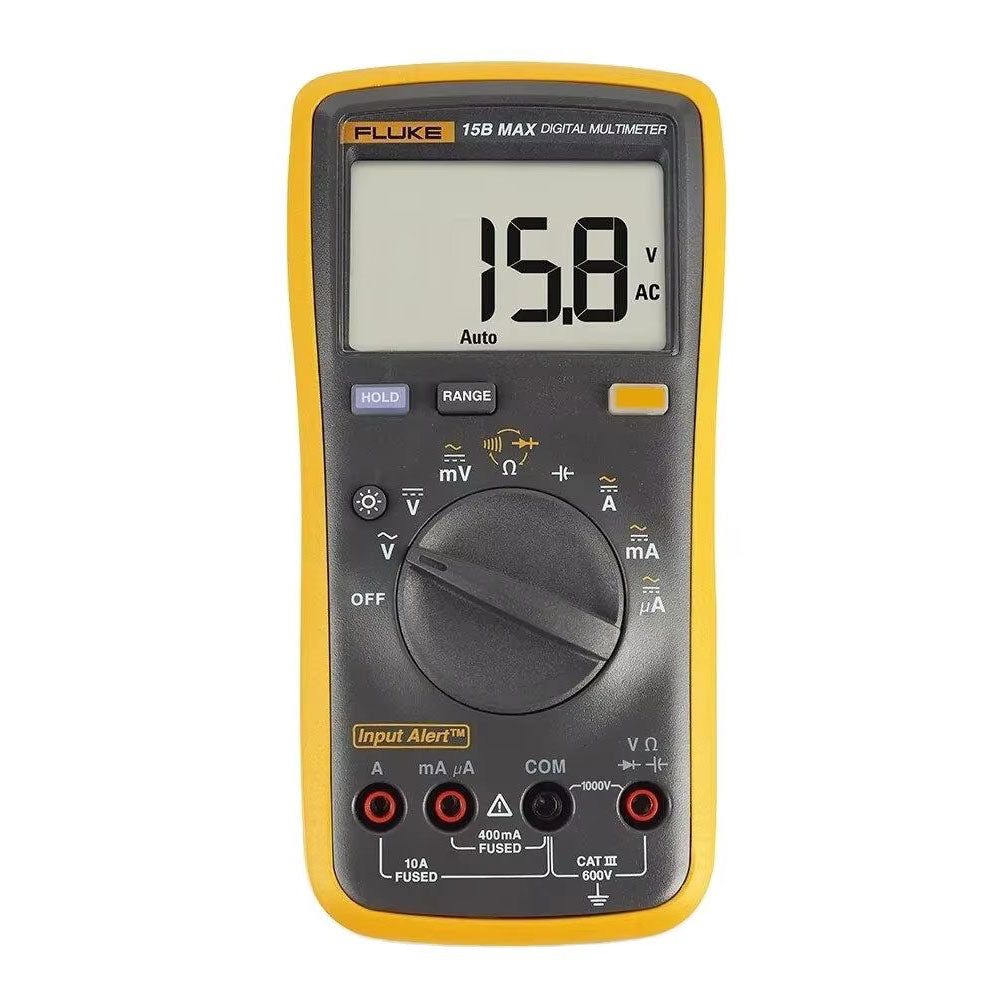

The Fluke 15B MAX-01 is a cost-effective digital multimeter designed for electrical technicians and electronics R&D professionals. An upgraded version of the classic Fluke 15B+, it retains the original's durable and reliable design while incorporating targeted improvements in safety protection, probe precision, and wake-up functionality. The "-01" suffix typically denotes the standard configuration, which comes factory-equipped with high-quality TL75 fine-tip test leads.
Core Functions & Upgraded Selling Points
• Audible and visual alarm for wrong terminal insertion: The multimeter delivers audio and visual alerts if test leads are inserted into incorrect jacks, protecting the device from blown fuses and damage due to misoperation.
• Fine-tipped PCB test leads: Standard slender probe tips enable precise measurement and fault detection for high-density printed circuit boards.
• Universal one-key wakeup: Simply press any key to wake the unit directly from auto-sleep mode for straightforward operation.
• Budget-friendly entry-grade tool: This economical Fluke model maintains premium build quality and lowers procurement costs for professional users.
Key Technical Specifications
• Display: 6000-count large LCD screen with 3 updates per second
• Voltage Measurement Range: Supports AC and DC voltage up to 1000 V
• Capacitance Measurement Range: Maximum measurable value reaches 2000 μF
• Safety Rating: Certified CAT III 600 V to guarantee user safety during field tests

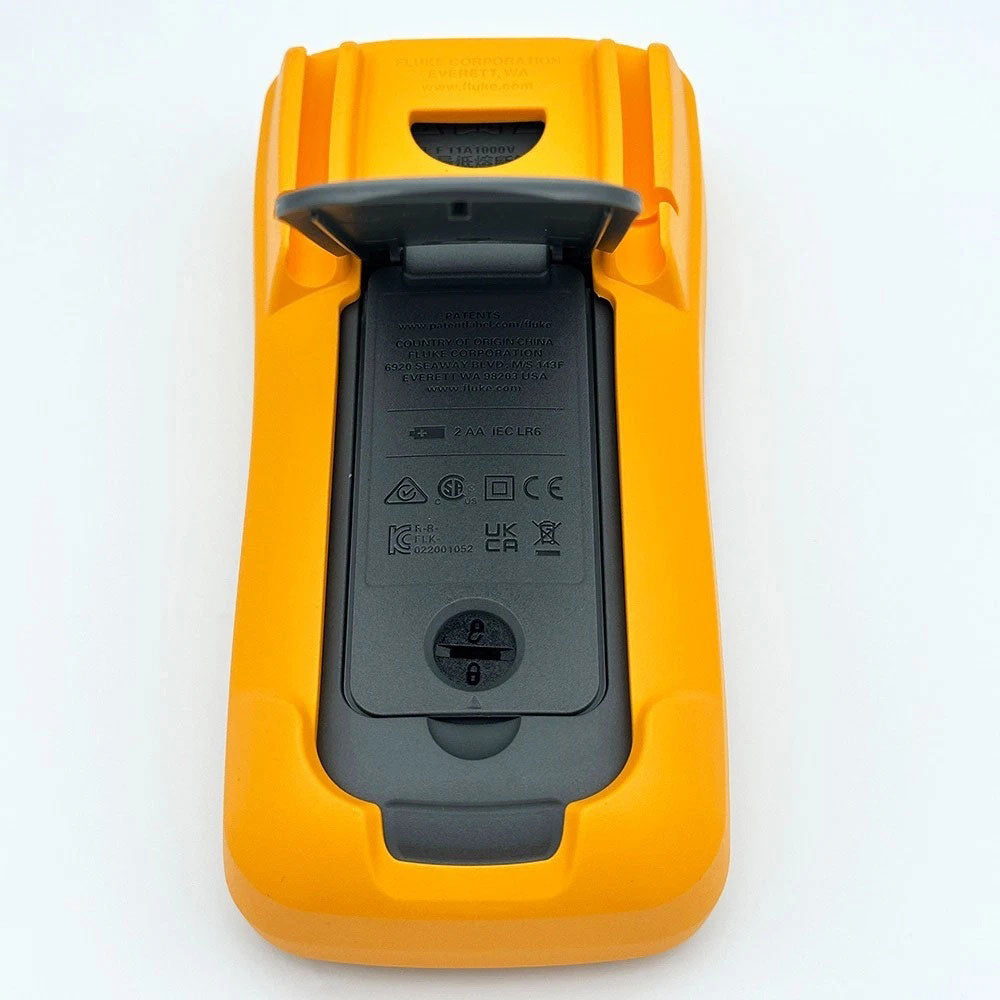

• Battery Life: Powered by 2 AA batteries with a minimum runtime of 500 hours
• Durable Housing: Passes 1-meter drop test. Its gold-plated rotary switch maintains stable contact after 30,000 rotations
