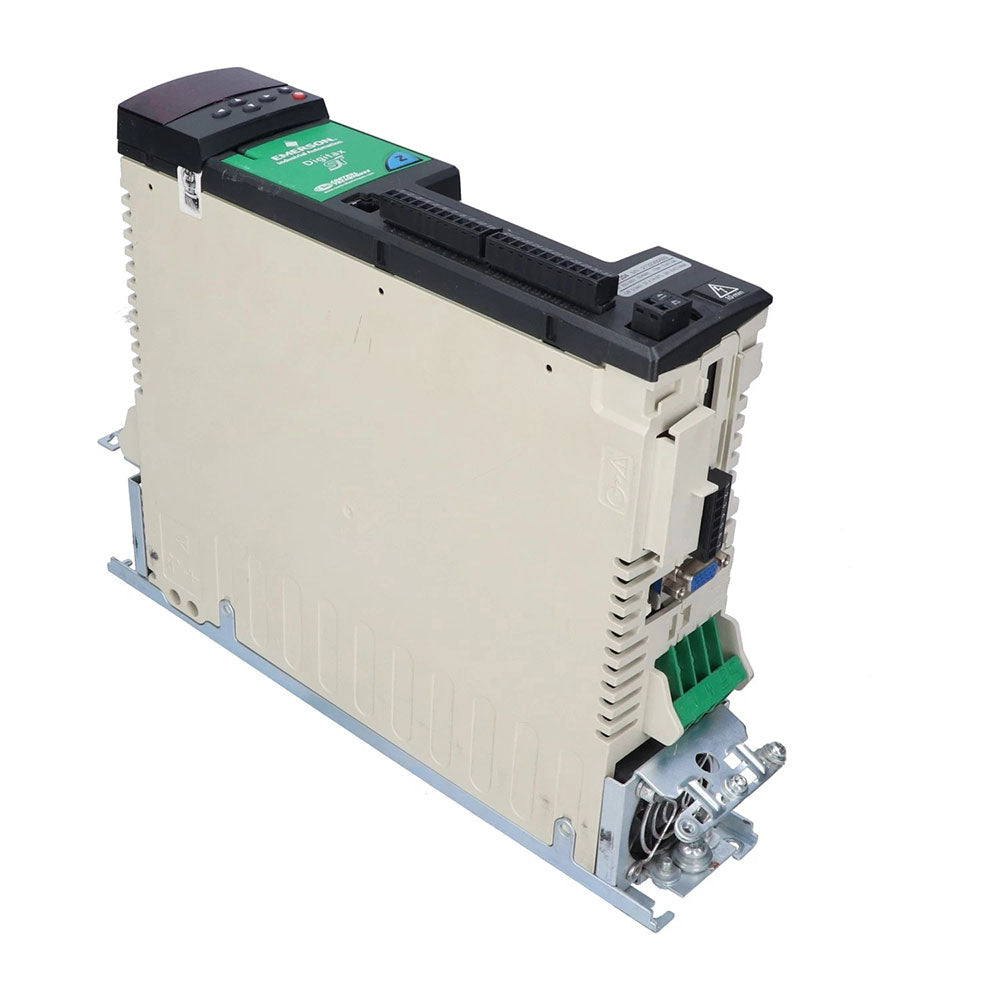

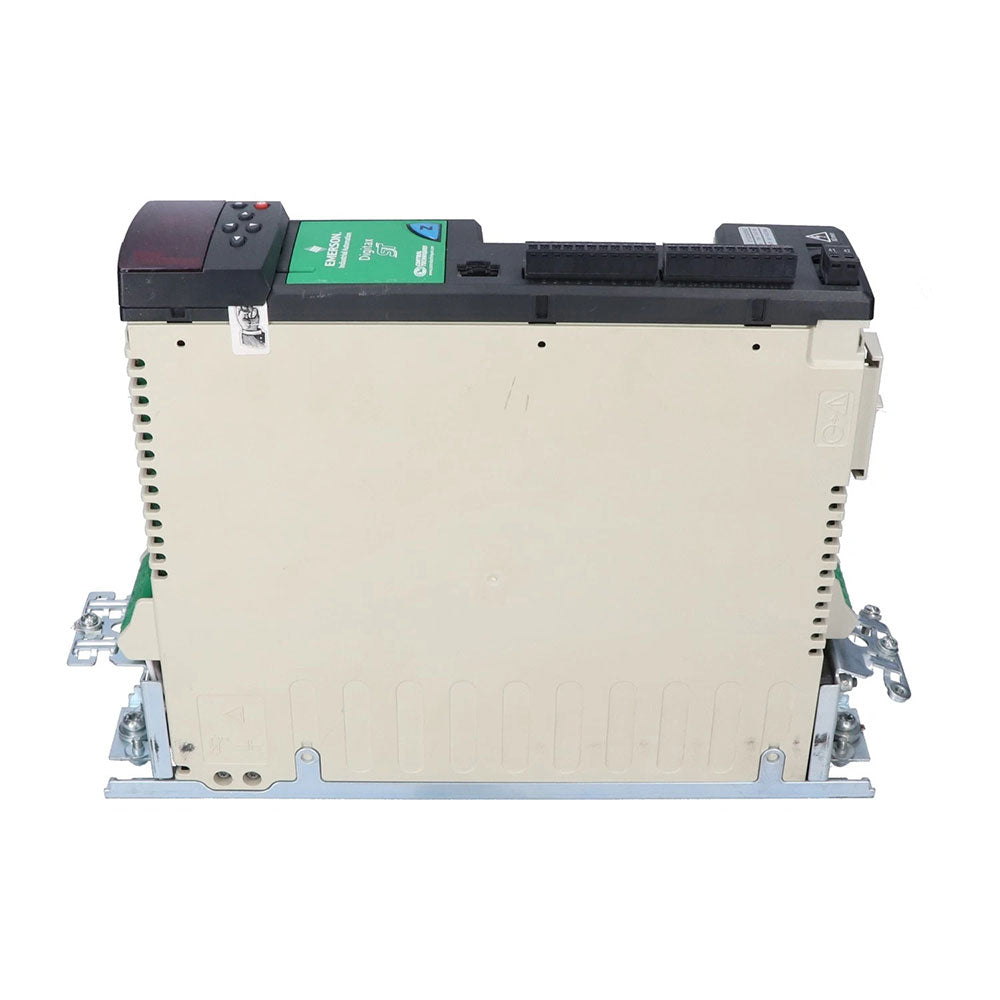

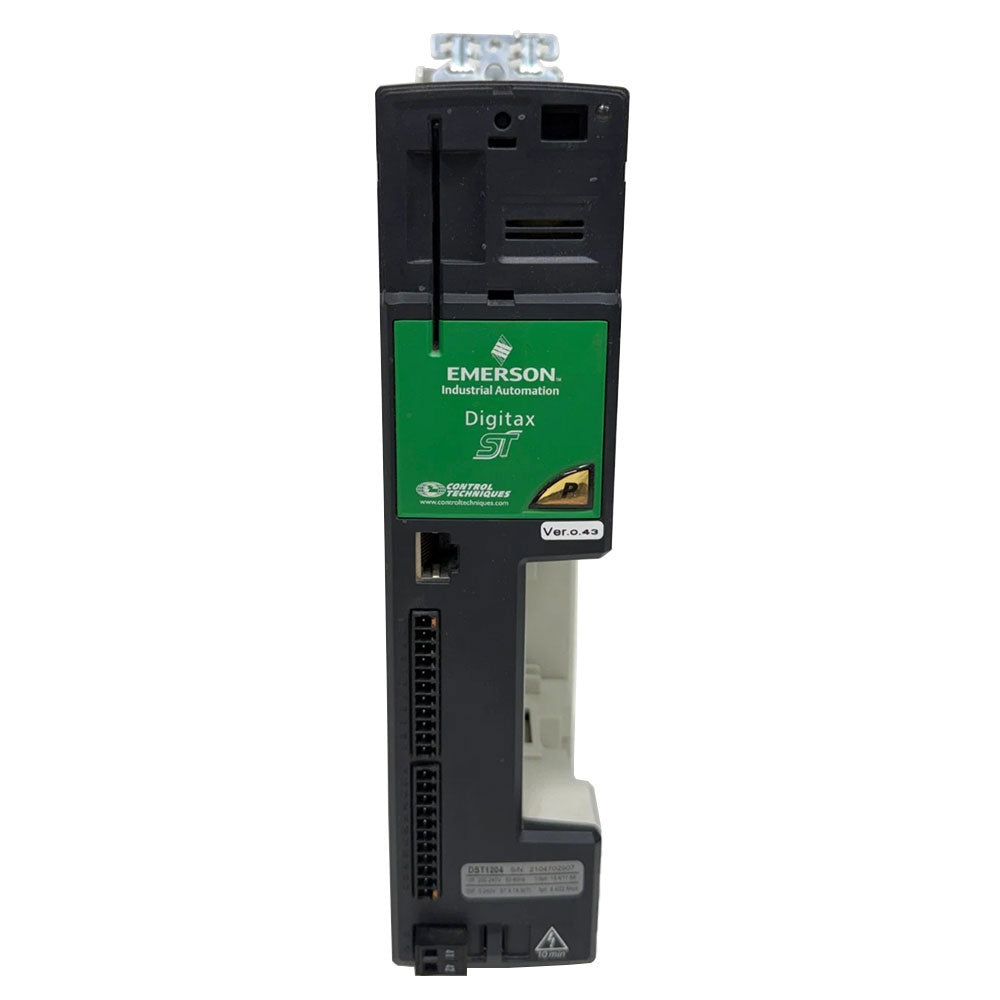

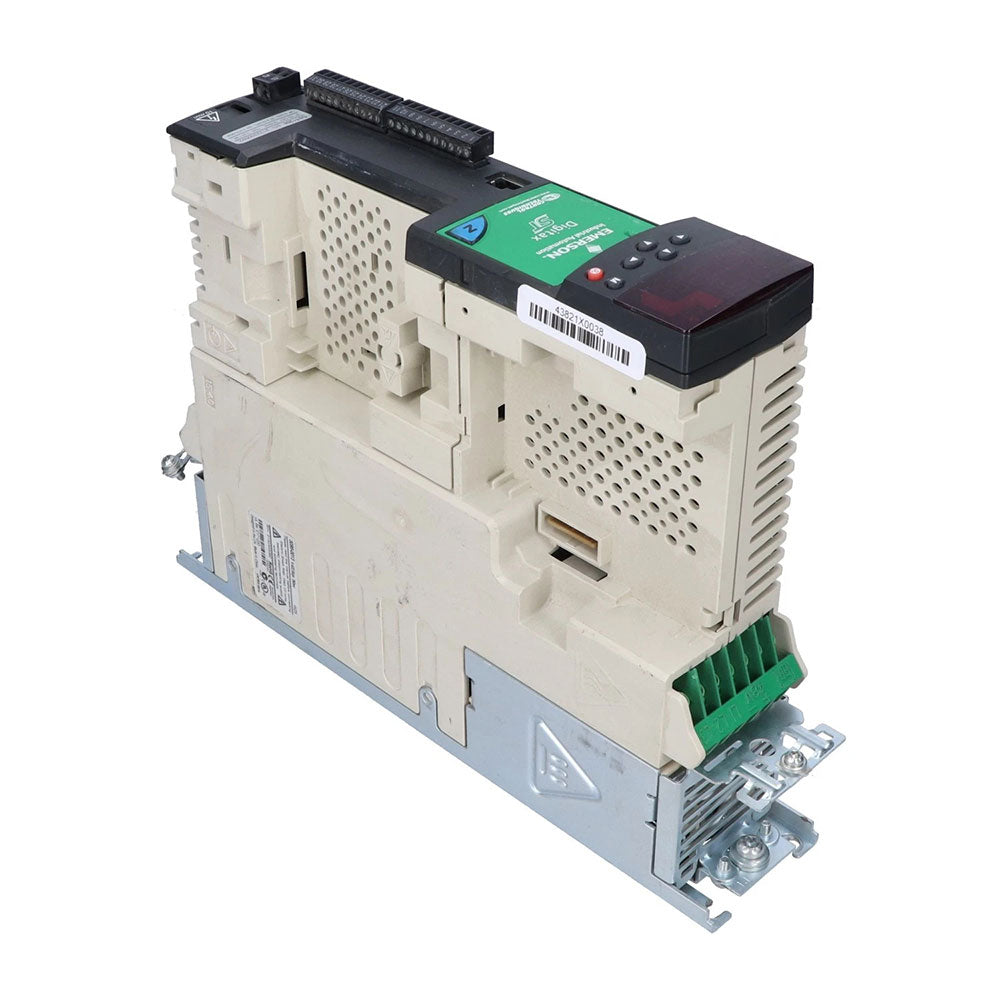

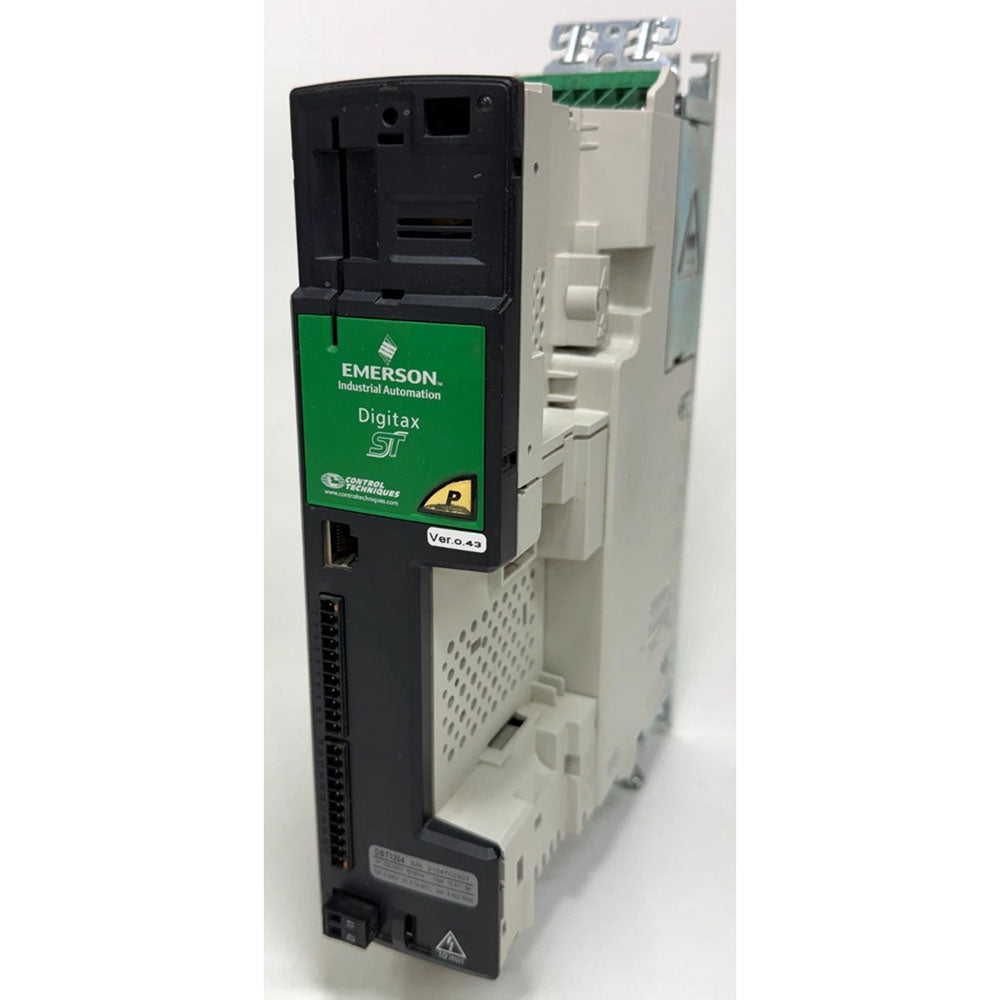

Control Techniques DST1204 Digitax ST Servo Drive – 7.6A 230V
The DST1204 is a high-performance servo drive from the Control Techniques Digitax ST series, delivering 7.6A continuous current and 22.8A peak current (300% overload). It operates on 200-240 VAC three-phase power and supports position, velocity, and torque control modes.
Key Features:
· Peak torque capability: Up to 300% of rated torque
· Continuous current: 7.6 A RMS
· Peak current: 22.8 A RMS
· On-board encoder input: Supports incremental, SinCos, Hiperface, EnDAT, and SSI encoders
· Safe Torque Off (STO): Integrated safety function
· Communication: RS485 serial with Modbus, optional EtherCAT, CANopen, PROFIBUS, SERCOS
· I/O: 3 digital inputs, 3 bidirectional digital I/O, 1 relay output, 2 analog inputs, 2 analog outputs
Technical Specifications:
· Voltage: 200-240 VAC ±10%, three-phase
· Continuous Current: 7.6 A
· Peak Current: 22.8 A
· Power: 2.2 kW (typical)
· Dimensions (H × W × D): 226 × 65 × 325 mm
· Weight: 4.5 kg
· Protection Class: IP20
· Operating Temperature: 0°C to 50°C
Applications:
· Pick-and-place robotics
· CNC machinery
· Packaging equipment
· Printing and labeling machines
· Material handling systems
