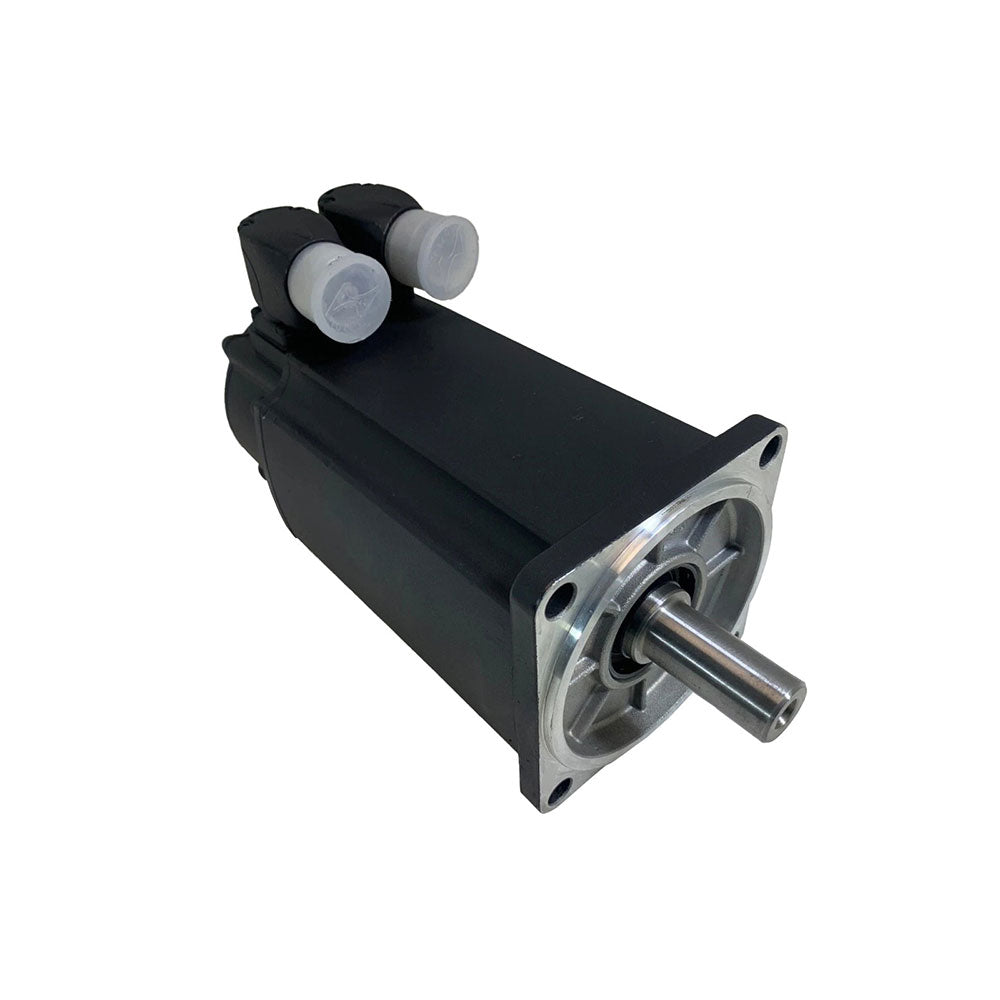

Model MSK050C-0600-NN-S1-UP0-NNNN (Bosch Rexroth part number: R911299912) is a high-performance permanent-magnet synchronous servo motor from the IndraDyn S series. Characterized by high dynamic response, high torque density, and a compact design, this motor is widely used in industrial automation and motion control systems.
Core Technical Specifications
The physical and electrical parameters of this motor are shown as follows:
• Continuous Stall Torque (60K / 100K): 5.0 Nm / 5.5 Nm
• Peak Torque: 15.0 Nm
• Continuous Stall Current (60K / 100K): 6.2 A / 6.8 A
• Peak Current: 24.8 A
• Rated / Maximum Speed: 6,000 RPM
• Number of Pole Pairs: 4
• Protection Class: IP65
Model Code Detailed Breakdown
• MSK: Represents motor series, IndraDyn S three-phase synchronous servo motor series.
• 050: Represents motor frame size, frame size 050 specification.
• C: Represents stator stack length.
• 0600: Represents winding design, rated maximum synchronous running speed 6,000 rpm.
• NN: Represents cooling method, natural convection without built-in fan or water cooling.
• S1: Represents encoder type, single-turn absolute optical encoder, supports high-precision photoelectric closed-loop control.

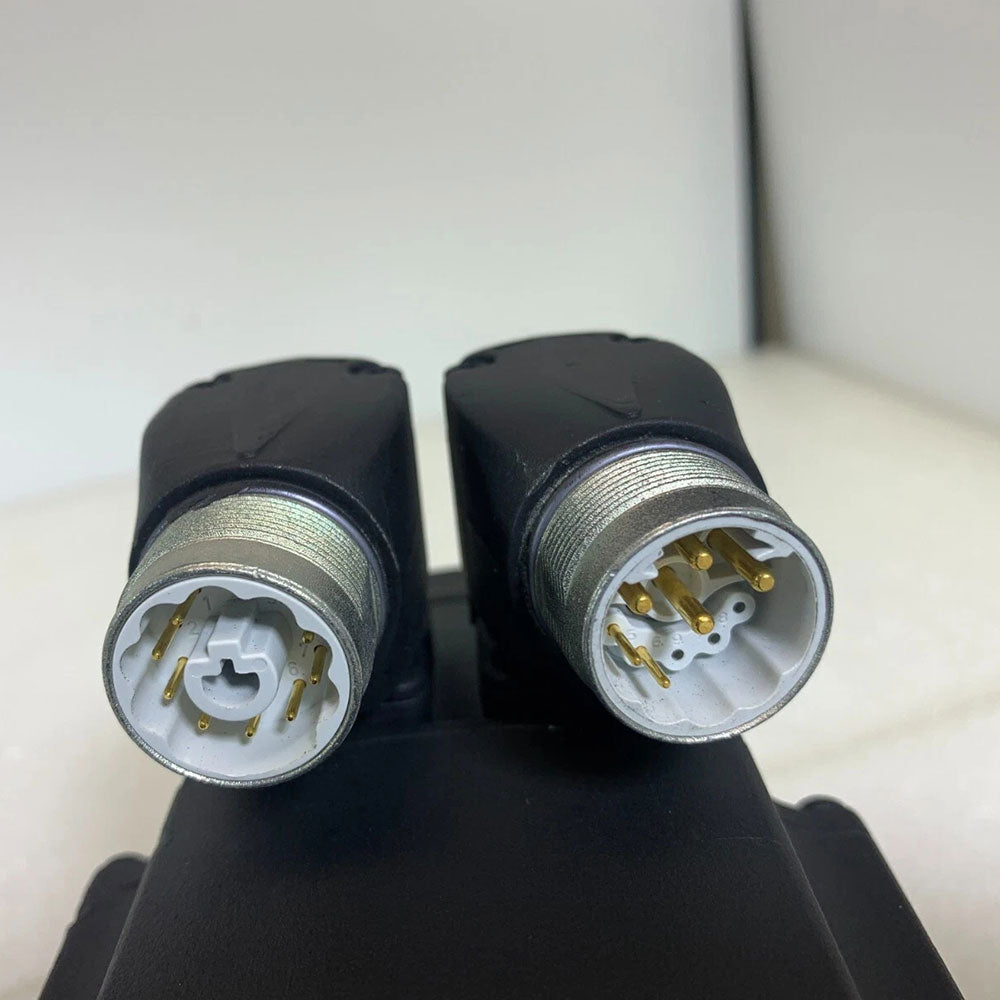

• U: Represents electrical connection mode, equipped with rotatable plug connector, cable outlet direction can be flexibly adjusted during installation.

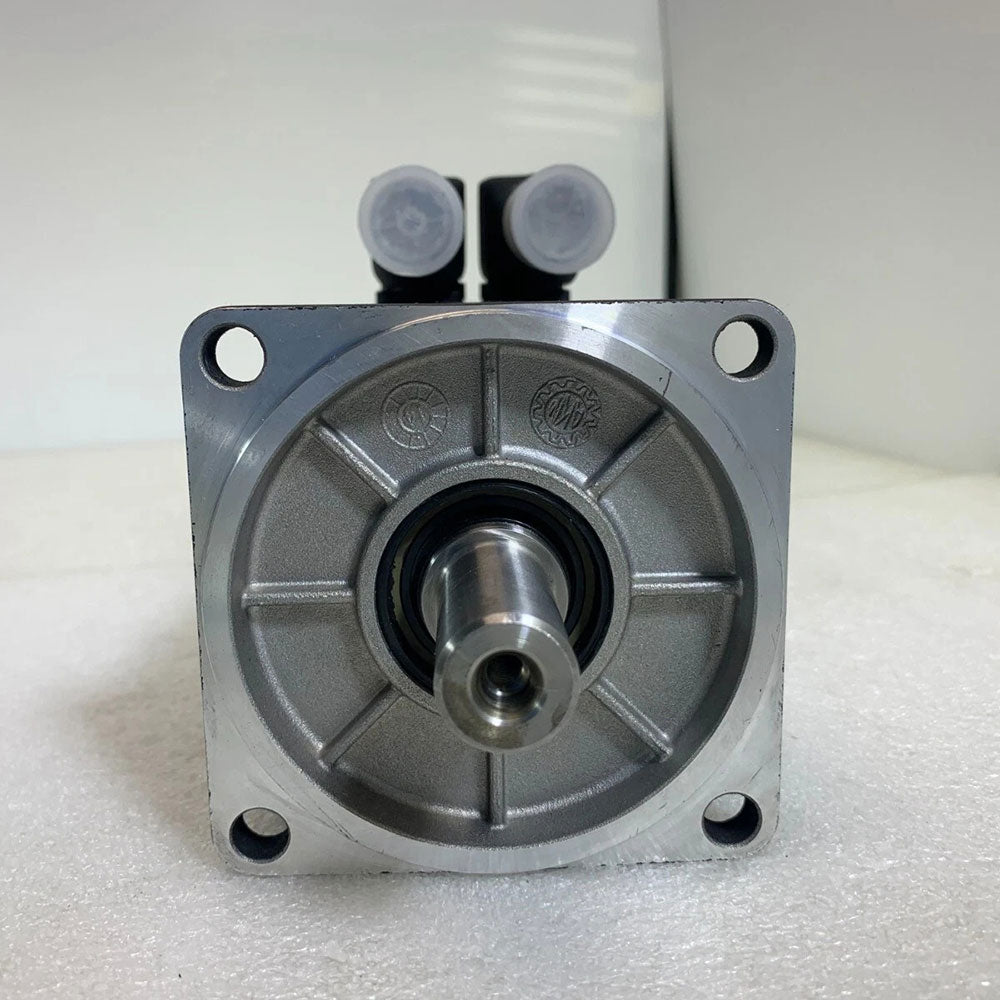

• P: Represents shaft version, shaft with keyway, fitted with shaft seal ring complying with DIN 3760 standard.
• 0: Represents brake configuration, without electromagnetic holding brake.
• NNNN: Represents standard design variant.
