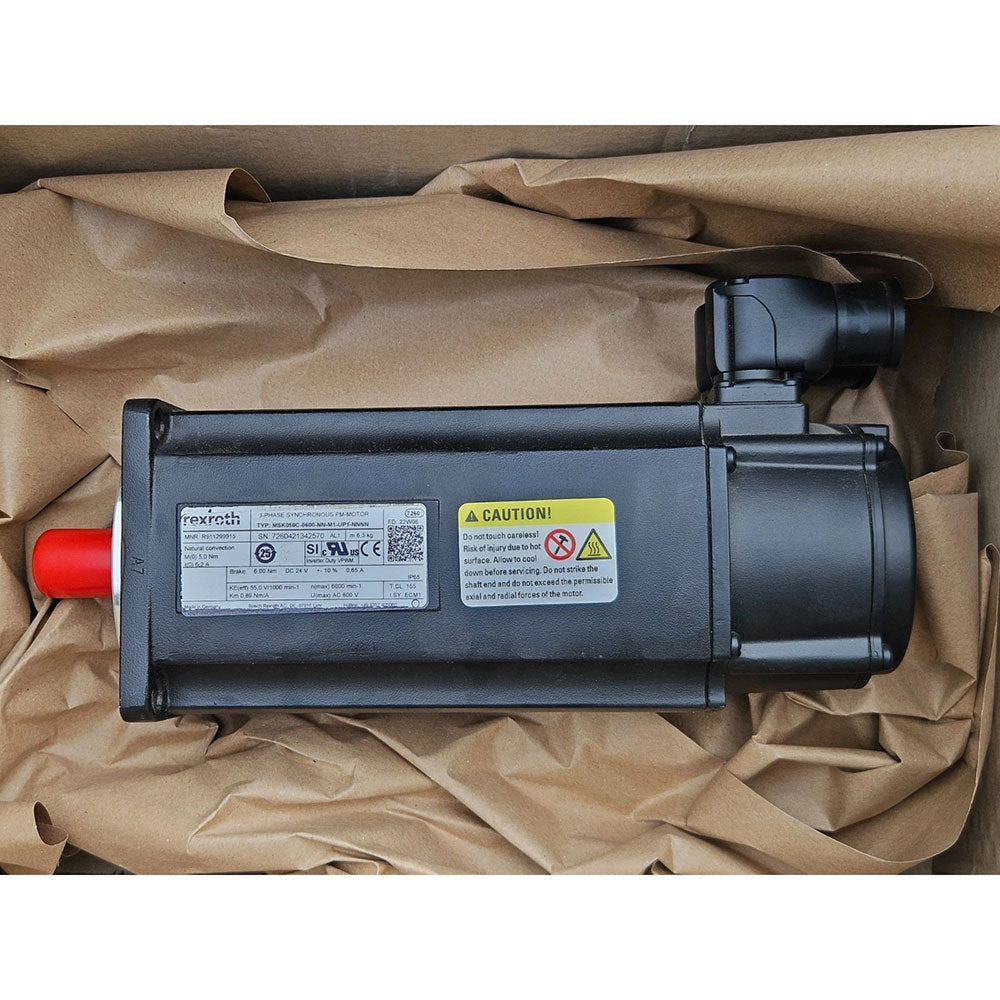

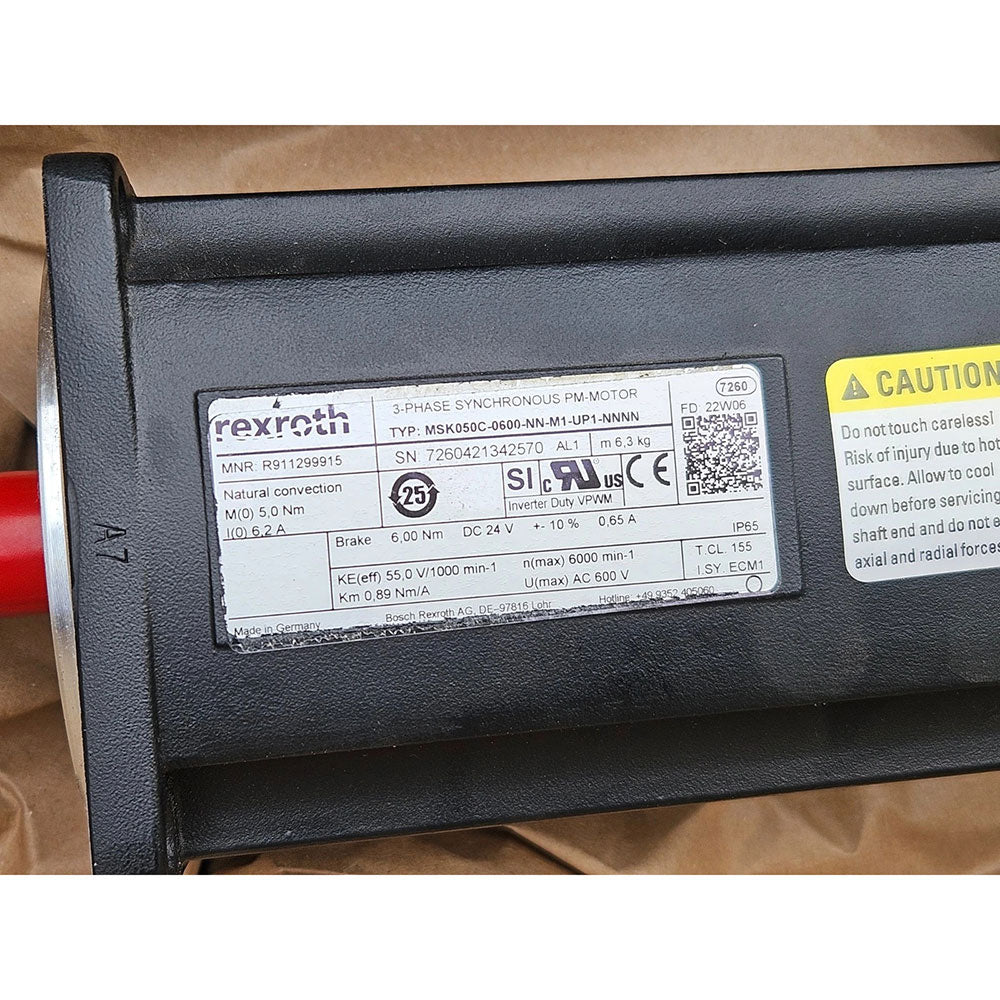

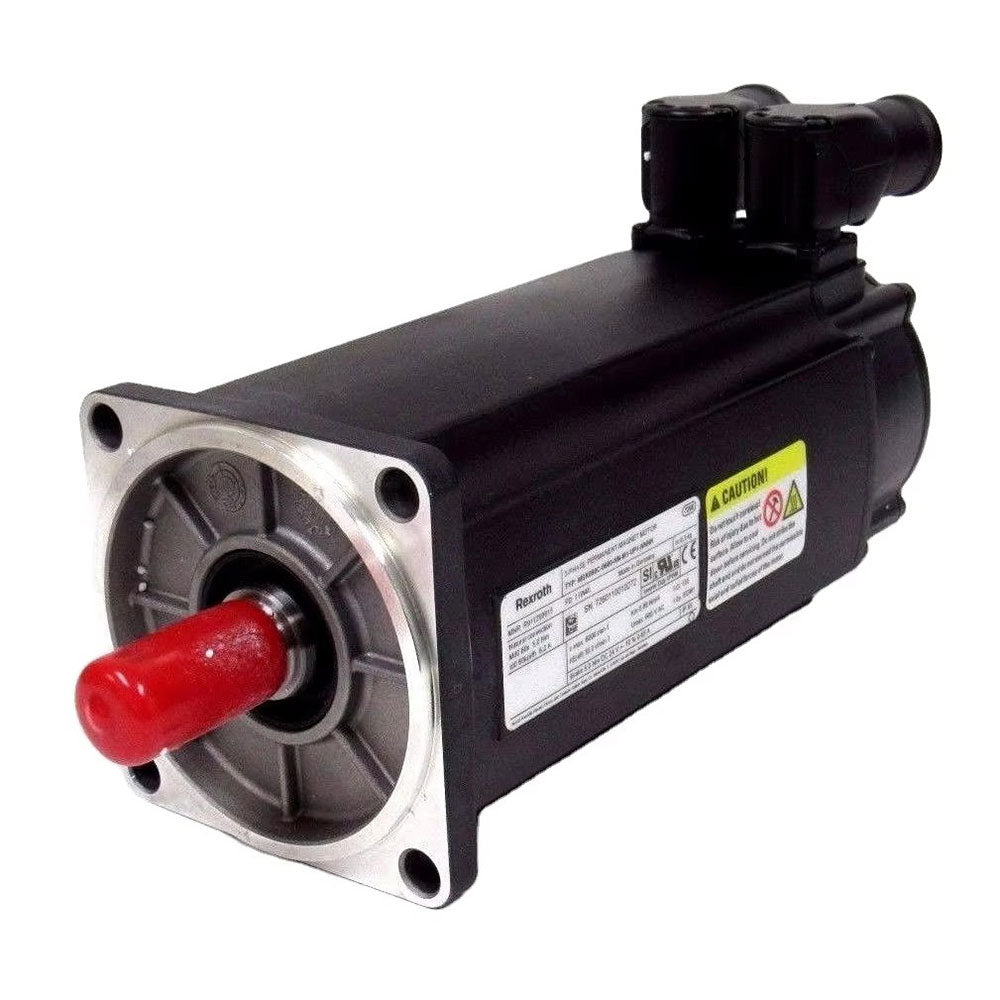

The model MSK050C-0600-NN-M1-UP1-NNNN is an IndraDyn S series synchronous servo motor manufactured by Bosch Rexroth (typically with the order number R911299915). This motor is widely used in high-performance motion control applications, such as CNC machine tools, packaging machinery, and automated production lines.
Core Technical Specifications
• Continuous Stall Torque (100K): 5.5 Nm
• Continuous Stall Current (100K): 6.8 A
• Peak Torque: 15.0 Nm
• Peak Current: 24.8 A
• Maximum Speed: 6,000 RPM
• Protection Class: IP65, high dustproof and waterproof
• Net Weight: Approx. 6.3 kg with holding brake
Model Code Detailed Breakdown
• MSK: Motor series, IndraDyn S synchronous servo motor series
• 050: Motor frame size, 050 specification (stands for specific mechanical dimension)
• C: Stator stack length, longer lamination stack within this frame size for higher torque output
• 0600: Winding speed rating, maximum synchronous speed up to 6,000 RPM
• NN: Cooling method, Natural Convection, no external fan or water cooling
• M1: Encoder Type: Multi-turn absolute optical encoder (Multiturn-absolute Hiperface), supports high-precision position tracking and retains position after power-off

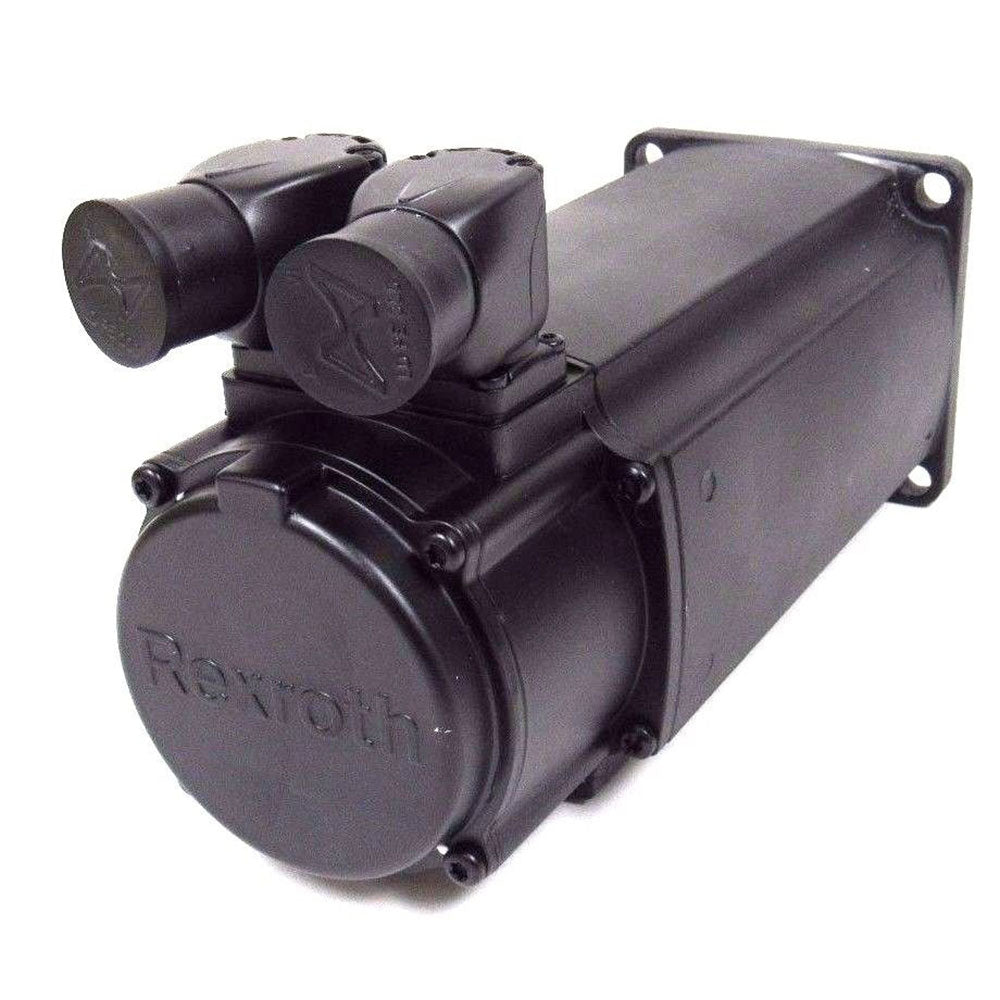

• U: Electrical Connection: 240° rotatable right-angle connector, convenient for wiring in all directions

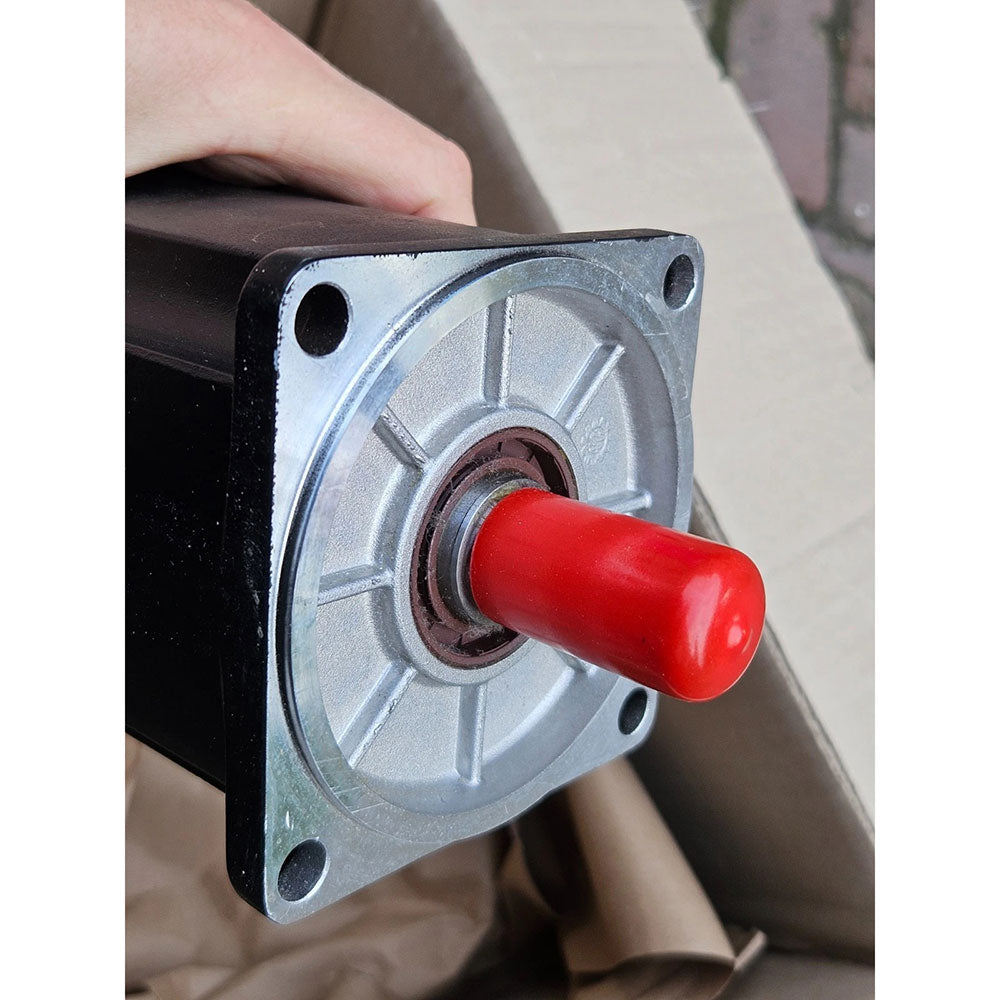

• P: Shaft Type: Keyed shaft with shaft seal for key drive connection
• 1: Holding Brake: Energized-release holding brake (Brake torque: 6 Nm), prevents vertical shaft falling or locking when power off
• NNNN: Variant Code: Standard version, no special custom modifications
