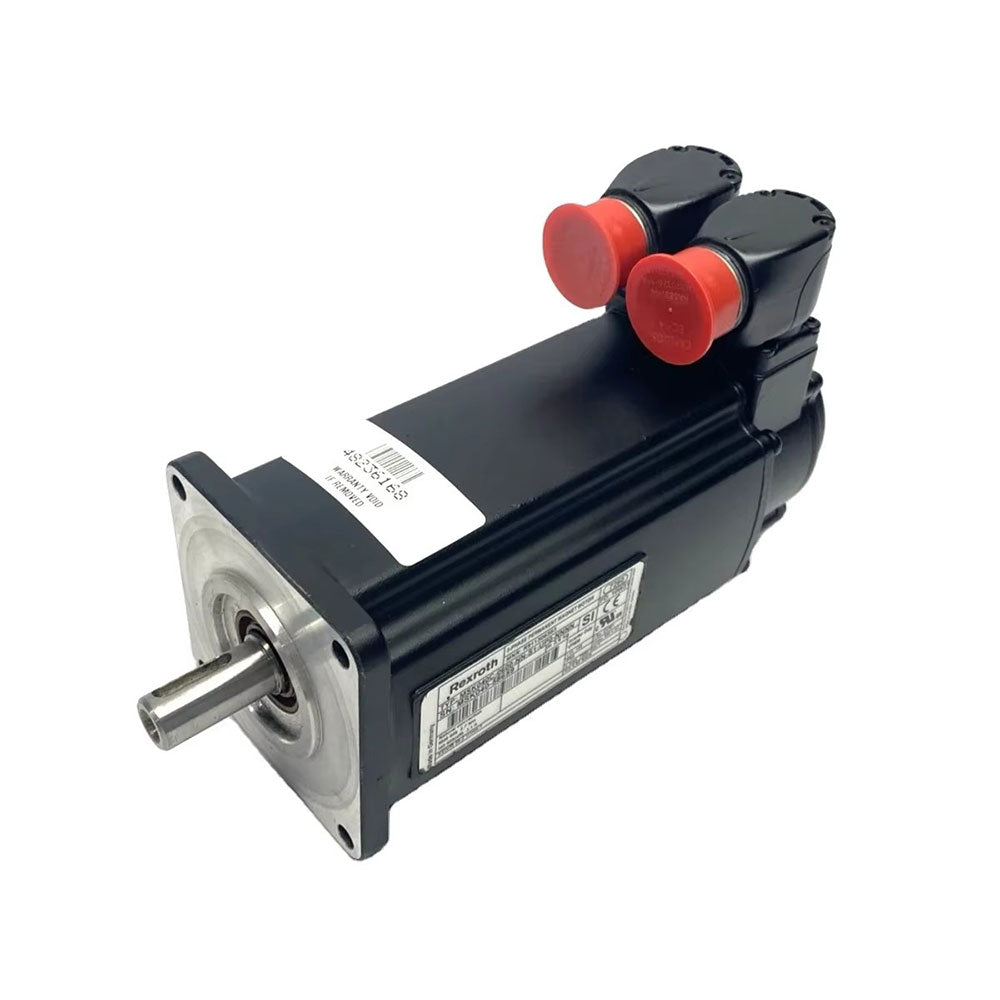

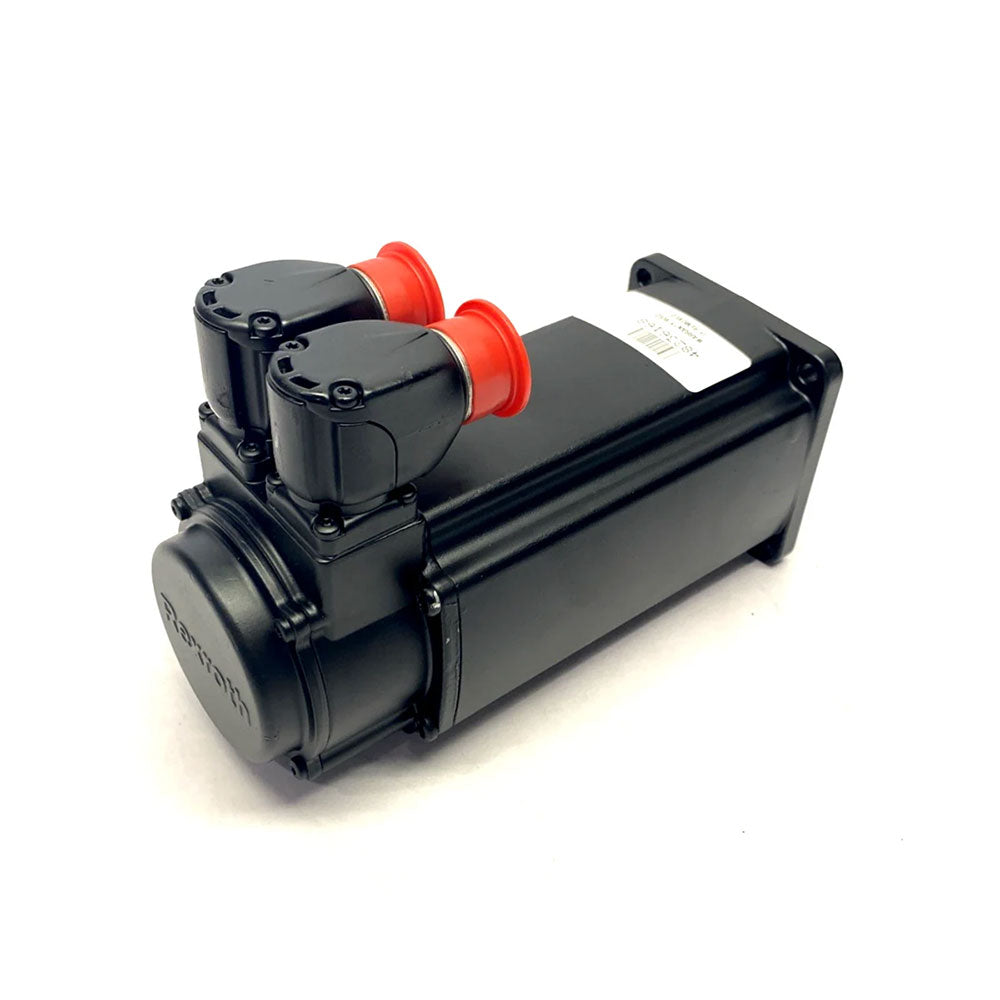

The MSK040C-0600-NN-S1-UP0-NNNN is an IndraDyn S series synchronous servo motor manufactured by Bosch Rexroth Indramat, with the official part number R911306383. This model is widely used in CNC machine tools, robotics, and various types of automation machinery.
Model Code Detailed Breakdown
• MSK: Represents motor series (IndraDyn S synchronous servo motor).
• 040: Represents motor frame size / dimension.
• C: Represents stator stack length (C length corresponds to housing overall length approx. 185.5 mm).
• 0600: Represents winding design, the maximum speed of this winding is 7,500 RPM.
• NN: Represents cooling method, natural convection without built-in fan.
• S1: Represents encoder type, single-turn absolute optical encoder with 128 signal periods/increments.

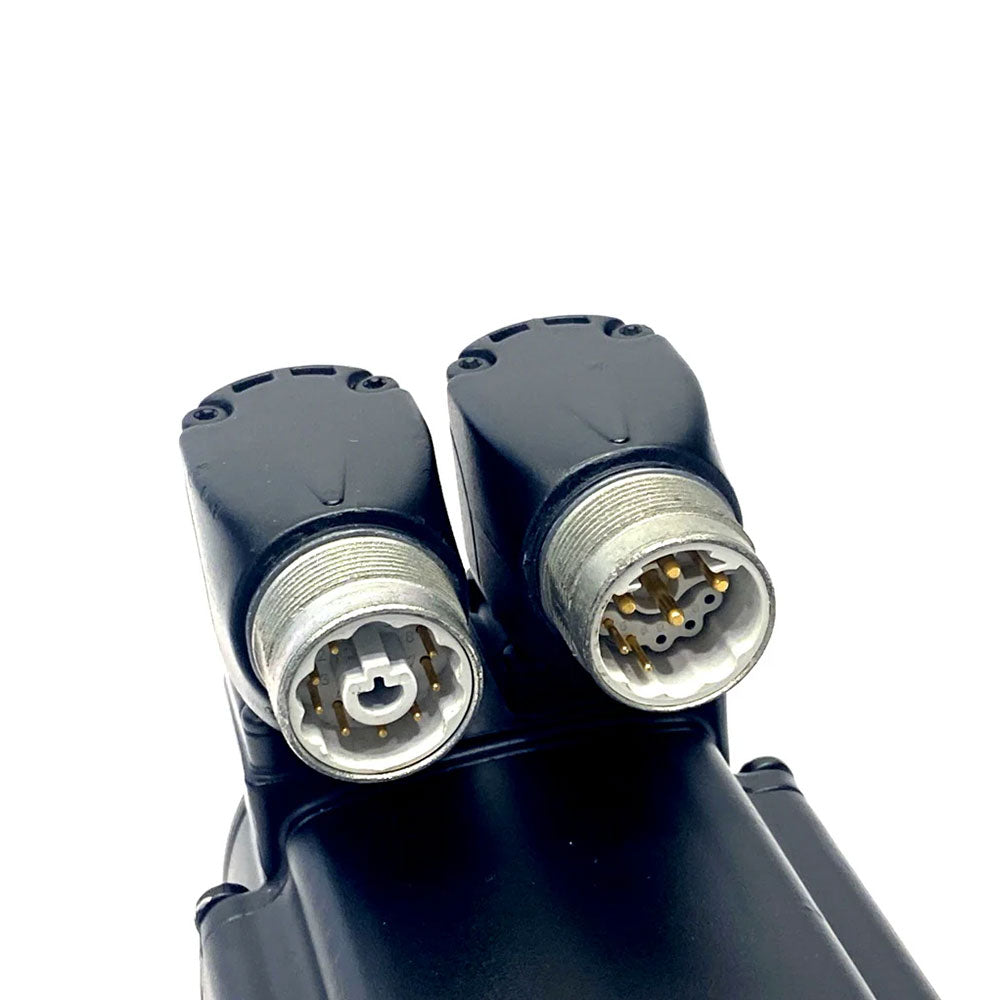

• U: Represents electrical connection mode (240° rotatable plug connector).

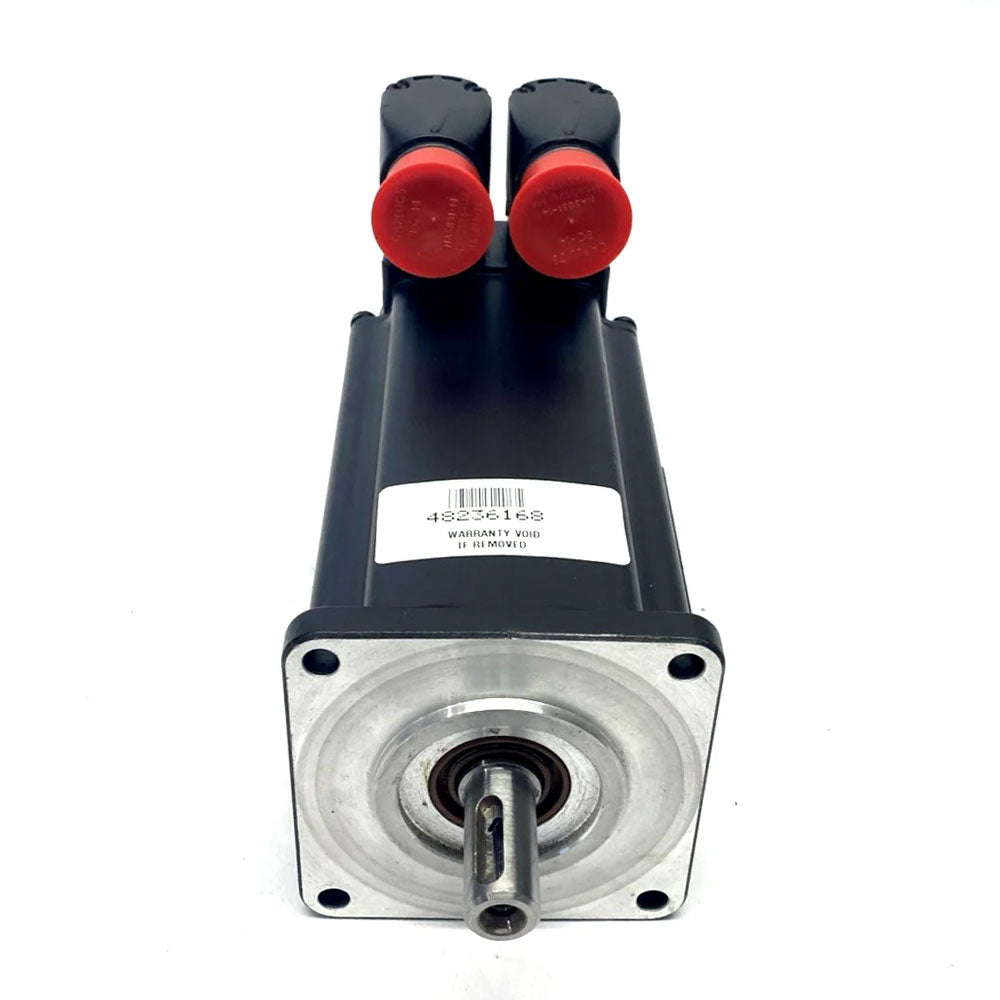

• P: Represents shaft version, shaft with keyway.
• 0: Represents brake configuration, without electromagnetic holding brake.
• NNNN: Represents standard design version.
Core Technical Specifications

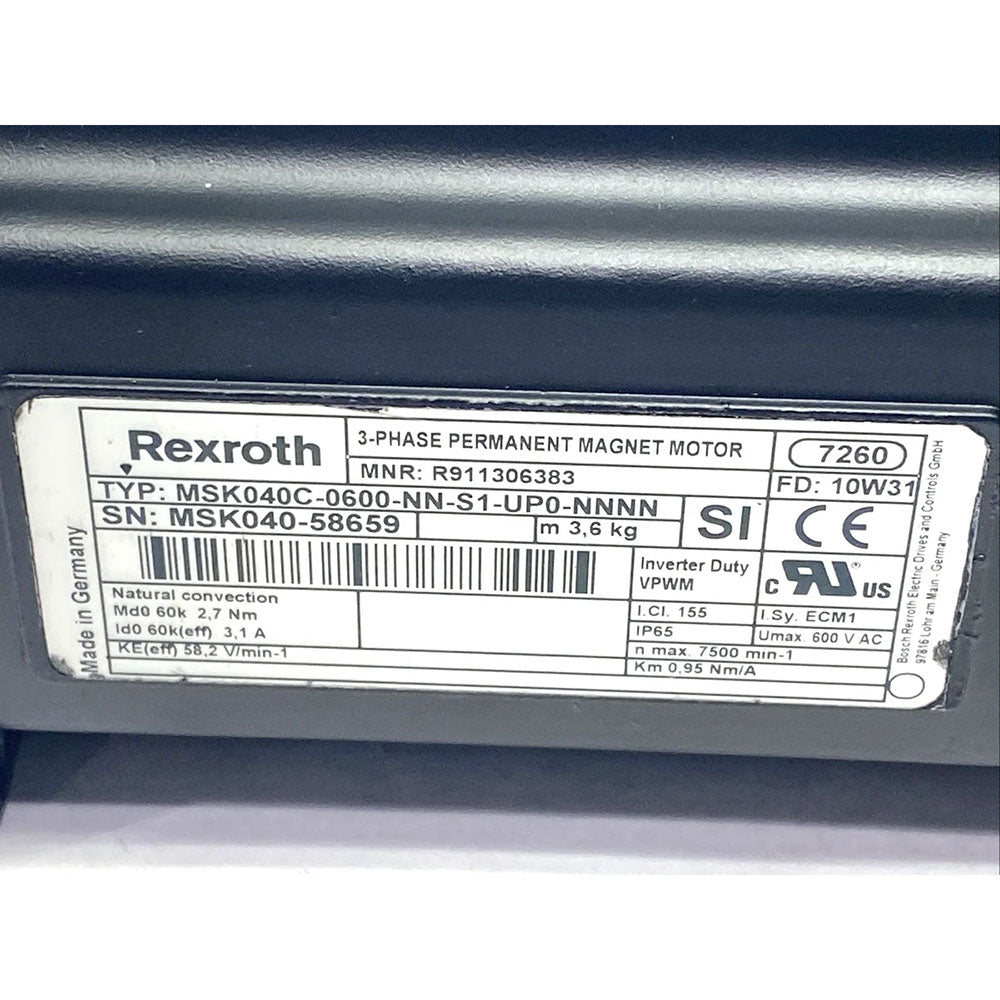

The physical and electrical parameters of this motor are shown as follows:
• Rated / Maximum Voltage: 600 VAC
• Continuous Stall Torque (M0_60): 2.7 Nm
• Maximum Output Torque (Mmax): 8.1 Nm
• Maximum Current (Imax): 12.4 A
• Phase / Material: 3-phase Permanent Magnet Synchronous Motor
• Net Weight: Approx. 3.6 kg
